Disco 4 (LR4) Rear ,side or head lights Live and indicator live wire

Liverghouls

Member

Posts

55

• Yesterday at 20:29

• #1

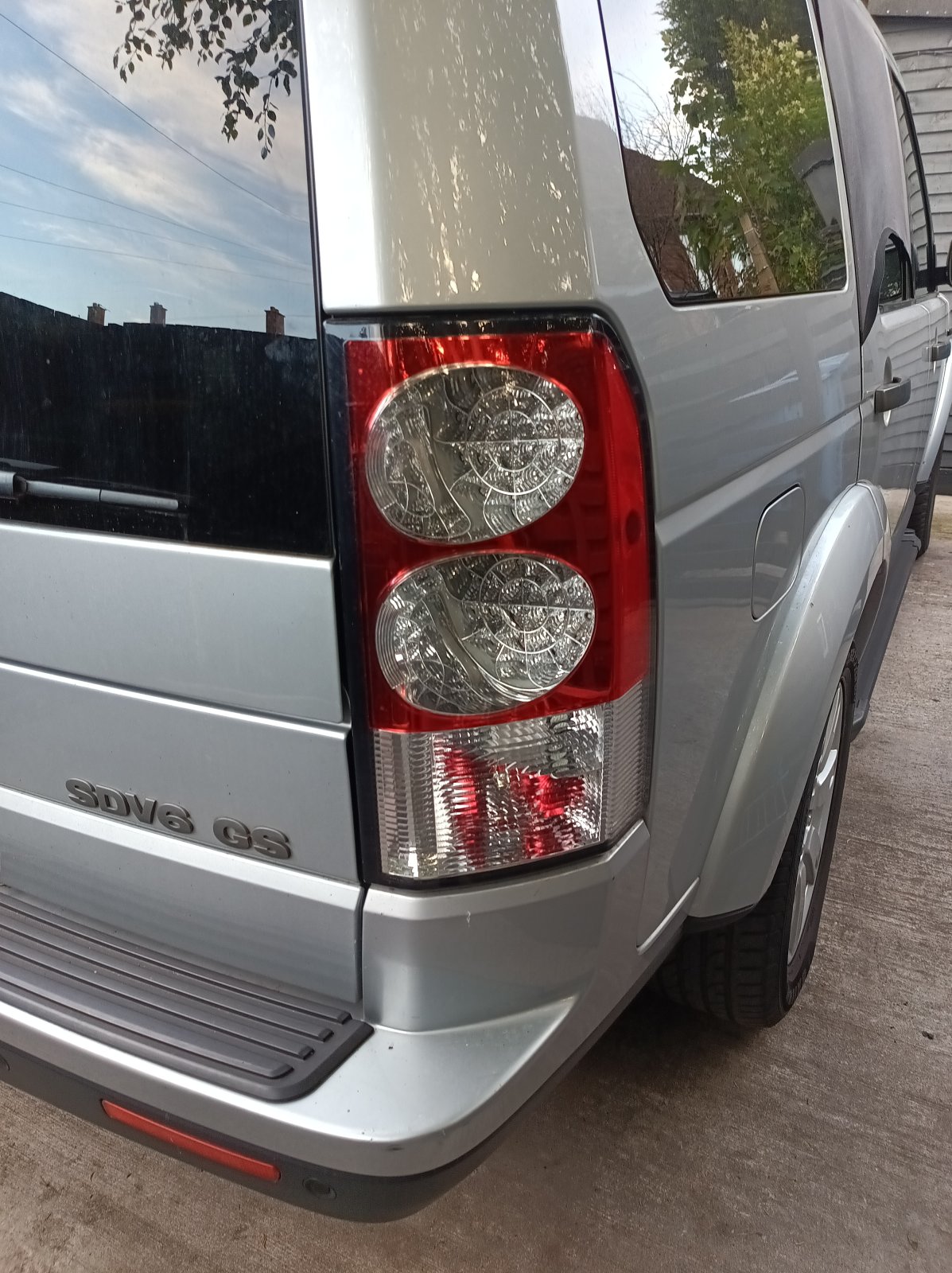

Hi all so I need to know does anyone out there know which wire is the live to the sidelights or back headlight at the back on the cluster please which colour will it be please if anyone knows that would be great and which wire on the back will be the indicator live please and thanks best wishes Tony



Attachments

•

  347.1 KB · Views: 6

gstuart

D3 Grandad

Full Member

Posts

31,084

Location

Kent

• Today at 04:11

• #2

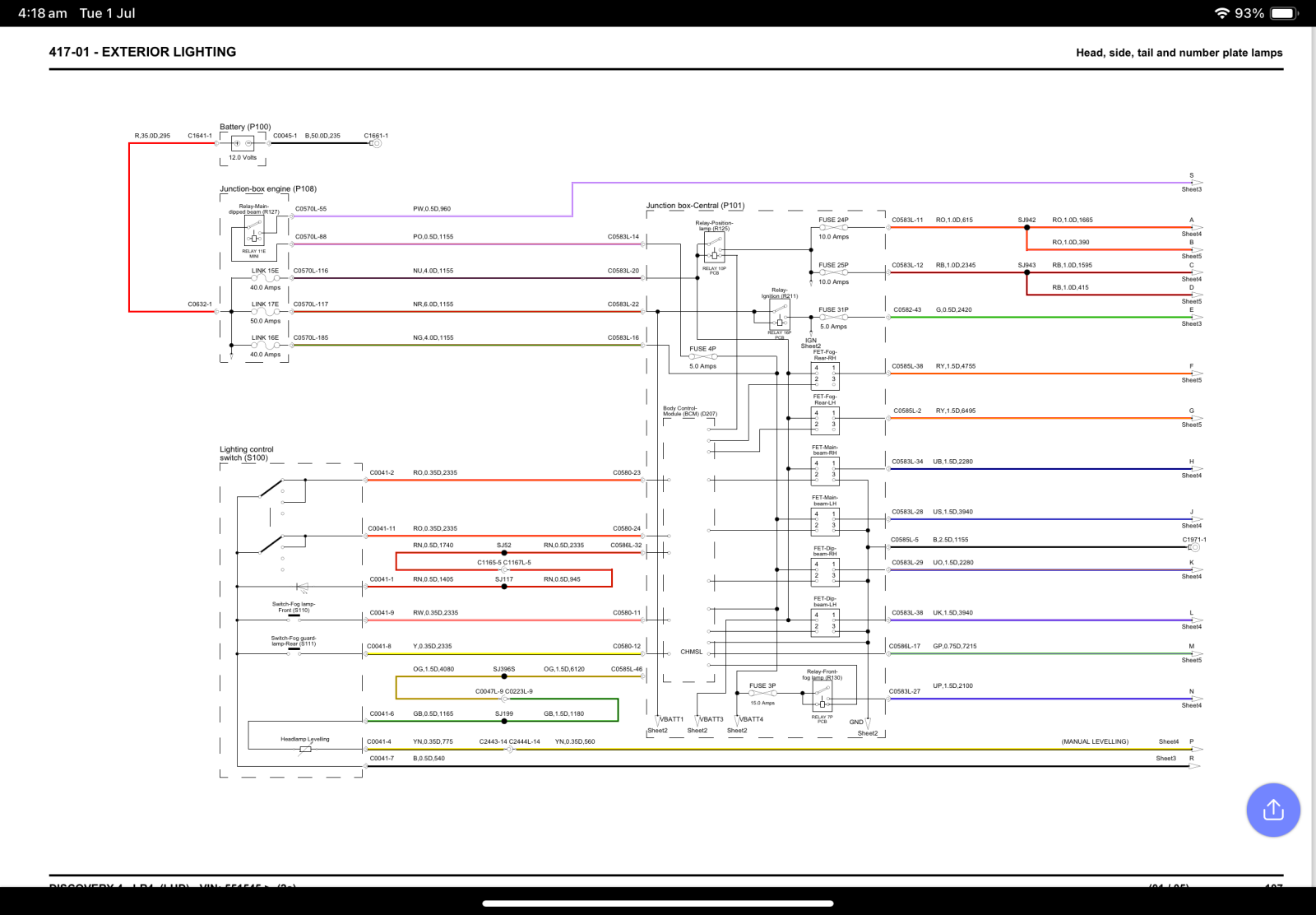

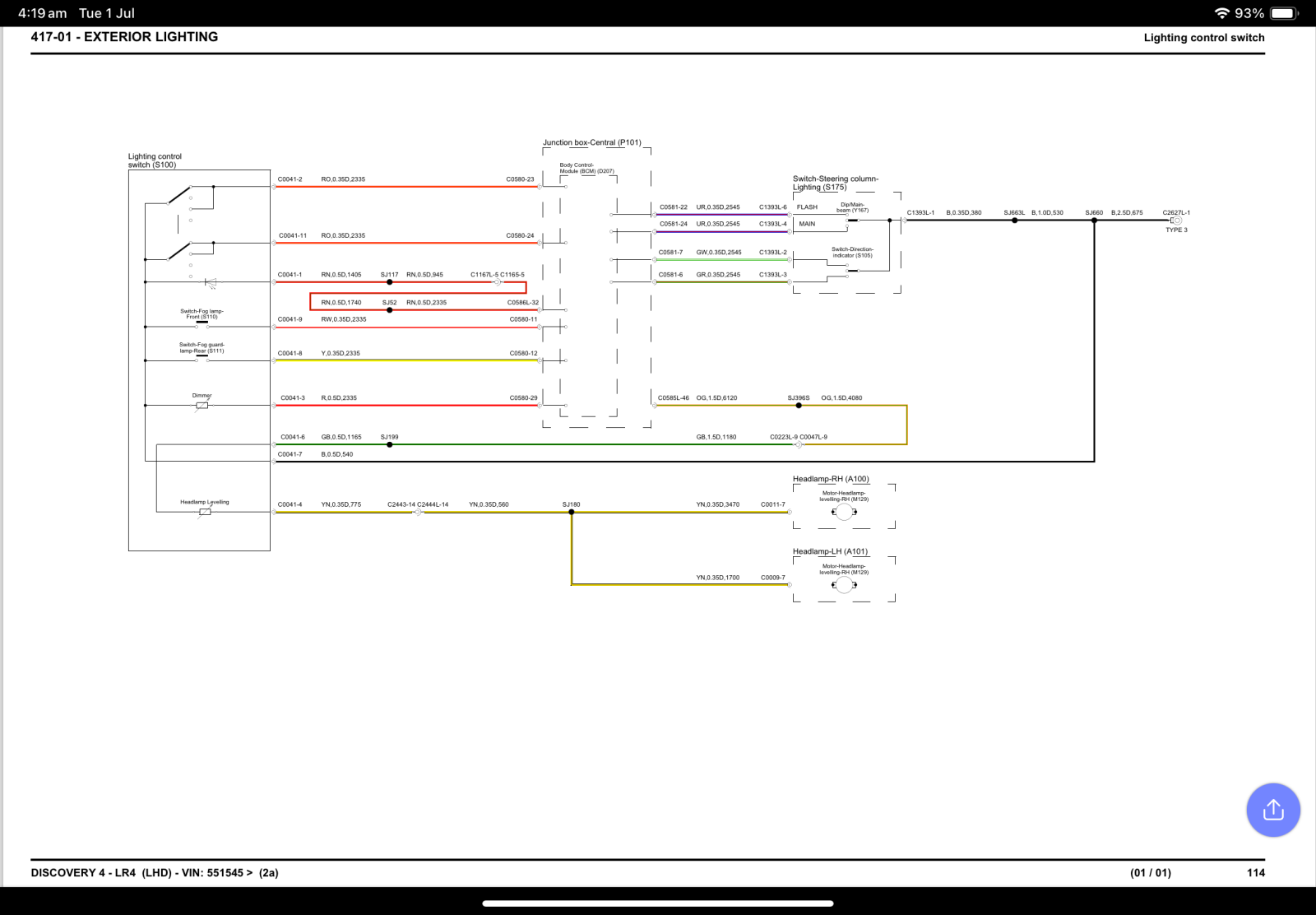

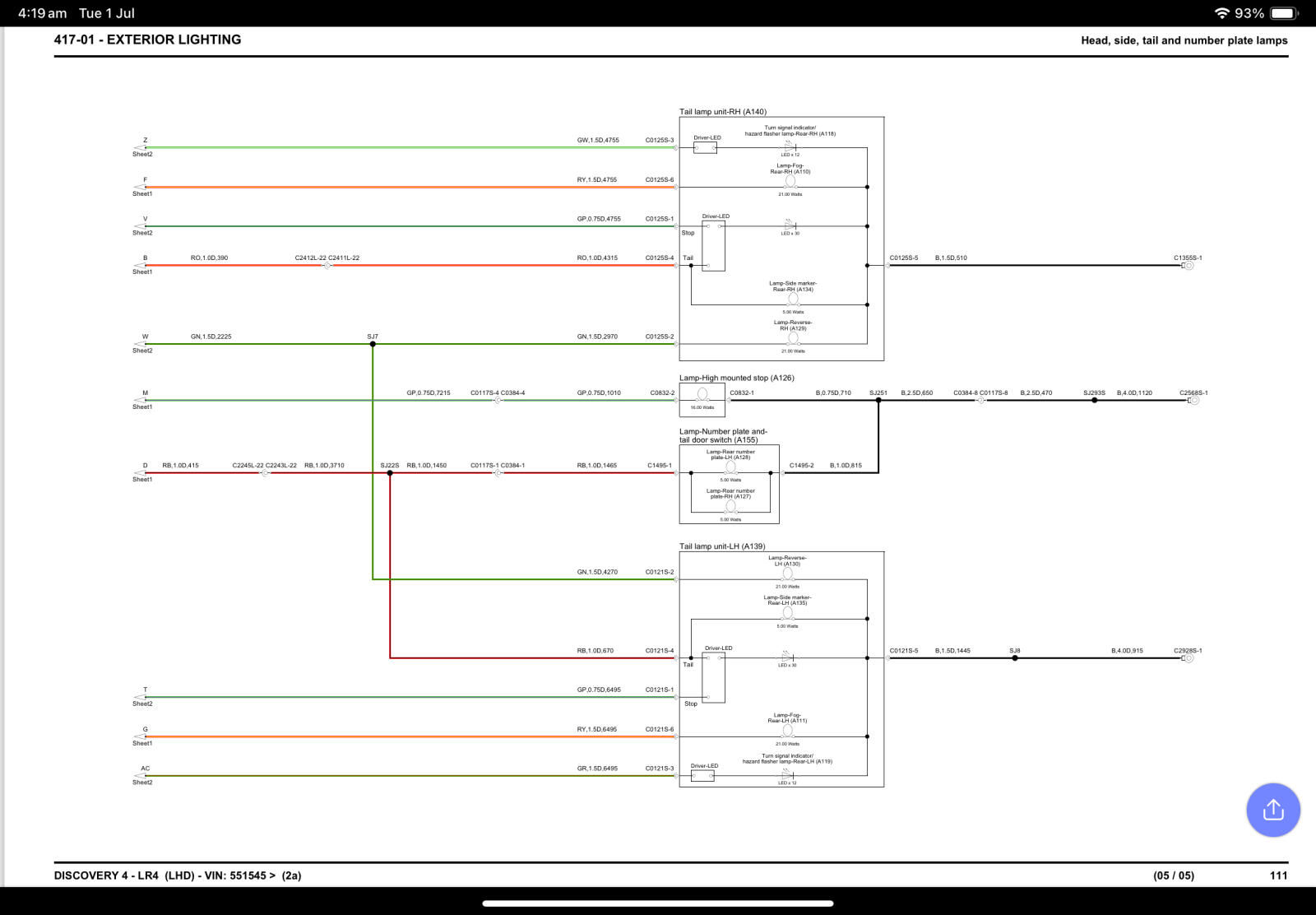

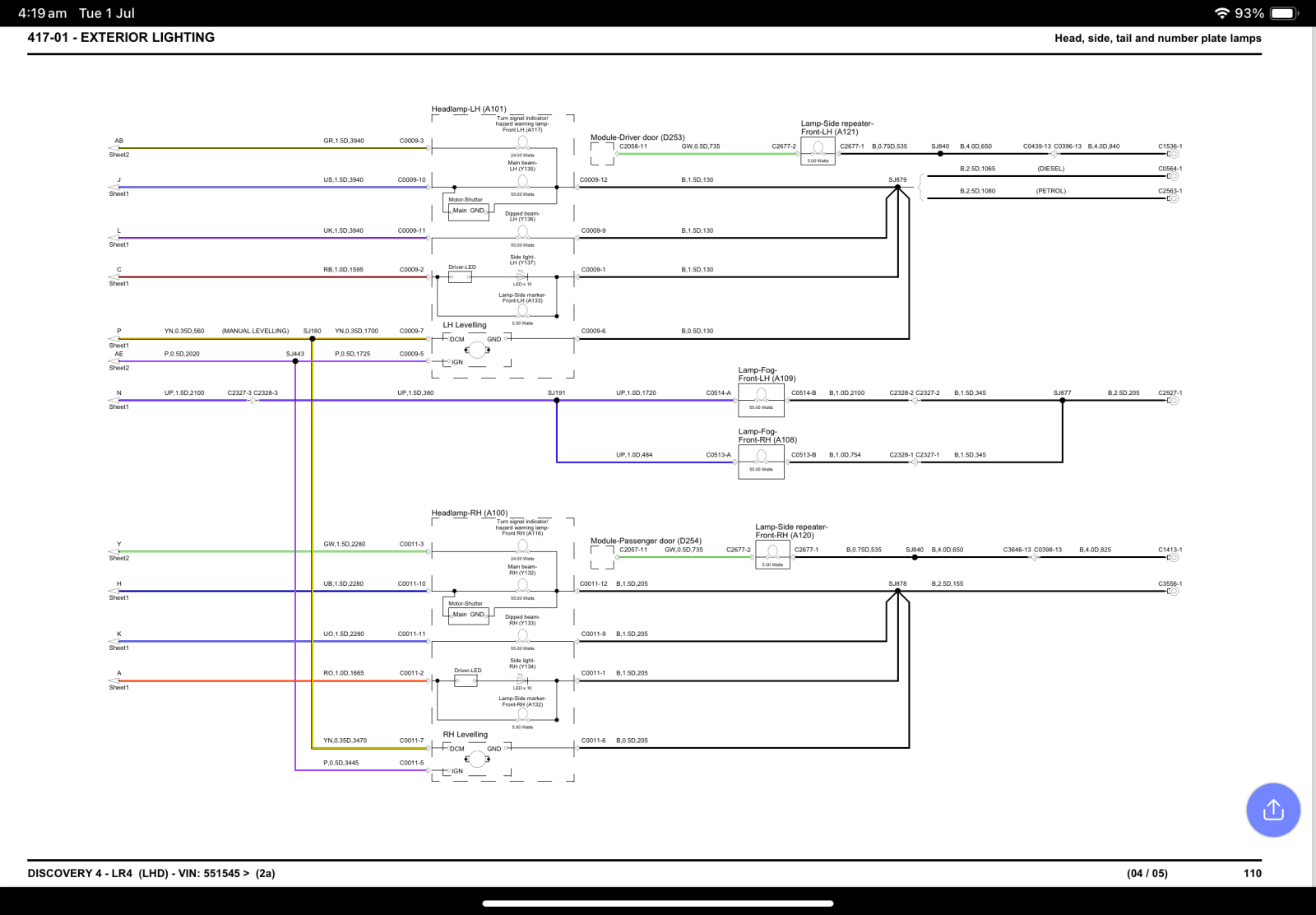

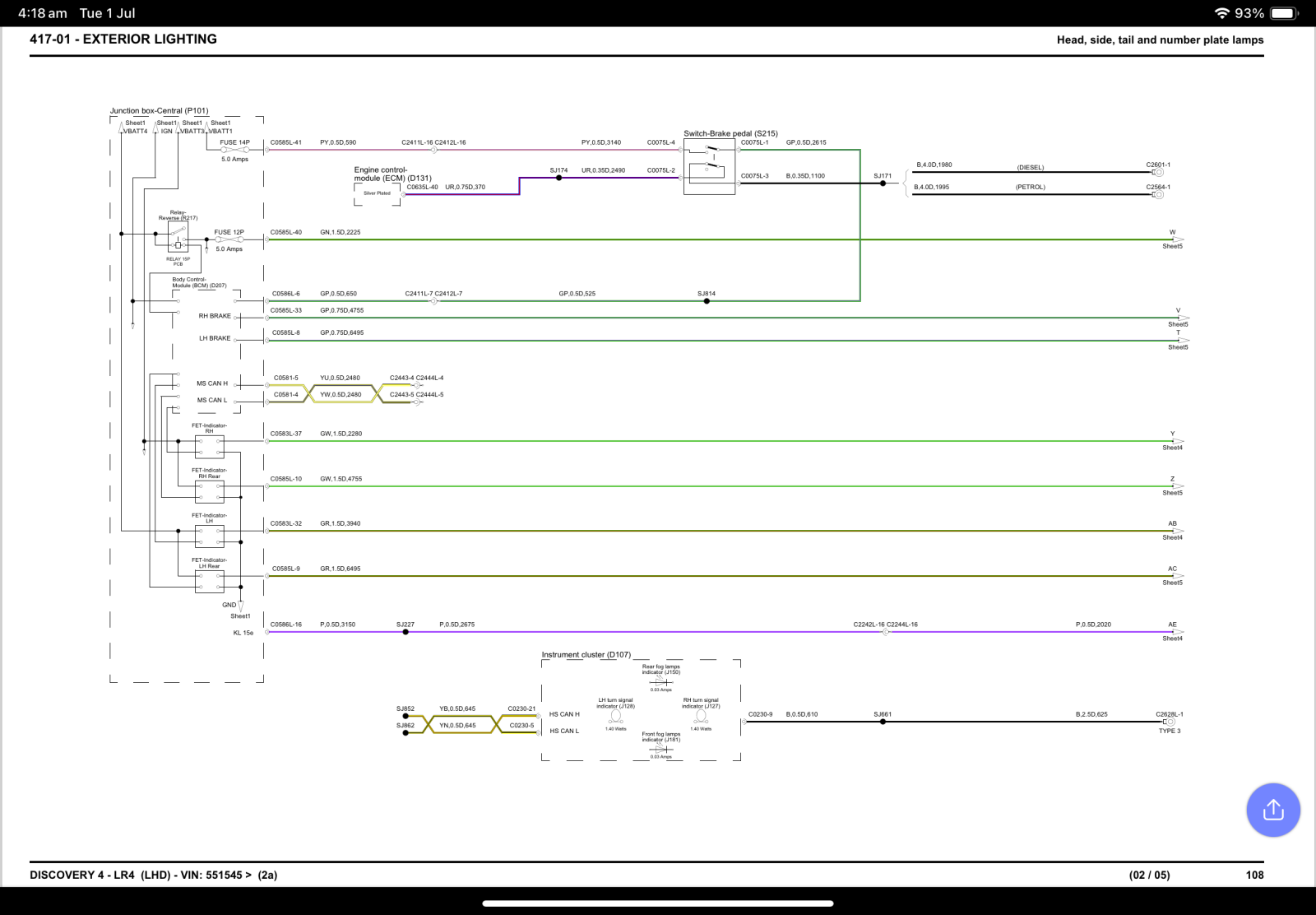

Hi

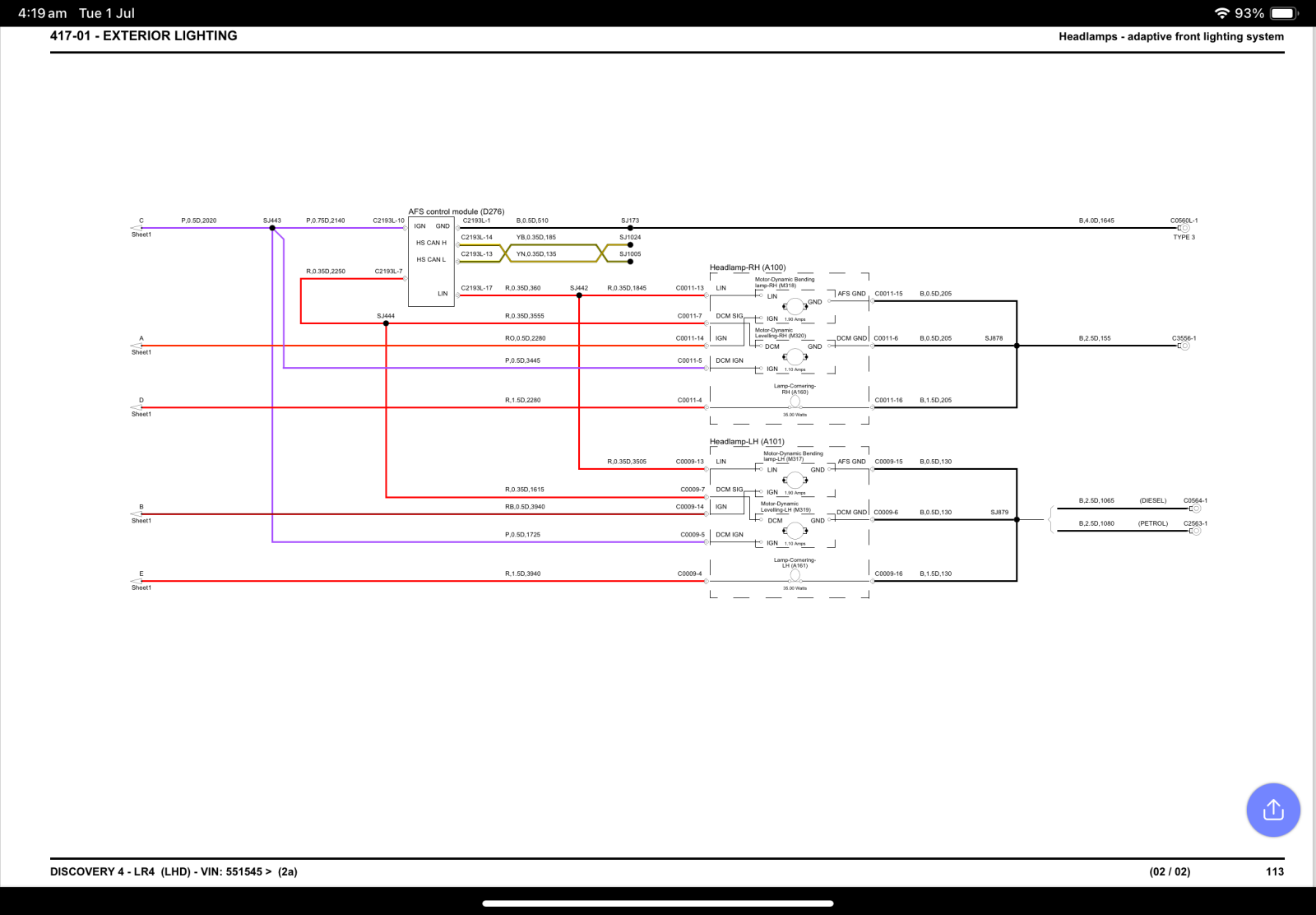

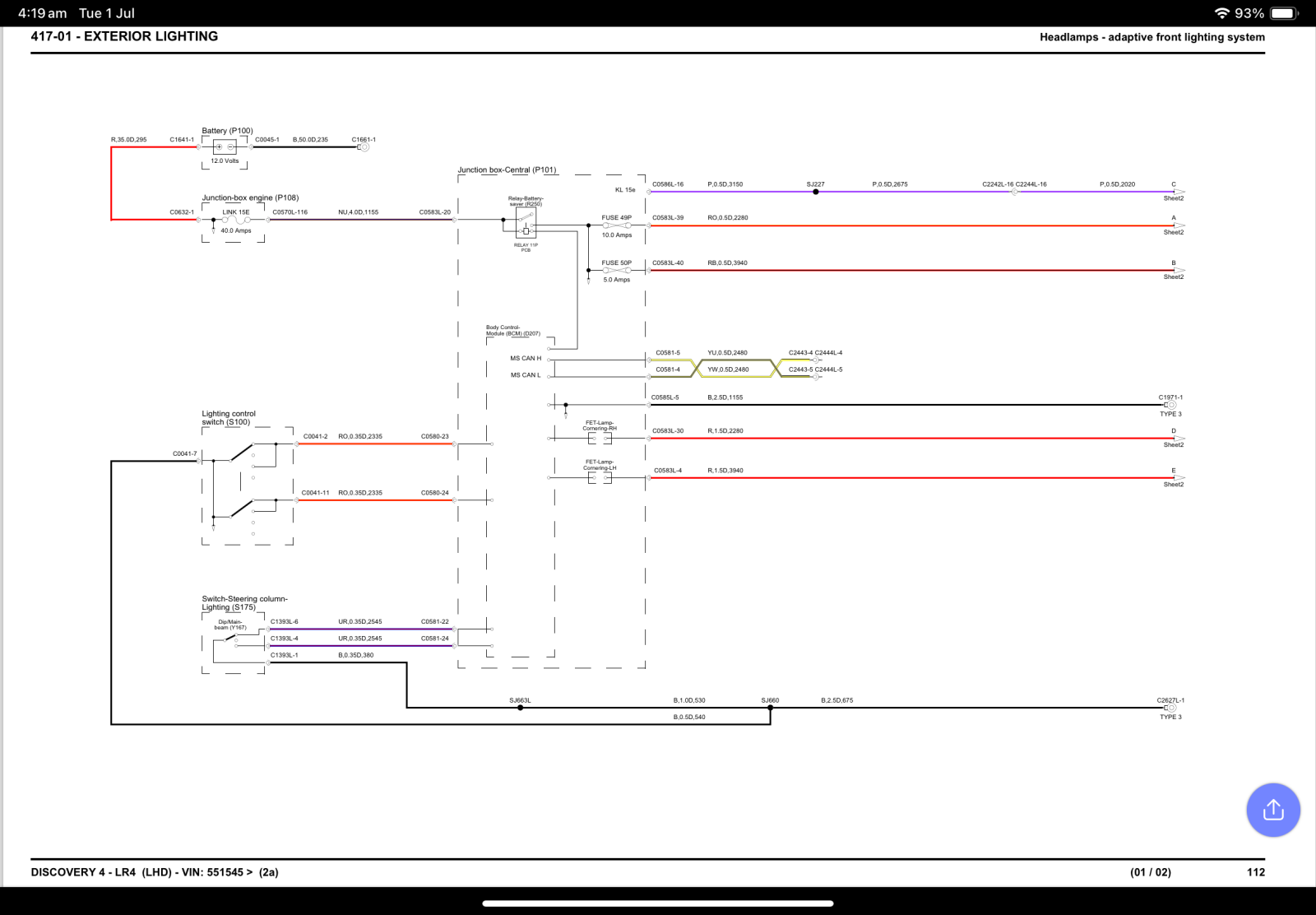

Does this help u at all , included the different headlights as wasn’t sure what type u had

Hope that’s useful to u



gstuart

D3 Grandad

Full Member

Posts

31,084

Location

Kent

• Today at 04:28

• #3



gstuart

D3 Grandad

Full Member

Posts

31,084

Location

Kent

• Today at 04:32

• #4



gstuart

D3 Grandad

Full Member

Posts

31,084

Location

Kent

• Today at 04:36

• #5

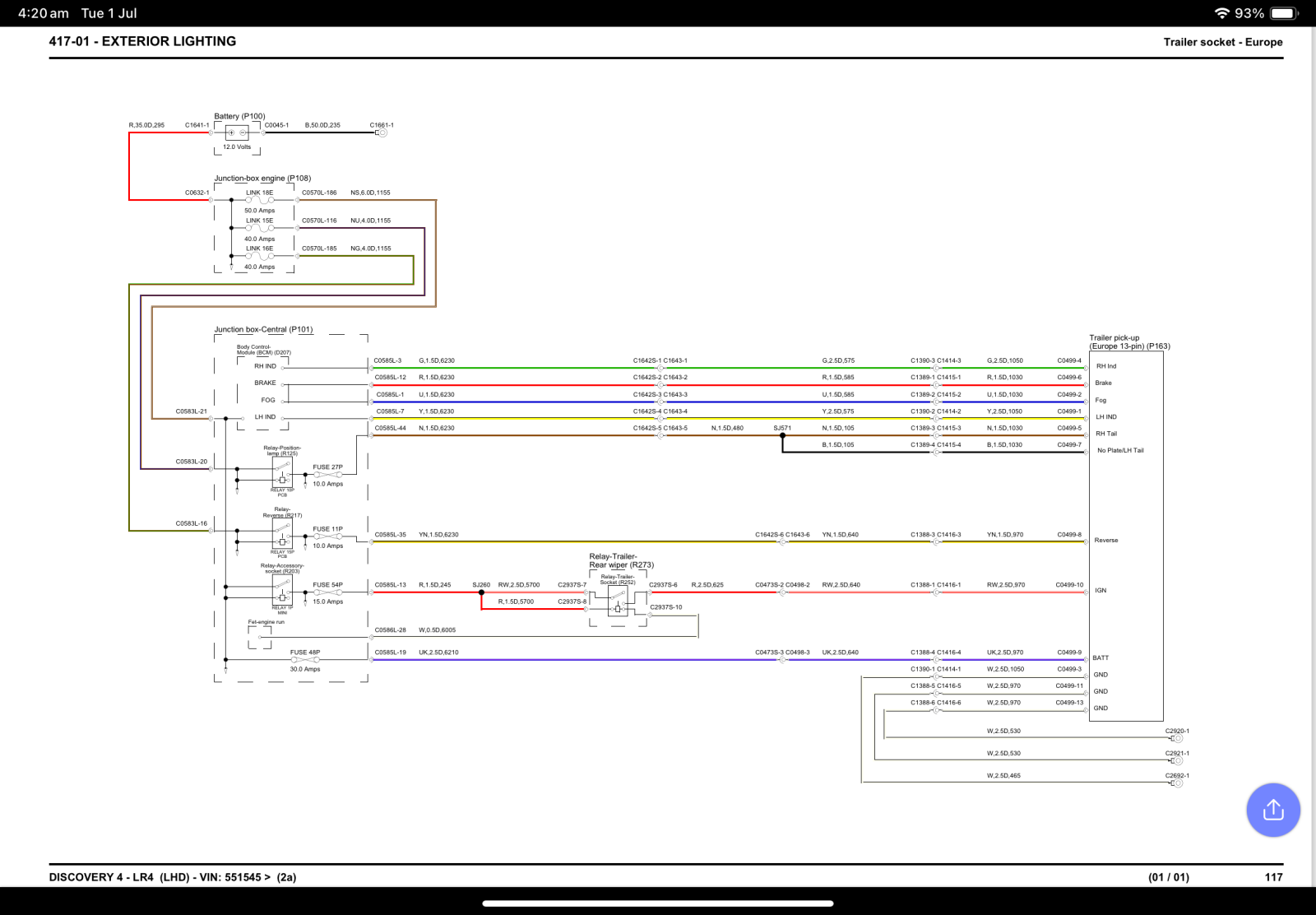

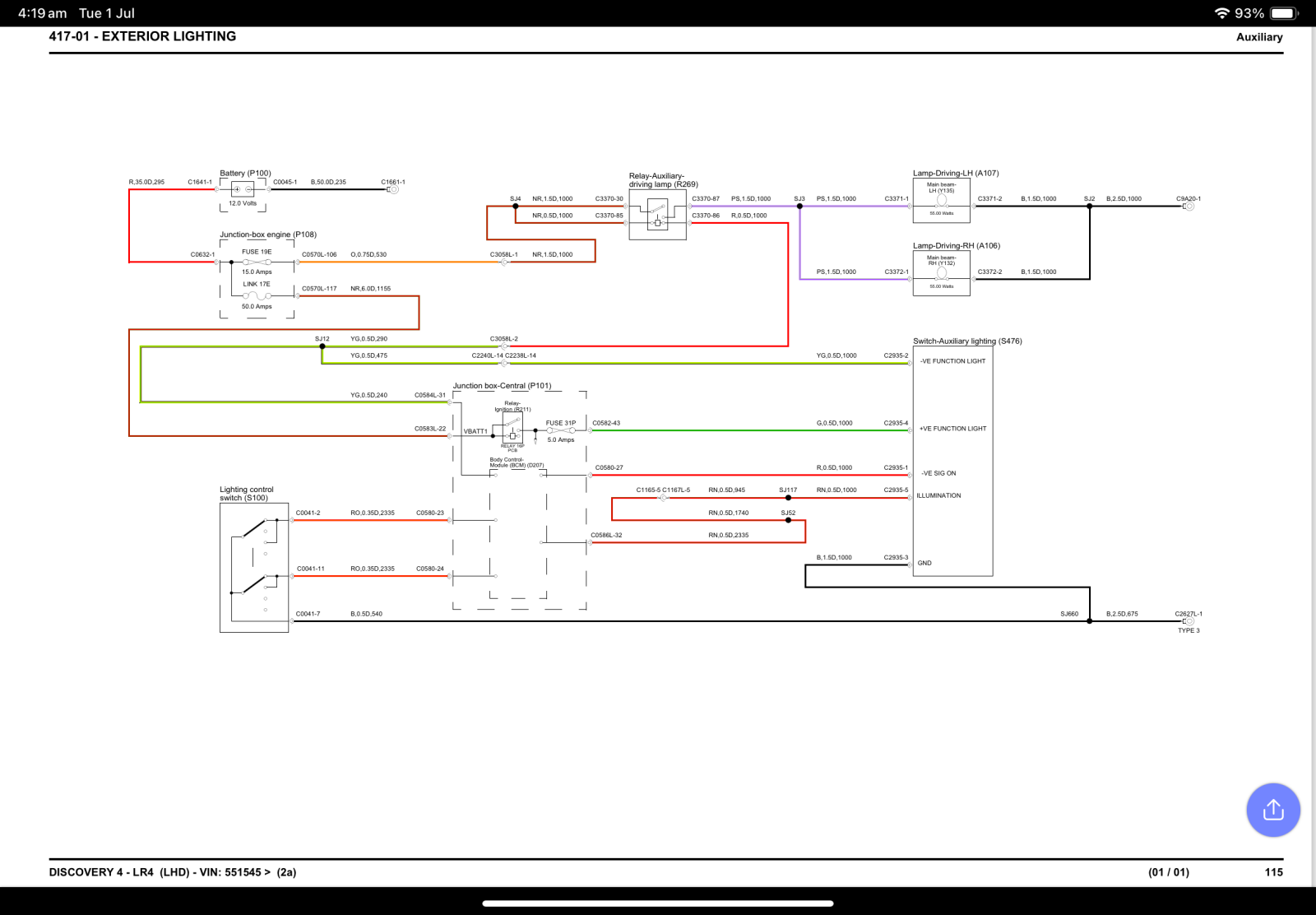

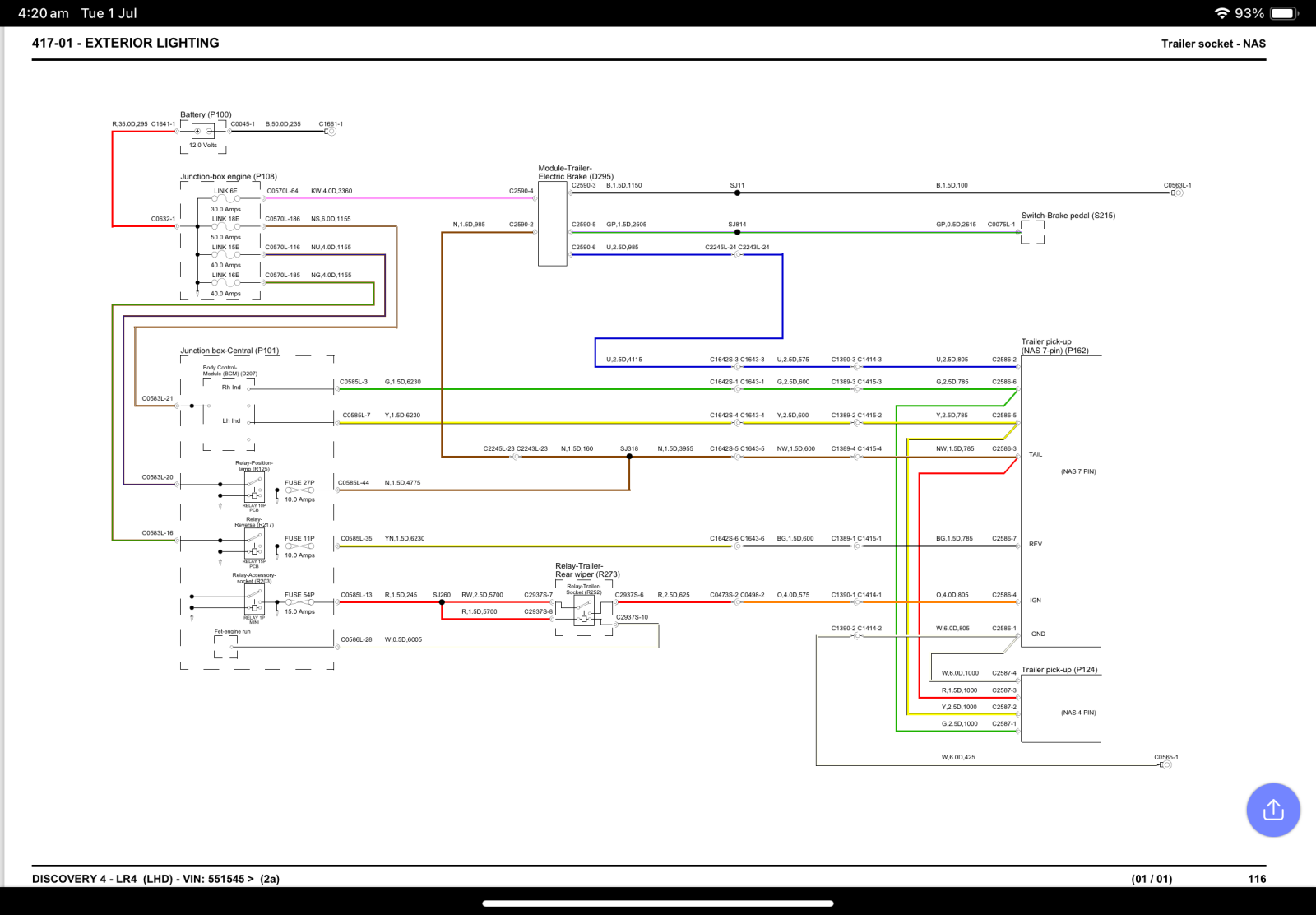

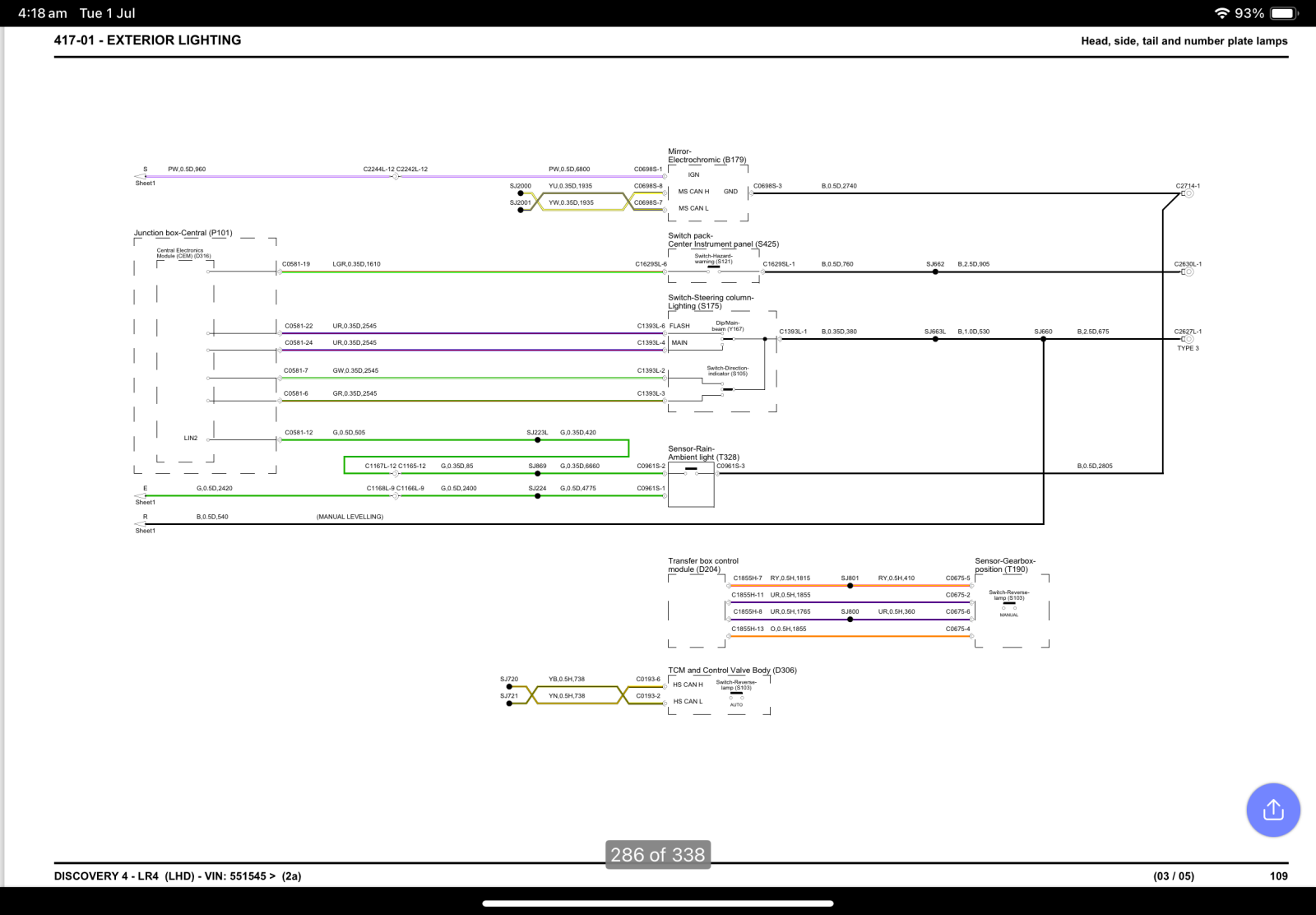

Hope this also helps

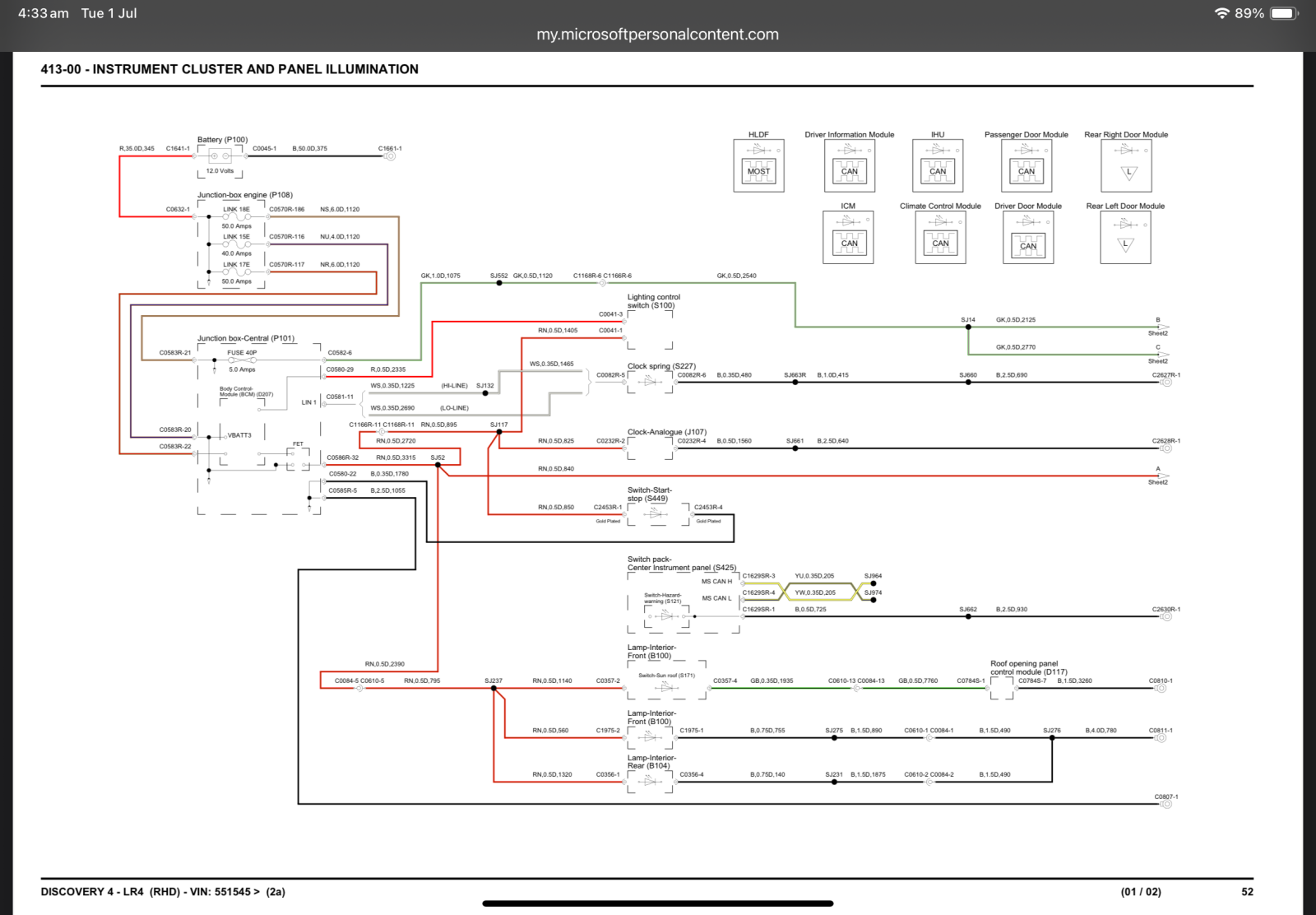

Instrument panel



gstuart

D3 Grandad

Full Member

Posts

31,084

Location

Kent

• Today at 04:39

• #6

Plse let us know what kind of faults ur getting as may be able to help further
