P38A Oil pump 4.6 thour

Discussion in 'Range Rover' started by Big vee, Jan 14, 2018.

< Previous Thread | Next Thread >
  1. Big vee

    Big vee Active Member

    Joined:
    Aug 26, 2008
    Posts:
    247
    Likes Received:
    2
    Location:
    Near Kingston upon Thames Surrey

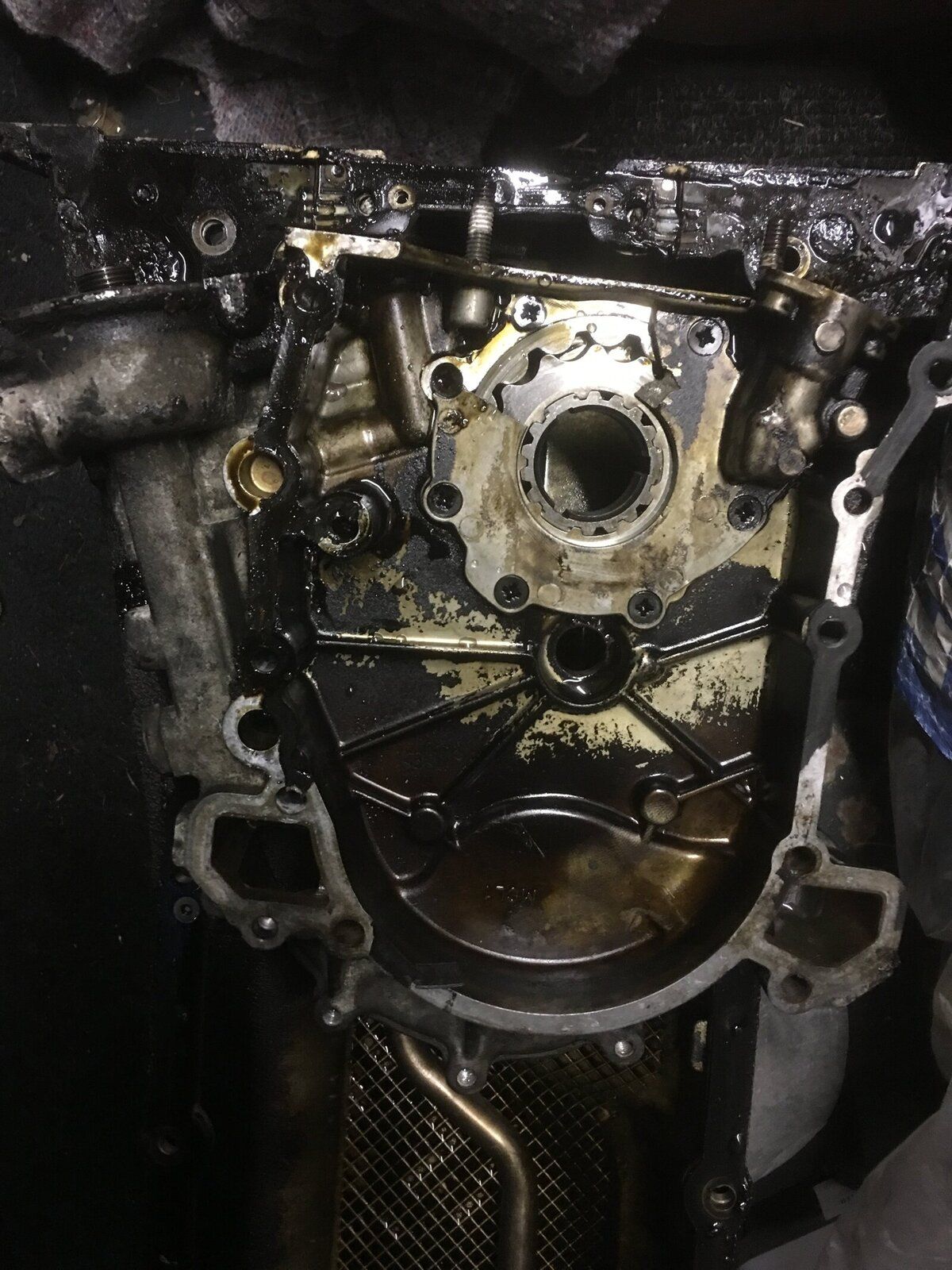

    found out way I lost oil pressure CB8B4F3E-FA2B-46BD-BD79-8EE233B96CDD.jpeg

  2. brianp38dse

    brianp38dse Well-Known Member

    Joined:
    May 13, 2014
    Posts:
    15,114
    Likes Received:
    8,243
    Location:
    heathrow
    Opps something must of got in there a jammed or pump rotor bugged up:(

  3. Mark Piercy

    Mark Piercy Well-Known Member Full Member

    Joined:
    Jul 11, 2016
    Posts:
    8,948
    Likes Received:
    5,174
    Location:
    sud ouest France
    Lost a tooth and spat it out?:eek:

  4. myfirstl322

    myfirstl322 Well-Known Member Full Member

    Joined:
    Dec 29, 2012
    Posts:
    31,528
    Likes Received:
    14,828
    Location:
    Hoots mon...

    Last edited: Jan 14, 2018
  5. Mark Piercy

    Mark Piercy Well-Known Member Full Member

    Joined:
    Jul 11, 2016
    Posts:
    8,948
    Likes Received:
    5,174
    Location:
    sud ouest France
    Brilliant song myfirst':cool:

  6. johnnyb70

    johnnyb70 Well-Known Member

    Joined:
    Nov 9, 2013
    Posts:
    452
    Likes Received:
    103
    Blimey that's a bugger! Buy the whole thing. And hope there's no damage. Prime prime and prime again.

  7. Big vee

    Big vee Active Member

    Joined:
    Aug 26, 2008
    Posts:
    247
    Likes Received:
    2
    Location:
    Near Kingston upon Thames Surrey
    doe any one know if you van buy the cover that is broken in my pic or complete new timing cover

  8. johnnyb70

    johnnyb70 Well-Known Member

    Joined:
    Nov 9, 2013
    Posts:
    452
    Likes Received:
    103
    I've got an old front cover with that plate on it but I wouldn't risk it. But your welcome to have the cover ( or the whole thing) for postage. Wait mine is gems but I don't think it matters TBH.
    Jb

  9. Grrrrrr

    Grrrrrr Technician, Bodgit & Scarper Ltd Full Member

    Joined:
    Jul 8, 2012
    Posts:
    15,743
    Likes Received:
    5,652
    Location:
    Buckinghamshire, UK. ('95 DT)
    I'd get new and replace the timing chain at the same time.

  10. johnnyb70

    johnnyb70 Well-Known Member

    Joined:
    Nov 9, 2013
    Posts:
    452
    Likes Received:
    103
    I'm with grrrrrr. They should be silly money. But there actually reasonable. Hobourn the original maker went bust. But the new ones are identical and must be made at the same place.( Boxed sh#_&part)

  11. listerdiesel

    listerdiesel Well-Known Member Events Planner

    Joined:
    May 3, 2009
    Posts:
    3,275
    Likes Received:
    277
    Location:
    Rushden, Northants, UK
    Hobourn Eaton made the pump internals, don't know about the main casing.
    We had a 'spare' front cover but I'd not risk a secondhand piece unless it was surface ground flat first.
    New cover assembly was £200+ last time I looked. (£193 plus carriage and VAT)
    They are listed as part of the Dana Corporation.
    Peter

  12. Big vee

    Big vee Active Member

    Joined:
    Aug 26, 2008
    Posts:
    247
    Likes Received:
    2
    Location:
    Near Kingston upon Thames Surrey
    So a new one I think , how hard to replace timing chain

  13. johnnyb70

    johnnyb70 Well-Known Member

    Joined:
    Nov 9, 2013
    Posts:
    452
    Likes Received:
    103
    Very easy just line up the square dots and push on to the crank woodruff. The cam is just held with a notch on cam and gear. And secured with a bolt( on the gems anyway)
    Different styles of timing gear is available. Floppy or stiff matron? Not sure what's best TBH.or where from. But the cam sensor is triggered from the cutout in the top gear meaning it's Thor or gems specific.
    Jb

    Grrrrrr likes this.
  14. Grrrrrr

    Grrrrrr Technician, Bodgit & Scarper Ltd Full Member

    Joined:
    Jul 8, 2012
    Posts:
    15,743
    Likes Received:
    5,652
    Location:
    Buckinghamshire, UK. ('95 DT)
    Dead easy if you follow RAVE and afterwards you'll wish you did it ages ago.

  15. listerdiesel

    listerdiesel Well-Known Member Events Planner

    Joined:
    May 3, 2009
    Posts:
    3,275
    Likes Received:
    277
    Location:
    Rushden, Northants, UK
    As Johnnyb70 alluded to above, the timing gears are identical in number of teeth between Thor and Gems engines, but the gears are easy to identify, GEMS has equal cutouts in the gear face, Thor has unequal shaped cutouts.

    Strangely enough, a Thor engine will run with a GEMS timing gear, but it is better with the correct one!

    Peter

    Grrrrrr likes this.
