Hi everyone,

Need a bit of assistance. I have had to put a new engine and gearbox into my disco 3.

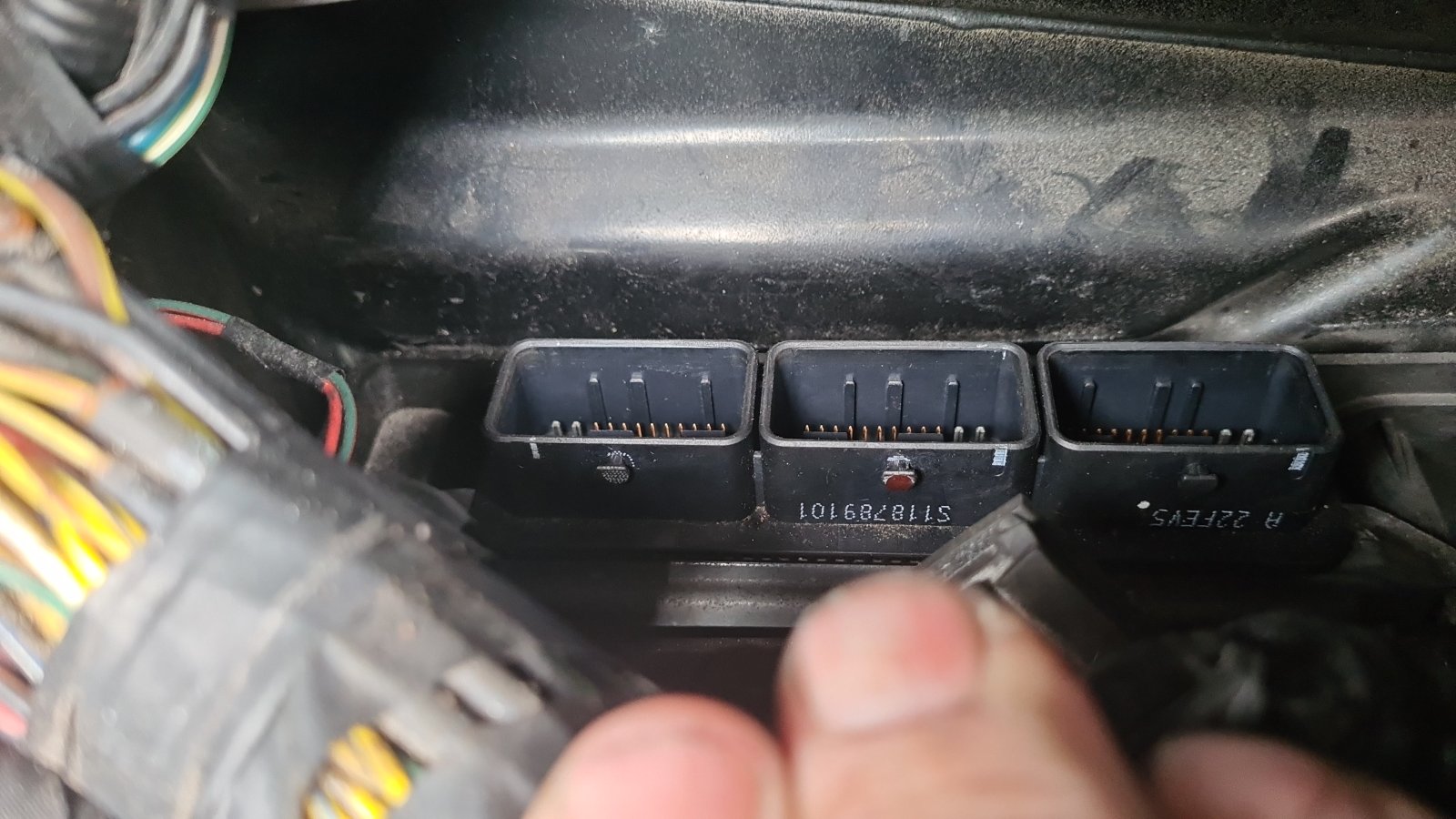

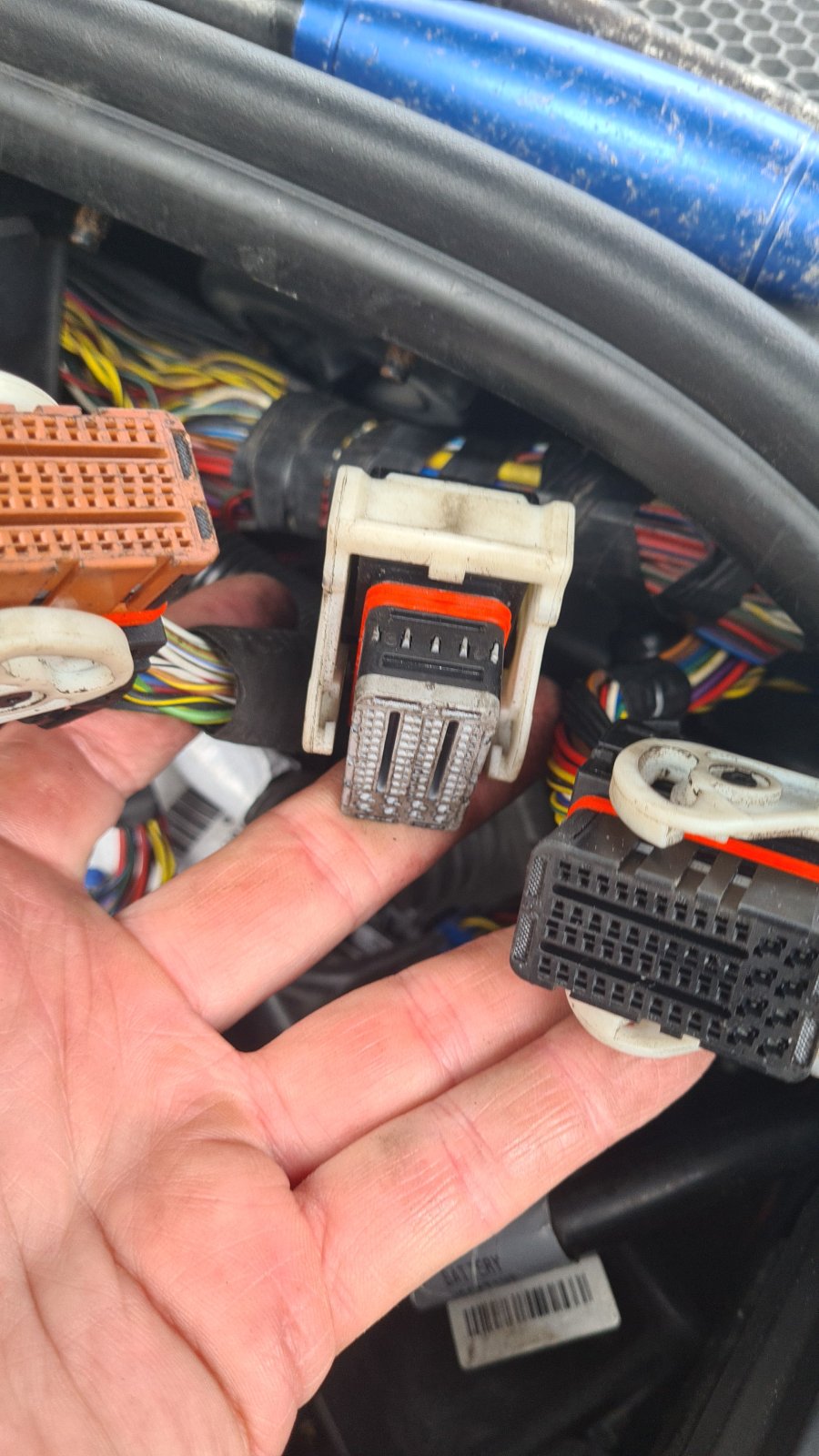

I very stupidly forgot to mark off the connection into the ECU there are 3 connections I am unsure about.

I would be grateful for any assistance. Please see attached picture.

Thanks



Attachments

•

  210.9 KB · Views: 6

Keith_L

Well-Known Member

Posts

453

Location

Worcestershire, UK

• Today at 13:56

• #2

The plugs and connectors look like they are all keyed differently i.e. you shouldn't be able to plug them into the wrong connector.



frostythor

Well-Known Member

Posts

636

Location

NEW FOREST

• Today at 13:56

• #3

they only fit one way, you cant put the wrong plug in the wrong socket it just wont fit as it the space bars on the side show in your photos



M

Malamuteracer

Member

Posts

14

• Today at 14:01

• #4

Thanks everyone for your assistance. I just didn't want to do it wrong. Thanks for your help



Keith_L

Well-Known Member

Posts

453

Location

Worcestershire, UK

• Today at 14:14

• #5

I can understand your nervousness at this stage of the project. Hope it goes well.



M

Malamuteracer

Member

Posts

14

• Today at 14:16

• #6

Hi Keith,

I am in the final stages now, I just need to connect the fuel lines and the gearbox earth wire. It's been 6 months in the making, just been taking it easy and extremely carefully.


Thanks



Spong

Well-Known Member

Full Member

Posts

6,097

Location

Surrey / Hants border

• Today at 14:35

• #7

Malamuteracer said:

Hi Keith,

I am in the final stages now, I just need to connect the fuel lines and the gearbox earth wire. It's been 6 months in the making, just been taking it easy and extremely carefully.


Thanks

Click to expand...

I know you're nearly there now, but should you need further help, @tyregeezer pulls D3/4 engines in and out for laughs. The man has no fear....
