Master Cylinder - Rebuild Kit? Or Sealed?

S

SimonBrown

Well-Known Member

Posts

102

• Today at 18:02

• #1

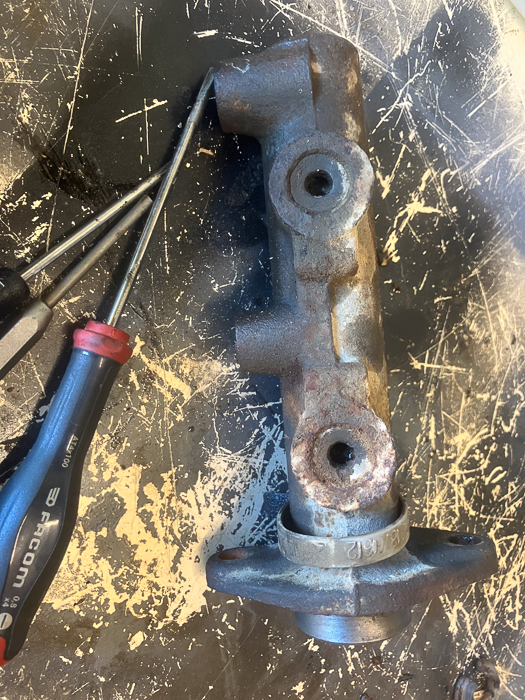

According to t'interweb there are rebuild kits for 110 brake master cylinders. Just removed the one from Izzy and for the life of me I cannot see how it comes apart?

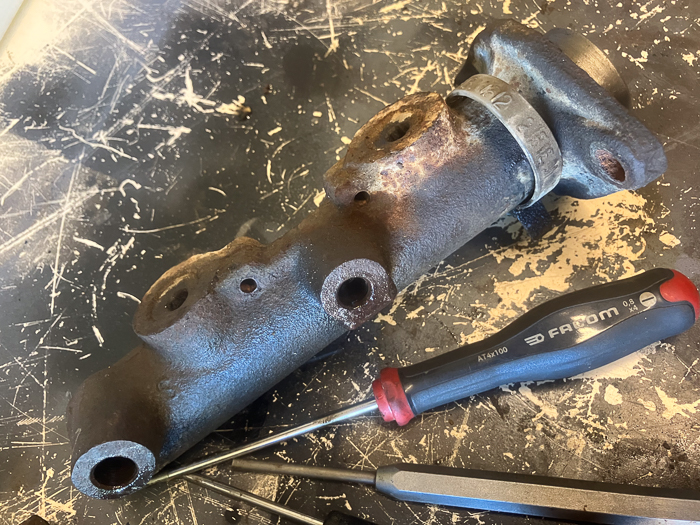

As an 87 year model Izzy would have had drums to the rear but it now sports a Salsbury diff with discs. I did note the main circuit threaded port (forward) is larger diameter than the aux (aft).

My guess is the original equipment could be rebuild - new seals etc - but this is aftermarket and cannot.

Any thoughts or opinions most welcome.



marjon

Well-Known Member

Full Member

Posts

17,939

Location

Bulgaria

• Today at 18:07

• #2

The pedal end will have a circlip to take out. Then you can pull the guts out.

J



S

SimonBrown

Well-Known Member

Posts

102

• Today at 18:08

• #3

marjon said:

The pedal end will have a circlip to take out. Then you can pull the guts out.

Click to expand...

Thats what I thought...but if its there I'm blind...will post a piccy tomorrow.



marjon

Well-Known Member

Full Member

Posts

17,939

Location

Bulgaria

• Today at 18:14

• #4

SimonBrown said:

Thats what I thought...but if its there I'm blind...will post a piccy tomorrow.

Click to expand...

Saying nothing till pics prove you blind or not .

How did they get the stuff in?

J



S

SimonBrown

Well-Known Member

Posts

102

• Today at 19:20

• #5

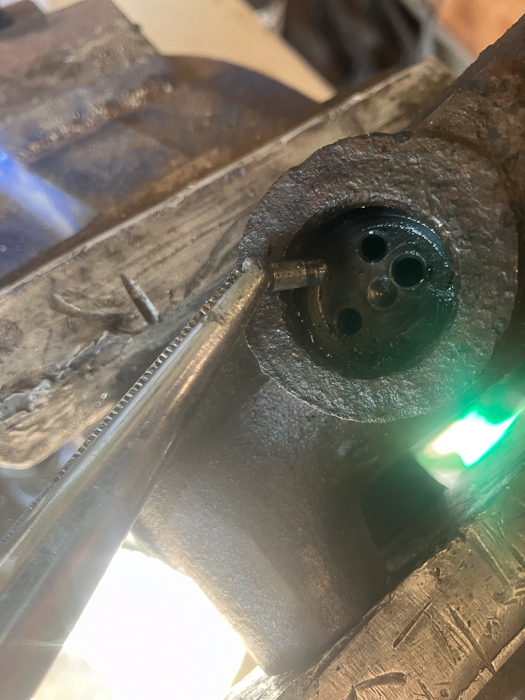

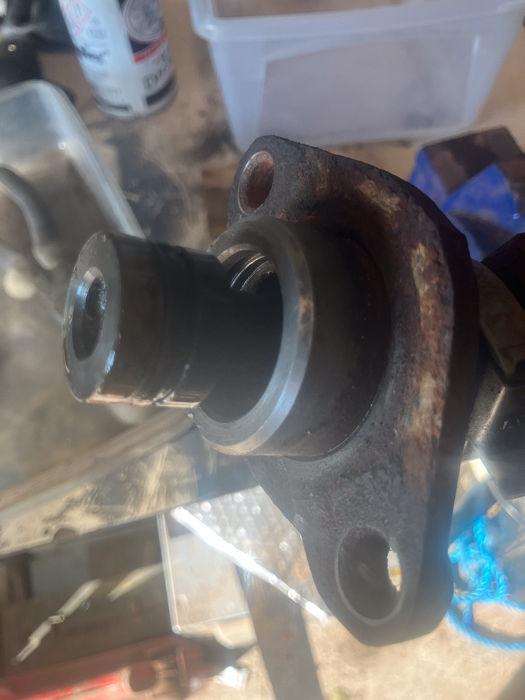

Well...I dunno...how did they put it together?

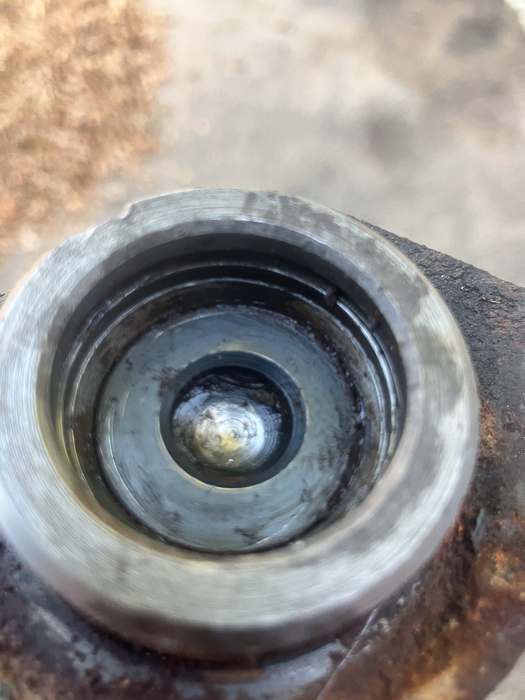

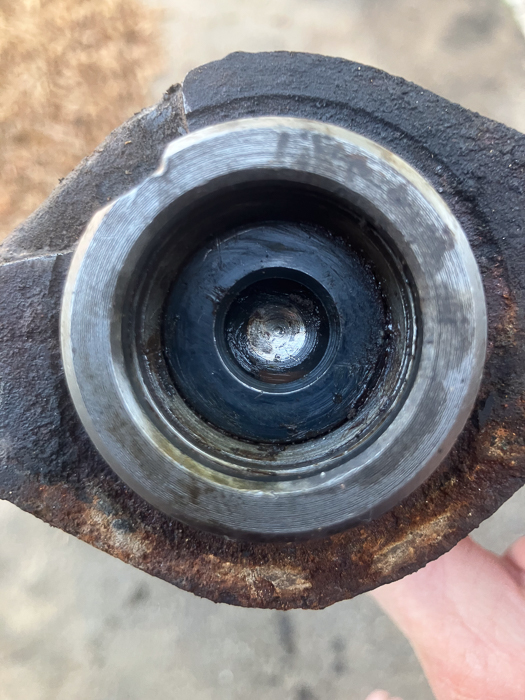

What looks like a split ring in the top image isnt...its a blob of muck.

Sealed unit?

Any and all thoughts most welcome.



marjon

Well-Known Member

Full Member

Posts

17,939

Location

Bulgaria

• Today at 20:25

• #6

What does the rebuild kit have in it?

Clean that up and have a closer look is all I can say.
It has to come apart.
