P38A I had it!!

Discussion in 'Range Rover' started by cornishboater, Jun 17, 2022.

< Previous Thread | Next Thread >
  1. cornishboater

    cornishboater Well-Known Member

    Joined:
    Jun 1, 2017
    Posts:
    462
    Likes Received:
    160
    Location:
    Poole, Dorset
    Well for those of you that have read my posts regarding the suspension issues I am finally throwing the towel in. I am going to replace the lot with springs, the question is are the Britpart ones any good, where is the best source and will I need anything else additional to the kit. At least I will be able to leave home without the stress of not knowing where the "EAS FAULT" message pops up and the car will sit straight!!
    I am also looking at getting a set from one of the respected used spare guys.

  2. kermit_rr

    kermit_rr Green Member Full Member

    Joined:
    Dec 9, 2018
    Posts:
    19,479
    Likes Received:
    24,305
    Location:
    North Shropshire
    What exactly is the problem? Mines not perfect but I've never had a major issue.

    Before you do it, check with your insurer whether they will cover the modification

  3. cornishboater

    cornishboater Well-Known Member

    Joined:
    Jun 1, 2017
    Posts:
    462
    Likes Received:
    160
    Location:
    Poole, Dorset
    Well after 4 new air bags, 3 valve blocks (rebuilt) 2 ECUs tried, new rear sensors, 6 calibrations later the rear LH rises to beyond wade height when set to standard height and is sitting at standard when motorway is selected. The other corners were ok(ish) but now the front wont rise but the back does. Have checked all valves with the nano and they all function as they should, the compressor is fine (I tried a spare rebuilt one also) The fron end was alwas quite close to the correct settings. I have even tried switching driver packs to see if that does anything but no change. I can alter the rear sensor data and it lowers but as soon as I start the car it goes into fault with a "sensor out of range" fault and immediately reverts back to a default and the same issue is back again. So after much thought I think it is time to ditch the bloody system, there is no-one in this area that is savvy with the P38, the local indy wont touch them anymore. I am very mechanically apt (I was an automotive engineer) so I am usually pretty good at getting stuff fixed but this one has done me in. This has been an ongoing battle in various ways for years so enough is enough!
    Rant over :)

    Europa486 and kermit_rr like this.
  4. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    39,826
    Likes Received:
    7,111
    Location:
    Near Poitiers SW France
    What a shame, whatever the problem is, it will be a simple fix when found and the EAS is the car's best feature:(

    Rubberknees likes this.
  5. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    9,481
    Likes Received:
    8,277
    Location:
    Shropshire
    On the plus side, you can flog me the air bags at a good price:).?

  6. cornishboater

    cornishboater Well-Known Member

    Joined:
    Jun 1, 2017
    Posts:
    462
    Likes Received:
    160
    Location:
    Poole, Dorset
    They are nearly new!

    Flossie likes this.
  7. cornishboater

    cornishboater Well-Known Member

    Joined:
    Jun 1, 2017
    Posts:
    462
    Likes Received:
    160
    Location:
    Poole, Dorset
    I agree Keith, I love the ride but I cannot keep hunting for this issue, I suspect a faulty wire somewhere in the loom but I have tested them all and thus far nothing has surfaced. All of the EAS stuff is functional and have checked the operation via my nano and all is working. So as I said enough is enough, I just want a peaceful non arse puckering drive waiting for the random bloody "beep, beep"

  8. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    9,481
    Likes Received:
    8,277
    Location:
    Shropshire
    You silver tongued devil you..:D

    cornishboater likes this.
  9. pwood999

    pwood999 Well-Known Member Full Member

    Joined:
    Nov 6, 2006
    Posts:
    2,037
    Likes Received:
    1,107
    Location:
    Near Heathrow.
    A shame to ditch the EAS. It must be something simple, especially with all the stuff you've changed.

    Did you calibrate using blocks or measuring tape ? With tape method, it's important to measure all four corners even when only adjusting one, because they impact each other. On blocks the car is stable, so the values for each block-height can be programmed directly.

    Sensor wiring can easily be tested by adjusting from Access to Extended & watching the reading are stable. Alternatively using simple 12V connections to the driver pack input you could manually change the height from bump stops to max & do the same sensor test.

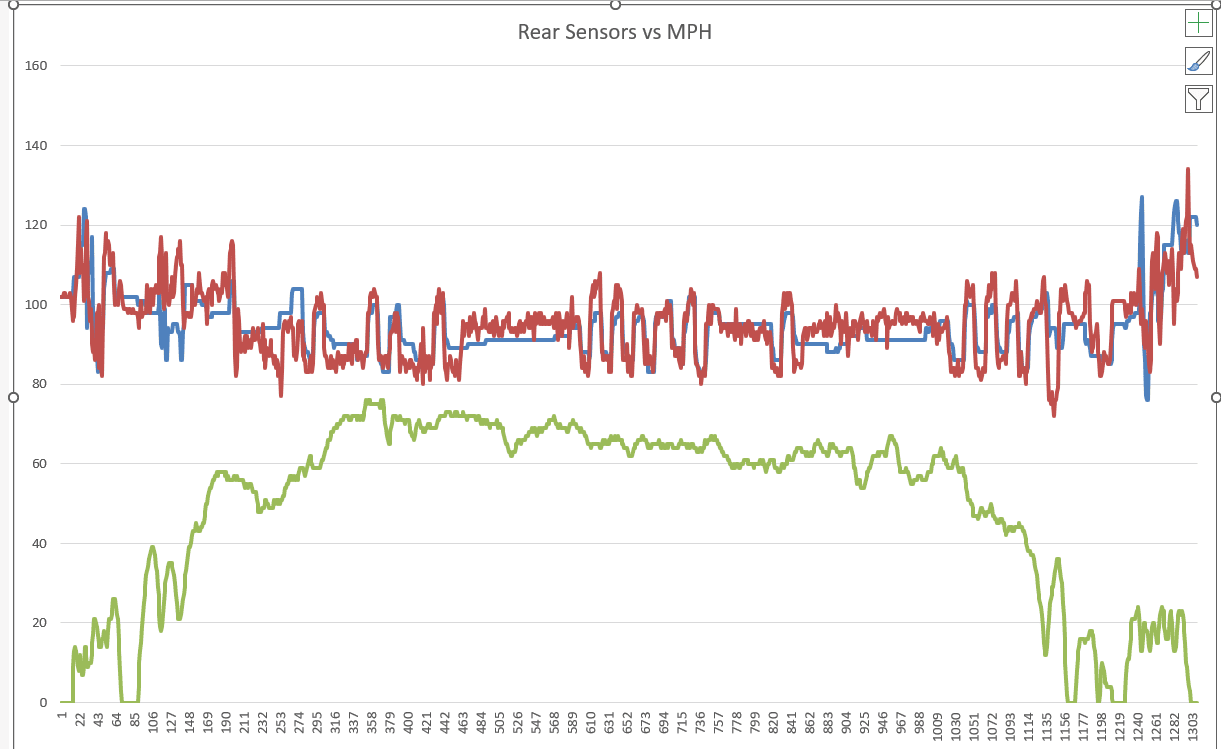

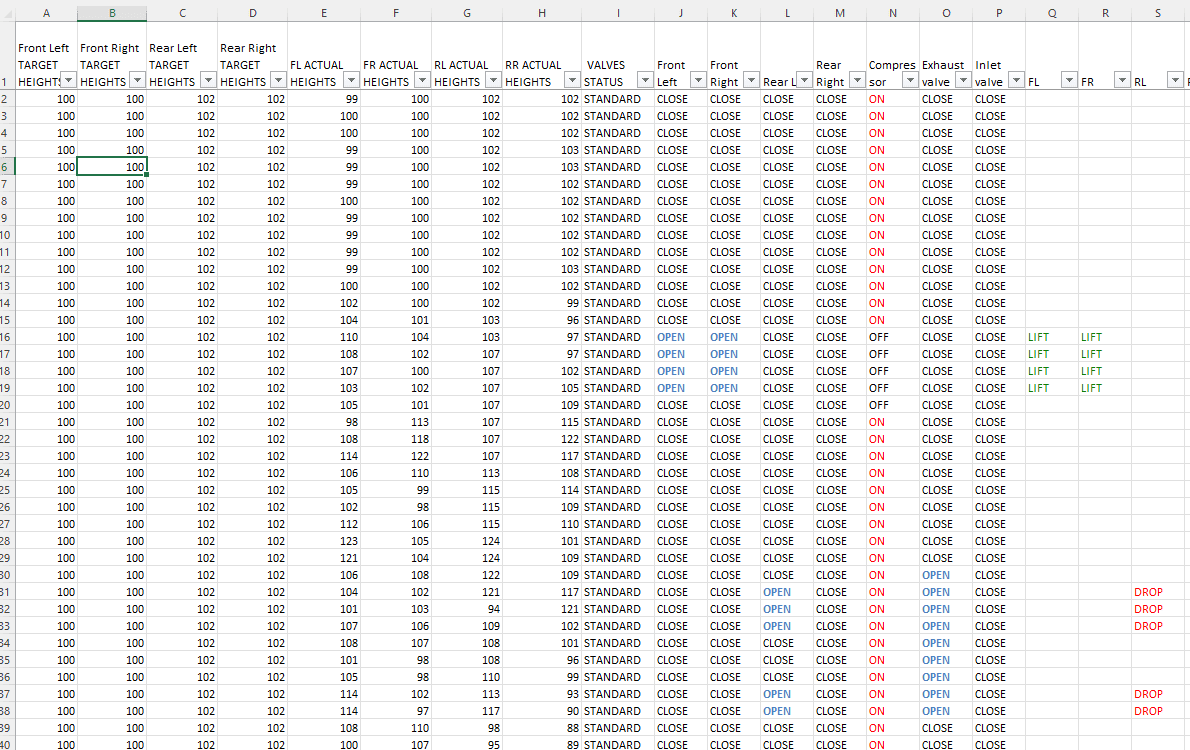

    If it's calibrating correctly, but randomly going all tilt when driving, then a Nanocom live recording while driving might highlight the issue. That way you can look at target versus actual heights over time (and graph them a bit like below).



    kermit_rr likes this.
  10. cornishboater

    cornishboater Well-Known Member

    Joined:
    Jun 1, 2017
    Posts:
    462
    Likes Received:
    160
    Location:
    Poole, Dorset
    Calibration was by blocks, set all the heights and as soon as I restart the car it faults with sensor out of range a sends the LH back to default and the rear left goes basically wade height on standard when the others are fairly close to the physical measurements. When dropped to motorway the LH sits at around standard height. Access and wade are pretty well ok. The back end has also started to rise when the car is off (only when stopped at motorway or standard heights) doesn’t do it wade or access.

  11. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    9,481
    Likes Received:
    8,277
    Location:
    Shropshire
    I'll buy yer blocks too, can't say fairer than that.
    Me wallets empty but I've got lots of love for the p38:D

  12. cornishboater

    cornishboater Well-Known Member

    Joined:
    Jun 1, 2017
    Posts:
    462
    Likes Received:
    160
    Location:
    Poole, Dorset
    They are quality oak

    Flossie and kermit_rr like this.
  13. kermit_rr

    kermit_rr Green Member Full Member

    Joined:
    Dec 9, 2018
    Posts:
    19,479
    Likes Received:
    24,305
    Location:
    North Shropshire
    When i set mine, i started by setting an arbitrary value same on each corner, then measuring and adjusting.
    Nanocom will show live values and the target is trying to reach which isn't always the value you've set. It will also tell you which valves are opening and which mode it's in, eg leveling, sleep etc

  14. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    9,481
    Likes Received:
    8,277
    Location:
    Shropshire
    You tease me so!:eek:

    kermit_rr likes this.
  15. kurtjohnson10

    kurtjohnson10 Well-Known Member

    Joined:
    Dec 31, 2012
    Posts:
    18,802
    Likes Received:
    24,342
    Location:
    midlands
    o_Oo_Oo_O:D

    Flossie and kermit_rr like this.
  16. Marshall8hp

    Marshall8hp Well-Known Member

    Joined:
    Dec 29, 2019
    Posts:
    290
    Likes Received:
    267
    Location:
    Sydney
    Speaking from experience, if going for coils, use standard ride height ones. They will do whatever you need, unless your truck is a dedicated off roader. Going for the 2” lift option will give a harsh ride on the road. I have two P38s, one on air and the other on standard height coils, there is no difference in the ride quality.

  17. dubbleRR

    dubbleRR Well-Known Member

    Joined:
    Mar 13, 2011
    Posts:
    881
    Likes Received:
    737
    Location:
    highlands of Scotland
    It might be frowned apron:eek: but after seeing the price of air bags :eek: metal springs might be on the cards for a lot of us :oops: not me yet ,,,But £240 for two Dunlop rear s :mad: i remember getting all 4 for that :rolleyes::(...

    RangeRoller dt likes this.
  18. pwood999

    pwood999 Well-Known Member Full Member

    Joined:
    Nov 6, 2006
    Posts:
    2,037
    Likes Received:
    1,107
    Location:
    Near Heathrow.
    Is there a rubber shortage, or yet another problem caused by Putin's war ?

  19. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    18,605
    Likes Received:
    12,580
    Location:
    wirral and triquivijate
    There'll be a steel shortage if everybody bastardises their P 38's:eek: perish the thought:(

    Flossie, marjon and Rubberknees like this.
  20. norseman

    norseman Well-Known Member

    Joined:
    Jun 26, 2009
    Posts:
    2,867
    Likes Received:
    1,002
    Location:
    Essex - UK
    I'm not a P38 owner, but just out of pure curiosity what (in general) is the insurance co. attitude to this conversion; steel springs were never fitted in production so surely this is a major deviation from the manuf. spec.

    kermit_rr likes this.
