before anyone says ive been googling for ages and still confused
i have a caling switch mom off mom for my winch
now i want the dash lights to activate the light on the switch but unsure where the feed would go ?

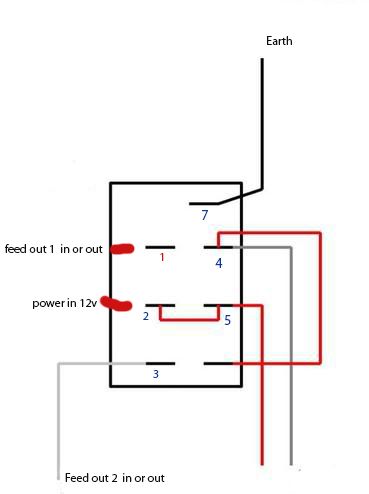

heres a pic
am i right in thinking pin 2 is 12v feed in
and 1 and 3 are the feeds out
winch in / winch out
7 is earth
but i read pic 8 which should be next to 7 should be dash light in
however i dont have that on my switch ?
any help in this shape as im pritty usless at diagrams
the pic under number 5 is 6
dono why i didnt put there
