carling switch wiring

bought a carling on off switch which turned up this morning

no wiring diagram came with it

looked on the carling web site and can't make heads or tails of it

the switch is a contura 2 on/off switch

also wish to wire it so it illuminates when I out the sidelights on

am going to use it for the dashboard switch for my synergy

would anyone know please

it's got 4 terminals , which I expect it

on/off/earth/sidelight

thks again and very appreciative

sorry guys found it

will leave it here in case it helps someone else

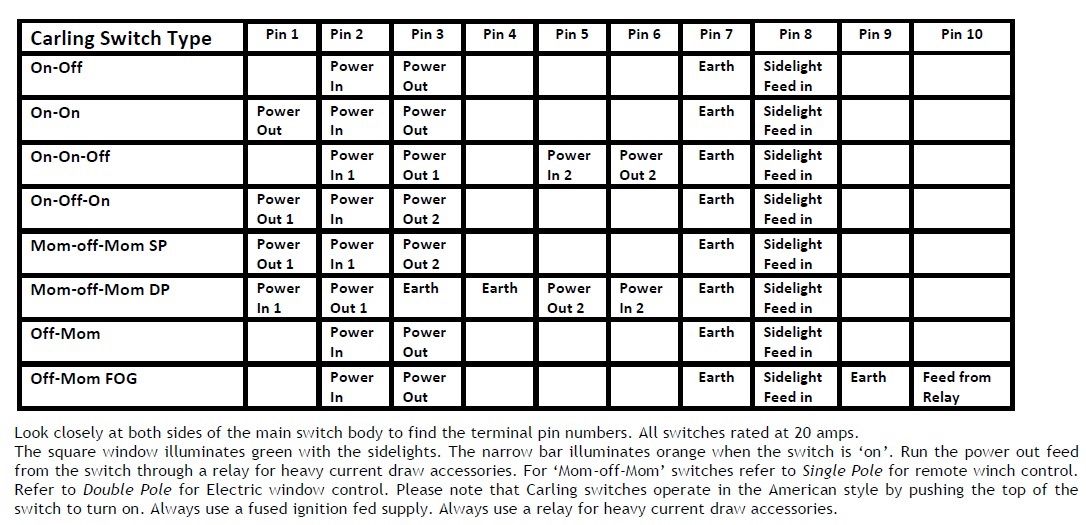

Carling Off-On Switch - Carling Switches - Electrical - Products

suprising how long it takes to do just a bit of wiring ,lol

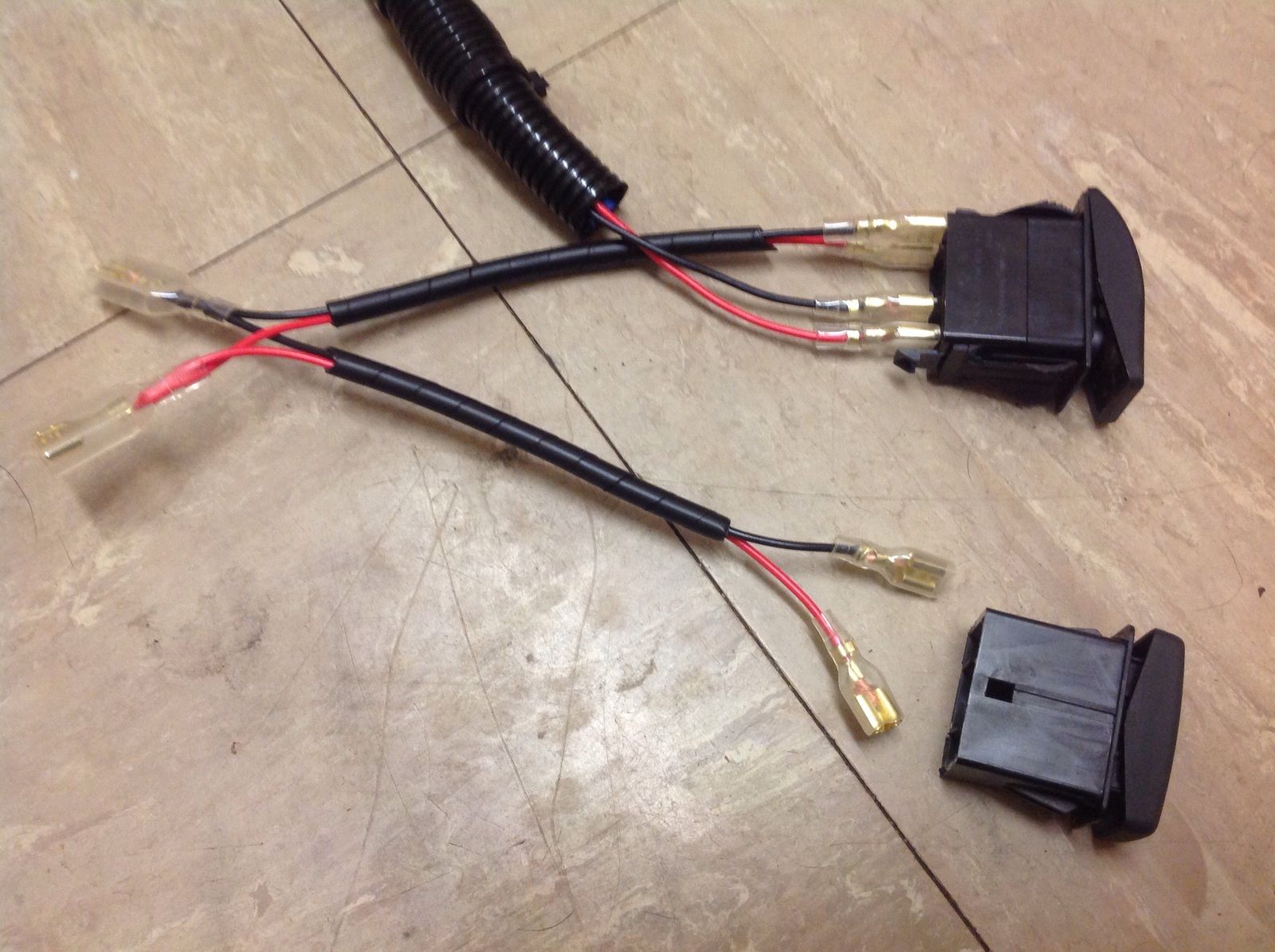

don't like scotch locks and done it like this , the carling on - off switch will sit next to the window switches so will just take an earth and sidelight feed of that

so I can just cut a section out of the loom and place this inside of it

maybe theres a different way but just thought this way the earth and sidelights are going to each switch and not through another one

all for an on - off switch for my synergy

yeh I know need to get out more
