L322 04-l322 HSE/gas- suspension issue

Discussion in 'Range Rover' started by teamNash, Jan 19, 2022.

< Previous Thread | Next Thread >
  1. teamNash

    teamNash Member

    Joined:
    Jan 4, 2022
    Posts:
    14
    Likes Received:
    0
    Location:
    Ca
    Hello all,

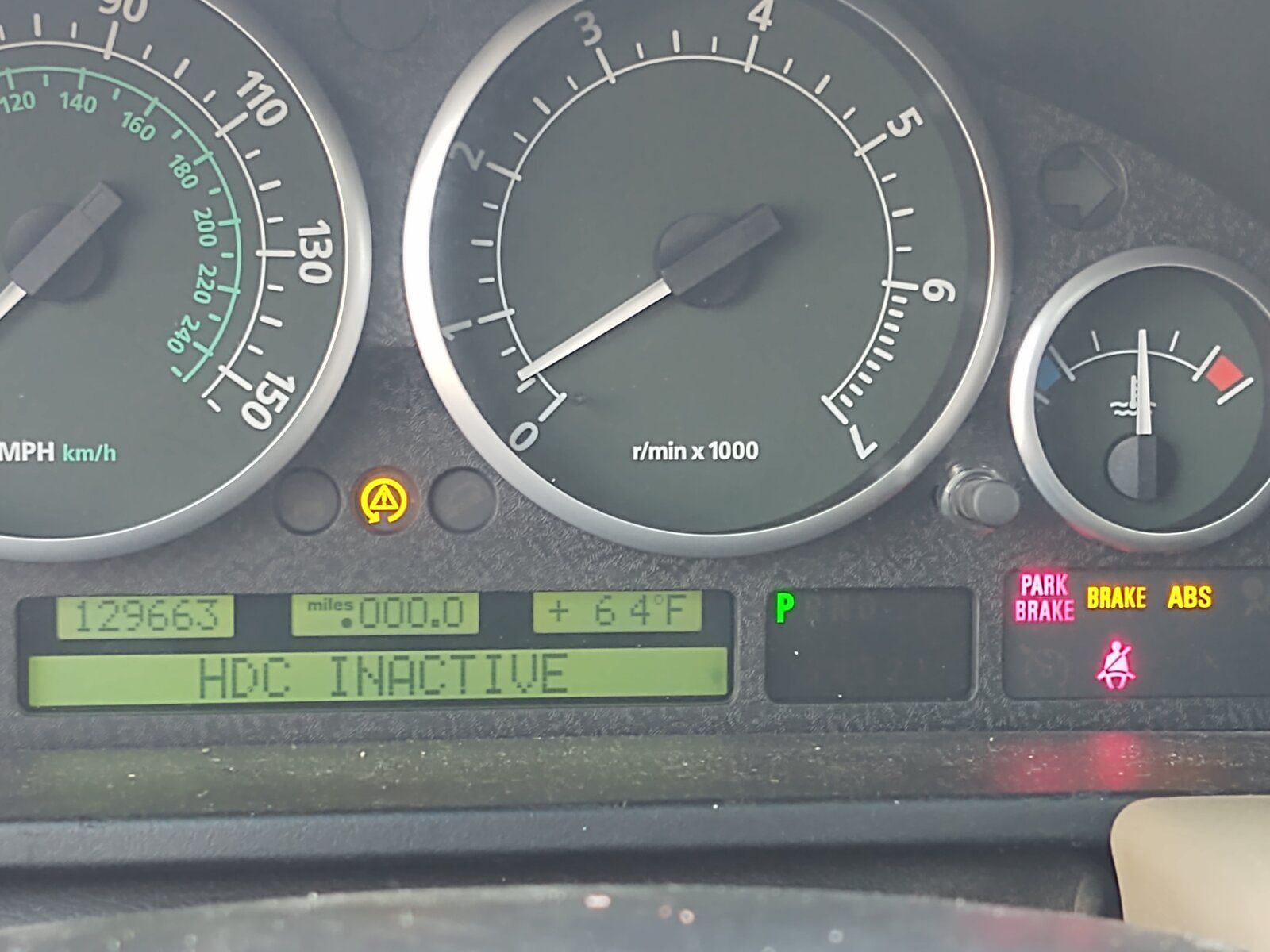

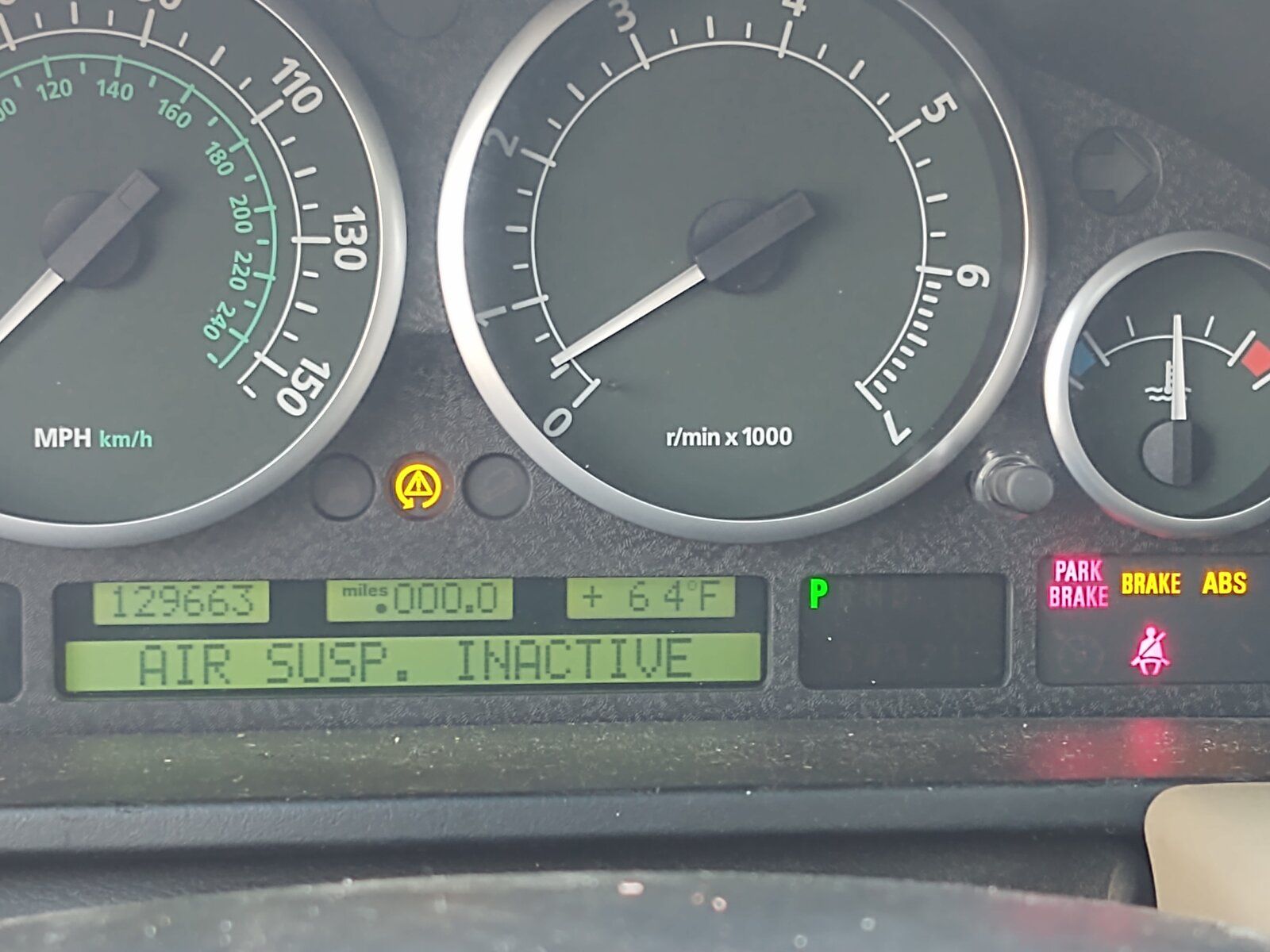

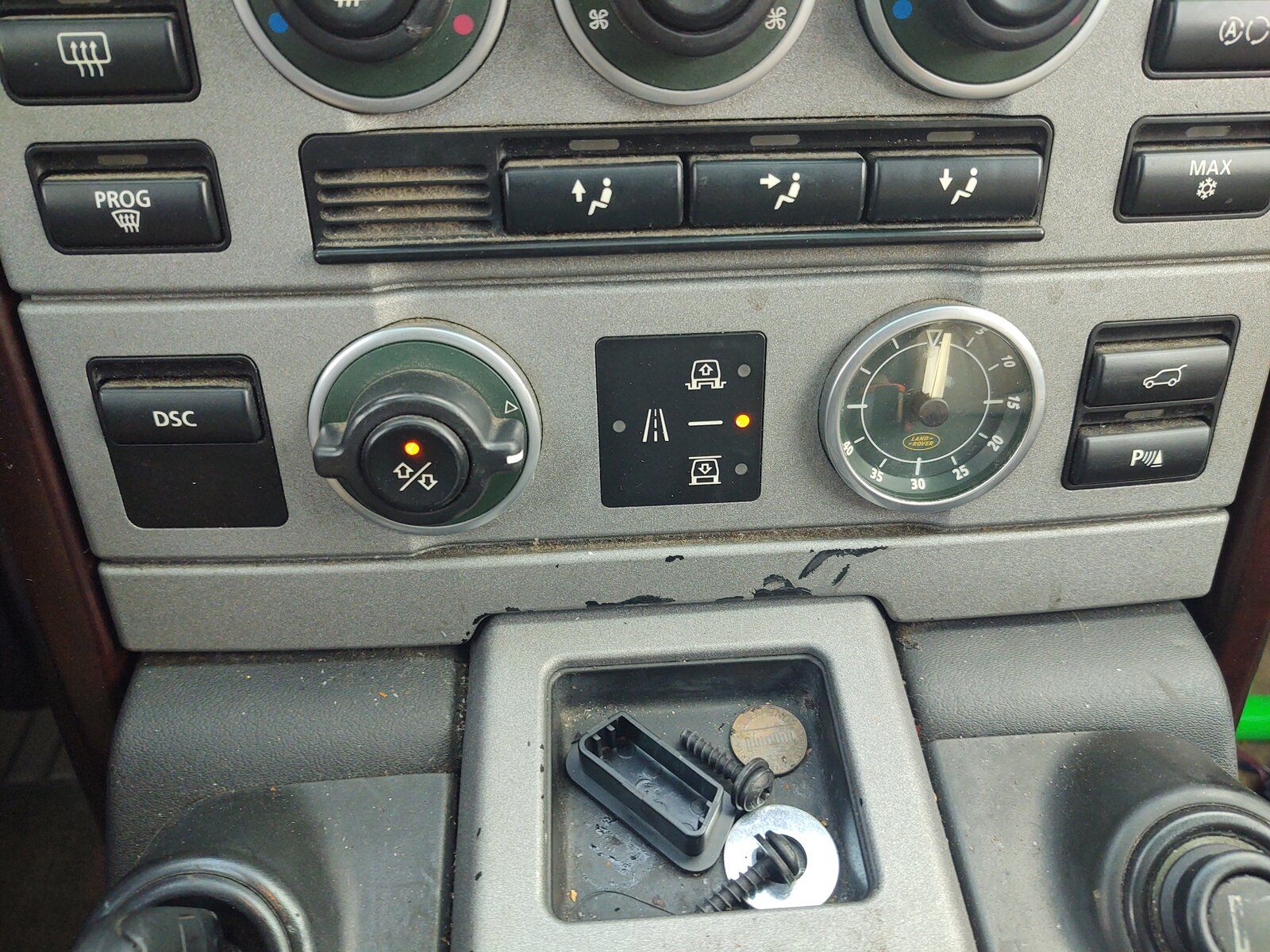

    Looking to get some assistance on a suspension issue. I am getting HDC inactive, Air susp. inactive. The air bags keep pressure and when I stop the car I can feel and see the car lower then raise. I used an ODB reader and there are no errors reported. I tried the turning the wheel all the way to the left then to the right and it did not clear the errors. I would like some suggestions on what to look for. IMG_20220118_161128994.jpg IMG_20220118_161106363.jpg IMG_20220118_161108256.jpg

  2. biketeacherdave

    biketeacherdave Well-Known Member

    Joined:
    May 22, 2014
    Posts:
    4,152
    Likes Received:
    1,551
    Location:
    south east london
    What diag did you use ?? If you have not cleared the hard fault it will not work properly until you do.

  3. teamNash

    teamNash Member

    Joined:
    Jan 4, 2022
    Posts:
    14
    Likes Received:
    0
    Location:
    Ca
  4. biketeacherdave

    biketeacherdave Well-Known Member

    Joined:
    May 22, 2014
    Posts:
    4,152
    Likes Received:
    1,551
    Location:
    south east london
    The icarsoft is pretty good but I'm not sure it clears eas hard faults.

  5. teamNash

    teamNash Member

    Joined:
    Jan 4, 2022
    Posts:
    14
    Likes Received:
    0
    Location:
    Ca
    Do you have a suggestion of another one that will clear hard faults?

  6. biketeacherdave

    biketeacherdave Well-Known Member

    Joined:
    May 22, 2014
    Posts:
    4,152
    Likes Received:
    1,551
    Location:
    south east london
    The gap id bluetooth will do it

  7. badfluffy

    badfluffy Well-Known Member

    Joined:
    Dec 18, 2019
    Posts:
    669
    Likes Received:
    574
    Location:
    bedford
    except it may not be an eas problem, a faulty steering angle sensor causes same problem as does a wheel speed sensor

    tomcat59alan likes this.
  8. teamNash

    teamNash Member

    Joined:
    Jan 4, 2022
    Posts:
    14
    Likes Received:
    0
    Location:
    Ca
    Thanks, I will look into this one. Is there a specific model, like the icar?

  9. teamNash

    teamNash Member

    Joined:
    Jan 4, 2022
    Posts:
    14
    Likes Received:
    0
    Location:
    Ca
    OK, I very green for Range Rovers and there is just so much to this car! I will look at into these.

  10. Mark Piercy

    Mark Piercy Well fumbled member.... Full Member

    Joined:
    Jul 11, 2016
    Posts:
    9,937
    Likes Received:
    6,425
    Location:
    Right here!!
    You ain't seen the half of it.... ;) good luck.

    Tricky of York and tomcat59alan like this.
  11. badfluffy

    badfluffy Well-Known Member

    Joined:
    Dec 18, 2019
    Posts:
    669
    Likes Received:
    574
    Location:
    bedford
    forgot the battery when weak can throw up all sorts of problems

  12. kds

    kds Well-Known Member

    Joined:
    Nov 10, 2008
    Posts:
    2,098
    Likes Received:
    930
    Location:
    old,ugly, tired in Lincoln.
    You really need to check all the ecm on the car not just suspension as a fault in any one of them can and will stop the suspension from working.

  13. teamNash

    teamNash Member

    Joined:
    Jan 4, 2022
    Posts:
    14
    Likes Received:
    0
    Location:
    Ca
    I know, but I don't have the OBD tool to test everything. I got the tool yesterday and i have a CAN Bus fault error. Thanks

  14. teamNash

    teamNash Member

    Joined:
    Jan 4, 2022
    Posts:
    14
    Likes Received:
    0
    Location:
    Ca
    Thanks, I just replaced the battery about two weeks ago, and had someone test the voltage and everything is good.

  15. teamNash

    teamNash Member

    Joined:
    Jan 4, 2022
    Posts:
    14
    Likes Received:
    0
    Location:
    Ca
    So, i got a ODB and tested everything. I have a couple of issues but the first is a CAN Bus issue with no codes. Everything I tested came back to a CAN Bus error.

  16. pwood999

    pwood999 Well-Known Member Full Member

    Joined:
    Nov 6, 2006
    Posts:
    1,937
    Likes Received:
    1,038
    Location:
    Near Heathrow.
    Generic ODB reader is no good. You need L322 specific diagnostics.

    kds and tomcat59alan like this.
