Yes I should have cut the pipe for sure but I didn't know any better at the time, it had the bags on from when I bought the car. I would strongly advise anyone to check the connection on new bags before fitting and if it has this type of connection don't bother because if you ever need to remove them again you are in for a world of pain!
P38A Rear Air Spring Problems
- Thread starter tank93
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Yes I should have cut the pipe for sure but I didn't know any better at the time, it had the bags on from when I bought the car. I would strongly advise anyone to check the connection on new bags before fitting and if it has this type of connection don't bother because if you ever need to remove them again you are in for a world of pain!
Flossie
Well-Known Member
- Posts
- 10,653
- Location
- Shropshire
Yes. I think, from memory, the pipe has 2 bends before it enters the bag? So 2 90 deg fittings per side would give a nice tight set up but not very professional. The tube is quite flexible though so one 90 deg and a bit of trial and error with the new length from the 90 to the bag should end up tidy. The entry to the bag should be square and not strained to avoid leaks.
My plan of action would be to cut the old pipe in an easily accessible place on a good straight bit, use that cut off piece as a pattern to heat mould a new piece, join the two together with a 6mm-6mm straight.
Flossie
Well-Known Member
- Posts
- 10,653
- Location
- Shropshire
Thank you for the advice I will order up a metre or two of 6mm pipe and will buy a couple of 90 degree and straight fittings and see how I get on.
B'ham for my sins!!
Flossie
Well-Known Member
- Posts
- 10,653
- Location
- Shropshire
I'm telford. I've got lots of 6mm nylon pipe and might have some 6mm fittings too.
Just a suggestion, cut the bit off your car and pop over with it and we'll have a go at moulding two new ones? There's also a place near me that does all the fittings. I'm retired so any day or time is cool.
No charge.
Just a suggestion, cut the bit off your car and pop over with it and we'll have a go at moulding two new ones? There's also a place near me that does all the fittings. I'm retired so any day or time is cool.
No charge.
cornishboater
Well-Known Member
- Posts
- 568
- Location
- Poole, Dorset
Some Halfords have it too, though I never trust their stuff.......
Datatek
Well-Known Member
- Posts
- 43,956
- Location
- Near Poitiers SW France
Absolutely no need for 2 bends.
- Posts
- 4,459
- Location
- Rotherham
I concur just nipped out and had a look see. One bend would work easily
Flossie
Well-Known Member
- Posts
- 10,653
- Location
- Shropshire
Crap memory I have hahaha
. I remember the one nearest the bag and in my minds eye there was another bend going around the rear of the mount but....old age..
Flossie
Well-Known Member
- Posts
- 10,653
- Location
- Shropshire
So one 90 deg push fit and a short length of new pipe per side would sort it? Pizzing down here and I've hurt my knee so no nipping out for me.
- Posts
- 4,459
- Location
- Rotherham
Just stopped here but forecast again for after dinner. Sign its a bank holiday
Very kind of you to offer, only problem is the car is now on axle stands waiting for the new bags. Also I need to order some pipe and connections. Found the connectors slightly cheaper, I think these should be ok, they sell straight and elbow?

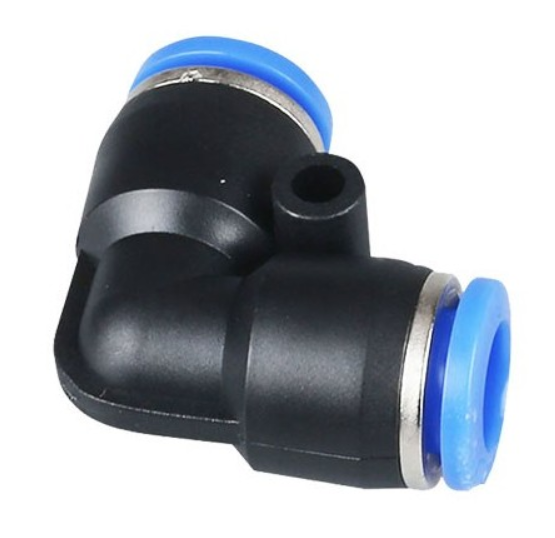

Connector
They also sell pipe but I don't really want to buy a roll of 25-30 metres. Is it better to get polyurethane or nylon pipe or does it not matter?
Flossie
Well-Known Member
- Posts
- 10,653
- Location
- Shropshire
Datatek
Well-Known Member
- Posts
- 43,956
- Location
- Near Poitiers SW France
Nylon not polyurethane. Those connectors are just fine.
- Posts
- 4,459
- Location
- Rotherham
Look on fleabay some sell shorter lengths. I remember buying about 15mtr for under a tenner
Right ordered the connectors and nylon pipe, hopefully will arrive later this week, then I can try and sort the issue over the weekend. Just out of interest does anyone know what pressure the air suspension system operates at? I guess these connectors can hold that pressure? With my luck recently I will fit the connectors and the pipes will blow off from them!!!
Flossie
Well-Known Member
- Posts
- 10,653
- Location
- Shropshire
They'll be fine.
Datatek
Well-Known Member
- Posts
- 43,956
- Location
- Near Poitiers SW France
Right ordered the connectors and nylon pipe, hopefully will arrive later this week, then I can try and sort the issue over the weekend. Just out of interest does anyone know what pressure the air suspension system operates at? I guess these connectors can hold that pressure? With my luck recently I will fit the connectors and the pipes will blow off from them!!!
Datatek
Well-Known Member
- Posts
- 43,956
- Location
- Near Poitiers SW France
I cannot remember the cut off pressure but no more than 140psi. As long a the pipe is all the way in, the connectors will be fine. A little washing up liquid aids insertion.
