Fitted my CB

Big Stu 12 said:

yeah I not got elecy sunroofs so used the power cable in behind the light in the sunroff control panel

Click to expand...

Cheers I'll look in to that tomorrow

Mines in the same place as big stu's plus a amp.Its a tidy job if i say so myself, will post a pic

V8Jay said:

Mines in the same place as big stu's plus a amp.Its a tidy job if i say so myself, will post a pic

Click to expand...

Look foward to see it

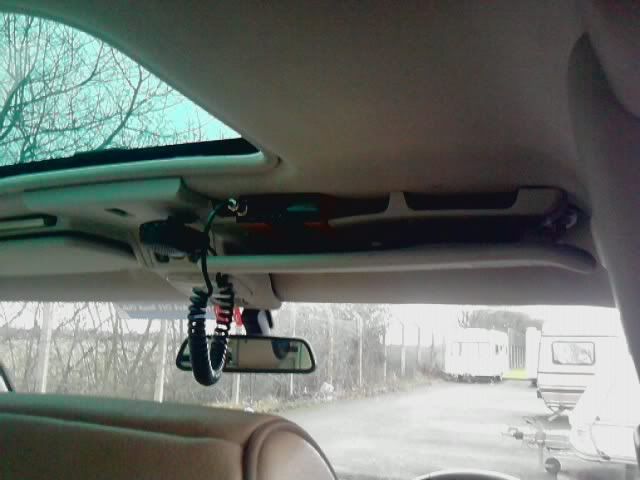

[/IMG]

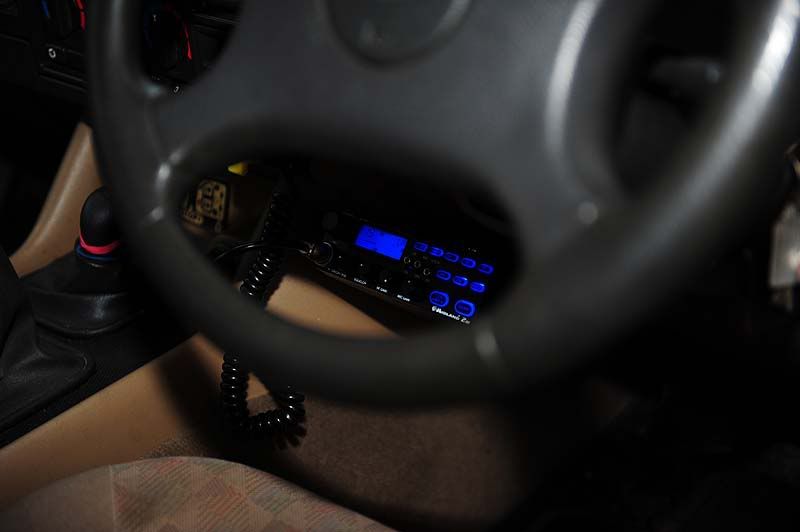

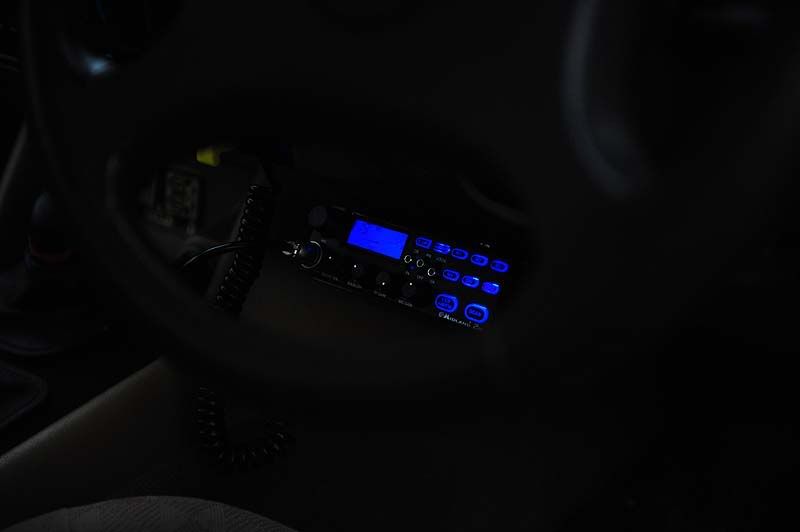

bit of a **** pic in the dark, but you get the idea

Thanks for that Pic is ok for idear you have saved me measuring as tht looks the same radio as i have Midland 121

Thanks for that V8jay

yup but the screws need to be slack to get it in, then wire it in using the sunroof plug

http://www.landyzone.co.uk/lz/f8/obtaining-cb-119948-7.html

post 64

Thanks for that V8Jay
interesting thread that was


Sorry Puppysandwhich for hijacking this thread

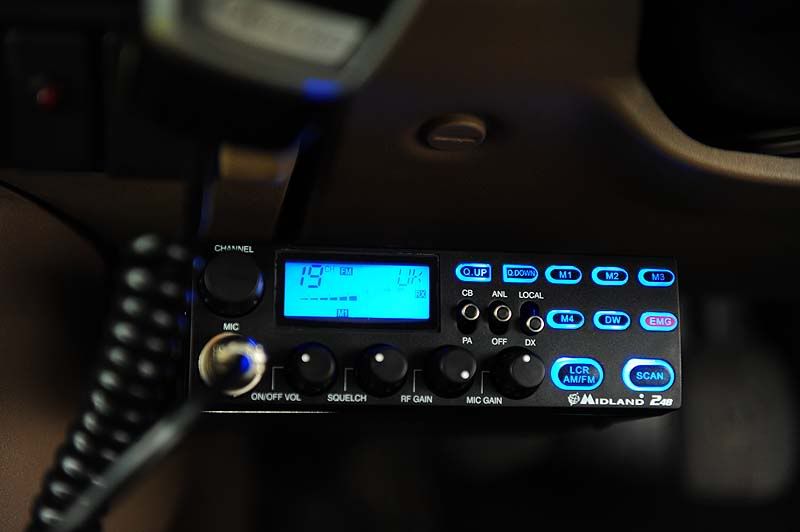

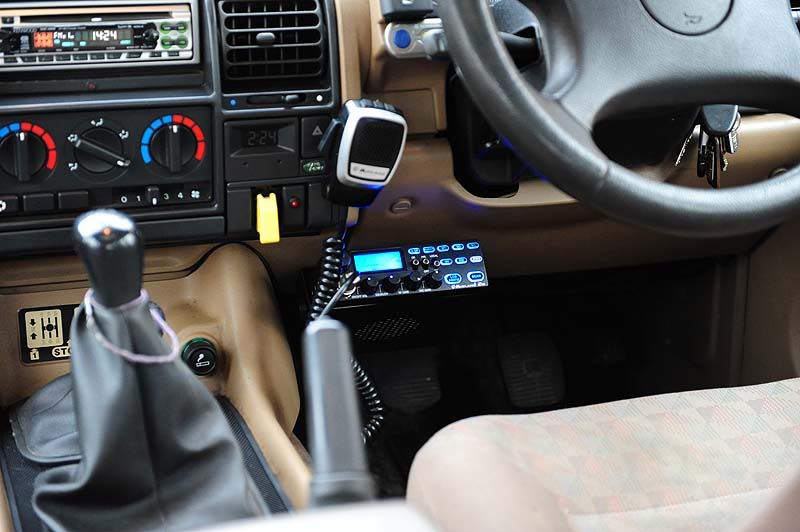

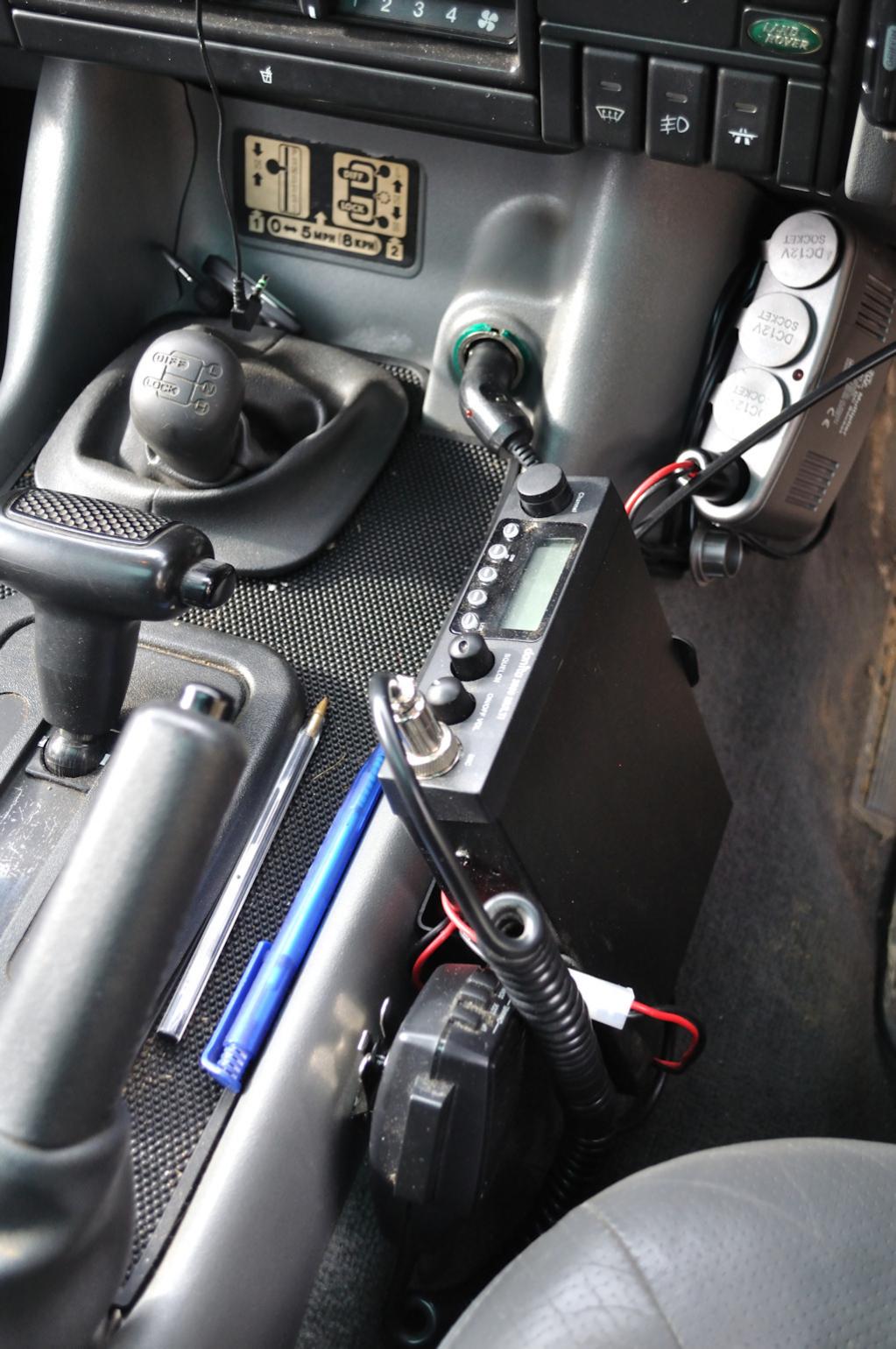

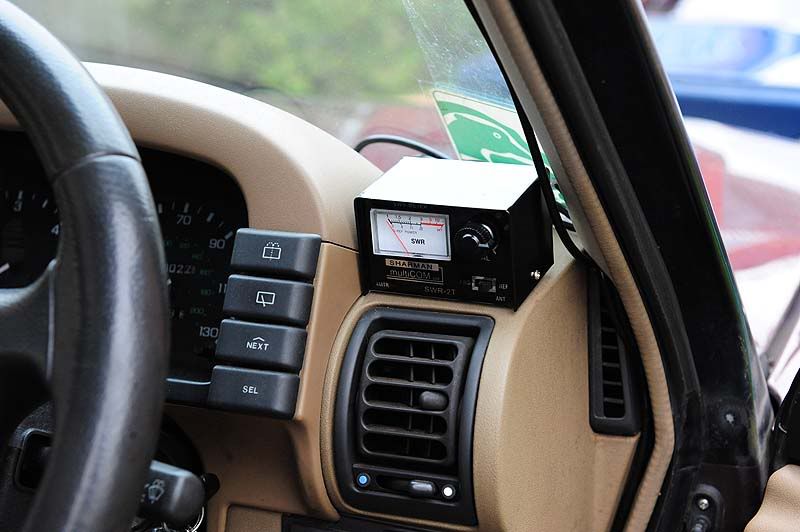

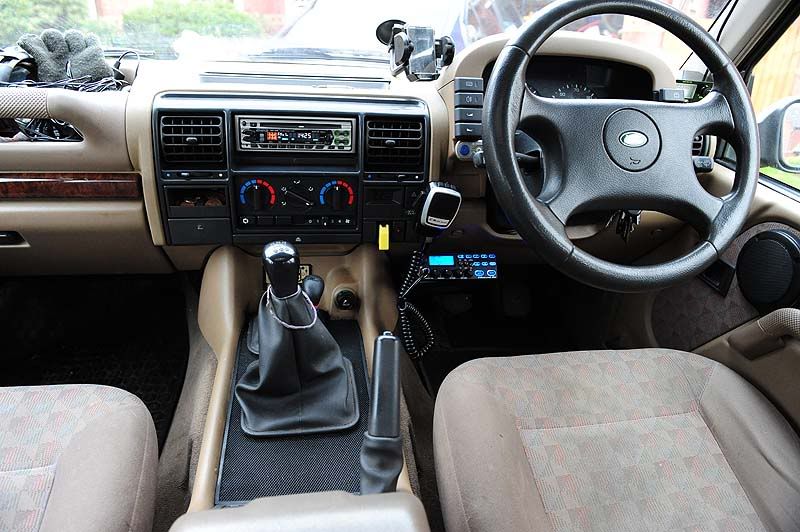

Pics as promised.

looks the part, does it catch you knee ????

V8Jay said:

looks the part, does it catch you knee ????

Click to expand...

No it doesn't, its just to left of the Clutch and a little higher, I guess due to my seat position etc its perfect for me, others may find its in the way though, but then no one else drives my Disco.

I managed to get the SWR down today to 1.1

landy1uk said:

..
Was down by my Knees but kept knocking it so now ontop off dash have seen them up in the pockets above the window might put it up there.. gonna check first size wise
This is in a D2

Click to expand...

That's blocking an awful lot of you're swept area and could easily be a good reason for ya insurer to walk away if you were ever involved in an accident. Might be worth shifting some of it..

puppysandwich said:

Pics as promised.

Click to expand...

looks spot on that does!
and with my little legs itd never get in the way. but i have to know, what does the yellow switch do?!? ha

it will be a "go baby go" button

thainy said:

looks spot on that does!
and with my little legs itd never get in the way. but i have to know, what does the yellow switch do?!? ha

Click to expand...

V8Jay said:

it will be a "go baby go" button

Click to expand...

Its the ejector seat for boring passengers...

Actually its for the Roof Spots.

puppysandwich said:

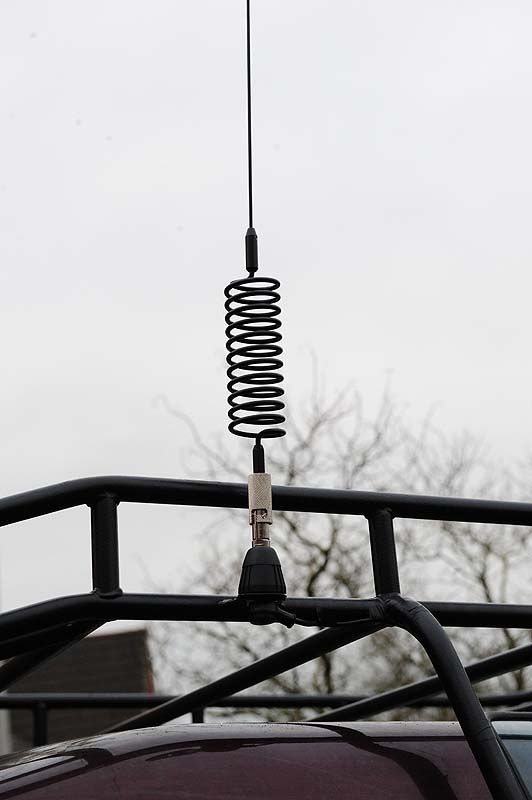

My new Midland 248 arrived today with a SWR Meter and new Springer and mount, so after an hour I got it all fitted and with a SWR of 1.5 straight off I was quite happy. I couldn't believe how quiet the air waves are though, nothing like 30 years ago. I eventually got a rig check from a passing truck driver about 3 miles away so at least I know its working, I'll post up some pics in the next day or so. I'd like to see anyone else's set up in their Disco, I mounted mine in the drivers foot well, just about where my left knee is.

Click to expand...

See attached pics!

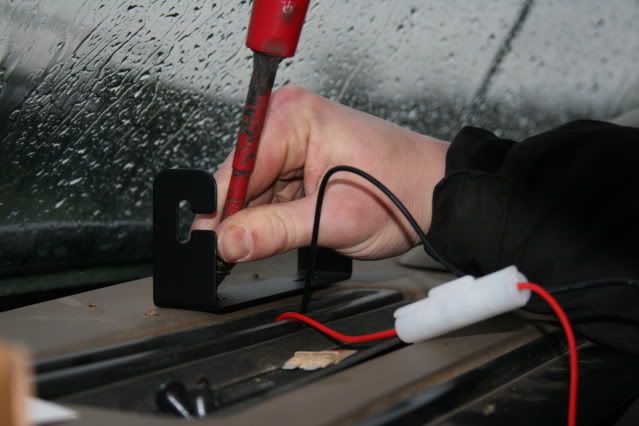

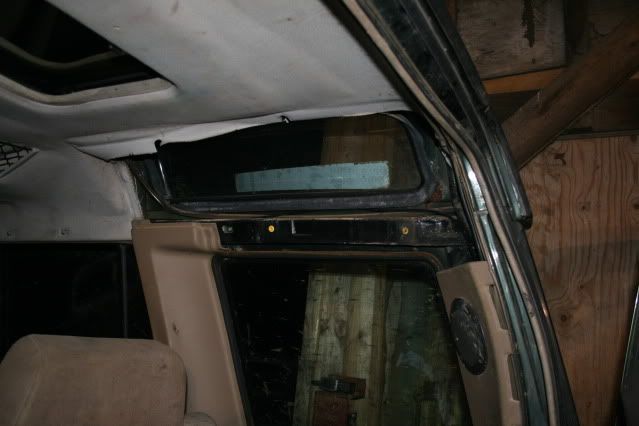

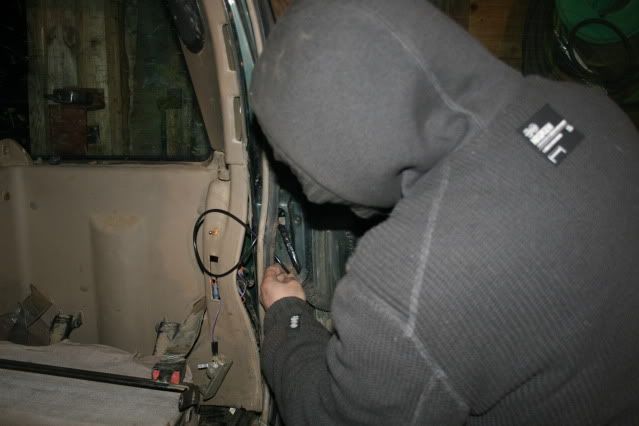

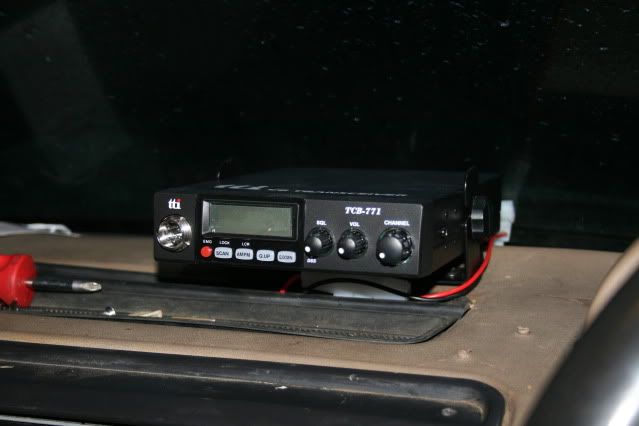

Got a couple of photos of fitting mine. Bought a PSM mount with the entention of fitting it to the back of the truck next to the door, however discovered that the Disco has a inner skin that prevents that.

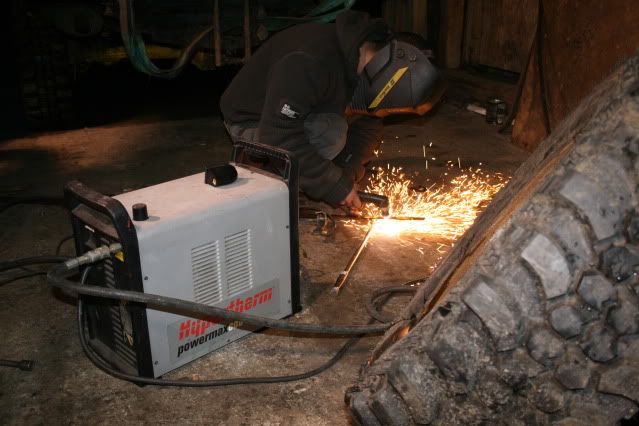

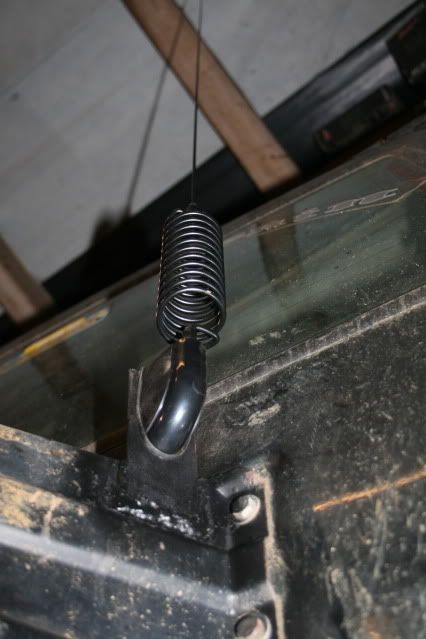

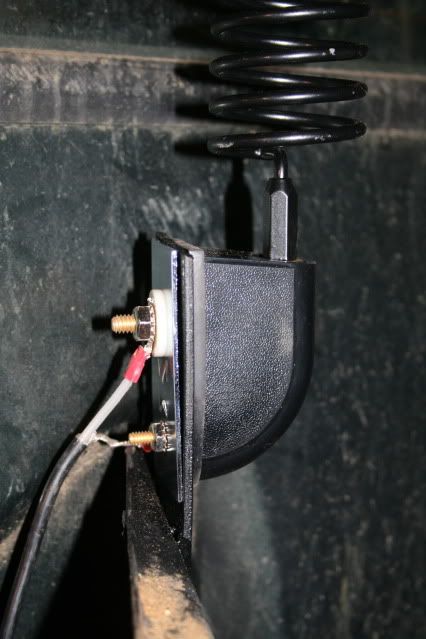

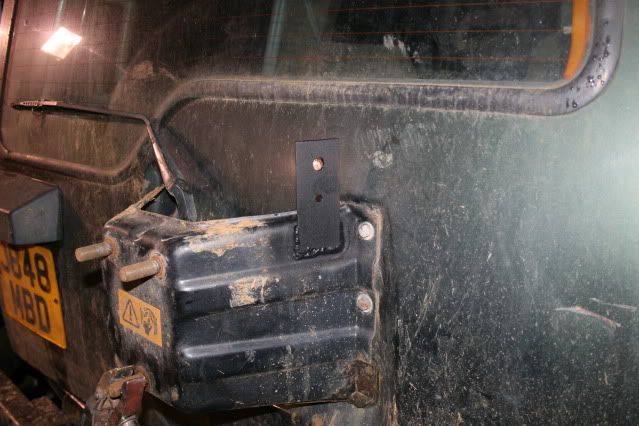

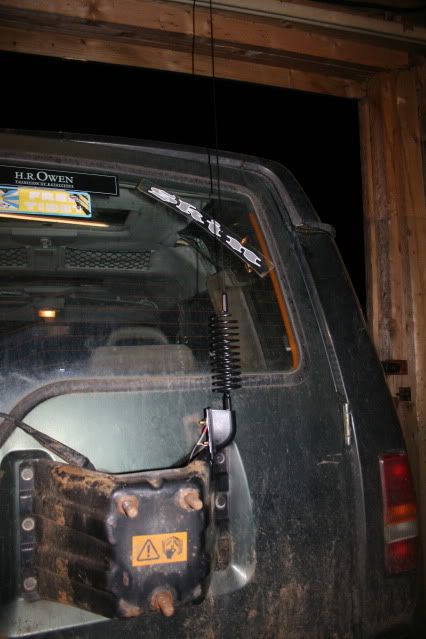

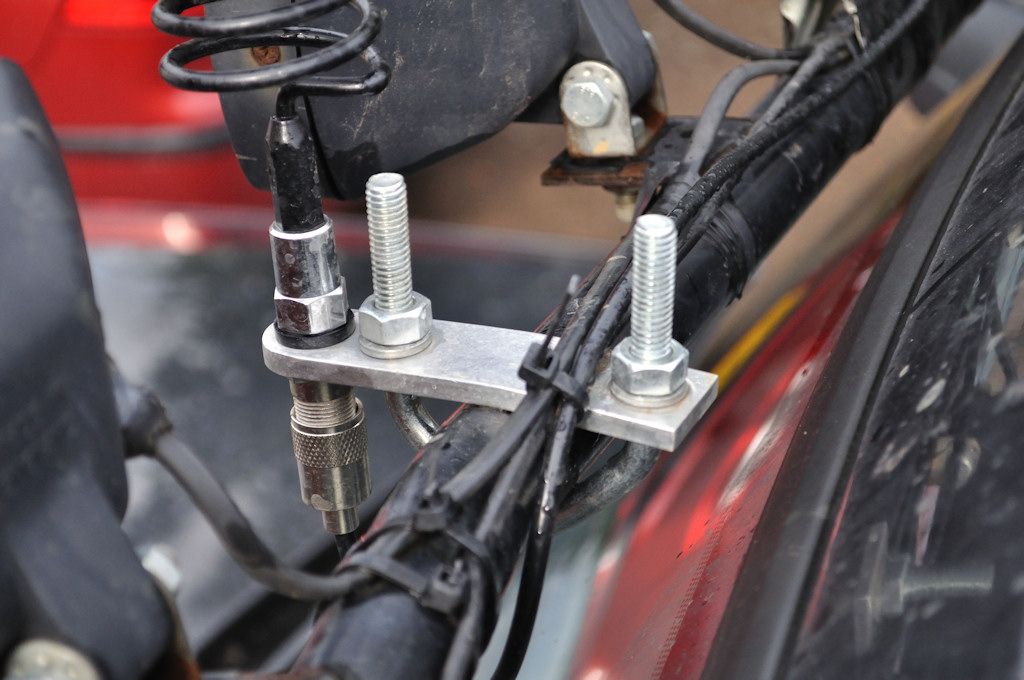

So improvised by welding a plate to my spare wheel carrier and fitting it there instead:













Would have got more pics of it up and running but 2 days later the truck was broken into and it was nicked.
Will replace it with another one however when i do i'm planning on making a custom storage area where the sunvisors are. Gonna fit it there along with aux switches and a second glovebox.

Chris

redhand said:

That's blocking an awful lot of you're swept area and could easily be a good reason for ya insurer to walk away if you were ever involved in an accident. Might be worth shifting some of it..

Click to expand...

Hi guys sorry haven't posted pics but forgot what thread this was on,

Camera was only there just for Photo, and when off roading. Normal day to day it's not there

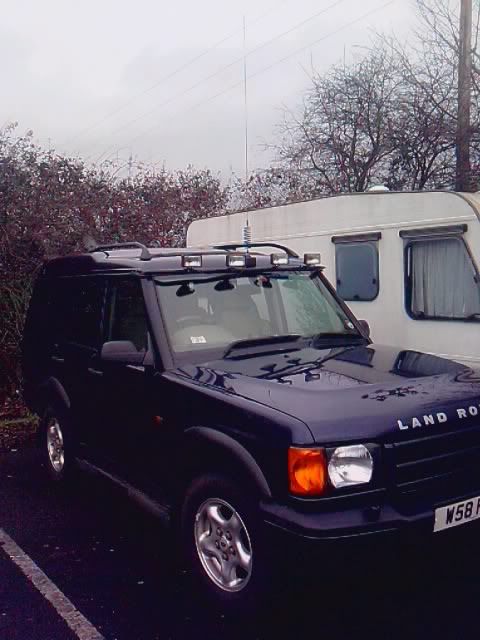

How it looks now


The Original CB bracket is still on the Dash gonna use it for Camera mount, Sat nav mount and Road Angel. Swr meter now lives in the house until i need it

puppysandwich said:

Pics as promised.

Click to expand...

That is a nice looking setup.
Your Quick Realese doe's that have a spring init I had one and the spring kept falling out, lost the spring down a drain so it's now just bolted to the dome mount

puppysandwich said:

It was only AM that was illegal back then, just about everyone I knew was on the air I met several girlfriends over CB.

In those days we didn't have Mobile phones, or Computers and if you were really lucky your parents had a phone in the house on a party line with the neighbours, it was always fun listening in

History of UK CB RADIO

Click to expand...

Fook me, sounds like my house, parents had a party line, I had a cb and a thunder pole on the roof which ****ed the neighbours off

Met the wife on the cb, still married, 28 years

It was a fun way to spend a few hours, then there's always the pub meets, eyeballs and so on. Now the Internet and texting has taken over I guess.

landy1uk said:

That is a nice looking setup.
Your Quick Realese doe's that have a spring init I had one and the spring kept falling out, lost the spring down a drain so it's now just bolted to the dome mount

Click to expand...

Yes its got a spring in it, you just have to be careful when you take it off, I'll try not to park next to a drain..
