ECU Wiring Loom unconnected cable

Drives

New Member

Posts

4

• Jun 21, 2016

• #1

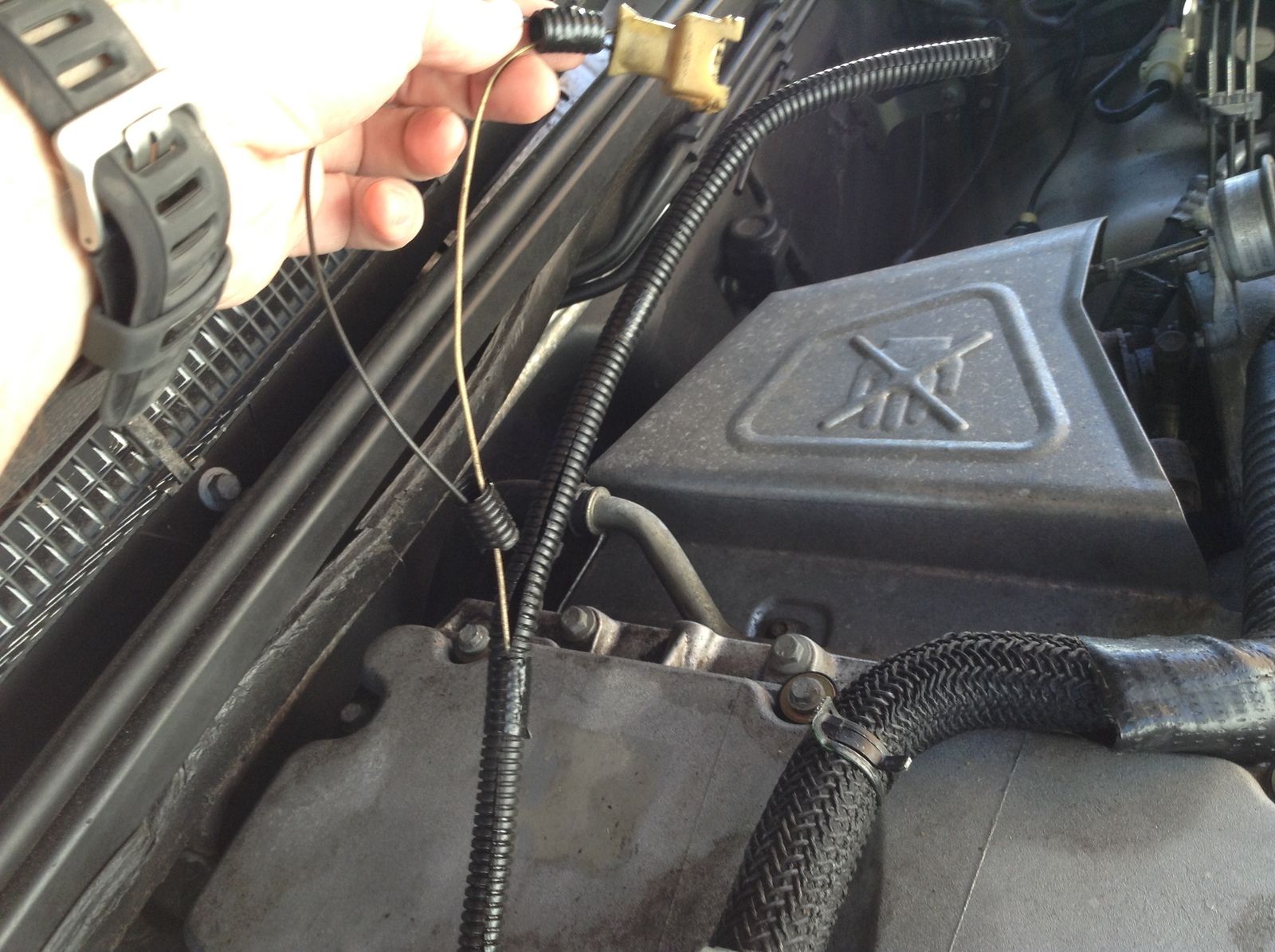

Hello all, I've been chasing the usual miss-fire on my TD5 Discovery 2 2.5 auto (02) and have found a loose wire in the far end of the loom that goes across the bulk head to somewhere behind the turbo heat shield.

Any idea where the black wire is supposed to connect to?

I've added a photo

[/GALLERY]



wammers

No longer with us, RIP

Donater

Posts

58,170

Location

Preston Lancs.

• Jun 21, 2016

• #2

Best of luck the wiring diagrams for the TD5 are a bloody nightmare. The light coloured wire will be a feed and the black one a ground.



Drives

New Member

Posts

4

• Jun 21, 2016

• #3

Thanks Wammers - I've read a post that it's a dud from the oil pressure sensor that doesn't need connecting to anything https://www.landyzone.co.uk/land-rover/td5-broken-wire-to-a-sensor.115319/
