L322 cant put it off any longer aux heater needs fixing

as said cant put this off any more, but were to start? i have no remote but understand i can fit an after market one but have no idea what the modul looks like in the rear wing or which wires to use on it, any help would be good chears

badfluffy said:

as said cant put this off any more, but were to start? i have no remote but understand i can fit an after market one but have no idea what the modul looks like in the rear wing or which wires to use on it, any help would be good chears

Click to expand...

You youngsters are a soft lot. My first 2 cars didn't even have a cabin heater

Datatek said:

You youngsters are a soft lot. My first 2 cars didn't even have a cabin heater

Click to expand...

my landrover fire engine still doesn't have one

badfluffy said:

my landrover fire engine still doesn't have one

Click to expand...

But you probably do not use it as your daily drive as was the case for me.

badfluffy said:

as said cant put this off any more, but were to start? i have no remote but understand i can fit an after market one but have no idea what the modul looks like in the rear wing or which wires to use on it, any help would be good chears

Click to expand...

I would say start with youtube.

lynall said:

I would say start with youtube.

Click to expand...

Or a gallon of petrol and a box of matches if all else fails. At least you would be warm

Rubberknees said:

Or a gallon of petrol and a box of matches if all else fails. At least you would be warm

Click to expand...

i would have done that years ago, but i like it

What year?
If you have the touch screen you can see if it's enabled and if it works before spending on a remote.

backinblack said:

What year?
If you have the touch screen you can see if it's enabled and if it works before spending on a remote.

Click to expand...

its an early 2003

Is it actually not working or are you just looking to be able to start it remotely? It should come on below 5ºC when the engine is running so you need to make sure that is happening first. If you just want to add a remote function to it then it's not as simple as the later cars as they were all pre-wired.

I did it years ago for the wife's Freeloader and bought a remote 2 channel relay to fire the heater and turn on the blower motor. I have a feeling that you need to get 12v to the grey/green wire on Pin 3 of the 6 pin connector on the heater so that it basically thinks the temp sender is telling it that it's below 5ºc out there. DEFINITELY CHECK THIS INFO, my memory isn't all that and the info is from 10 year old notes for a different car so please don't take my word as gospel.

well it definitely don't come on below 5 and it wont come on using the timer on the display

I think it may be broke

What diagnostic tool do you have as some of them can see the FBH and show fault codes?

Pulling fuse 59 for a few minutes may reset the FBH.

If you have the Telestart remote you should see the receiver in the rear fusebox

ive only got impa at moment , shall check see if i have telestart box

Rubberknees said:

Or a gallon of petrol and a box of matches if all else fails. At least you would be warm

Click to expand...

A gallon?
At today's prices

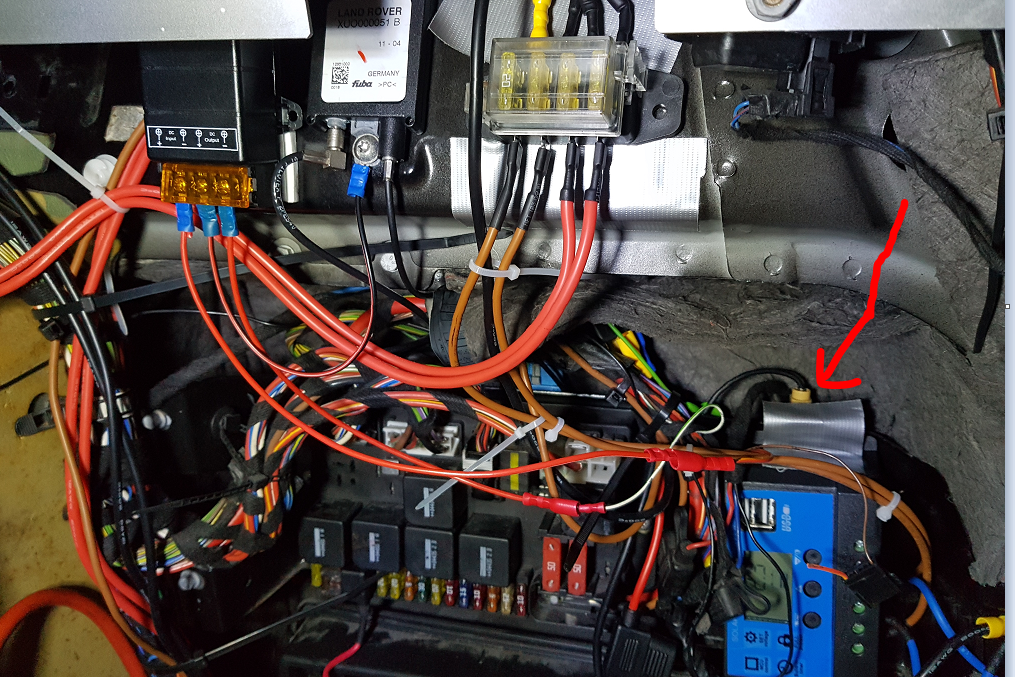

ok no box but do have a connector with 3 wires colour matched to those in the pic but a different style of connector

If you put 12v on the white/green wire you may hear it try to fire up

looking at the circuit diagram there should be 12v on one of the three wirers

Oops. Just corrected my post. 12v feed is orange, White/Green is the signal to the FBH. Brown is earth.

well i will try that at weekend see what happens
