Hi guys
I have 2 wires left that I am trying to locate the destination of from fitting my engine.
They come out of the loom behind the pump and one is white the other is cream with brown stripe. They are next to each other and have spade connections. One connection is black plastic spade the other is clear rubber.
I think they go into oil filter housing as I am sure they are for oil light or something but I only have one connection there so which one?
Cheers

What engine? If its a 200Tdi one goes to oil filter housing other on to the Fuel injection pump. A picture of the wires would be helpful and engine type.

Thanks
It's a 200tdi. I'll get pics tomorrow if I can't work it out.
It's strange that this 200tdi has an oil filter housing but the 200tdi I took out had a metal filter

Thanks
It's a 200tdi. I'll get pics tomorrow if I can't work it out.
It's strange that this 200tdi has an oil filter housing but the 200tdi I took out had a metal filter

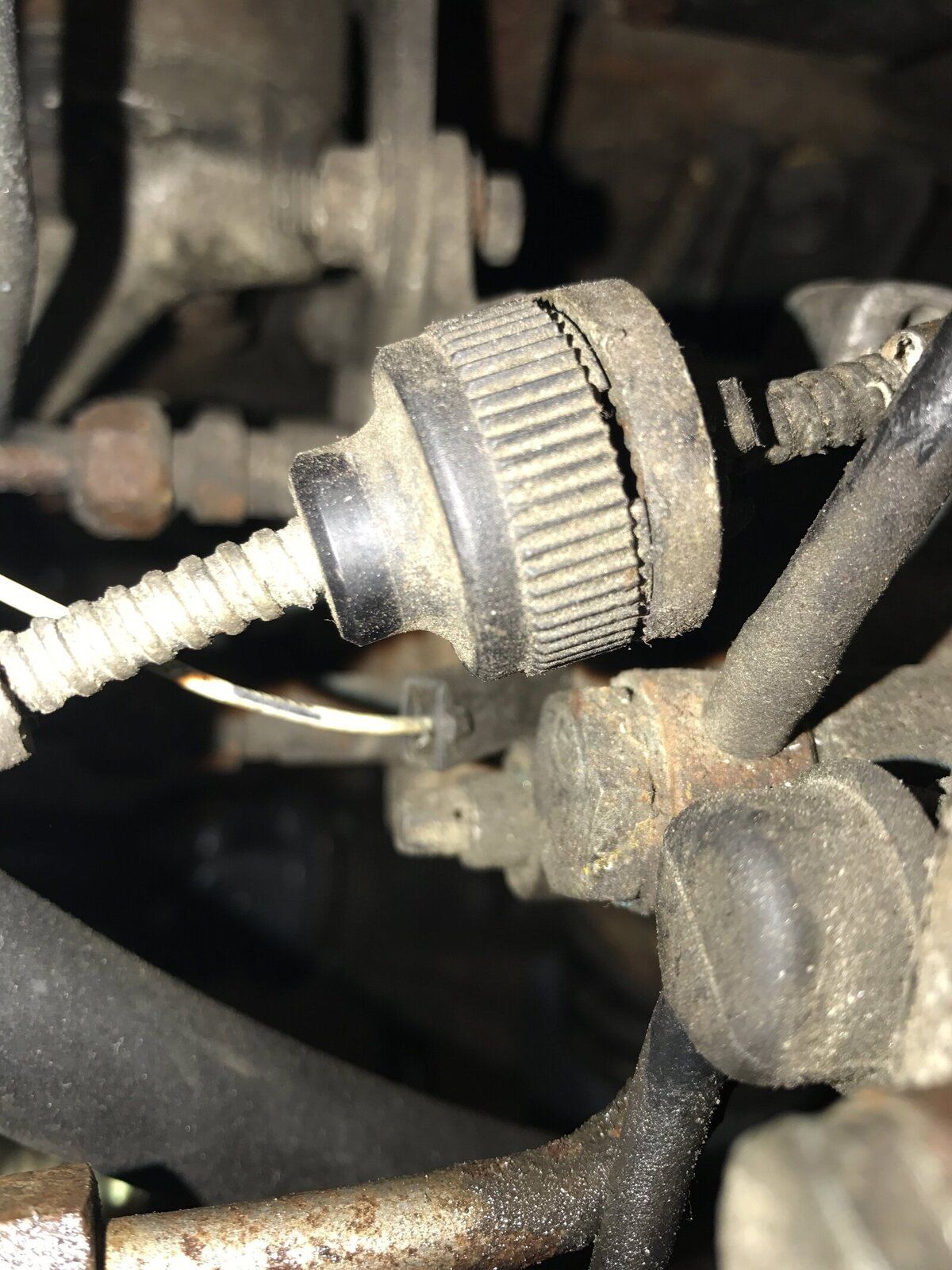

I've taken some pics of wires on my 200TDI
the white with brown in first pic goes to oil filter housing and the white with black goes to back of fuel injection pump as shown in last two pic hope this help mate.
