thanks for all the suggestions guys, will try to get the stub axle out and see if I can get the halfshaft out
unequalwolf8
Active Member
Just verifying something, will i have to remove the wheel bearing and any seals to get to the stub axle? Those parts are difficult to get where I live
jamesmartin
Well-Known Member
yes hub plus bearings need pulling of the stub axle, bearing nuts is 52mm stub axle bolts 17mm, you need no parts hub comes off with bearings and seal stub axle can be replaced using silicone sealant if oil proof
unequalwolf8
Active Member
Thanks for the quick response jamesmartin, the forum is proving to be far better than the local land-rover dealer
jamesmartin
Well-Known Member
if you remove hub you will need to reset the wheel bearings which if one nut ie td5 you just tighten ,if 2 nuts ie earlier you tighten the first nut so as just to remove any free play in the bearings, then fit tab washer and fully tighten second nut
unequalwolf8
Active Member
It is a td5, hopefully i will be able to do this tomorrow
jamesmartin
Well-Known Member
td5s use a selectable spacer between the bearings so you cant over tighten the bearings
unequalwolf8
Active Member
Thanks for that as well, really want to get this done with, thanks for all the help
unequalwolf8
Active Member
Success at last, just before i started to unbolt things I tried one more option. I welded a piece of metal to the half shaft using it as a handle. After sometime turning and pulling it came out. Have put in a new shaft and flange. Glad it's over, thanks for the help guys
unequalwolf8
Active Member

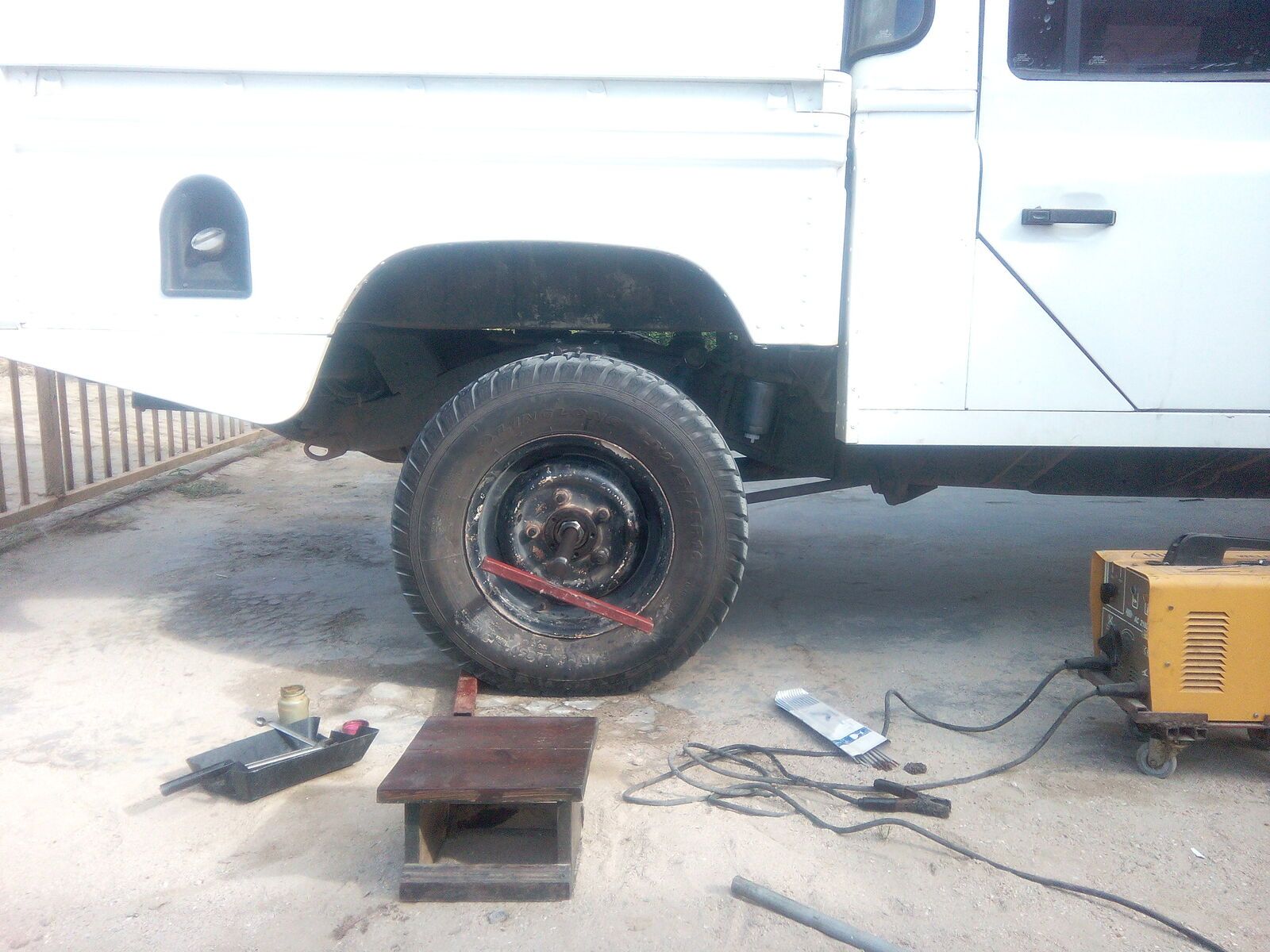

This is what it looked like
Kwakerman
Well-Known Member
So what was the issue - twisted splines?
Kwakerman
Well-Known Member
Great minds and all that!
Great minds and all that!
But I was quickest.....
unequalwolf8
Active Member
My flange had become rounded whilst I was driving, so i can only assume that the shaft had become somewhat stuck in the differential. When i tried to reinsert the old shaft it felt like something stopping it from going all the way. After doing this a few times it seemed to be sliding in much easier. New shaft gave no problem
Kwakerman
Well-Known Member
'Being the quickest' isn't necessarily something to brag about in certain circumstances if you know what I mean
frog hopper
Well-Known Member
unequalwolf8
Active Member
Very true, of course this depends on the situation
unequalwolf8
Active Member
Yeah i am quite the amateur
but with 2 land rovers i have to give it my very best to keep them running
but with 2 land rovers i have to give it my very best to keep them running
