border

Well-Known Member

• Jul 3, 2014

• #21

jamesmartin said:

which is yours ,what age of vehicle

Click to expand...

Defender 90, 1990, My axles are classis range rover, like the ones here.Replacing a Rear Hub - Land Rover Technical Archive - LR4x4 - The Land Rover Forum



jamesmartin

Well-Known Member

• Jul 3, 2014

• #22

ftc3154 most likely if that axle is the same as yours ,fits in rear of stub axle



border

Well-Known Member

• Jul 3, 2014

• #23

jamesmartin said:

ftc3154 most likely if that axle is the same as yours ,fits in rear of stub axle

Click to expand...

Do you think I need the whole stub axle FTC3154 | Stub Axle Front Def Ds1 Rrc - Land Rover Part FTC3154



jamesmartin

Well-Known Member

• Jul 3, 2014

• #24

no just seal ,unless stubs damaged were bearings seat



border

Well-Known Member

• Jul 3, 2014

• #25

jamesmartin said:

no just seal ,unless stubs damaged were bearings seat

Click to expand...

Thanks again Mate.
Will check to see if stub is damaged. but cant find the seal on its own, Im sure there was not one in when I was in last time.



border

Well-Known Member

• Jul 5, 2014

• #26

OK Had another go today as I had a spare seal.
Done excactly the same, cleaned and greased bearings ect.

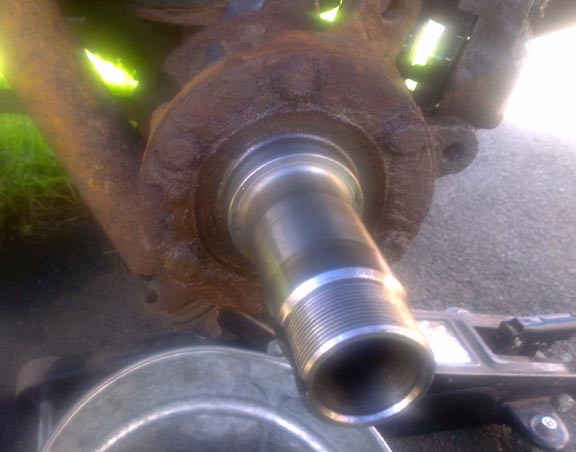

Think I need the full Stub Axle, attached photo of the one thats on now, the bar looks OK but the back is rusted to fook, will this be the cause of the leak???



Attachments

•

  32.9 KB · Views: 214

Oldseadog

Well-Known Member

• Jul 6, 2014

• #27

Your seal does not go anywhere near the rusty back.

It sit behind the bearing which sits against the back, shiny part of the shaft.

You don't need to change anything apart from the oil seal from what I can see from your pic.



jamesmartin

Well-Known Member

• Jul 6, 2014

• #28

border said:

Do you think I need the whole stub axle FTC3154 | Stub Axle Front Def Ds1 Rrc - Land Rover Part FTC3154

Click to expand...

yours is the earlier axle ftc3154 is not applicable to yours



border

Well-Known Member

• Jul 6, 2014

• #29

Will see if it leaks again, fingers crossed it wont.
This is the seals that I have put in FTC4785R | Hub seal excactly the same as what was in when I got it.



jamesmartin

Well-Known Member

• Jul 6, 2014

• #30

ftc4785 isnt an oil seal its a grease seal there is another method of stopping oil reaching hub bearings ,300 tdi use a seal in stub axle and machined surface of half shaft ,earlier outer seal in hub,or rtc3511 oil seal in inner hub



border

Well-Known Member

• Jul 6, 2014

• #31

OK, FTC4785 was what was in originaly, when I bought the car, there was no leaks untill I had rear discs renewed then it started leaking, so changed seal for FTC4785.
Is this the wrong one?, Or should it be replaced for rtc3511 instead, or does rtc3511 go in aswell as FTC4785 ??
Thanks for your help.



jamesmartin

Well-Known Member

• Jul 6, 2014

• #32

as i said ftc4785 is a grease seal it has no garter spring like rtc3511 oil seal ,originally oil was let into hub so they used rtc3511 to keep oil from leaving hub ,later grease was used in hubs and oil was resticted so it didnt enter wheel bearings so ftc4785 was fitted as it didnt need to keep oil in, yours has probably just had wrong seal fitted in the past,



border

Well-Known Member

• Jul 6, 2014

• #33

jamesmartin said:

as i said ftc4785 is a grease seal it has no garter spring like rtc3511 oil seal ,originally oil was let into hub so they used rtc3511 to keep oil from leaving hub ,later grease was used in hubs and oil was resticted so it didnt enter wheel bearings so ftc4785 was fitted as it didnt need to keep oil in, yours has probably just had wrong seal fitted in the past,

Click to expand...

OK Looks like in a week or so its going to start leaking again.
This time will change seal to rtc3511.
Thanks for your help Mate, Really Appreciated.
