![IMG_0008[1].JPG](/data/attachments/215/215515-4972c1a177ebd52878ab9b144c7fc676.jpg)
![IMG_0011[1].JPG](/data/attachments/215/215516-8adcdcc83186f9c35552fe74249e024a.jpg)
Hi, I had the same problem with mine when I got it 3 1/2 yrs ago, it took my local LR dealer weeks to get a part no. for it as it didn't show up on the parts list.
The part no. is AWR5619 but it's now discontinued

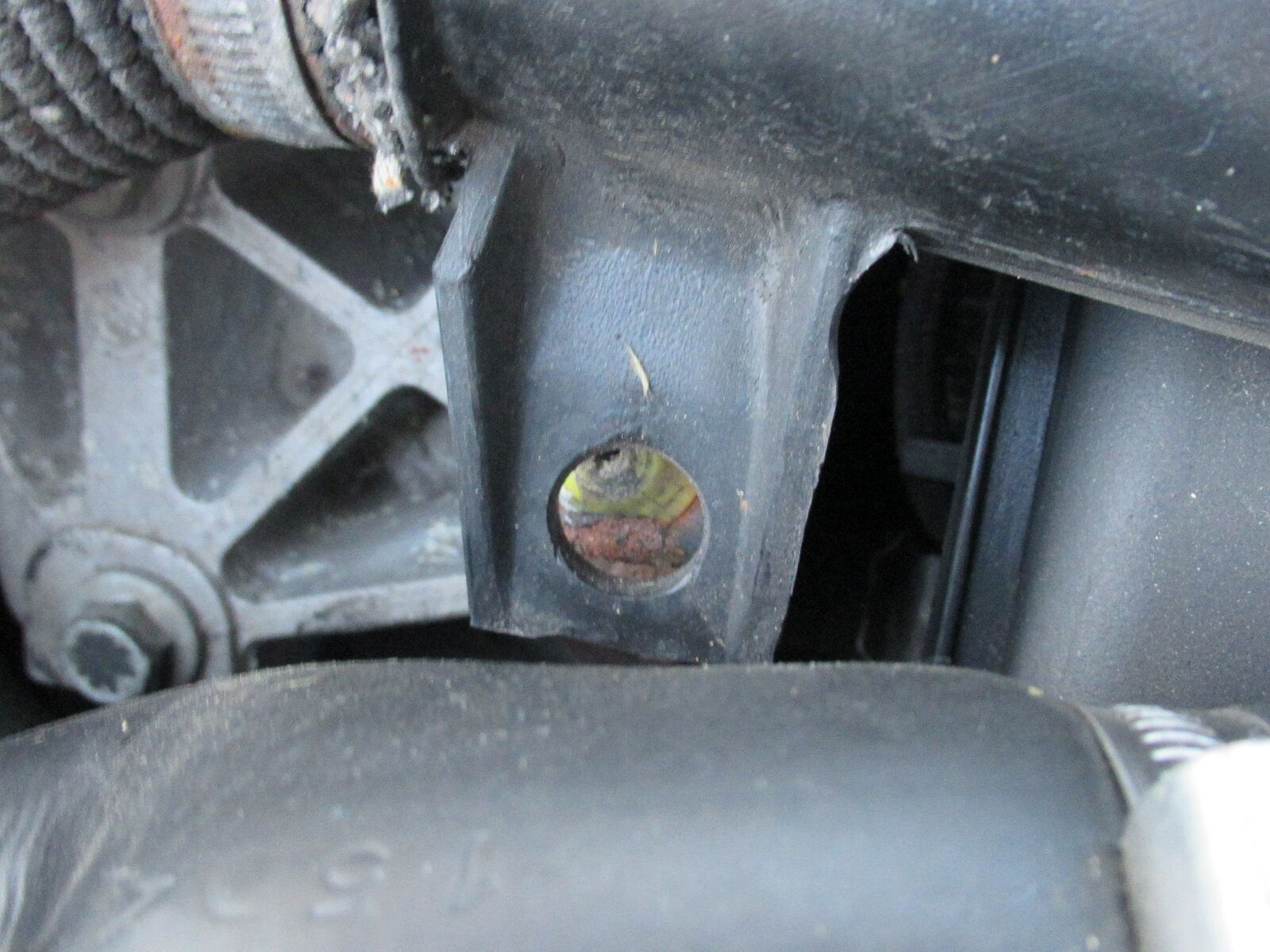

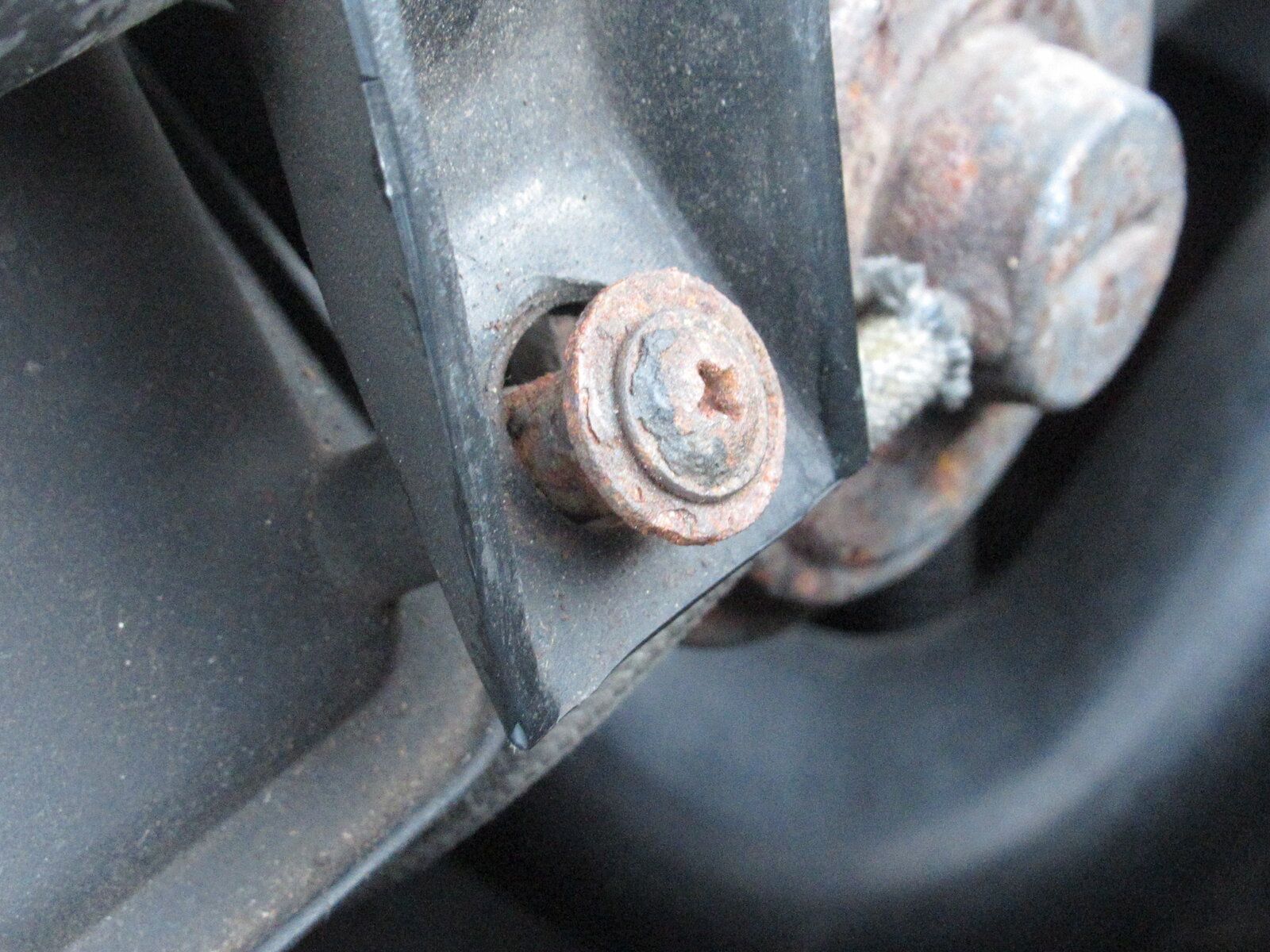

.(I wish I'd got 2 or 3 of them now) As it's fairly brittle I would have thought LR would keep stock available.The pics. are of what was left of mine when I got it & notes I made at the time. I can take a picture of the whole bit tomorrow if you want, let me know, otherwise if you google it Brit car have a out of focus picture of it on their website. Best of luck with your search.
Hi, I had the same problem with mine when I got it 3 1/2 yrs ago, it took my local LR dealer weeks to get a part no. for it as it didn't show up on the parts list.
The part no. is AWR5619 but it's now discontinued
.(I wish I'd got 2 or 3 of them now) As it's fairly brittle I would have thought LR would keep stock available.The pics. are of what was left of mine when I got it & notes I made at the time. I can take a picture of the whole bit tomorrow if you want, let me know, otherwise if you google it Brit car have a out of focus picture of it on their website.
just ditch it altogether .. ;-]
https://www.landyzone.co.uk/land-rover/intercooler-problem-mod.126484/
[ it does make a positive drive-ability difference ..
[ especially if the ducting be insulated against heatsoak ..
```````````````````````````````````````````````````````````````````````````````````````````````````
`````
https://www.landyzone.co.uk/land-rover/intercooler-problem-mod.126484/
[ it does make a positive drive-ability difference ..
[ especially if the ducting be insulated against heatsoak ..
```````````````````````````````````````````````````````````````````````````````````````````````````
`````
when mine were fitted .. the screws were a bit awry ..
think one were missing ..
were easy to replace them from bolts 'n what not found in my various stashes
```````````````````````````````
much prefer the mod. .. releasing it from the filter box .. be one clip-screw to undo
`````````````````````````````````
also used bolts that self tapped perfectly .. to block various holes in the filter box
only kool air in for my td4 ;-] .. no preheated oily engine bay air thanx ..
every little bit helps .. ;-]]
`````````````````````````````````````````````````````
`s`
think one were missing ..
were easy to replace them from bolts 'n what not found in my various stashes
```````````````````````````````
much prefer the mod. .. releasing it from the filter box .. be one clip-screw to undo
`````````````````````````````````
also used bolts that self tapped perfectly .. to block various holes in the filter box
only kool air in for my td4 ;-] .. no preheated oily engine bay air thanx ..
every little bit helps .. ;-]]
`````````````````````````````````````````````````````
`s`
Border Boy
Member
View attachment 223936 View attachment 223937

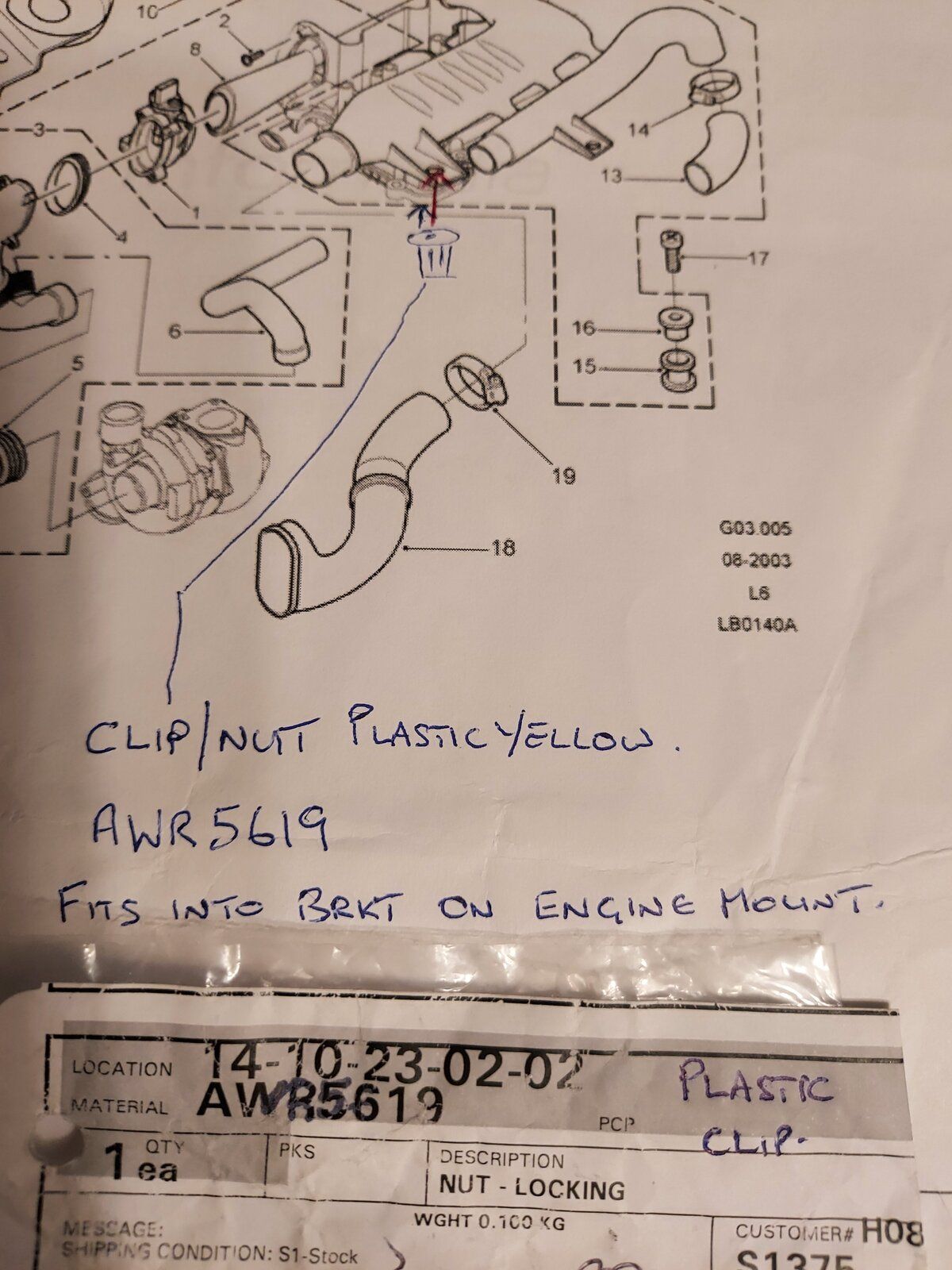

Hi, I had the same problem with mine when I got it 3 1/2 yrs ago, it took my local LR dealer weeks to get a part no. for it as it didn't show up on the parts list.
The part no. is AWR5619 but it's now discontinued
The pics. are of what was left of mine when I got it & notes I made at the time. I can take a picture of the whole bit tomorrow if you want, let me know, otherwise if you google it Brit car have a out of focus picture of it on their website.
Andy, thanks for reply and photo, I thought it would be a screw and washers. A photo of the correct fitting will be appreciated, it's a sunny day tomorrow!

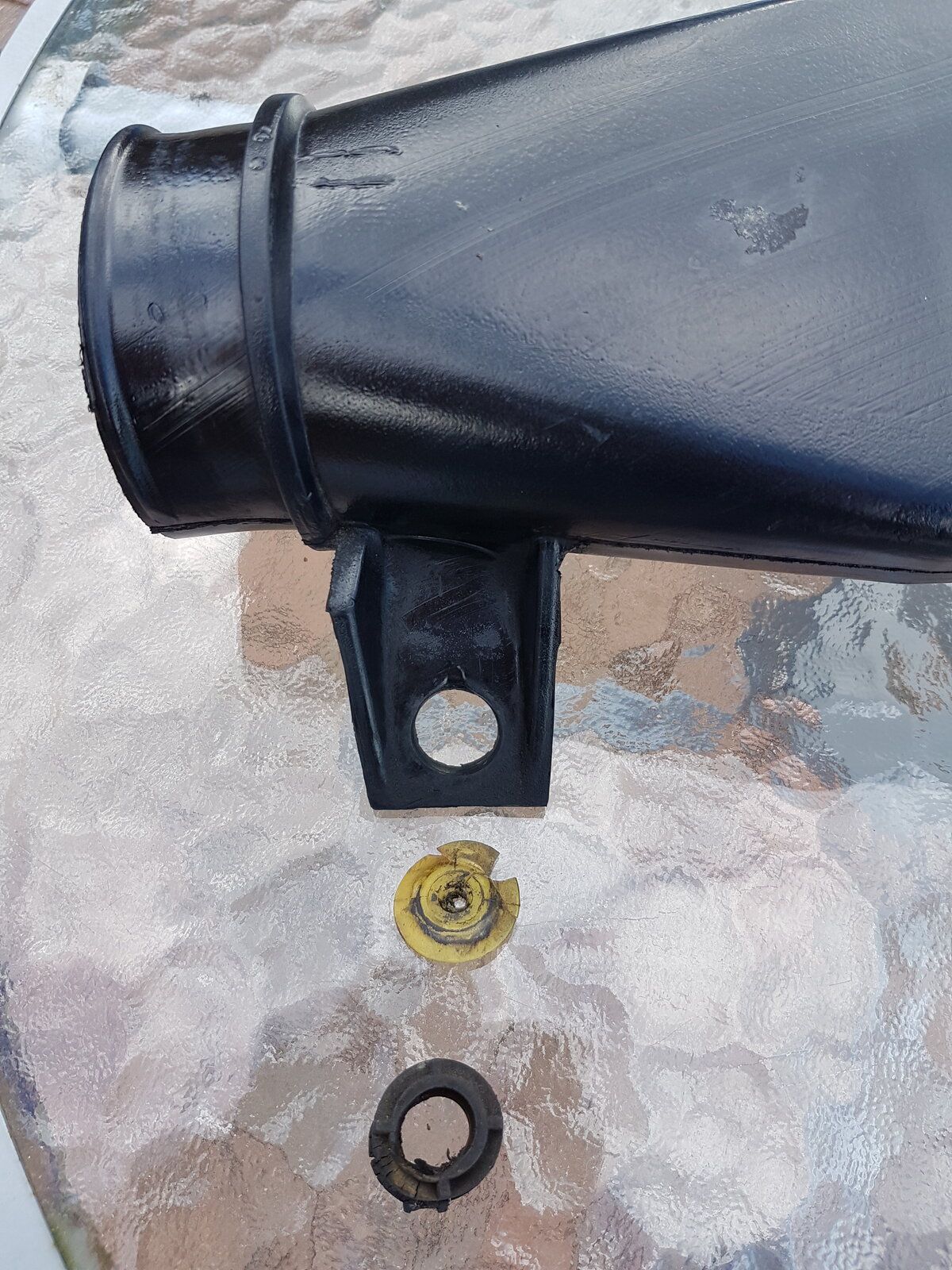

Got the same problem not supplied since 2006 but still fitted on 214 modelsView attachment 223936 View attachment 223937
Hi, I had the same problem with mine when I got it 3 1/2 yrs ago, it took my local LR dealer weeks to get a part no. for it as it didn't show up on the parts list.
The part no. is AWR5619 but it's now discontinued
The pics. are of what was left of mine when I got it & notes I made at the time. I can take a picture of the whole bit tomorrow if you want, let me know, otherwise if you google it Brit car have a out of focus picture of it on their website.
View attachment 223936 View attachment 223937
Hi, I had the same problem with mine when I got it 3 1/2 yrs ago, it took my local LR dealer weeks to get a part no. for it as it didn't show up on the parts list.
The part no. is AWR5619 but it's now discontinued
The pics. are of what was left of mine when I got it & notes I made at the time. I can take a picture of the whole bit tomorrow if you want, let me know, otherwise if you google it Brit car have a out of focus picture of it on their website.
