Wobbly Radiator

Can anyone enlighten me as to where the main mounting points are for a TD4 (facelift) radiator? I've looked on Rave, but the graphics are unclear to me. If I reach down behind the radiator (the side with the fans) and shake it, there is no movement at the bottom, but if I shake it near the top it has quite a bit of play (about 10mm back and forwards). It seems likes the mounting points near the top (on both sides) are loose.

I see the 2 little plastic hex bolt thingies (scrivets?) at the top, and I've tried turning them with an allen key, but nothing much happens. WTF???? When I wiggle the top of the radiator back and forward, I see the scrivets moving back and forward with the radiator.

Any advice much appreciated.............. Hope I don't need to need to remove the bumper!

This pic may help



at the base are two pegs that drop into the chassis with bolts at the side and at the top are two bolts, i think

I can only find 2 plastic pegs (hex bolt) at the top. Surely there must be something more than a plastic peg at the top???

look at the sides, there should be bolts holding it to the slam panel

do u think i should be able to see them from the engine side?

yes, mine is a petrol but i shouldn't imagine it's different on the rad

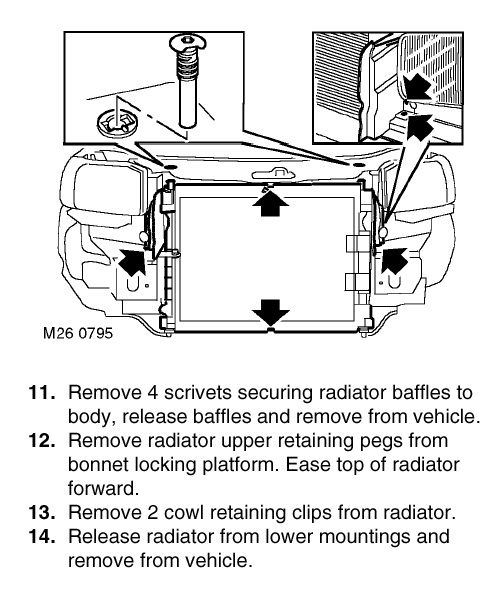

here's what it shows on RAVE:

Sorted then

i wish. no idea how to view the 4 bolts in the centre of each side, from the engine side. am i being an idiot? are u sure i don't need to remove the bumper? or dismantle the fans etc?

doesn't rave tell you?

sorry mine must be totally different to yours
