wiring diagram for temp gauge

big ad · Sep 1, 2011

Hi

Has anyone got a diagram for a 200 tdi defender temp gauge? or even a picture of the back of the bloody thing as i need to find which wire goes on the back, many thanx.

lynall · Sep 2, 2011

Google defender workshop manual and download it.

Lynall

big ad · Sep 2, 2011

i could do with a picture really, but thanx for the reply.

mystery · Sep 3, 2011

green to gauge green/blue from gauge to temp/sender

big ad · Sep 3, 2011

CHEERS, does it need to be earthed on the back like the fuel gauge is?

big ad · Sep 3, 2011

is there anyone out there who wouldnt mind taking a picture of teh back for me please?????

dazzx10r · Sep 3, 2011

will do tomorrow if that's any good to you, off to work in a mo.

bustersbus · Sep 3, 2011

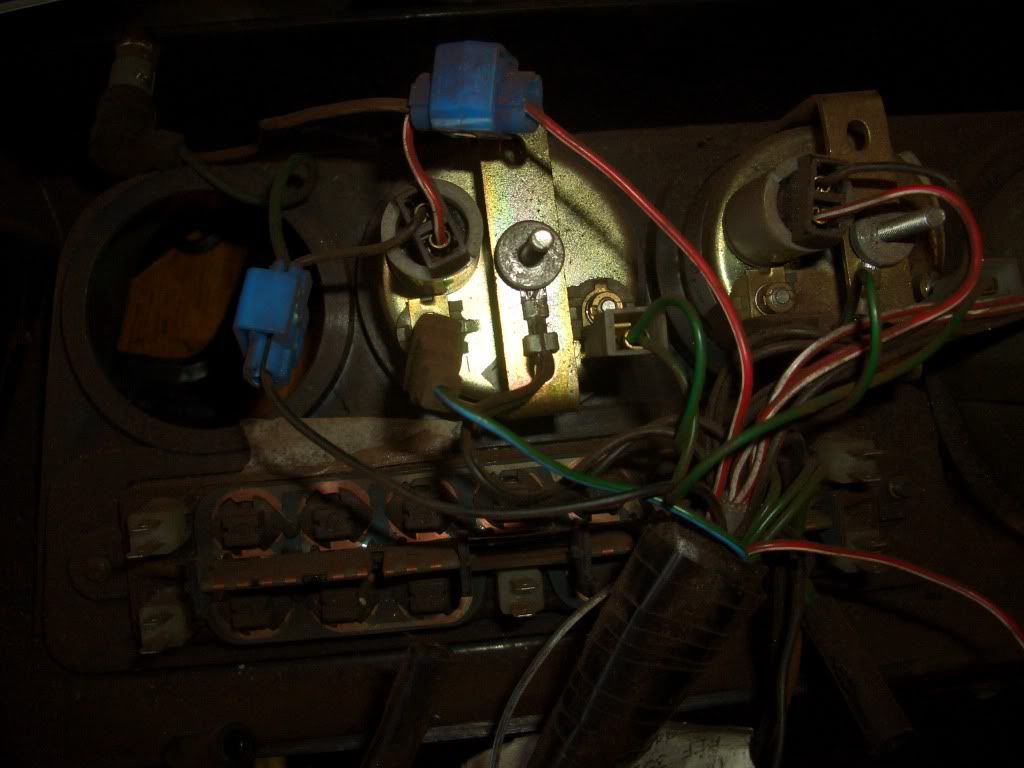

This any guid?

big ad · Sep 3, 2011

cheers for that fella, just the job, are they both earthed?

big ad · Sep 3, 2011

the gauges that is?

jamesmartin · Sep 3, 2011

no only for guage illuminition ,guage earths through sender

bustersbus · Sep 3, 2011

As James says
