Is fitting a throttle body on a d2 v8 an easy job? Mine is leaking coolant.
throttle body
- Thread starter Srm
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Planny
New Member
- Posts
- 234
- Location
- West Midlands
Just bypass it. It doesntneed coolant
Srm
Active Member
- Posts
- 257
- Location
- Newtownards Co. Down N.Ireland
How would I go about doing this?
Planny
New Member
- Posts
- 234
- Location
- West Midlands
Take the hoses off & join them
Srm
Active Member
- Posts
- 257
- Location
- Newtownards Co. Down N.Ireland
At the risk of sounding stupid how do you join two rubber hoses?
Dr_evil
Banned
- Posts
- 29,535
- Location
- Perched on the naughty step
either with a connecting piece of plastic and jubilee clips or if the hose is like the one on my 3.5, remove the hose and just replace it with a single U bend
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
with a piece of pipe they both fit over , youd need to remove plenum to get to under side to fix leak propely
blue beasty
Leaks an prone to bits dropping off
- Posts
- 61,304
- Location
- Gloucestercotshirewolds
suitable size copper pipe inside the hose, push together and clamp
Srm
Active Member
- Posts
- 257
- Location
- Newtownards Co. Down N.Ireland
Whats the plenum?
Dr_evil
Banned
- Posts
- 29,535
- Location
- Perched on the naughty step
the big shiny bit on top
Srm
Active Member
- Posts
- 257
- Location
- Newtownards Co. Down N.Ireland
Thank you. Could I do this job with out taking it off?
Dr_evil
Banned
- Posts
- 29,535
- Location
- Perched on the naughty step
I have no idea what the plenum looks like on a D2 but if the top piece is like the 3.5 then it can be done without taking it off
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
how ?
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
Dr_evil
Banned
- Posts
- 29,535
- Location
- Perched on the naughty step
I just unclipped the coolant hoses and joint them together on mine, didn't need to take the body off at all
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
i meant fix leak not bypass
Dr_evil
Banned
- Posts
- 29,535
- Location
- Perched on the naughty step
oh well in that case I have no idea if it was leaking before or not I just joined all the hoses together which I didn't need. Heater matrix and the plenum one basically so less hoses less leak points
well in that case I have no idea if it was leaking before or not I just joined all the hoses together which I didn't need. Heater matrix and the plenum one basically so less hoses less leak points Srm
Active Member
- Posts
- 257
- Location
- Newtownards Co. Down N.Ireland
If I join them together will it stop the warm air from coming into the cab?
Srm
Active Member
- Posts
- 257
- Location
- Newtownards Co. Down N.Ireland
I should have said earlier its leaking from the heater plate at the bottom of the throttle body.

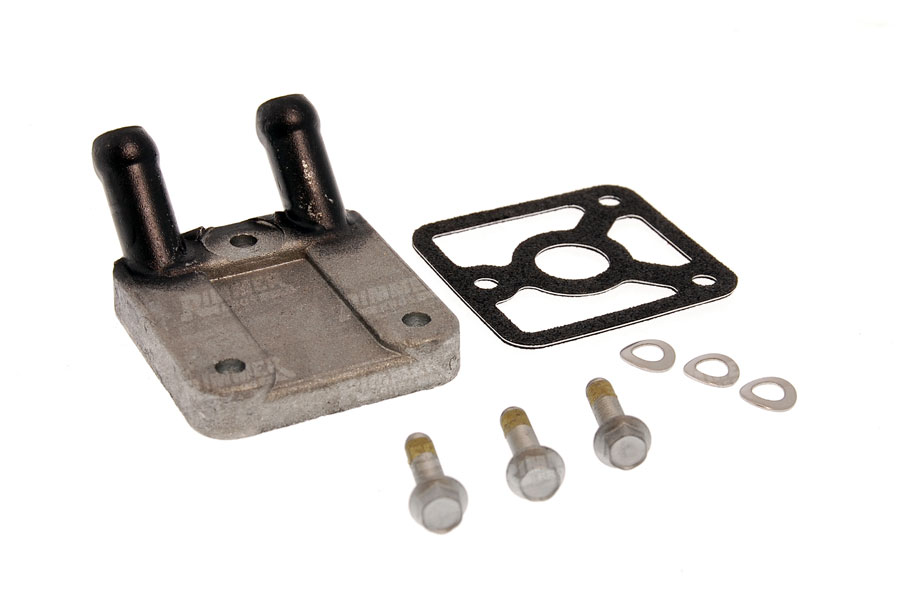

If you're going to replace it, make sure you use the updated version - MGM000010K
Gasket Kit - Heater Assembly - Genuine Land Rover at www.rimmerbros.co.uk
There's a write-up on fitting it, here - TB Heater Repair - LAND ROVER CLUB V.I.
.
Gasket Kit - Heater Assembly - Genuine Land Rover at www.rimmerbros.co.uk
There's a write-up on fitting it, here - TB Heater Repair - LAND ROVER CLUB V.I.
.
