Disco 2 the leaking psp

hi all
like said in my other posts when i bought the td5 its power steering pump was leaking ,the guy said it had been repaired but just incase he had also ordered a new one (he was not confident the garage had repaired it well he said,so to me he saying JOHN WAYNE had fixed it)

any way i watched a vid on youtube for 20 mins and started (vid was very very good apart from it turned out to be for the v8 not the td5 so i took the car more apart than i needed to !!!! but at least i now no more about it lol

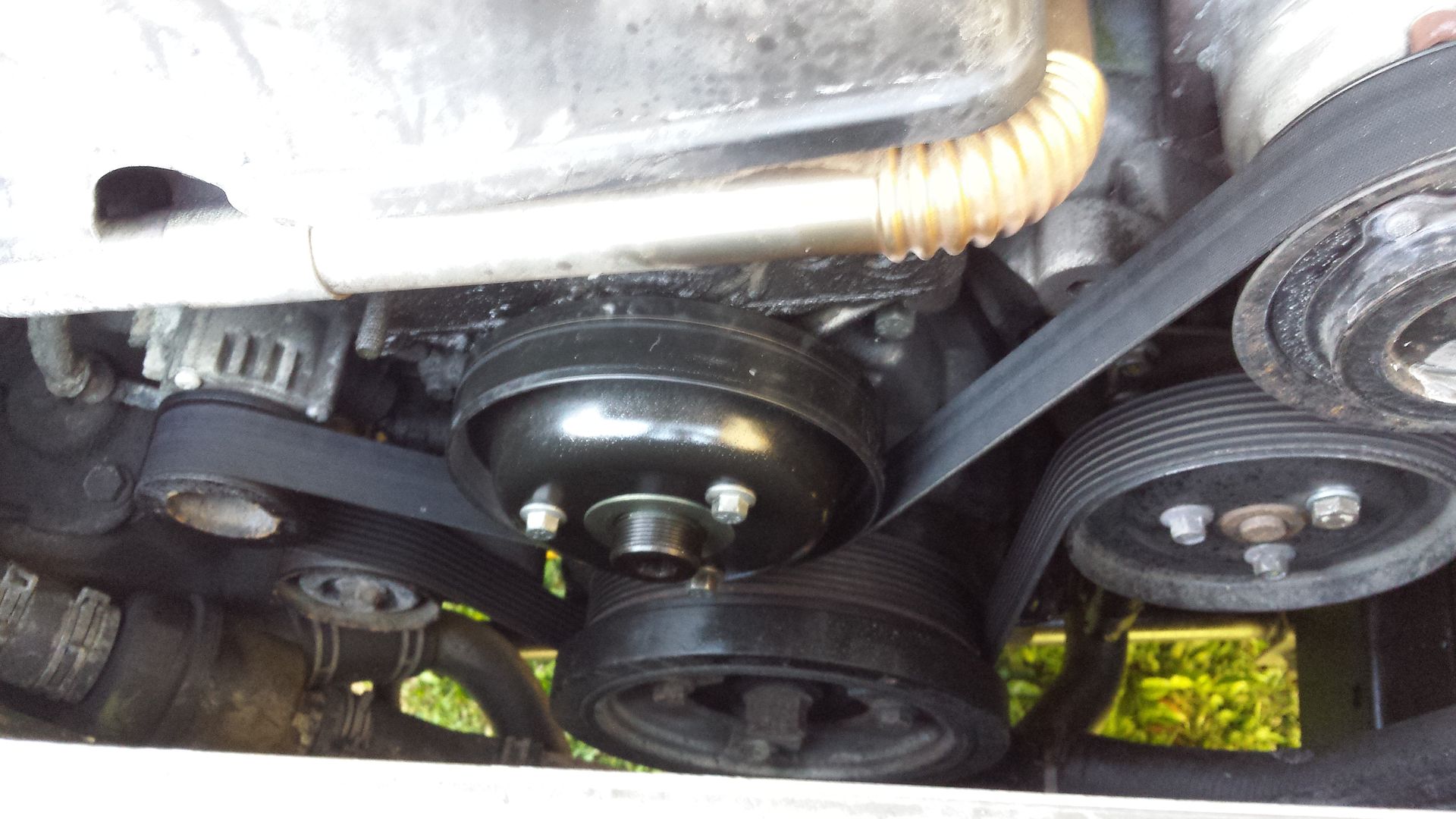

anyway ,fan off and pics taken of the belt set up

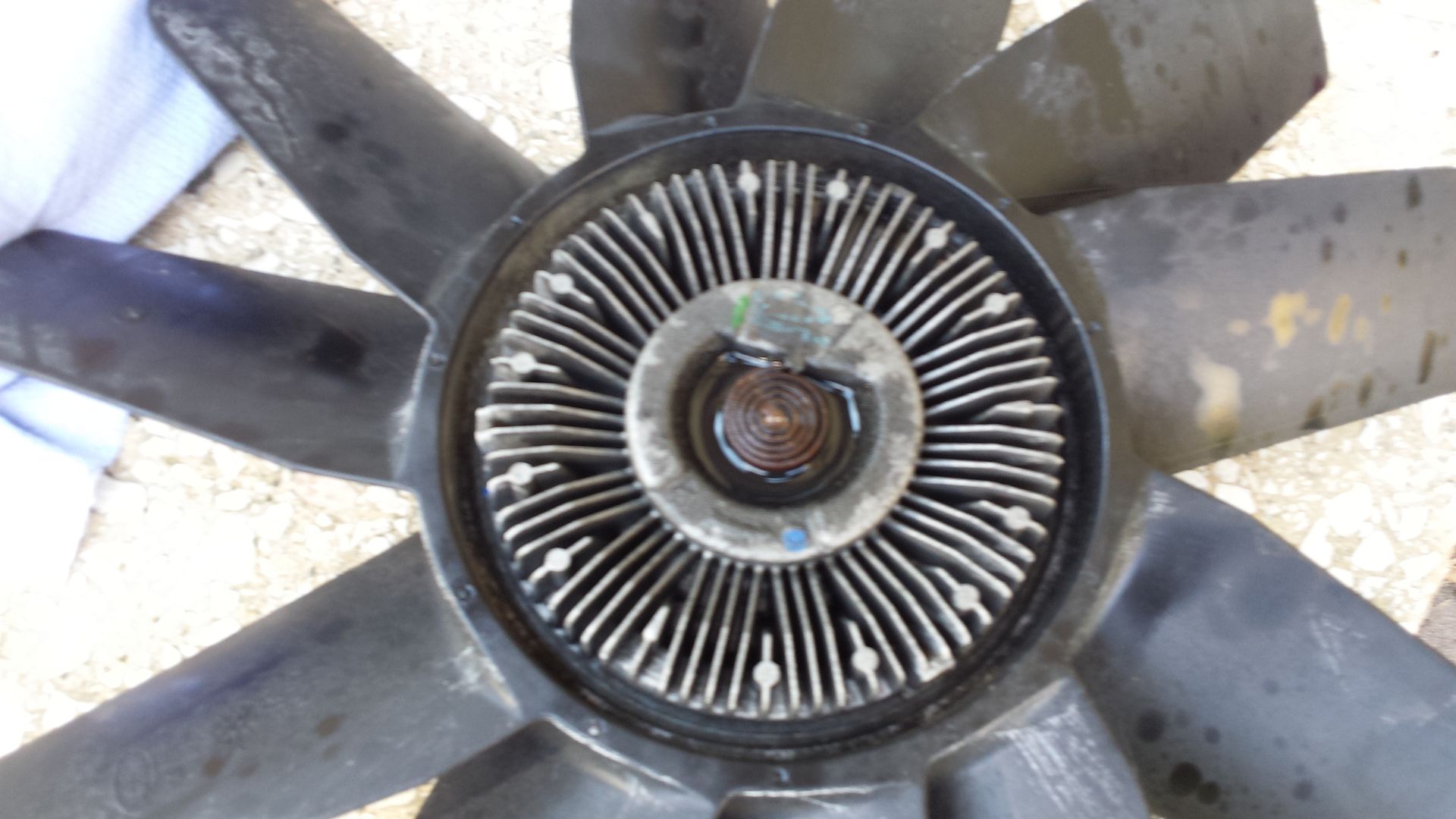

and while fan off i wd40 the spring and then heated the coil slightly to make sure its working all good

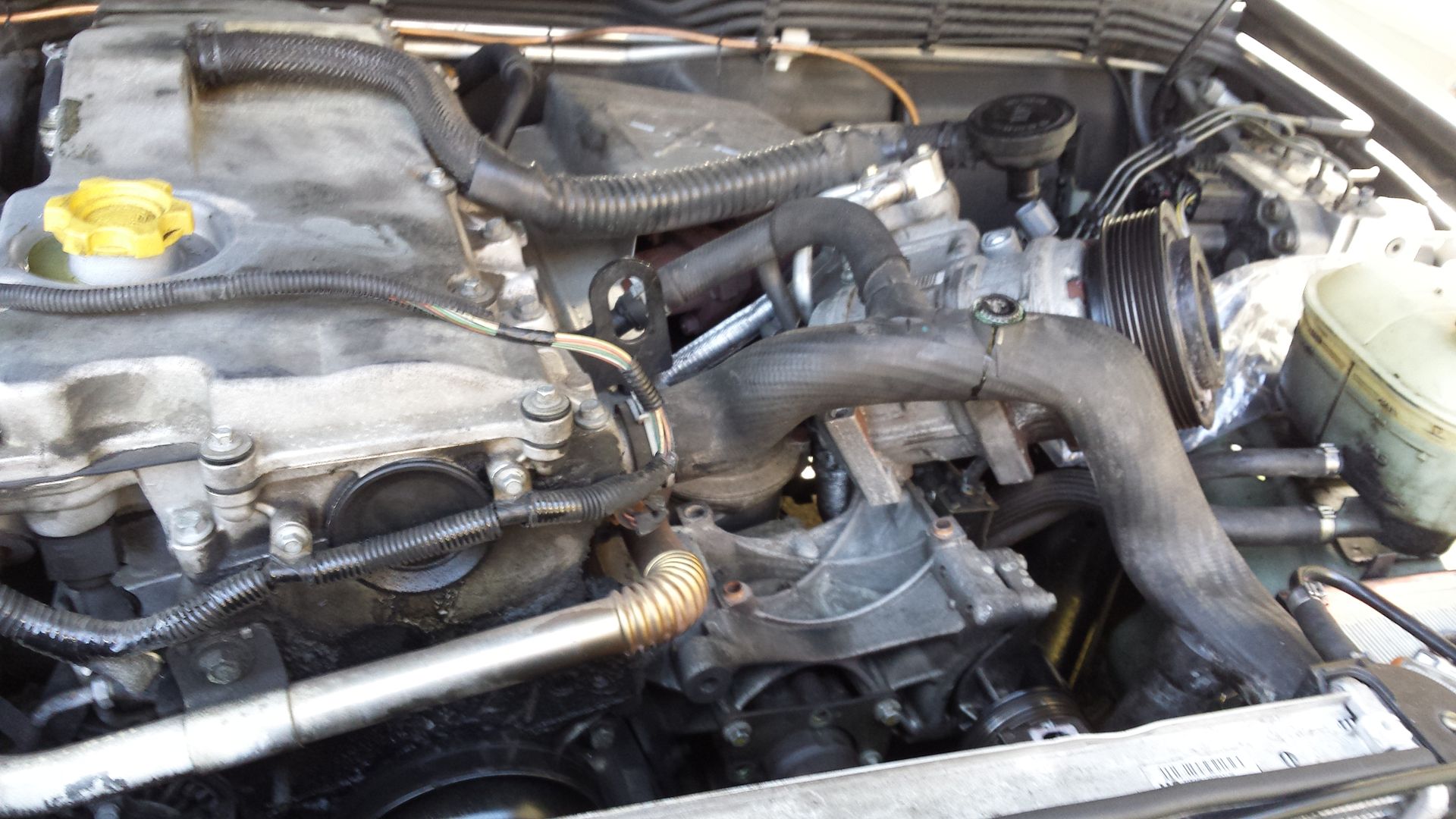

next the aircon off,this had one bolt that was a pain in ass,and to be honest i think i could of left it on but the vid said remove

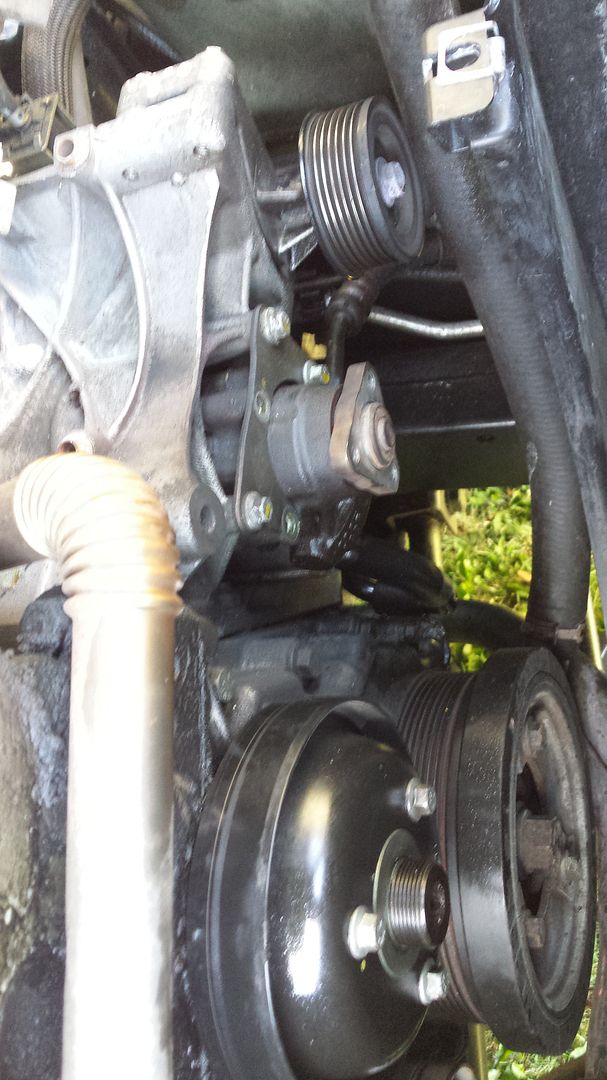

now this is where i realised that the pump in the vid was fitted dif,as on vid you had to take the total bracket it off but as you can see below its just a case of the 5 bolts that have yellow on them ,then the pump just slids out


turned out to be a very easy job

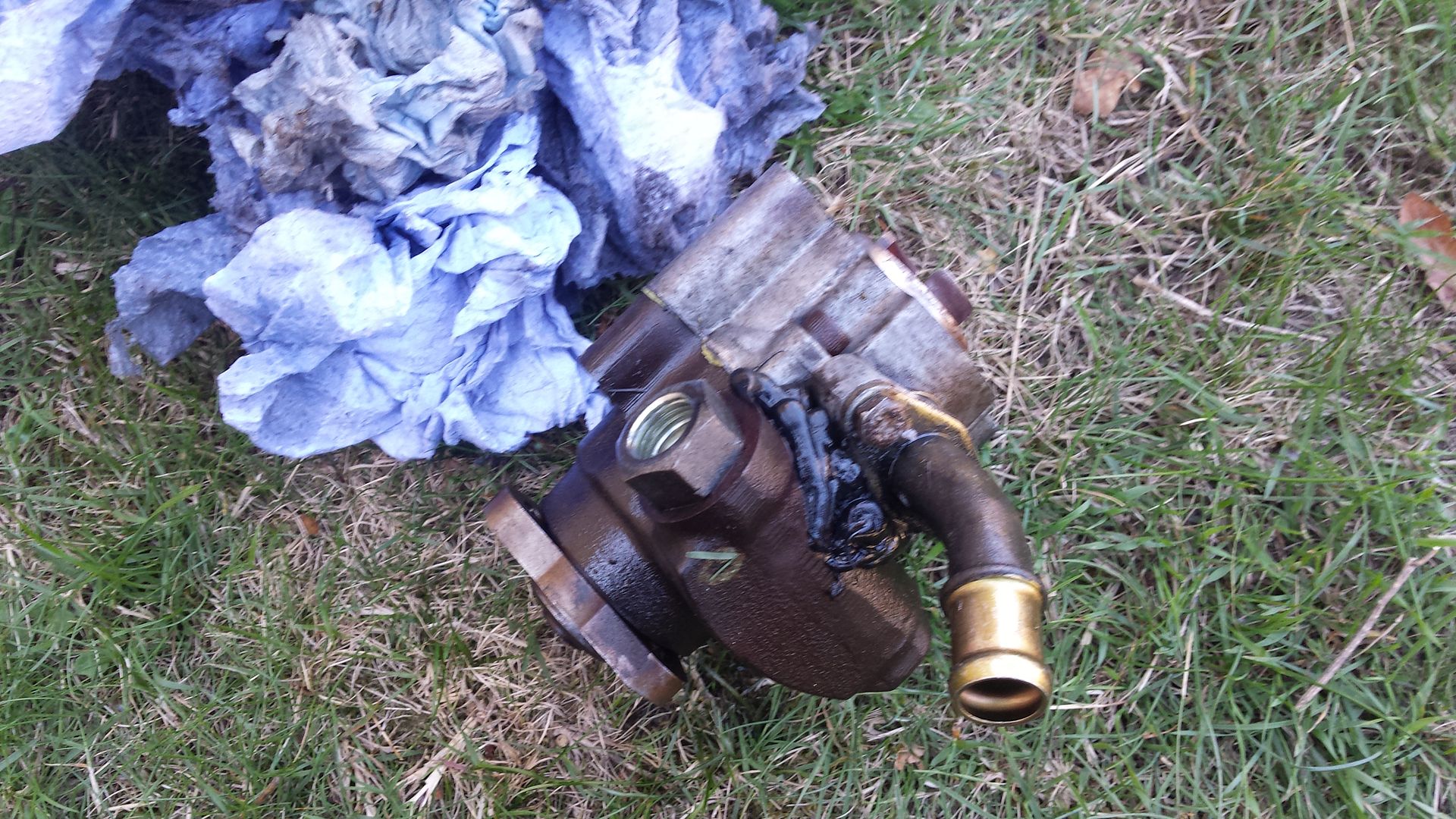

and heres why the pump was leaking !!!! the guy def was JOHN WAYNE !!!!!!!!



the def between the v8 and td5 pumps are the td5 has splins on the back that you have to carefully slot into the water pump (think its the water pump) where the v8 is a flat back pump that presses into the bracket

right have i done something wrong??????????? please help

all seems good,no leaks ,fluid in header not dropped a mm

when i refilled the system i filled it ,started the car ,turned steering left to right to expel any air in system,turned off and re topped up fluid !

BUT now when on tick over the steering is heavier and when you turn you get a noise coming from system, BUT as soon as you slightly rev the steering is nice and light and no noise

ANY IDEAS WHERE OR WHAT I HAVE DONE WRONG???? could it still be air in there?

RIGHT I NEED HELP !!!!!!! PLEEEEEAAASSSSEEEEEEEE

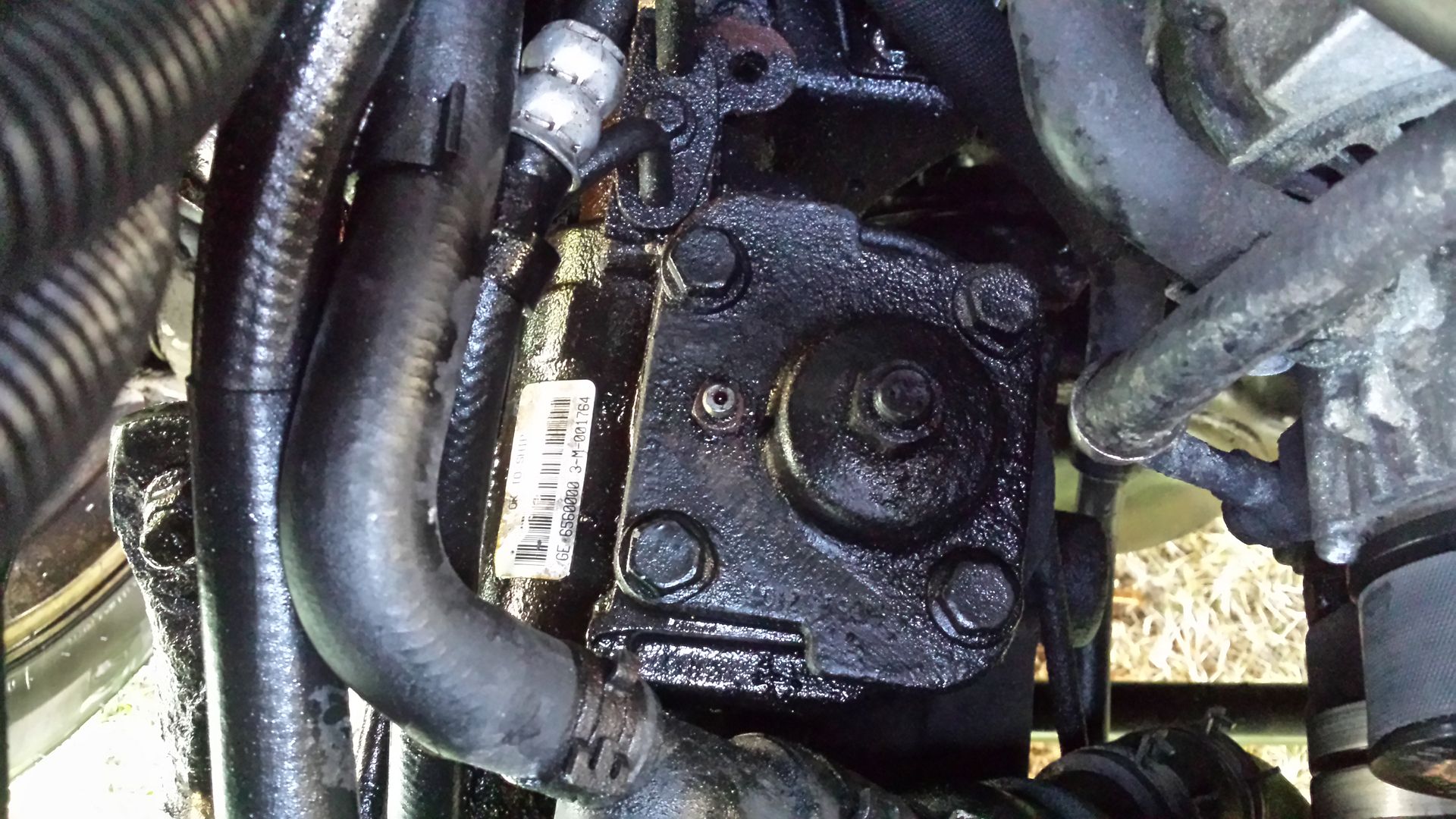

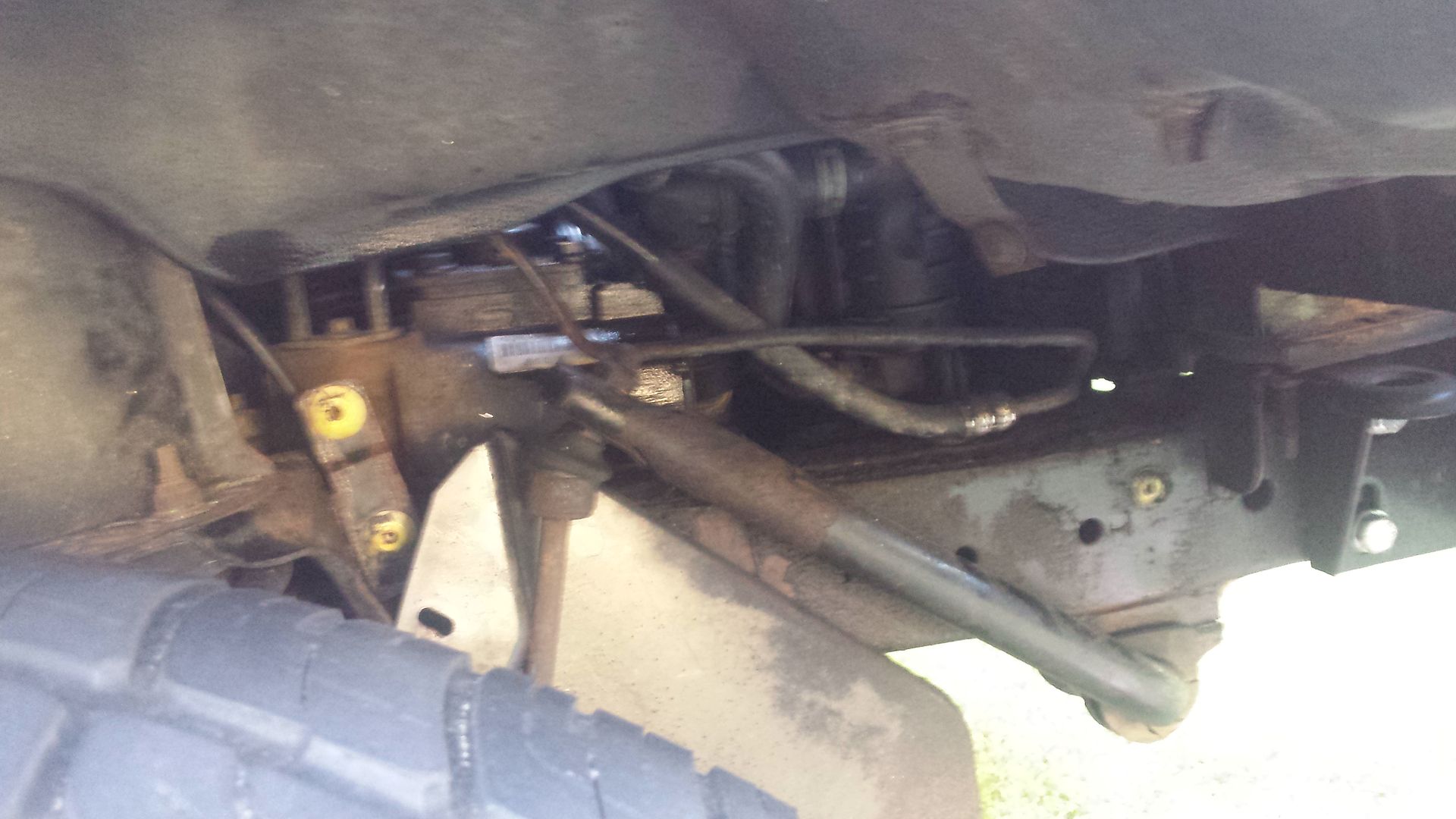

the steering seems to be getting worse!!! i read up on the correct way of bleeding the td5 using the nipple on the steering box
had a right job getting the panel off as bolts rusty to hell

once in i decided probley easier from top so took some pipe work off and got it easy
bleed it and got fluid every where lol

i passed 4 ltr throw her in total but still the same!!!!

have i done something wrong????????
could it be the new pumps ****???
could the fluid im using be the problem? ie garage gave me wrong stuff?

i had no o ring to put on the pressure pipe that connected to the pump as forgot to buy one,but surely if it was that say sucking in air then it would leak too????

i have to drive back to uk from germany in 3 weeks towing a 22ft trailer so def need to get this sorted

if anyone has any ideas please help

can you see quite heavy twirl of the fluid in the reservoir with engine running?.... if not it means the pump doesnt work well

They really shouldnt need bleeding, they should self bleed as long as pipes are clear especially res to pump, there is no relief valve in box, either poor pump or box, Maybe pump if it seems not to work at low revs

Speckydude said:

They really shouldnt need bleeding....

Click to expand...

after new pump was fitted yes they should... IMO and so is in the workshop manual too

sierrafery said:

after new pump was fitted yes they should... IMO and so is in the workshop manual too

Click to expand...

Yeah, realise that now
Have found a 'how to page which might help, would replace that 'O' ring though !!

when engine running the header tank has lots of twirl even at idle

before changing the pump the steering was spot on apart from it leaking so i dont under stand
would it be worth me taking it all apart again ? i assume it cant be anything to do with the backing plate that slots into the water pump can it??? it came with no gasket for the back of the pump to where it slids into water pump so i never put sealant or any thing on it , should i of???

unfortunately at this stage my mechanical knowledge is over

sierrafery said:

unfortunately at this stage my mechanical knowledge is over

Click to expand...

A thought !
If you remove the hose between reservoir and pump, is there a small gauze filter thingy ?

i will take a vid of the header tank twirling on tick over and then when reving

I'm looking for a piccy, but I remember someone said on the empty reservoir-there is a screwhead in the bottom holding what appears to be a gauze filter !

small gauze????

only gauze is in the bottom of the header tank

griff2 said:

small gauze????

only gauze is in the bottom of the header tank

Click to expand...

Trying to find where I saw it

heres a vid of the header tank ,to be honest i must admit on idle its not moving much

(should work if you click on it,if not let me no)
please dont say the new pump is ****ed

i can see only a photobucket picture... i dunno if the pump is bad or not or what's the reason just that even at idle it must be a serious twirl there

hopefully now vid should work i just check on a dif pc that im not logged into and when i clicked the vic the vid came up

Right need help again please

went out today again to bleed the steering to see if it got any better,but hell no if anything it was worse!!!

so i decided after what sierrafery said
that even on idle the twirl in the header should be serious!!! and mine not !!!!
so with that i decide to dig the old pump out of the bin (yep i was bin diving,the kids wet them selves lol)

i took the new pump back off and replaced the old badly leaking one ,and yep steering bad to normal even on idle you could turn the steering very easly with on hand ,and the twirl in the header was serious even on idle

so sort of a result ,as in the problem was the new pump,not my fitting it or anything else on the car!!!!
but the old pump was leaking so bad no way could i use it ,so off it came ,and other back on just to in a emergeny i have a car till i can figure out now what to do !!!

i decided to try take old pump to pieces and see how it works etc and hopefully try to reseal it

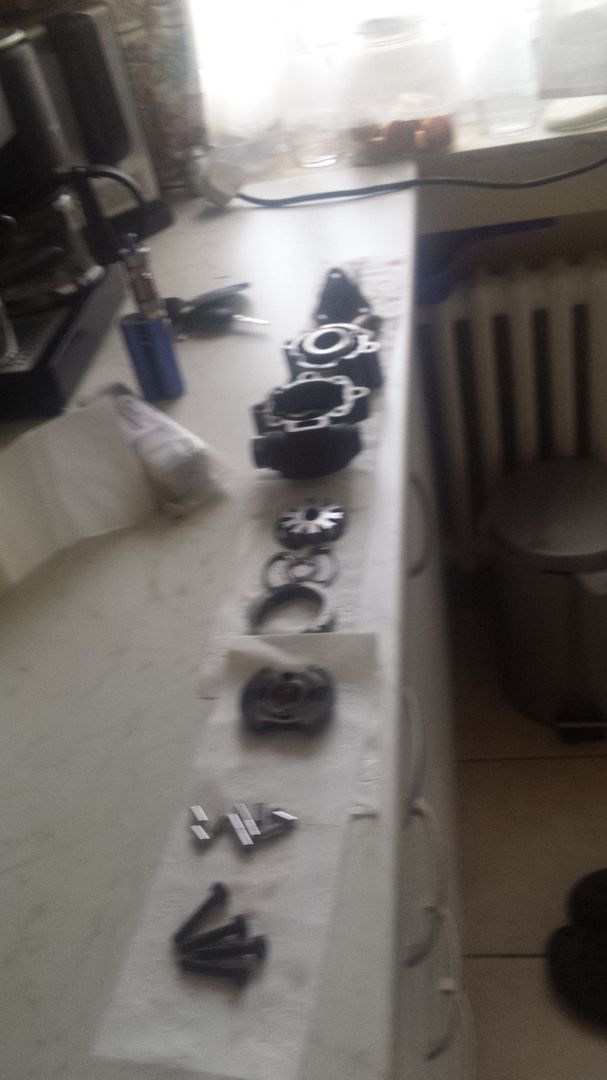

anyway yep easly taken to bits after 10 sec in the press lol BUT THEN I SLIPPED AND DROPPED IT !!!!

so did not get to see how it came apart ,just need to figure out how it all goes back together lol



anyway figured it out all bits where they should be etc
I CANT SEEM TO FIND WHERE I SAW IT BUT I SAW SOMEWHERE YOU CAN BUY THE PROPER GASKET FOR THESE FOR 8 POUNDS ,DOES ANYONE NO WHERE TO GET THEM???
OR IF NOT WHAT WOULD BE BEST TO USE TO SEAL IT??
sealant?
loctite 574
what ????
ps the old pump have 2003 stamped on it so most likey the org pump so to be honest it did very well up to now,but apart from seal all seems good ie bearing
cheers
griff

well done, check this out



but can't you claim other pump in warranty though?

the new pump should be in warranty ,but ive lost the receipt!!!!!!
I watched that vid ,not quite same as mine but near as dame it as thats a v8 one i think not td5 as does not slot into water pump

wonder if they sell the gasket but there usa i think :0
would this stuff seal it ???
