tailgate leak - DIY fix?

hippopoo · Oct 1, 2012

Hi,

Tailgate is leaking - I've located where. It's hinge side, near to where glass joins door. On the car-side the seal has a flangey flat bit that should marry up to the odd contour of the door...

I've googled it and found no solution other than buy a new seal - £100. Anyone managed to fix it a cheaper way?

Cheers.

nfgles · Jan 17, 2013

Hello there, I had the same fault with mine the well in the boot was filling with water.

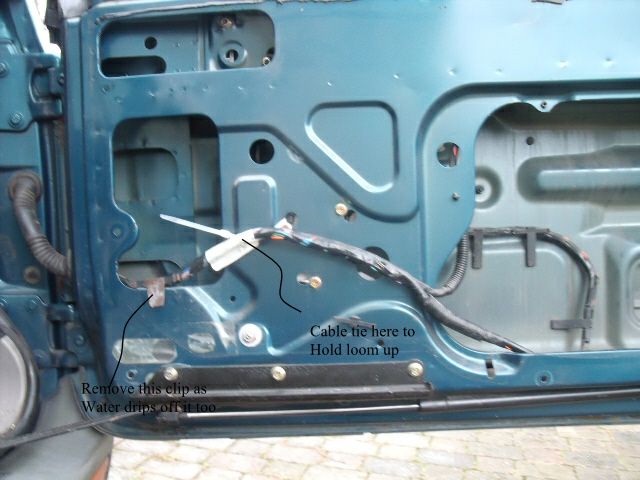

My fix, take off the tail gate door card, you will see the wiring loom comes from the hinge side to inside the door ie in the card not the door itself. I found water tracking down the loom dripping on the slider for the ram and dripping in the car. Solution at the lowest point of the loom pull it up and zip tie it. Now the lowest point is in the door so the water drips in there and out the drain holes where its suppose to.
Hope this makes sence if not will post some pics.

Grayo · Jan 17, 2013

nfgles said:
Hello there, I had the same fault with mine the well in the boot was filling with water.
My fix, take off the tail gate door card, you will see the wiring loom comes from the hinge side to inside the door ie in the card not the door itself. I found water tracking down the loom dripping on the slider for the ram and dripping in the car. Solution at the lowest point of the loom pull it up and zip tie it. Now the lowest point is in the door so the water drips in there and out the drain holes where its suppose to.
Hope this makes sence if not will post some pics.

I've got the same problem and would like to see the pictures please.

Thanks

Grayo

baptista · Jan 17, 2013

on mine the loom runs on the inside of the tailgate

just make sure it leaves enough room for the window cables and pulleys

nfgles · Jan 17, 2013

Hello again, will take some pics over the weekend and post them.

nfgles · Feb 7, 2013

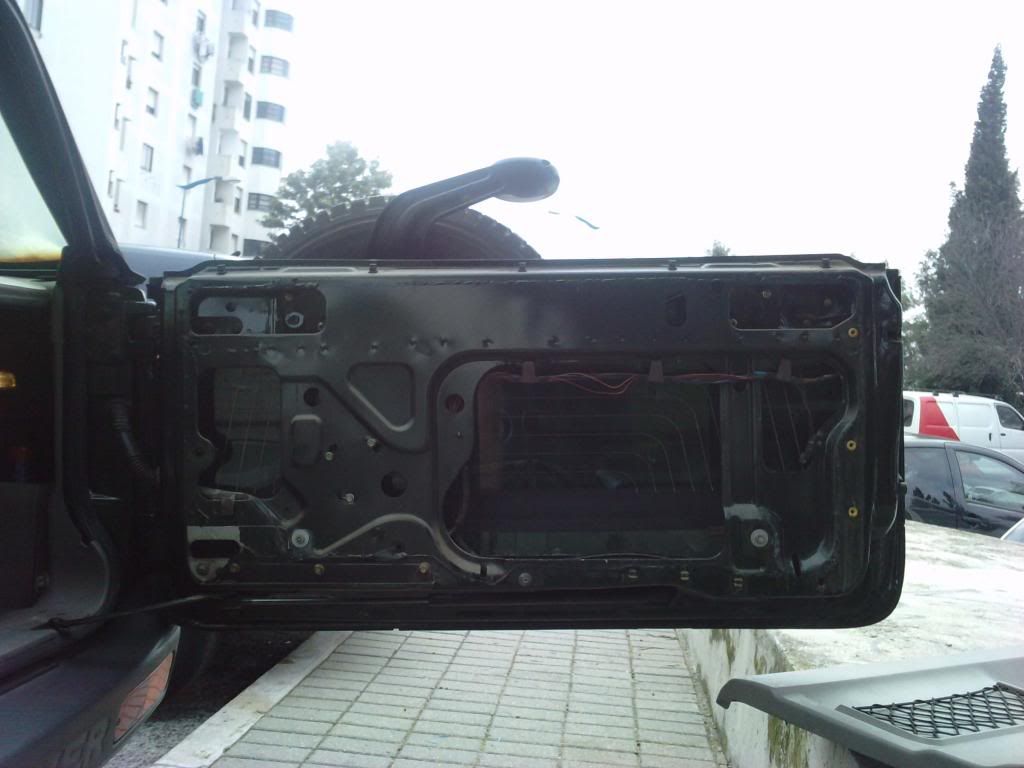

hello again sorry for the delay been busy. here is the pic of my tailgate

Optimus Prime · Feb 7, 2013

simply take the existing seal off and then refit it again, always goes back slightly different and may well cure your problem

potus · Feb 7, 2013

Optimus Prime said:
simply take the existing seal off and then refit it again, always goes back slightly different and may well cure your problem

sounds like a good idea, will try that on mine. thanks for the info!
