Stuck Momo steering wheel

My 110 came with a sporty Momo steering wheel. I know most people do this the other way around but I want to replace it with an original Land Rover steering wheel.

The centre part of the Momo wheel is completely solidly wedged on the splines. There’s no movement. I bought a small two-arm puller but it doesn’t shift it at all. The arms pop off before there’s any impact.

My plan is to soak it in Plusgas and try again but I thought I’d also ask here to see if anyone has any tips or if I’m doing something stupid. There’s only one nut holding the wheel on, isn’t there?!

Also — is there a name for the washer that’s supposed to be under the nut? Mine doesn’t have one so I’d like to add one with the new wheel.

Thanks very much.

Depends what year you have but something like the above.

@jwrw where are you ?

Anaconda said:

Genuine Land Rover Washer - Locking - WE104001L | Rimmer Bros

Order your Shakeproof Washer External M4 - WE104001L - Genuine ⛽ Low prices and fast, worldwide delivery ✈ British car experts ♚ Call ☎ 01522 568000 or ☎ 1-855-746-2767

rimmerbros.com

Depends what year you have but something like the above.

Click to expand...

Yes that looks like what I’ve seen in pictures. Thanks. Year is 1986.

I should have said the first thing I did was take the small steering wheel off. I replaced it with the earlier 36 spline wheel. I have only recently got the correct one for a sensible price. My lock washer was also missing, still is !

miktdish said:

@jwrw where are you ?

Click to expand...

Cambridgeshire

jwrw said:

Yes that looks like what I’ve seen in pictures. Thanks. Year is 1986.

Click to expand...

You might need the imperial version.
WE600081L

Anaconda said:

I should have said the first thing I did was take the small steering wheel off. I replaced it with the earlier 36 spline wheel. I have only recently got the correct one for a sensible price. My lock washer was also missing, still is !

Click to expand...

Thanks. Yes this one must have not had a lock washer for a good few years and the nut was done up very tight. I’ve got a 36 spline wheel from eBay.

jwrw said:

Thanks. Yes this one must have not had a lock washer for a good few years and the nut was done up very tight. I’ve got a 36 spline wheel from eBay.

Click to expand...

They are my favourite steering wheel.

jwrw said:

Cambridgeshire

Click to expand...

Bugger, a bit far away..
I got my old wheel off with a little heat ... send me a picture of the steering wheel I thought MoMo's were attached to a boss.

Mine had a boss with the steering wheel attached to that with little bolts, not Momo.
I undid the nut, bashed the wheel around a bit, pulled it a few times, bashed it a bit more and it came off.

miktdish said:

Bugger, a bit far away..
I got my old wheel off with a little heat ... send me a picture of the steering wheel I thought MoMo's were attached to a boss.

Click to expand...

Thanks. Yes there is a boss with the wheel bolted onto it. I took the wheel off the boss at first but then put it back to try to help me pull it off. But that didn’t help!

I’ll add a picture tomorrow, it’s too dark now…

Anaconda said:

Mine had a boss with the steering wheel attached to that with little bolts, not Momo.
I undid the nut, bashed the wheel around a bit, pulled it a few times, bashed it a bit more and it came off.

Click to expand...

Yes that sounds like the same design. Maybe mine just needs more bashing.

jwrw said:

Yes that sounds like the same design. Maybe mine just needs more bashing.

Click to expand...

Bash it on one side then the other, repeat a few times. When you try pulling it leave the nut on a couple of turns, would be embarrassing if you knock your teeth out removing a steering wheel.
You can get a steering wheel puller which works well on your original type wheel.
Torque setting is less than what most people use, which seems to be FT.

miktdish said:

Bugger, a bit far away..
I got my old wheel off with a little heat ... send me a picture of the steering wheel I thought MoMo's were attached to a boss.

Click to expand...

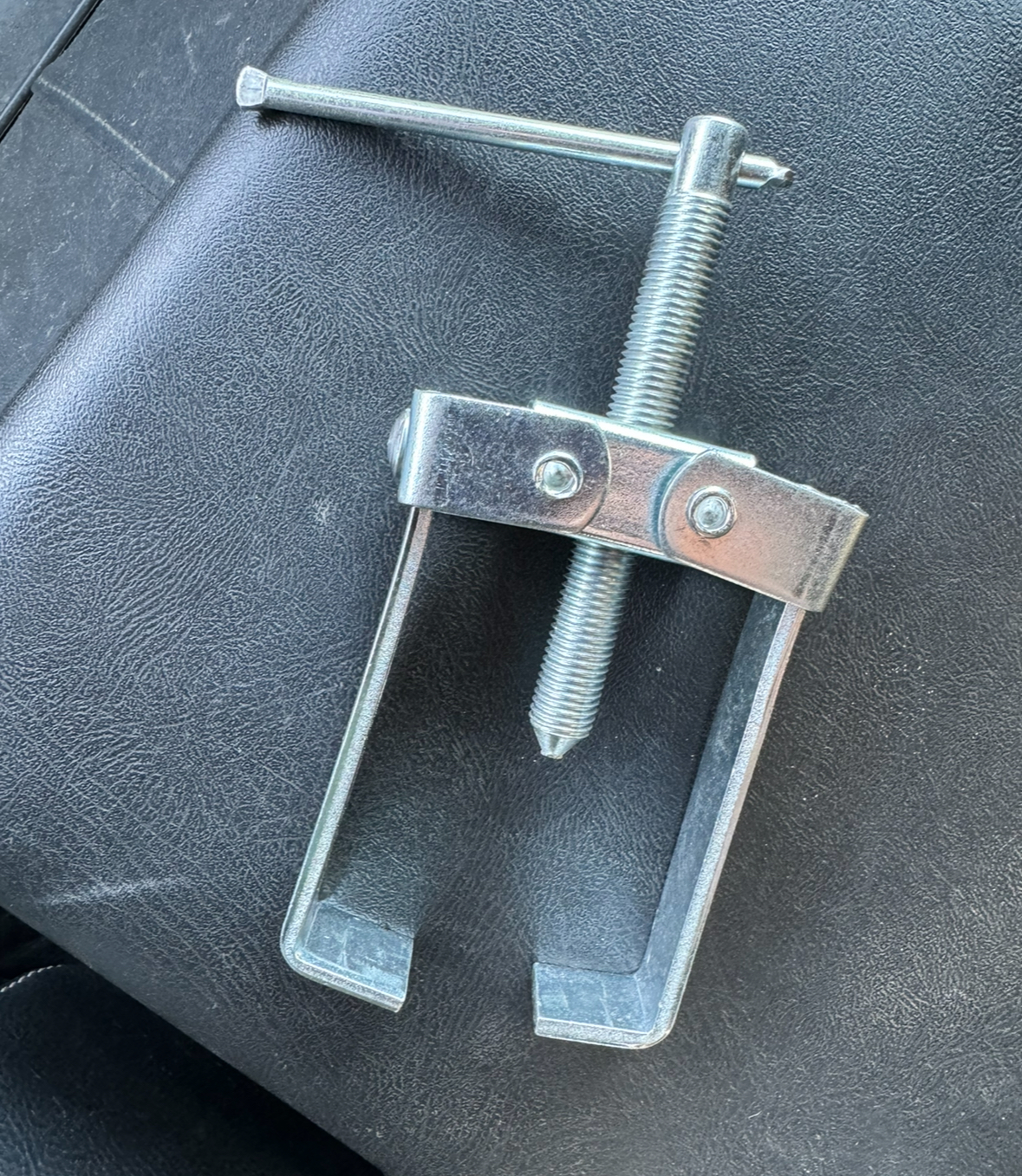

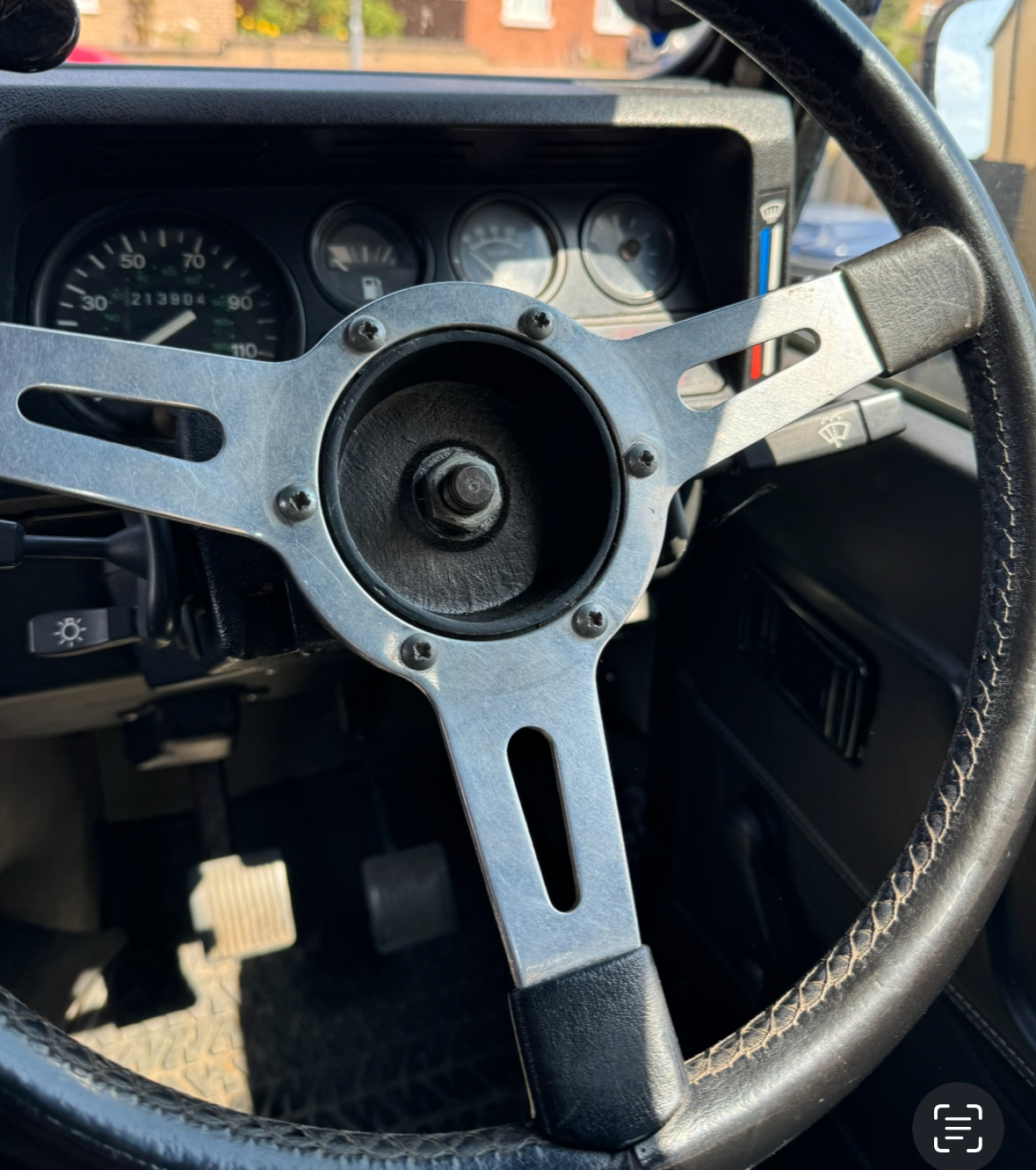

Here’s a pic of the wheel. I think there’s nowhere you could get a three-bolt puller onto this unless it was a special one that attached to the Momo holes. I bought this puller but the arms slip off before the wheel moves on the splines.

jwrw said:

<snip> I bought this puller but the arms slip off before the wheel moves on the splines.

Click to expand...

No offence mate but that's a toy not a puller.

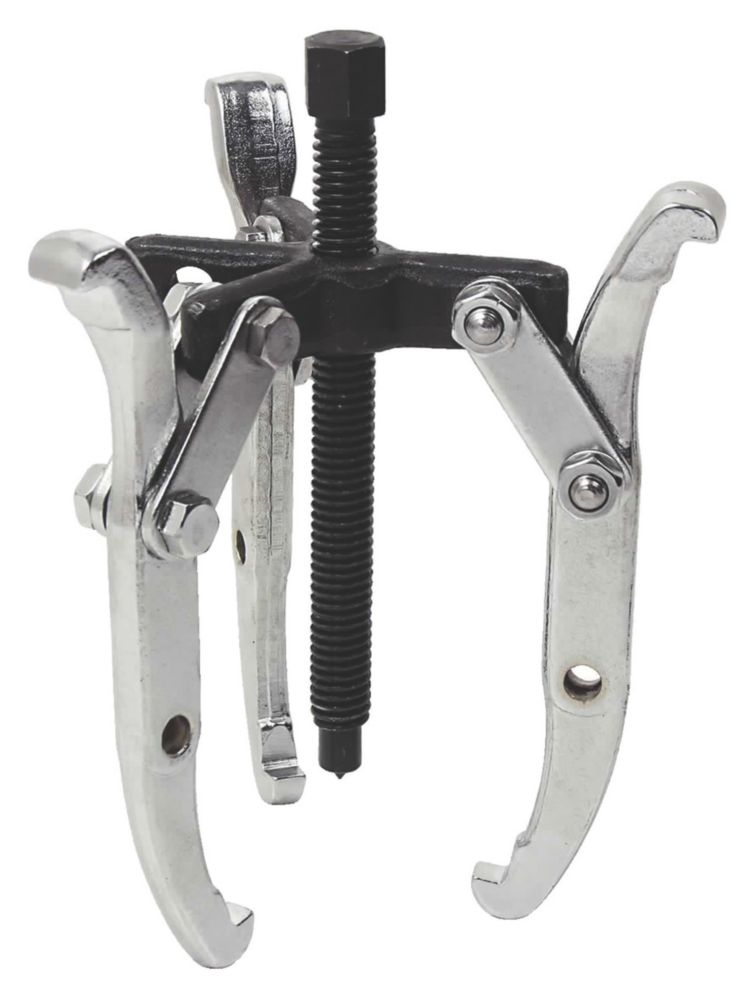

This is the sort of thing you need.

Take the plasctic shroud off your steering column and nip into your local garage, the mechanics will likely have one you could borrow for the 10 secs it would take to remove the boss.

miktdish said:

No offence mate but that's a toy not a puller.

This is the sort of thing you need.

Hilka Pro-Craft Reversible Gear Puller 6" - Screwfix

Order online at Screwfix.com. 6" (150mm). Forged steel gear puller can be used as a 2 or 3-leg. Suitable for gears, bearings and other press fit parts. Designed for both internal and external holding. FREE next day delivery available, free collection in 1 minute.

www.screwfix.com

Thake the plasctic shroud off your steering column and nip into your local garage, the mechanics will likely have one you could borrow for the 10 secs it would take to remove the boss.

Click to expand...

None taken. Yes I know it’s a bit weedy!

Thanks — local garage is a good idea, I know someone I can ask. Why take the plastic shroud off, though? The puller needs to pull on the rim around the edge of the boss, doesn’t it?

Thanks again for the replies.

That's more like a cheap puller for stubborn wiper arms.
How about a metal bar underneath the steering wheel spoke, close to the boss, and whack it upwards.
Obviously you have undone the centre nut, looks done up in the photo.

jwrw said:

None taken. Yes I know it’s a bit weedy!

Thanks — local garage is a good idea, I know someone I can ask. Why take the plastic shroud off, though? The puller needs to pull on the rim around the edge of the boss, doesn’t it?

Thanks again for the replies.

Click to expand...

So the hooks on the puller will go behind the boss. It all depends on how much room you have between boss and shrouds.

jwrw said:

Why take the plastic shroud off, though? The puller needs to pull on the rim around the edge of the boss, doesn’t it?
Thanks again for the replies.

Click to expand...

Depeds how close the bottom of the boss is to the plastic shroud.
It's only 4 screws and it come of as easy as .... when off there is loads of room to get the pu;ller on with a secure grip.
