Range Rover P38 OEM Brake Light Pedal Switch XKB100170

How did it put L322??? it's a P38

Range Rover P38 OEM Brake Light Pedal Switch XKB100170

My diagnostics says faulty switch for the cruse control, this seems to be it, dose this do both brake lights and the cruse control in one.

I beleve if you google the title it shows up in more detail.

Yes, changed mine bit back think it had 3 connections on it. Was told thats why my cruse didnt work, it was the cruse control relay in end that was faulty.

The P38 has two brake pedal switches - one for the lights and one for the cruise control (if it is a petrol version - it will also have a vacuum vent valve in it too, to vent the vacuum pressure holding the throttle bellows in place)....

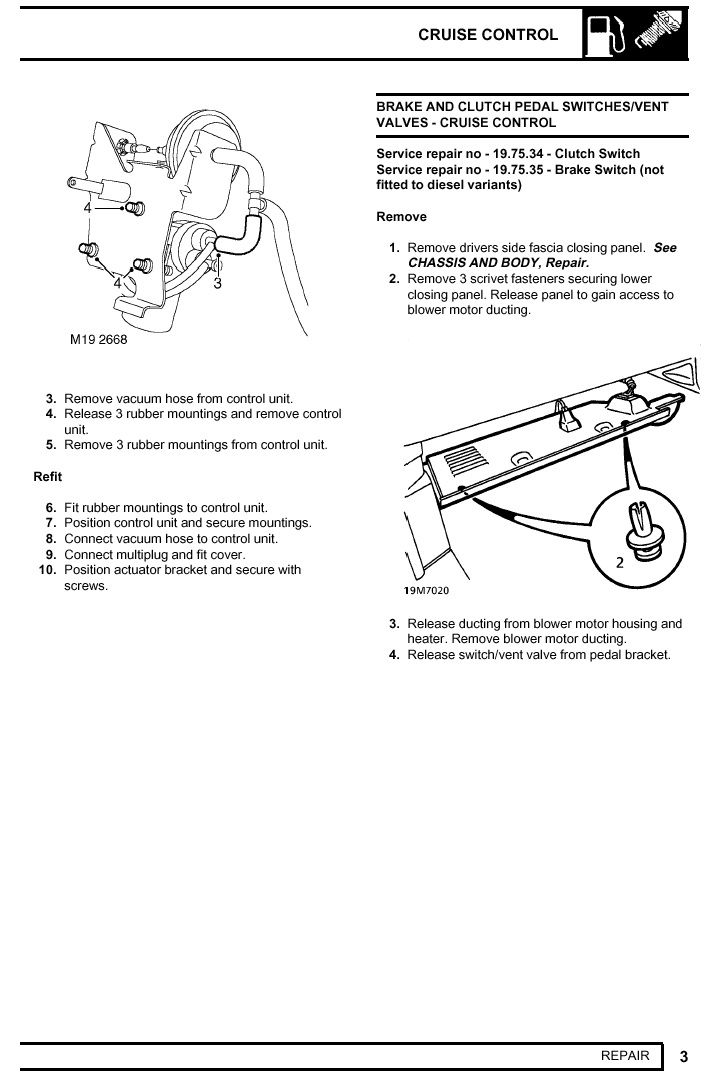

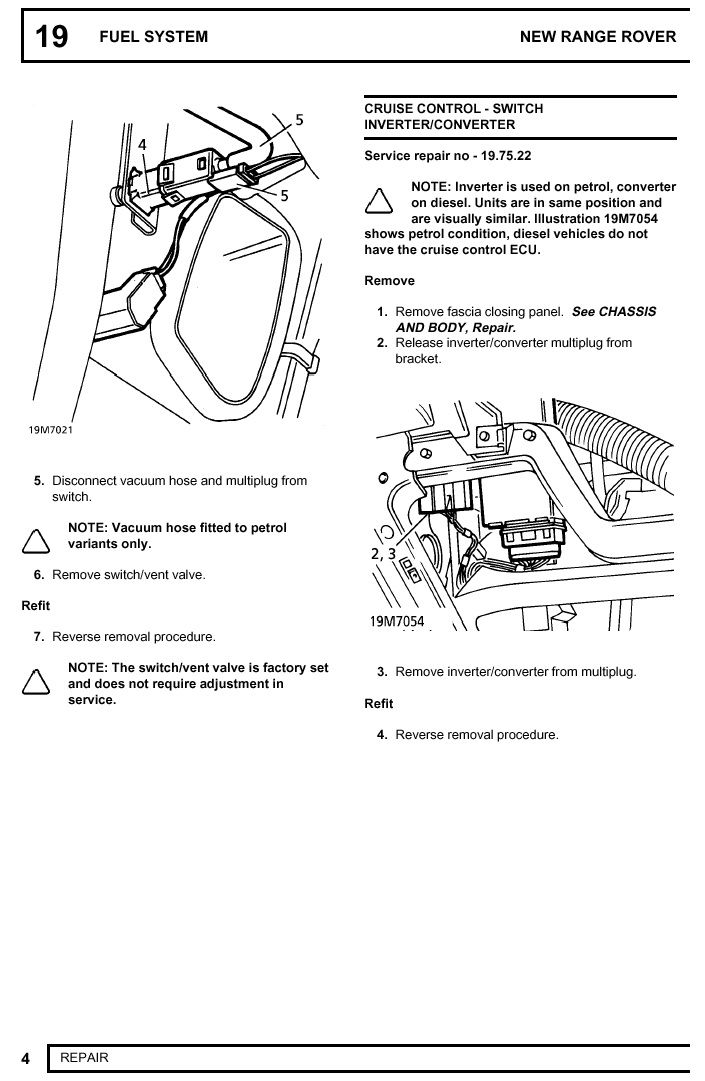

As attached

I did not see a vacuum pipe going to the switch, its a 99 4.6 thor, ill go and take a look and put a picture up on here as soon as ive got the cover off.

no i dont have a vacuum pipe. but the switch was from the brake pedal, kind of push and then twist to lock it in.







I notice the one thats for sale has a longer plunger into the switch where as mine is a shorter plunger, wonder if its got jamed inside as teh switch for the cruse control is always showing off dissabled.

After looking at my switch i pulled the plunger out and it then is the same length as the one for sale, but when i press on it there is a grating noise and it gets stuck in the closed (short') in poisition again, so thats a buggered switch to me, i remember having to bend the switch plate holder so it would turn the brake lights off. wonder if i buy the new switch the cruse control will work again.

Hmmmmmm......

I am pretty sure there should be a second pedal switch in there somewhere....

Anyone else got a view on this??

Will see if I can find it in a parts list somewhere....

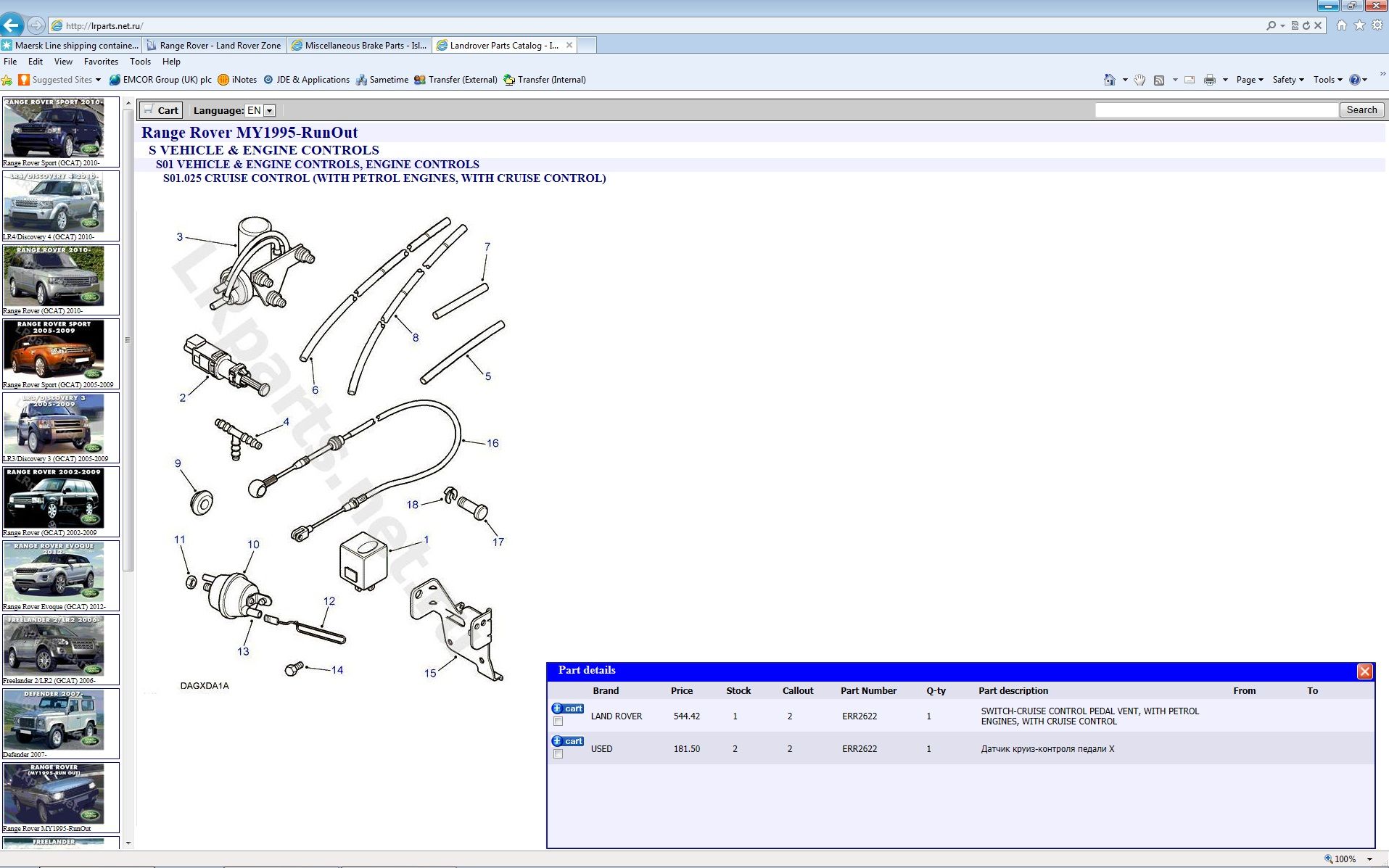

Attached Part Number (Ignore price - thats Russian) - Item number 2

Will see if I can find further images...

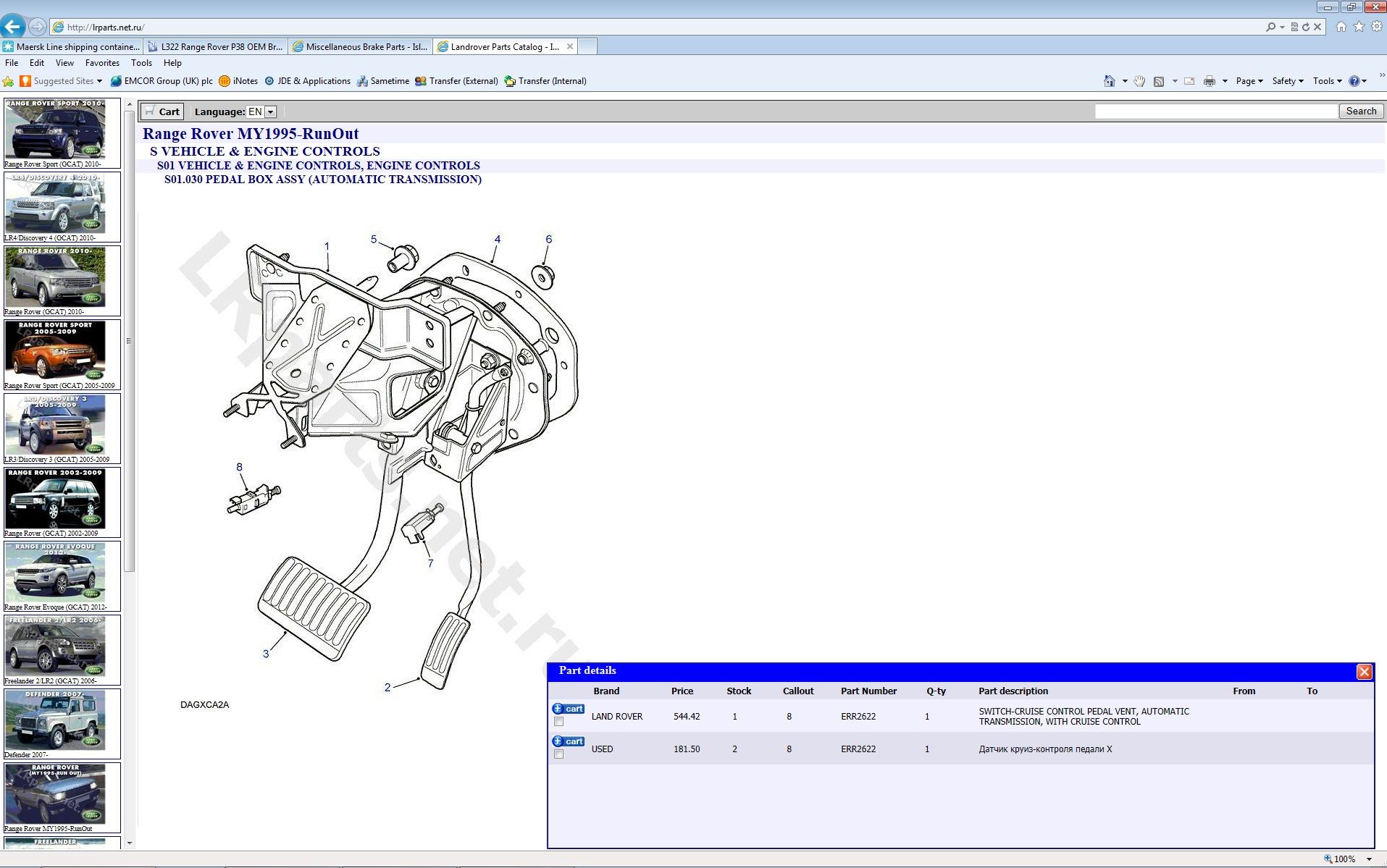

EDIT: Another image attached 8 - CC Switch 7 - Brake Switch

found this link that has two switches

Range Rover P38 OEM Brake Light Pedal Switch XKB100170 | eBay

dougdotcom said:

found this link that has two switches

Range Rover P38 OEM Brake Light Pedal Switch XKB100170 | eBay

Click to expand...

Dems da ones...

it must be higher up the pedal, or is it on the gas pedal?

After looking closer at the switch i have that i thought was jamed is not broke at all, its adjustable to touch the brake pedal arm why its adjustable i dont know but i still need to find the cruse control switch. its up there somewere

Hi

Changed this item twice recently. The switch is a one time fit only and you have to hold the brake pedal down whilst fitting it and then slowly release it. It clicks as it does it. It is to account for the resting position of the brake pedal so there is no lag when you touch the brake.

The reason I changed it twice was on the first occasion the brake lights were not working but cc was. After fitting the bl worked but cc did not. Supplier replaced and now both work. Has to have the three connectors.

97 dse

found it, it was further up the brake pedal, i noticed on of the lugs that hold it had snaped off so ordered a new on.

Top job Doug, for a few moments I thought I was going mad as I had read many times about a second switch , but glad you have finally found it, and also managed to get some great pics too....

Thanks for everyones help, Thanks Saint, you were right. Dergib i think as yours is Diesel its a different system
