P38 Heater not hot

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
A

_ASH_

Member
Posts
82
Location
Staffordshire UK
Hi Guy's,

Ive got problems where my heaters only seem to blow warm.. I was told that it could be the blend motor, but I'm not convinced as yes, the left hand blend motor does throw a fault up but why don't I get heat out of the right side?

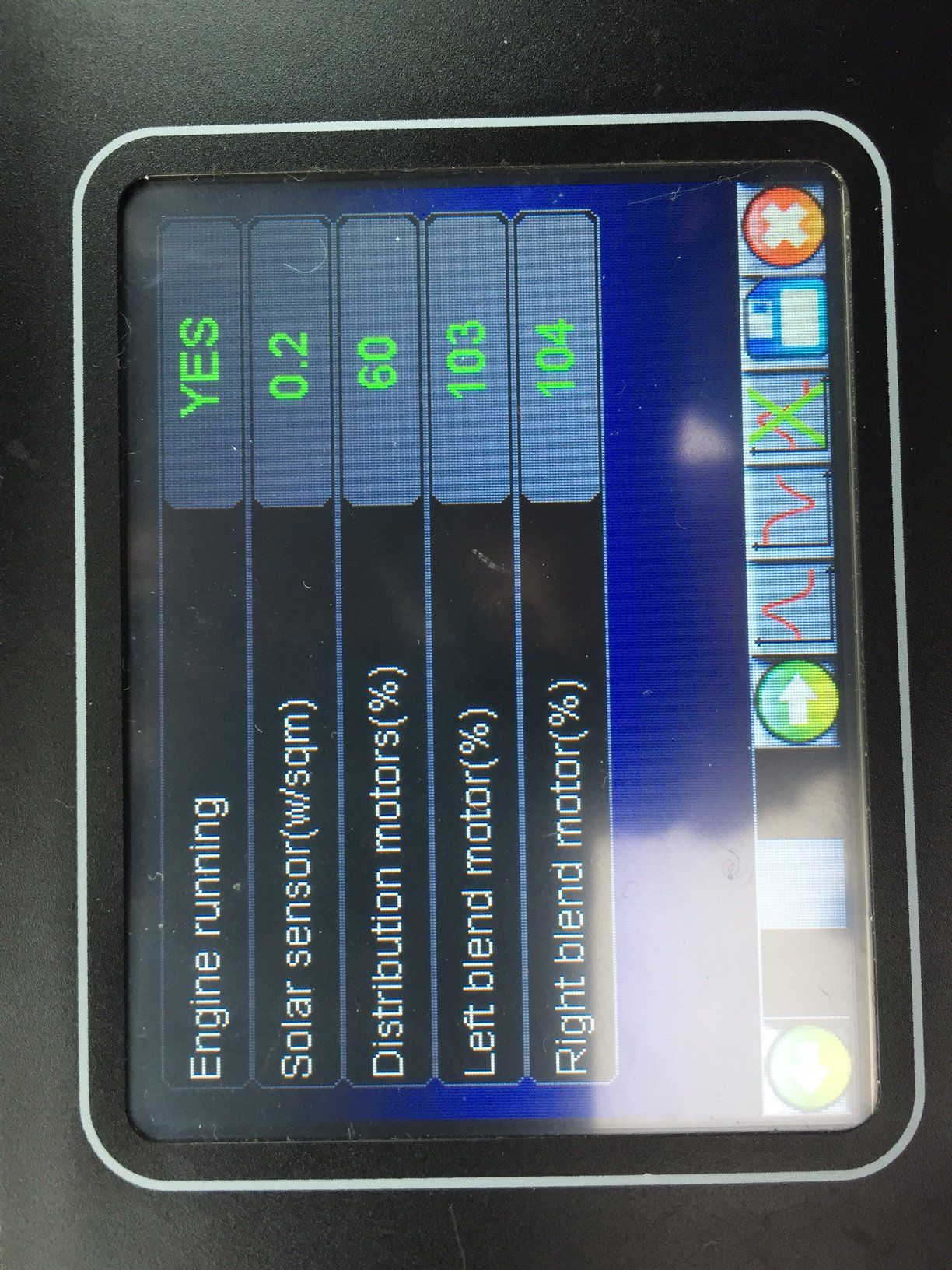

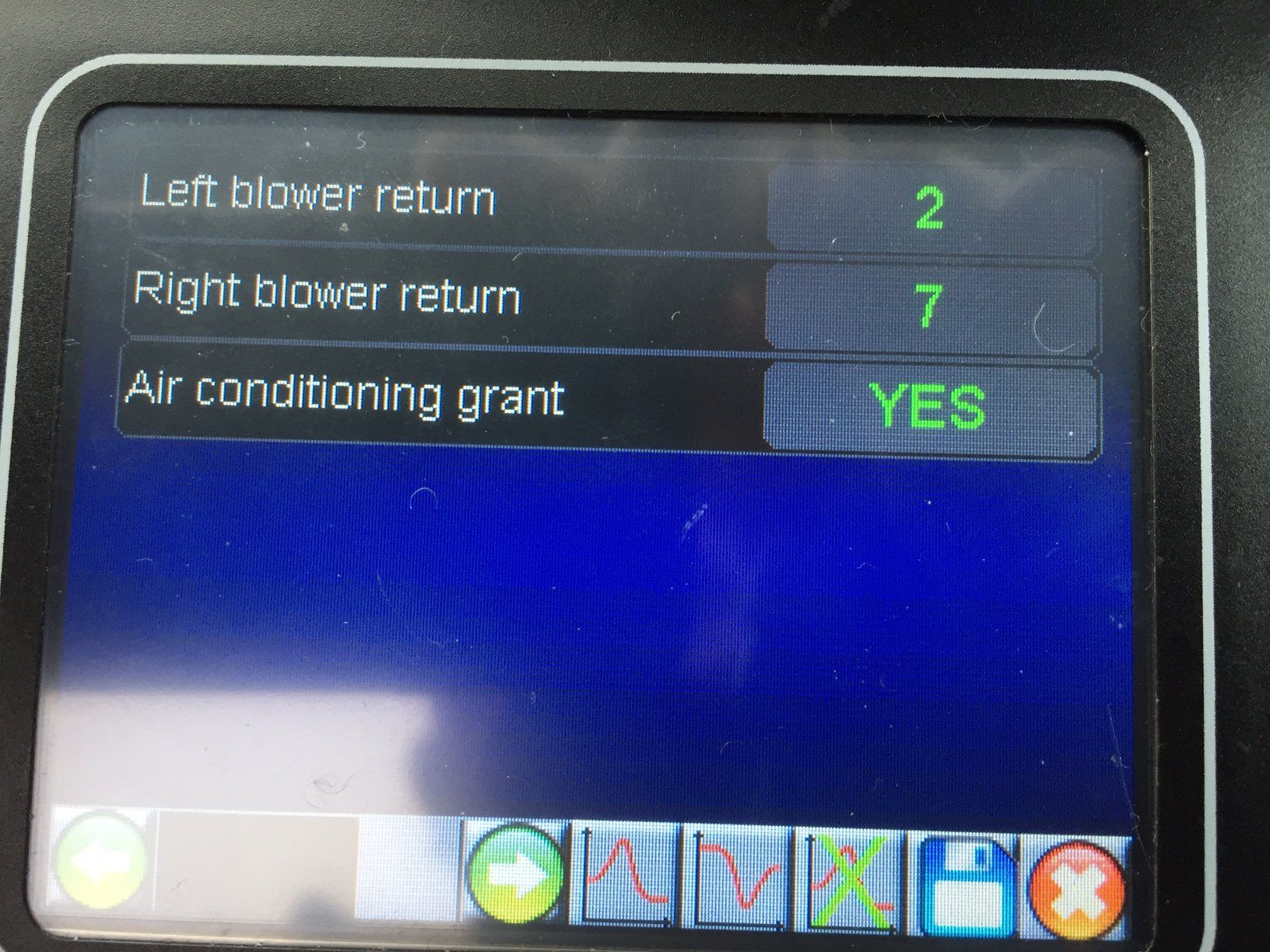

Ive plugged my nanocom in and read the live data (below).. I can't understand why the air temp is showing at -38.33 when its actually about 4degrees.

Could this be something to do with it? I've attached the live data hoping that someone will see something that i can't & give me some advice.

Many thanks in advance..

ASH


Attachments

  • IMG_2113.JPG
    416.1 KB · Views: 232
  • IMG_2114.JPG
    403.8 KB · Views: 186
  • IMG_2115.JPG
    364 KB · Views: 157
what about the Nanocom HEVAC temp sensor readings ? These tell much more about what the HEVAC thinks is going on than engine temp readings.

+1 and if you engine is only 61deg, then the heater will only just be getting warm.

Below is the Nanocom screen you really need. Heater core should be about the same as engine temp, because the sensor is usually fitted to the heater intake pipe. BTW, this is from the Nanocom Emulator rather than a real screenshot !!

Screen Shot 2017-01-03 at 15.48.33.png

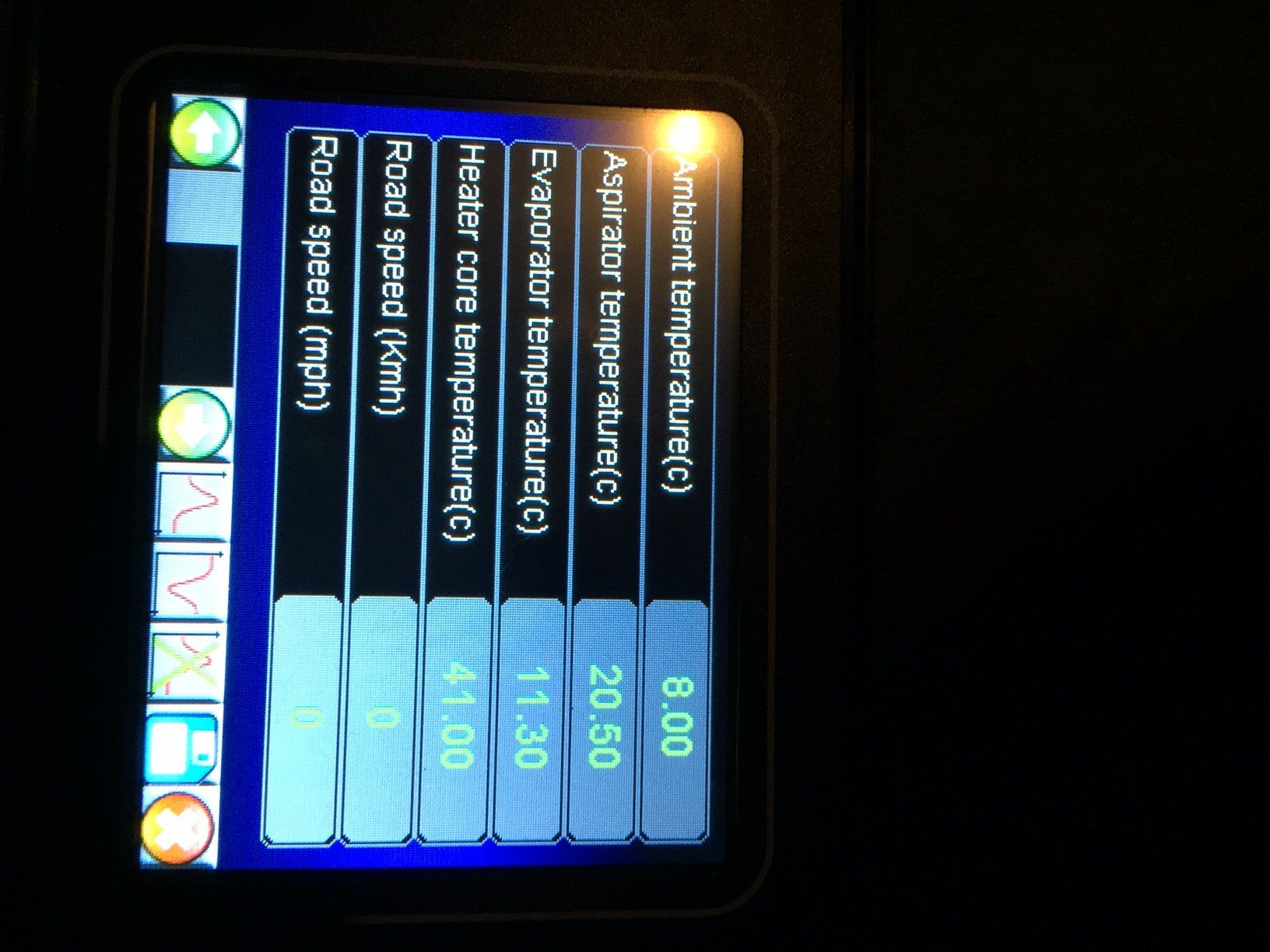

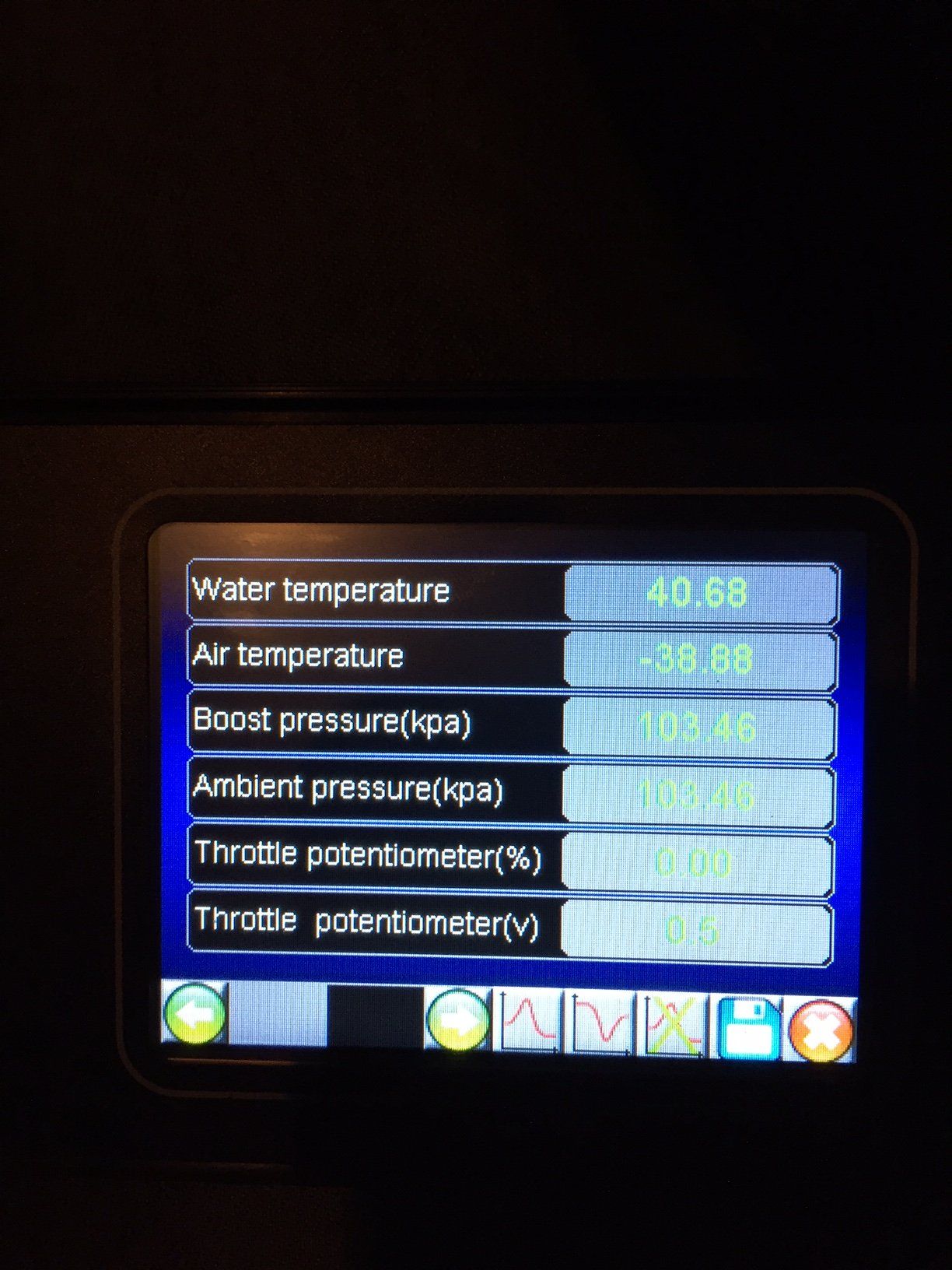

here is the live data after the car has been running for about 30 minutes


Attachments

  • IMG_2119.JPG
    231.2 KB · Views: 193
  • IMG_2120.JPG
    228.2 KB · Views: 154
Well the engine & heater core sensors seem to be in agreement. BUT 40deg is far too cool for the engine after 30 minutes.

Sounds like the coolant is low or not circulating properly. I doubt a seized vicious fan would over-cool that much ??

_ASH_ said:
Hi Guy's,

Ive got problems where my heaters only seem to blow warm.. I was told that it could be the blend motor, but I'm not convinced as yes, the left hand blend motor does throw a fault up but why don't I get heat out of the right side?

Ive plugged my nanocom in and read the live data (below).. I can't understand why the air temp is showing at -38.33 when its actually about 4degrees.

Could this be something to do with it? I've attached the live data hoping that someone will see something that i can't & give me some advice.

Many thanks in advance..

ASH
Click to expand...

The -38.88 has nothing to do with the HEVAC. It is a preset of IAT in the engine ECU to ensure EGR operation.
