Outriggers?

Hi Dad's landrover went for m.o.t today it passed but had an advisory that outriggers need welding or replacing.
Not sure what is meant by outriggers any one helpful want to give me some part numbers please

Might help if ya tell us what landie it is

Lol 300 tdi n plate 95 whoops

barmatt said:

Might help if ya tell us what landie it is

Click to expand...

Would've thought that this post being in the Disco section would tell you something about that!


Outriggers - I would imagine would refer to the supports from the chassis legs to the body floor at either the front or rear of the passenger compartment.
Will probably just patch up with plate quite easily...

Outriggers -two each side on the flanks of the chassis, supporting the body at the A pillar base and just in front of the rear wheel.

They are basically upside down U channels with flat tops. You can easily weld the sides but the top would be harder to access.

Hope this helps

so can these be bought? or need to fabricate ourselves?
part numbers would be handy just so i can get a better idea of what i'm looking for.

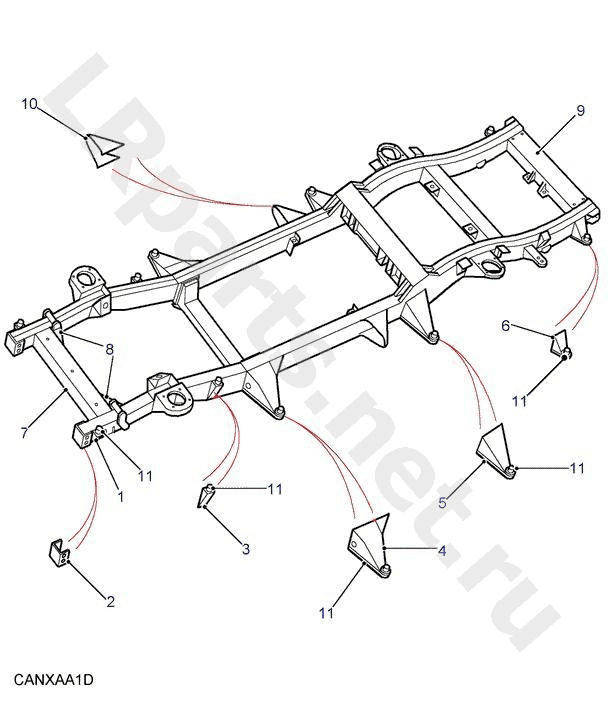

Part Nos are STC9129, 9130, 9131, 9140

Nos 4 & 5 in diagram

alexdon said:

Part Nos are STC9129, 9130, 9131, 9140

Nos 4 & 5 in diagram

Click to expand...

Cheers for that
