OBD vehicle connector, can anyone confirm what wire goes where..?

Basically, I can connect to EAS but my code reader will no longer connect to my rangie.

I rewired my OBD connector a while ago, from what I can tell it's right.. but I can't find anything anywhere telling me what colour goes to what pin.. can anyone help?

I spent many hours looking for this before re-wiring the plug but couldn't find it.. So there is half a chance something is wrong (Wires were corroded and had fallen off when re-wiring)..

In the manual it is refered to as a Data link Connection....

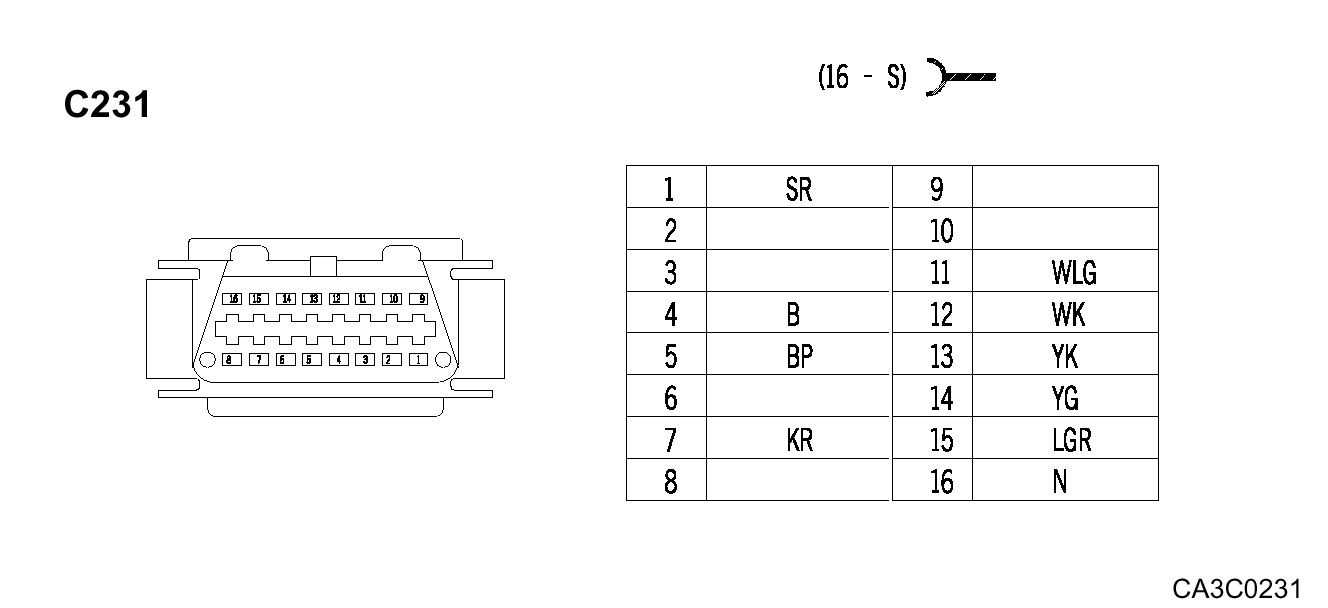

In the ETM between 1995 and 1997 it is given the same reference C231

In the 1999 ETM it is given the reference of C318, but there is not pin out reference diagram for it....

Anywho, I hope the attached image helps...1995-1997 (98MY)

Try this


OBD II SOCKET PINOUTS



Pin 1- (Grey & Red) EAS Timer

Pin 4- (Black) Ground

Pin 5- (Black & Purple) Ground

Pin 7- (Pink & Red) BECM (Socket C 255)

Pin 11- (White & Light Green) Airbag ECU

Pin 12- (White & Pink) EAS ECU

Pin 14- (Yellow & Green) Airbag ECU

Pin 15- (Light Green & Red) BECM (Socket C 255)

Pin 16- (Brown) 12V+ Feed via 5A fuse (F 33)

Cheers for the info!! I got destracted by fixing oil leaks and forgot about this, that's exactly what i was looking for!

I found my major oil leak, some idiot had tried to remove the valley gasketwith the rocker covers still in place... then gave up leaving a gaping hole in the rear end, obviously too stupid to realise it holds the oil in!
