No Power to Fuel Gauge or Temperature Gauge s3

Help needed on tracing the lack of power to the above items.

I've followed the wiring diagram for a series 3 with reference to the power supply and have traced it back to the regulator at the back of the clocks which is a solid dark green wire. There is no powere there hence none to the gauges.

However, when trying to trace the said green wire back, it goes into the loom and i cant find where it goes from there. The wiring diagram says it goes to fuse labelled 7-8 but that is ok so i'm guessing there is a fault somewhere between the two.

Can anybody help me in telling me where the dark green wire goes when it enters the loom please so i can trace the fault.

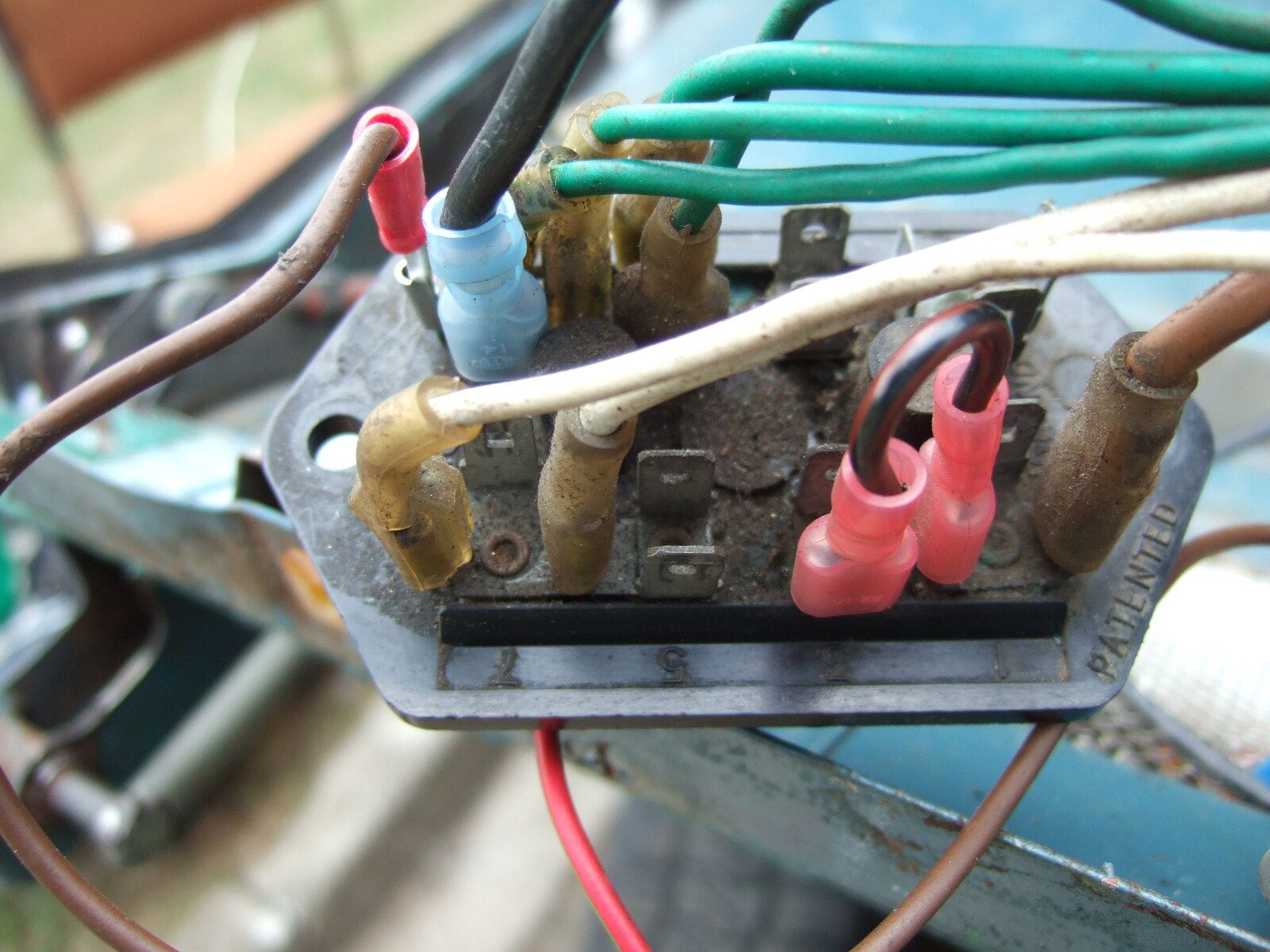

Back of the fuse box there is 4 of them on mine.

+1, should come out on pin 8 of the fusebox only way you can follow it through properly is to cut the tape off the loom, bit of a pita, I had to do it when I sorted my s3 wiring out

Are they not on different circuit, possibly therefore more than one short?

Sorted,was a dodgy connection on the fuse holder.

Poor contact's in the fuse box often the problem.

X1 on loose fuses.Had a similar problem and just nipped the fuse holder clips with pliers to give a tighter fit and hey presto.
