Lrt-12-112

JohnnyCrash said:

I have a copy of this tool, however I would just like to check sizes as it doesn't have a "quality" feel to this tool, certainly doesn't look like it was made with much care or attention. I have a lot of play when fitted to the camshaft?

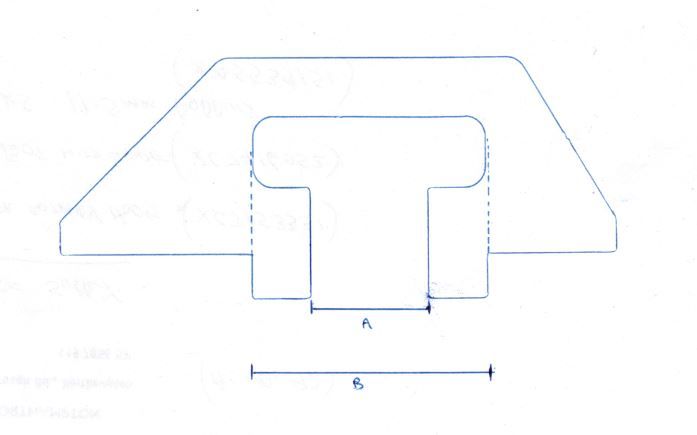

here is the "OE" spec

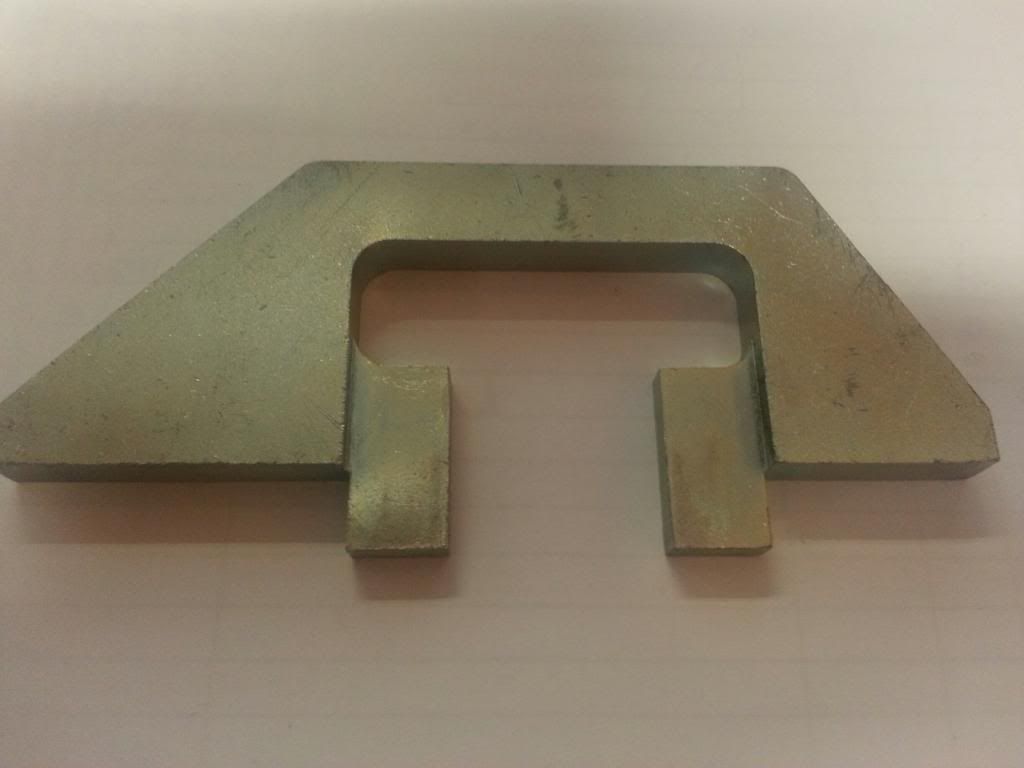

here's what I have...


so may I just check the following sizes..


A = 33.08mm
B = 64.15mm

Click to expand...

wammers said:

Will measure mine in the morning and let you know.

Click to expand...

tomcat59alan said:

That's not the length he wants Tony.

Click to expand...

wammers said:

There's always one in a group. I have a tatoo on mine that says Ludo most of the time but sometimes it say Llandudno.

Click to expand...

biggeeeee said:

Mine says Wendy

but sometimes

Welcome to Scotland have a nice day

Click to expand...

wammers said:

See you both use the same tattooist. Must be really hard doing that job under a microscope.

Click to expand...

biggeeeee said:

Its true if you look under our Usernames it says Senior Member

Click to expand...

blue beasty said:

It's no co-incidence that under mine it doesn't

Click to expand...

tomcat59alan said:

There's more than one in this group My tattoo says Llanfair most of the time REST OF THE TIME ITS SAYS LLAN.

Click to expand...

JohnnyCrash said:

I have a copy of this tool, however I would just like to check sizes as it doesn't have a "quality" feel to this tool, certainly doesn't look like it was made with much care or attention. I have a lot of play when fitted to the camshaft?

here is the "OE" spec

here's what I have...


so may I just check the following sizes..


A = 33.08mm
B = 64.15mm

Click to expand...

wammers said:

On mine dimension A = 32.50 mm. Dimension B = 63.00 mm. But dimension B means nothing, it is the relationship between dimension A and the flat part of the tool that sits across the head surface that matters. Yours looks like a casting mine is machined from a billet.

Click to expand...

JohnnyCrash said:

Thanks Wammers, thought it was worth checking and 1.3mm out is not as bad as I was expecting as once located this plate has a lot of movement either way

Click to expand...

wammers said:

Either you put down the wrong measurement or your calcs are wrong 33.08 mm as stated minus 32.50 mm is 0.58 mm. 33.80 mm minus 32.50 mm is 1.3 mm. Just put a feeler in to make up whatever the dimensional difference is in A. So the tool is snug to the cam.

Click to expand...
