lots of black smoke..loss of power and runs hotter after engine swap...help
- Thread starter mikeNC
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
yes used the pin and according to the pulley markings. Its at TDC and the slot in the flywheel was visible..not an automatic trans.. i have not pulled the front cover off at this point.
Turboman
Mab An Gov
- Posts
- 60,151
- Location
- Lathrowda, Kernow
If they are knackered, cleaning isn't going to sort them out.
You need to get spray form and opening pressure tested.
i figured as much just thought id try it out.....
Turboman
Mab An Gov
- Posts
- 60,151
- Location
- Lathrowda, Kernow
Better to loosen off the unions one by one, as I suggested.
That way, if one cylinder makes no difference, you know that is the problem injector.
And if none of them make a difference, you know it is something else.
v8250
Well-Known Member
- Posts
- 6,417
- Location
- Deepest Darkest...
How are the other 200tdi injectors?
If sending away for proper rebuild send to Diesel Bob, he/they know what they're doing. Or, just buy a new Bosch set and be done with. It save a mass of p!ss!ng about.
If sending away for proper rebuild send to Diesel Bob, he/they know what they're doing. Or, just buy a new Bosch set and be done with. It save a mass of p!ss!ng about.
Diesel Bob (UK) Ltd - Injectors
For the owner, driver of any diesel powered vehicle who wants the best from their vehicle. Offering the ultimate diesel engine tuning as well as a diesel fuel injection service. Repairs and reconditioning of injectors and diesel pumps, suppliers of diesel fuel system parts and additives
www.dieselbob.co.uk
did that before i removed and cleaned them...i am getting fuel spray at that union and when each union was loosened.... the engine idle changed slightly...all were similar, and each did the same thing when loosened
they other injectors seemed decent..i did have some smoke on heavy acceleration on the other motor but that may have been a result of several factors
Turboman
Mab An Gov
- Posts
- 60,151
- Location
- Lathrowda, Kernow
You can buy pop testers off the net, think they start from about 50 quid.
Turboman
Mab An Gov
- Posts
- 60,151
- Location
- Lathrowda, Kernow
In that case, the problem is less likely to be the injectors.
i agree. just feel like I'm getting everywhere and nowhere at the same time i greatly apricate your help
steve2286w
Well-Known Member
- Posts
- 4,056
- Location
- monkeyangerland
are cylinder compressions ok and clean air filter
compression check is next list and air cleaner is clean..also tried with air cleaner removed. n engine fires right up and idels but a little rough and black smoke with any acceleration.... timing issue?
Has it got one of them stupid tuning fuel pins in the injector pump?
They cause the engine to black smoke pretty much through the entire rpm range.
Are the plastic or metal seals still on the two M6 lock/stop bolts on the injector pump throttle linkage?
steve2286w
Well-Known Member
- Posts
- 4,056
- Location
- monkeyangerland
that’s interesting should try driving it and see what power is like
in front of the seals is the boost pipe connector to turbo , I’ve removed mine as I’ve fitted a DI, but if that was holed could affect power, also there is a lifting needle in pump that I’ve read sometimes seizes , ( stupid tuning fuel pin?) . There is also the 200tdi tuning guide which is a good read and might show it better
Rick's 200tdi Tuning Guide
First an acknowledgement. All this information is out there, I just don't like the way it is presented. Here I will give you my thoughts and procedure for modifying, tuning and monitoring your 200tdi engine. More fuel = More power, but it also mean more pressure and heat. The richer the...
www.landyzone.co.uk
Turboman
Mab An Gov
- Posts
- 60,151
- Location
- Lathrowda, Kernow
You tried Italian tune up?
v8250
Well-Known Member
- Posts
- 6,417
- Location
- Deepest Darkest...
I don't think that's the answer unless OP knows everything else is good. If good he should be running a system cleaner and then try the Italian service.
@mikeNC, I like @lynall suggestion re' FiP fuel pins. Many folk are tempted by these yet most just bellow out black smoke + if an ex-Arkonic engine there's a good chance they've fiddled with something for bling mode.
The other point we've all yet to ask is, why did Arkonic sell this engine and what was the build spec...especially any modifications? If they've added sporty mods and were unable to run the engine without black smoke the engine should be taken back to standard, set up and be proven to be a good engine running without black smoke except the std 200tdi puff at start up.

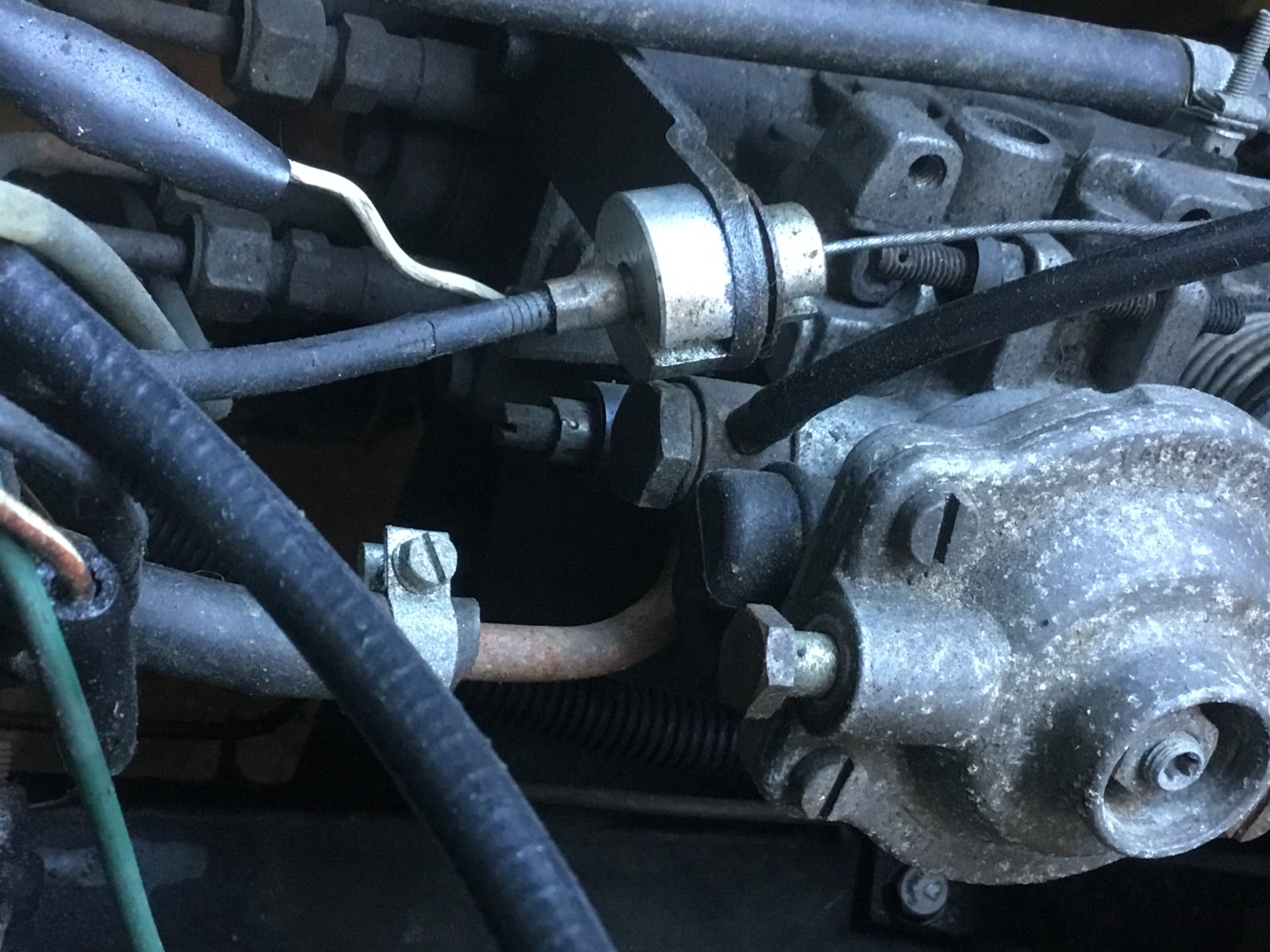

Hells teeth man that inj pump still has the factory seals on it!that’s interesting should try driving it and see what power is like
in front of the seals is the boost pipe connector to turbo , I’ve removed mine as I’ve fitted a DI, but if that was holed could affect power, also there is a lifting needle in pump that I’ve read sometimes seizes , ( stupid tuning fuel pin?) . There is also the 200tdi tuning guide which is a good read and might show it better
Rick's 200tdi Tuning Guide
First an acknowledgement. All this information is out there, I just don't like the way it is presented. Here I will give you my thoughts and procedure for modifying, tuning and monitoring your 200tdi engine. More fuel = More power, but it also mean more pressure and heat. The richer the...
View attachment 288750
With glow plug out you can also confirm tdc mark is actually at tdc.
Turboman
Mab An Gov
- Posts
- 60,151
- Location
- Lathrowda, Kernow
Engines like being fully warmed up. The behaviour of an engine that has just been started and run on idle is often quite different to one that has had a good run out.
I can't see it doing much harm as long as the injectors are spraying, not producing solid jets of fuel, and the turbo isn't putting oil down the inlet tract.
I too am interested in the origins of the engine.
I have no idea what Arkonic is, but the idea of an engine that hasn't been made for nearly 30 years being removed from a vehicle, having only run 3k miles, and then sitting for two years on a garage floor, before being sold to this "lucky" buyer seems full of inconsistencies.
