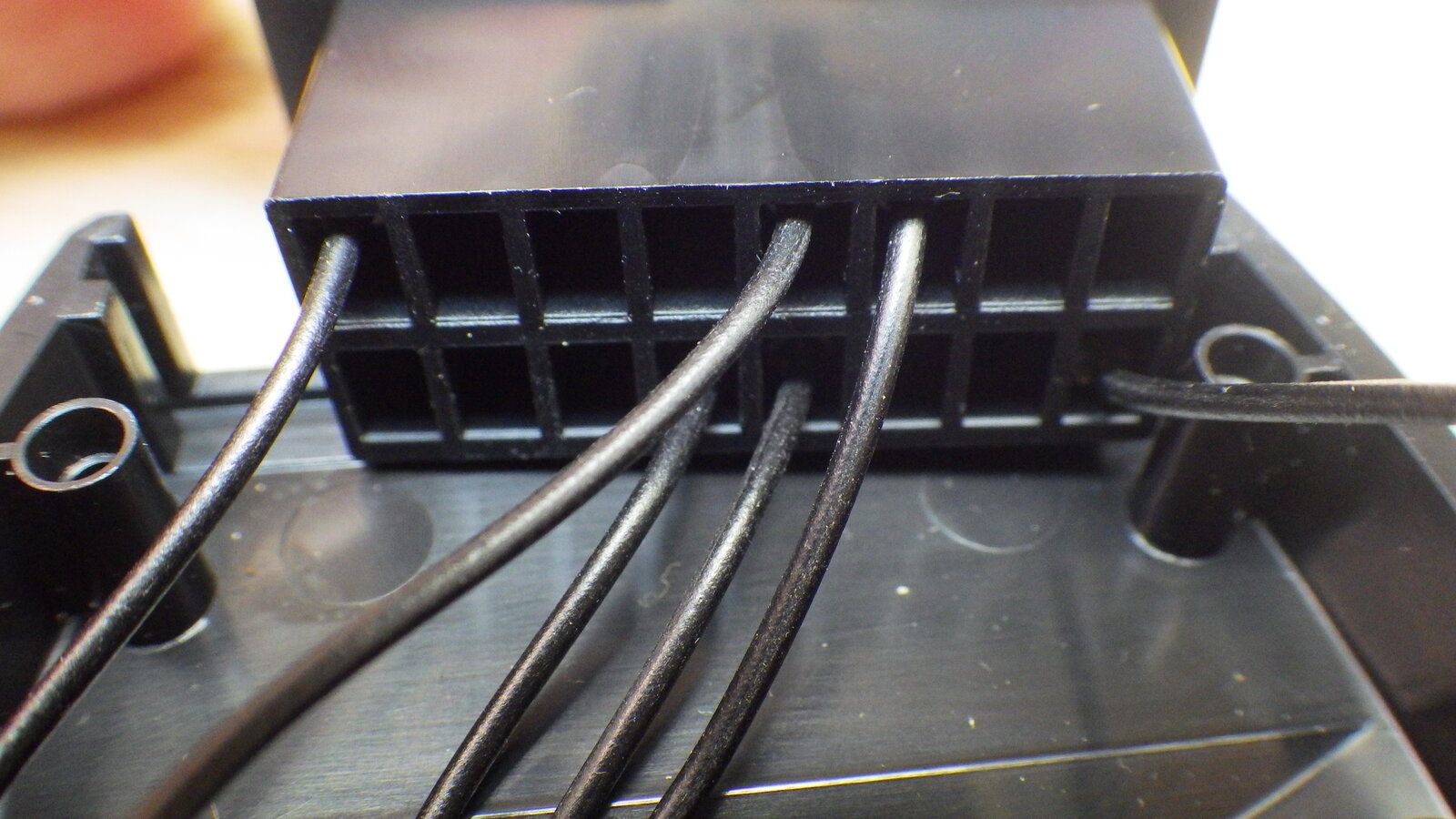

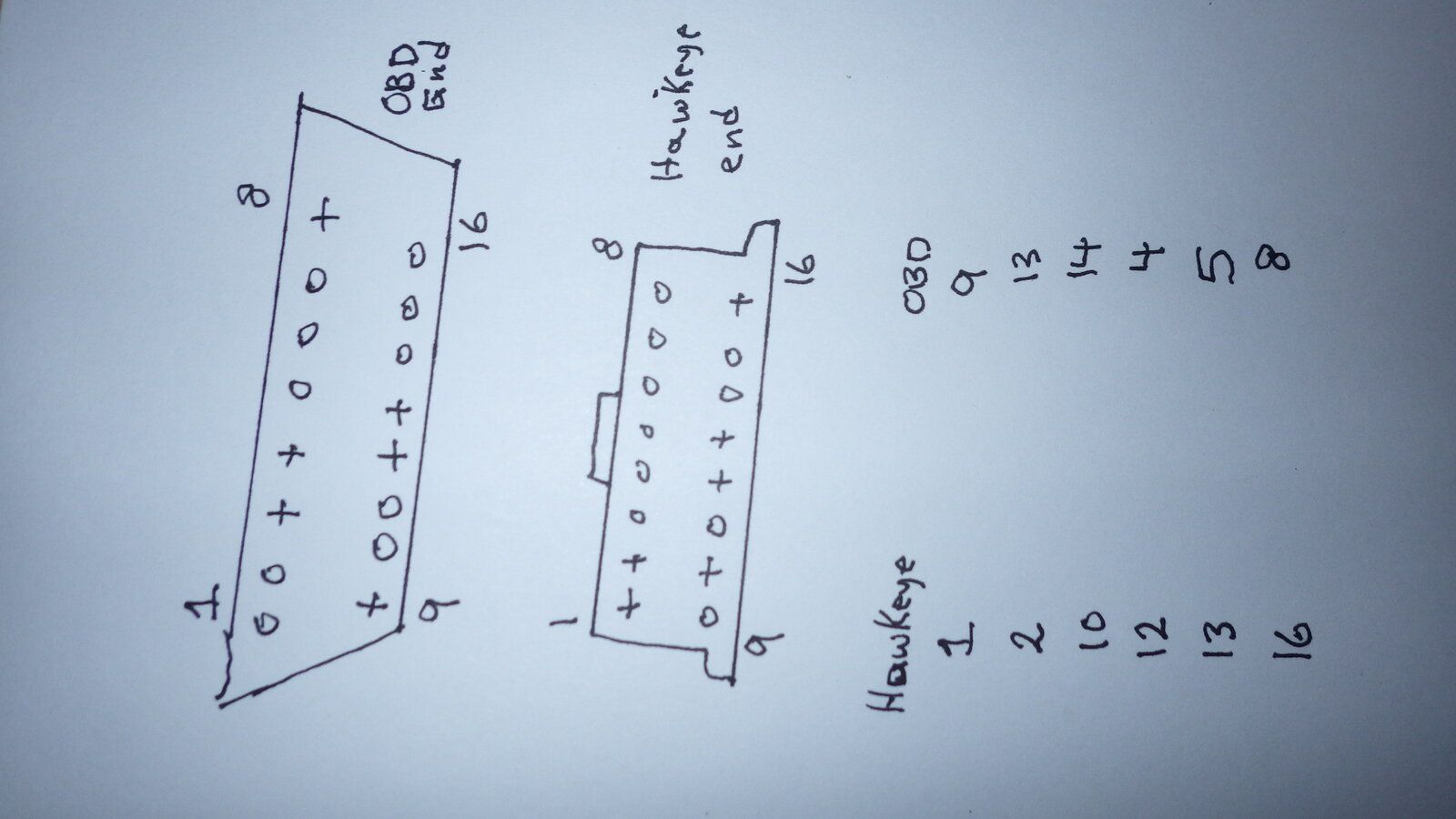

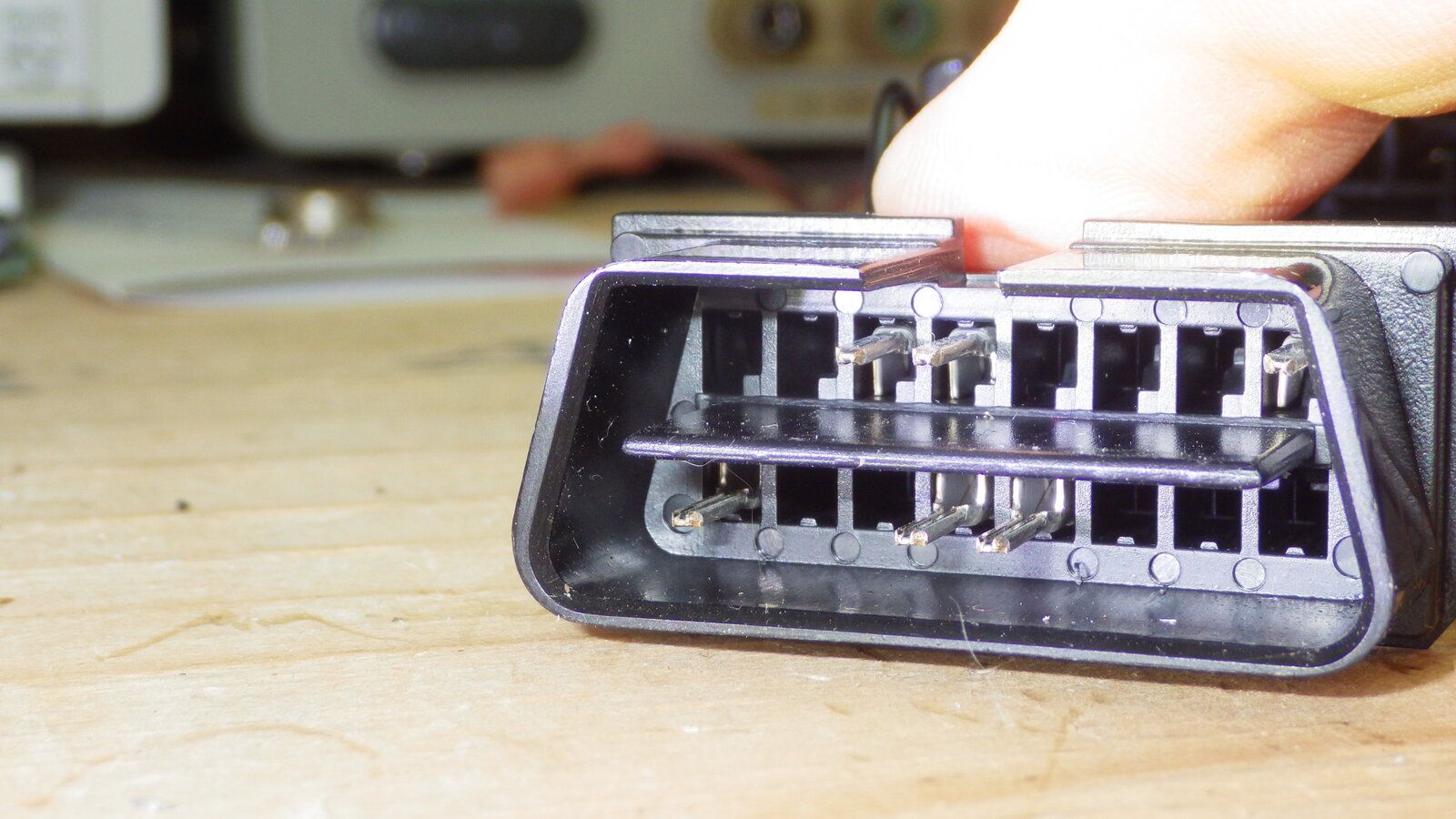

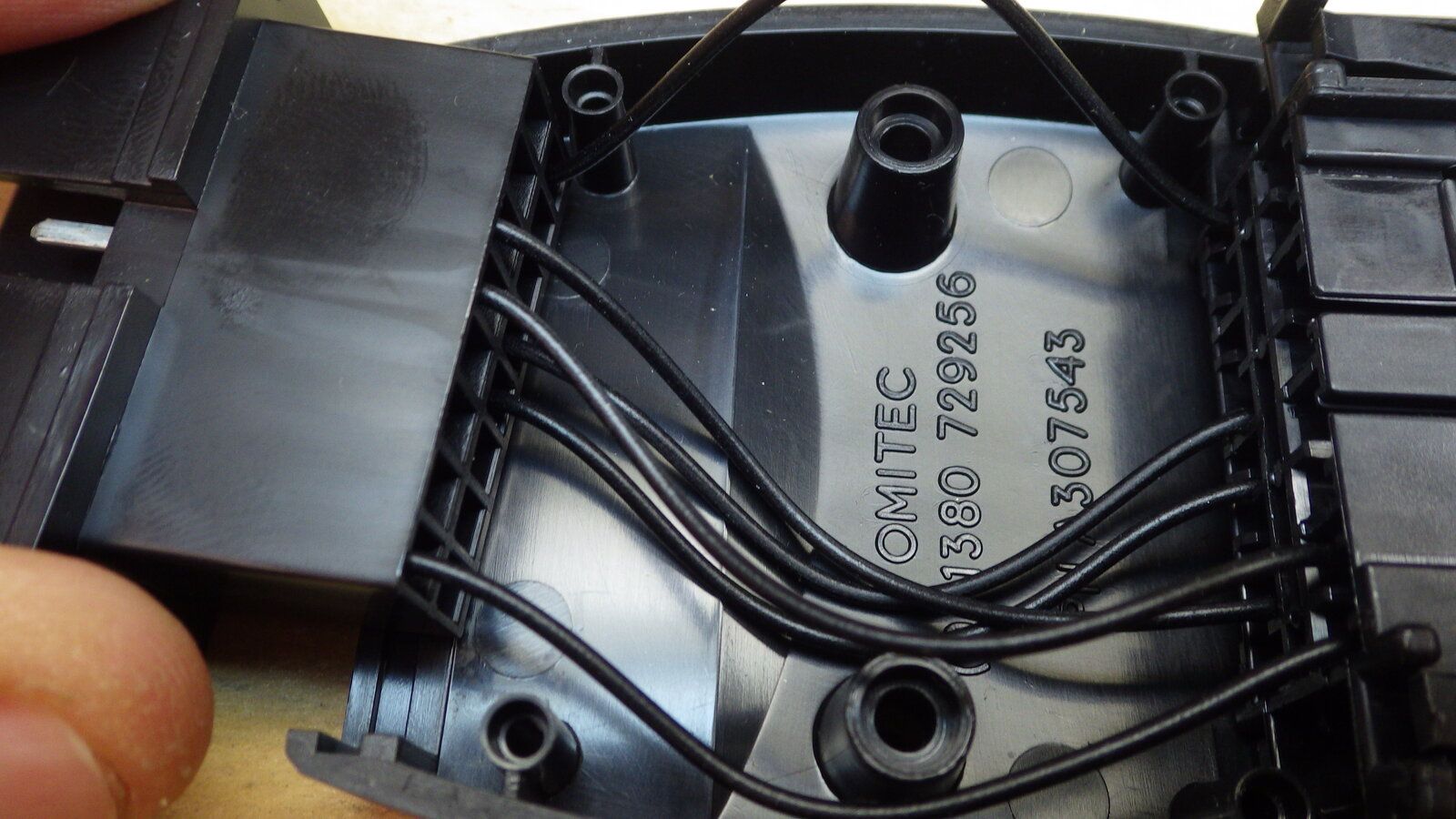

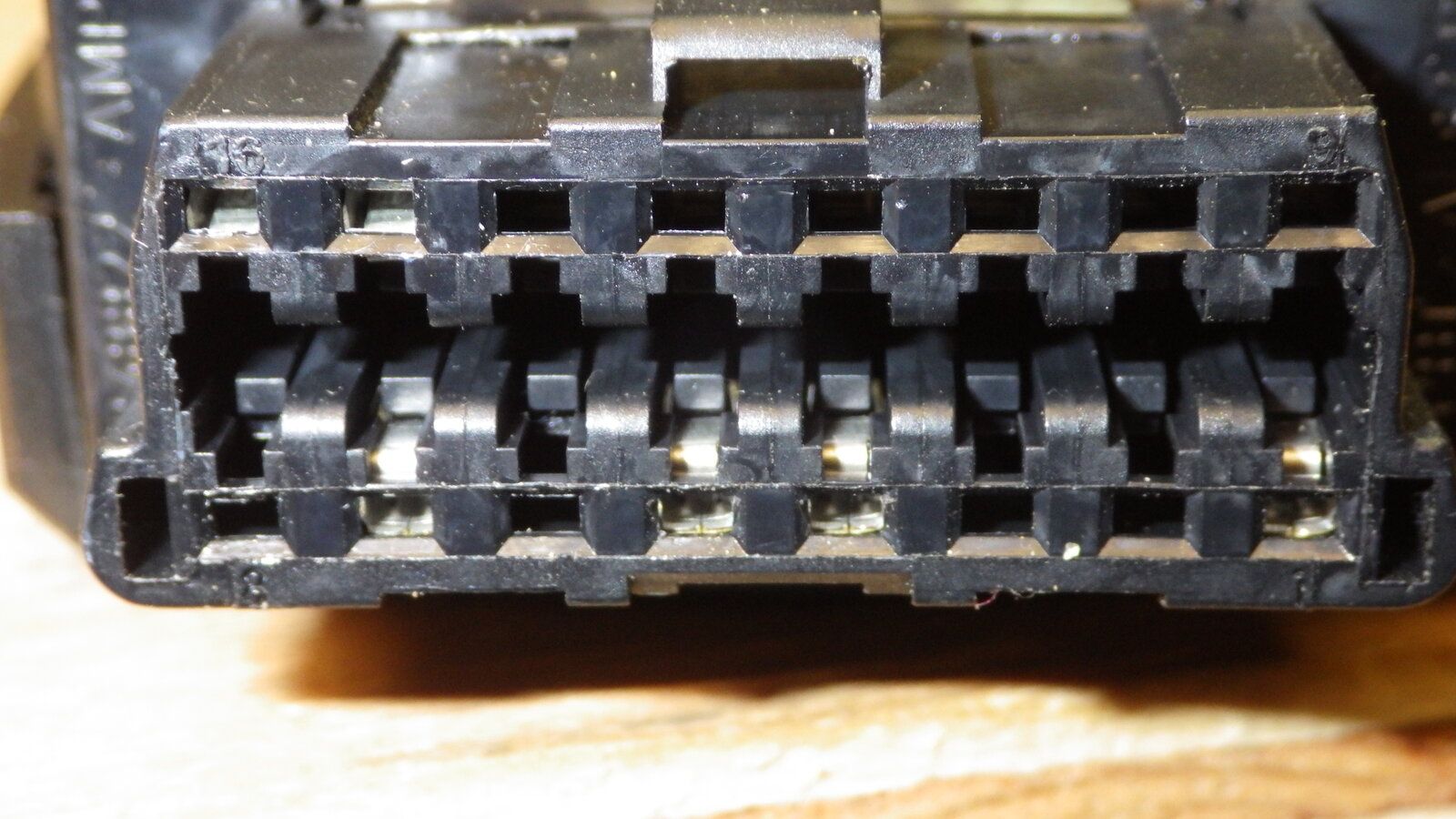

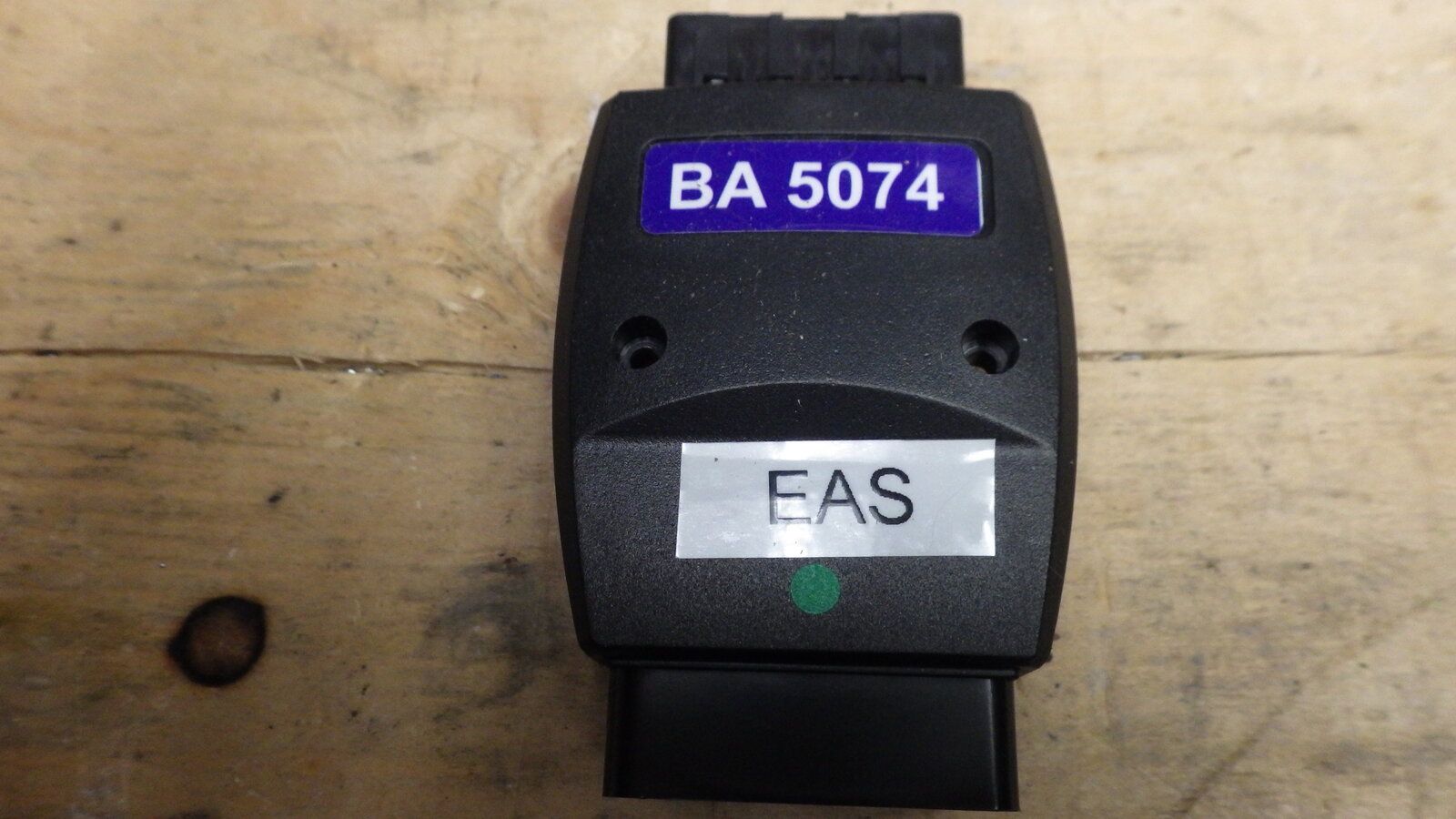

Recently there was a query about the dongles that you need to enable you to get full use out of your now discontinued Hawkeye or Hawkeye Total. I bought a Total a while ago as it will work on my P38 and my L322. Luckily I bought all the dongles for both that I figured I would need. So I took the EAS dongle, BA 5074 apart and copied out the wiring. Third photo is the end going into the Hawkeye. Fourth and fifth photos are the end that goes onto the car's OBD port.
If you go to a wreckers you can cut out the OBD plug so you have one end of your cable. Then you need some cheap OBD code reader from which you can get the other end.
