Garage Bulkhead replacement?

Have any of you guys had a garage replace a bulkhead?

What sort of price should I expect for a garage to replace one on a 200Tdi 110 Station Wagon?

Have a look at this link...

Ashtree Landrover International | Doors
TS

Thanks, but thats just a supply price I think.

Have you got the bulkhead already? Cheaper to find one yourself then have it painted/ protected or galvanised then have it fitted.
Just replaced mine on 200tdi, big job and if ever I have to do another ill do it myself.
If your getting a garage to do it get a price for the job, not what they charge an hour or could run up a big bill, also budget for chassis welding under bulkhead, other parts like door hinge spacers proberbly worn, heater cables ( mine were past it) all new clips/ nuts/ bolts etc, replaced my windscreen and rubber, gearbox tunnel covers proberbly rotten that bolt to bulkhead, expensive new so find on eBay etc, speedo cable? Mine was shot, basically be prepared to have to replace other parts as it's not as straight forward as it looks.

Not gone one already, I know a lot of garages get funny about the customer supplying parts!

The only quote I've managed to get so far was to supply and fit a new bulkhead, and was £1500...

Do you mind if I ask how much yours cost?

Proberbly around £2k mate, that includes cost of bulkhead but not defo on that as it was a total rebuild with galvanised chassis, paid £250 for my mint bulkhead then another £100 to have it re seem sealed, painted and stone chipped, a garage would charge you £1k for bulkhead alone I'm sure

Nice

Mine was a mess

Thanks, in short it's not cheap then! Lol.

I've had quotes just to supply bulkheads, new @ about £800, used from £200. But am thinking new would be better in the long run...

I think this one is possibility further gone than that!

I have considered doing it myself, but am stuck in a flat, so no garage or driveway!

I can rent a 20ft shipping container, but will I have enough room to do anything?

i'd say used, fixed, and galved

trax said:

i'd say used, fixed, and galved

Click to expand...

Agree with this, the bulkhead I got had a little surface rust which was easily sorted, re seam sealed then primed and painted and stone chipped, would have had it galvanised but time was against me.
New is costly with the labour added and there no benefit over a good used one

:nopics:

Let's see how bad it is, mine needed new footwells which were simple to replace and the a good coating of dinitrol

bring it down for me to see.
If it needs changing, (Ive repaired some real bad uns so dont panic too much) any more than two days is slow if claiming to be a lr garage

I'd have to get it trailered down to you Clive, as its now out of T&T...

I think we'll put it in storage for a couple of months and save up some cash, as I think once it starts coming apart it will end up needing more work!

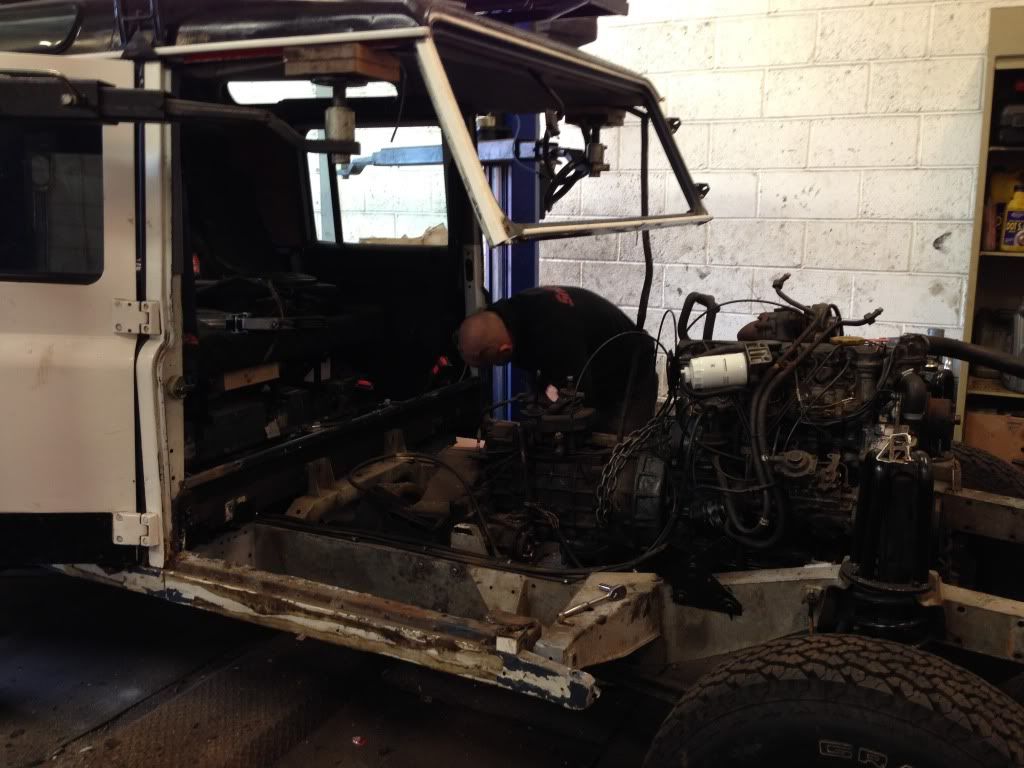

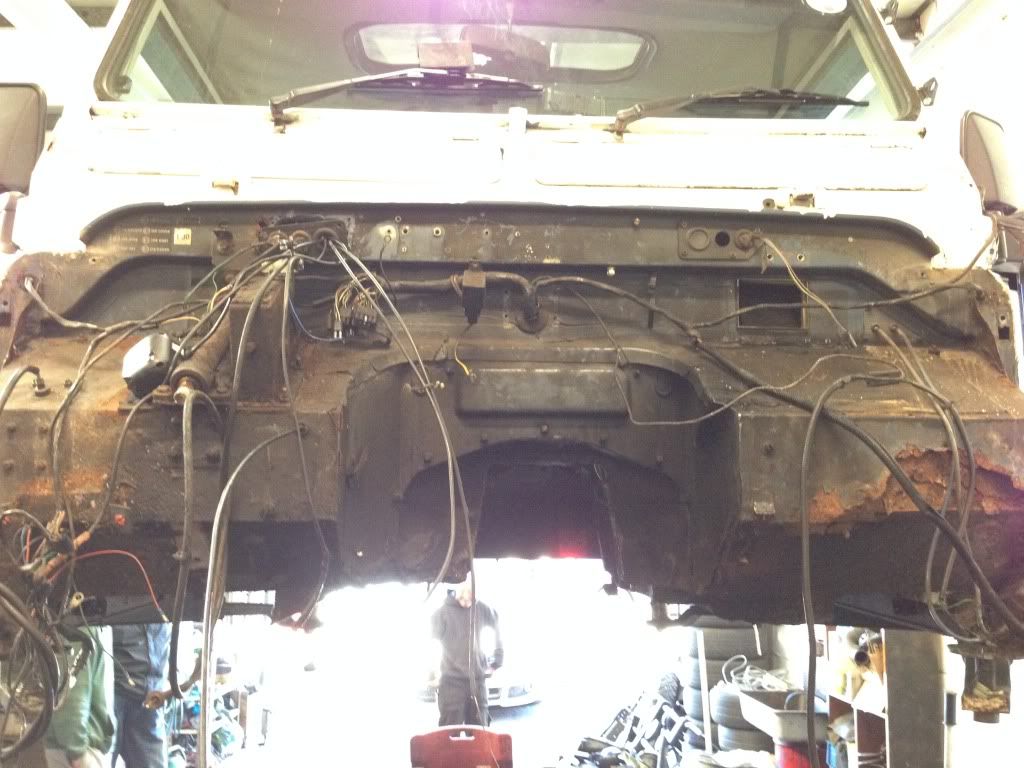

The top corners are gone, and the drivers footwell at least has seen better days!
