front fog lights

hi all

just a quick question for all you freelander peeps in the know

I was just looking to buy some front fog lights for my freelander
can anyone tell me if the 2002 td4 preface lift was ever fitted with front fog lights as standard ,only I ve looked at loads online and I cant see any on a pre 2002
but the guys im getting them of assures me there of a 2002 model??

muchas gracias senors e senoritas

My 2000 model has them

My 2002 td4 I had in 2007 had them fitted to

matt1295 said:

My 2000 model has them

My 2002 td4 I had in 2007 had them fitted to

Click to expand...

ok cheers for that matt I guess they should fit ok then fingers crossed

Like these fog lamps under the bumper?

Brack said:

Like these driving lamps under the bumper?

Click to expand...

yeah like the lower ones fitted in the bumper cheers brack

Great, let us know what they are like when you get em working
I saw some on e bay the other week - the seller had cut around the plastic trim to make a template for the buyer

kevins said:

yeah like the lower ones fitted in the bumper cheers brack

Click to expand...

I have the lower ones on my 52 plate ES

pardec said:

I have the lower ones on my 52 plate ES

Click to expand...

seems like theres a good few out there with front fogs on then my next questions

ok so I know there a fog light switch on the dash I found that
I also found 2 wires hanging down between the front of the bumper complete with plugs on don't suppose I can be that lucky !!!can I!!
1 wire is brown/yellow and other 1 is grey/green anyone and ideas what there for please

cheers you are all so helpful im sure someone must know

stick a bulb on it and press the switch

There is another kit around that fits the foglights into the lower of the front bumper.

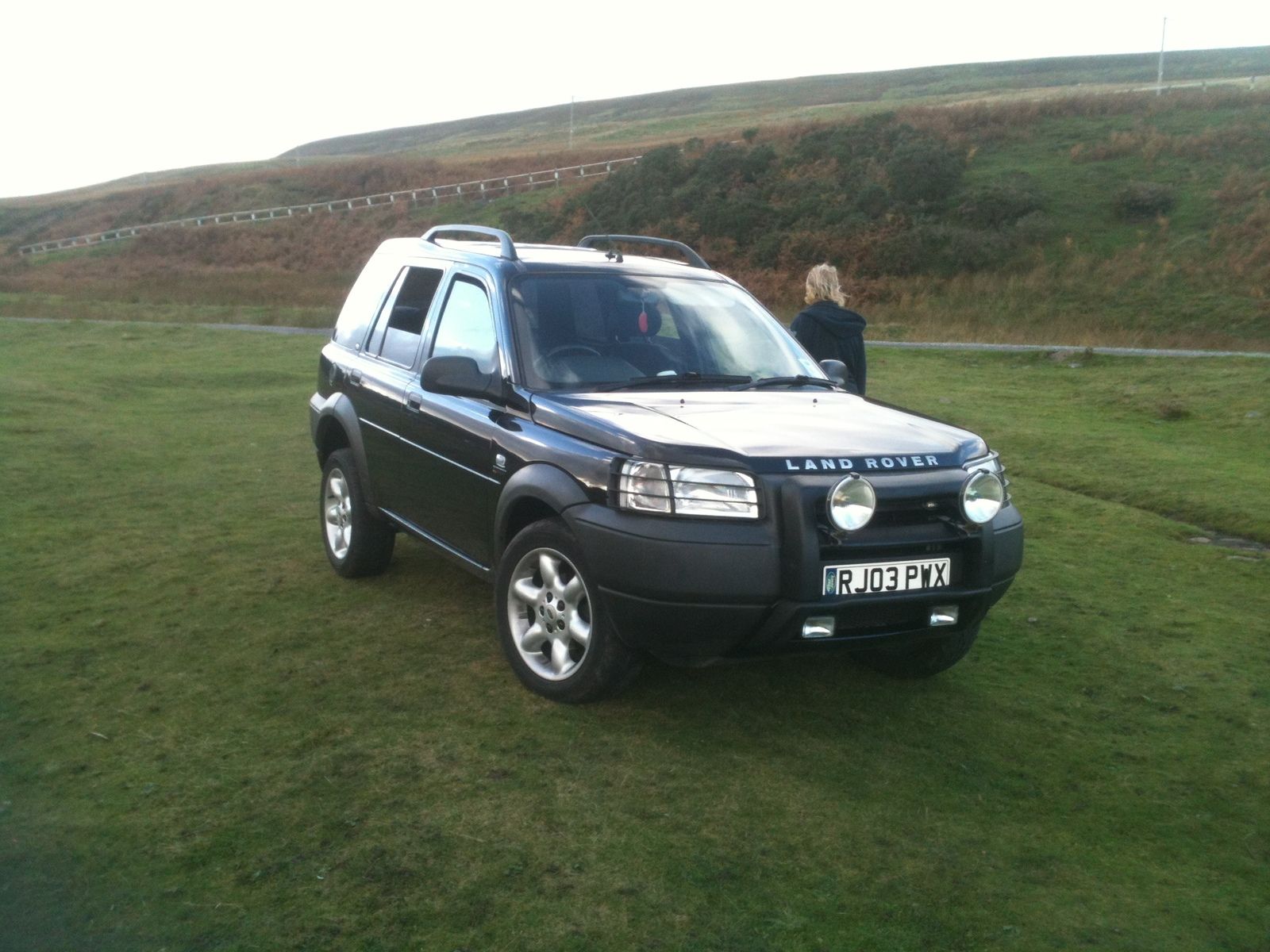

My 2003 TD4 doesn't have the wires under the front bumper, good luck. I wired up from scratch, taking the feed to the switch from the sidelight circuit in the dash. I used Ring Microlight rectangular fogs attached to a tapped out hole for the bumper cover plastic plugs just inside the soft A bar fitting.http://www.landyzone.co.uk/lz/attachment.php?attachmentid=53114&stc=1&d=1386713740

davef2901 said:

There is another kit around that fits the foglights into the lower of the front bumper.
My 2003 TD4 doesn't have the wires under the front bumper, good luck. I wired up from scratch, taking the feed to the switch from the sidelight circuit in the dash. I used Ring Microlight rectangular fogs attached to a tapped out hole for the bumper cover plastic plugs just inside the soft A bar fitting.http://www.landyzone.co.uk/lz/attachment.php?attachmentid=53114&stc=1&d=1386713740

Click to expand...

looks good I like them, cheers dave Ive already got the fog light just need to cut the holes and fit them and get them wired up ..I ve also got a steel bull bar on the front with 2 spots on.. photos when its done

If you take the bumper offu shouldsee it marked on the back where to cut did when I fitted to my td4 bk in 07

matt1295 said:

If you take the bumper offu shouldsee it marked on the back where to cut did when I fitted to my td4 bk in 07

Click to expand...

yeah will have a look at that but its got the bits of the old bumper already attached to the spots as a templeate as well should be ok its just the wiring lol but im sure I can sort it cheers

Keep getting sniped on eBay bidding on the cut bumper ones. Getting ducking sick of it. Just want some fogs that I can stick HIDs in

Aren't there clearance issues if you have a fbh? Think the exhaust is in the way so it has to be modded.

then on the lower part of the bumper are fog lights and should only come on when dim or full headlights are used and can only be used in heavy fog other wise you will get a ticket as I nearly did when I accidently left them on

I wired my driving lamps (With 130W bulbs) to come on with the main beam, didn't fit a separate switch. Spliced a "Relay coil trigger wire" from the l.h. headlamp main beam wire to the relay coil and put a fused supply to the relay from the battery.
My feelings are that if you can't see enough on dipped beam, you don't need driving lamps on...fog lamps-yes, when needed.. If you need better light with the main beam, then wire the driving lamps to come on with them and go off when dipped.
This is the legal way.

teddywood1 said:

then on the lower part of the bumper are fog lights and should only come on when dim or full headlights are used and can only be used in heavy fog other wise you will get a ticket as I nearly did when I accidently left them on

Click to expand...

Fog lights are wired to the side lights, ask any chav.
This is so the fog lights can be used without the headlights if need be to reduce reflected glare in fog.

ady014 said:

Aren't there clearance issues if you have a fbh? Think the exhaust is in the way so it has to be modded.

Click to expand...

I'm sure I read a post that said you can't put fogs on if you have a FBH,
Which sucks to be honest!

fitted front fog lights today but got rained off before I could get them finished and get the car back together found a couple of wires behind the bumper when i took it of I was hoping they were for the fog lights but no such luck so im not sure what there for (maybe fbh)I dunno anyway I ve wired the fog lights to come on with the main beam as I was struggling to get a wire through the bulk head to the fog light switch
if anyone know what the wires in the pictures are for please let me know if you would cheers a few pic included if the link works
more picture added now finished and working
