Discovery rear diff flange (200 tdi) not donut

Anyone out there got a rear diff flange (24 spline) like on old 200tdi discos?

or 200 tdi rear diff would do

nit if yu have 300tdi 24 spline half shafts.

do you mean like frc3002
https://www.google.co.uk/url?sa=t&r...o41gvVivMiSSwKlLA&sig2=OaTR_F-ZGhuaKOtTiglBqA

Thats the one! Does it matter that is doesn't have the mud shield ring there?

Got the old spigot of today, it took 4 hours, the spigot came out eventually but left the surrounding ring in, ended up having to cut it half to death with grinder to get the pig out!

It was an absolute pig to get off...3 grinder blades and lots of hammering!!

plastic soul said:

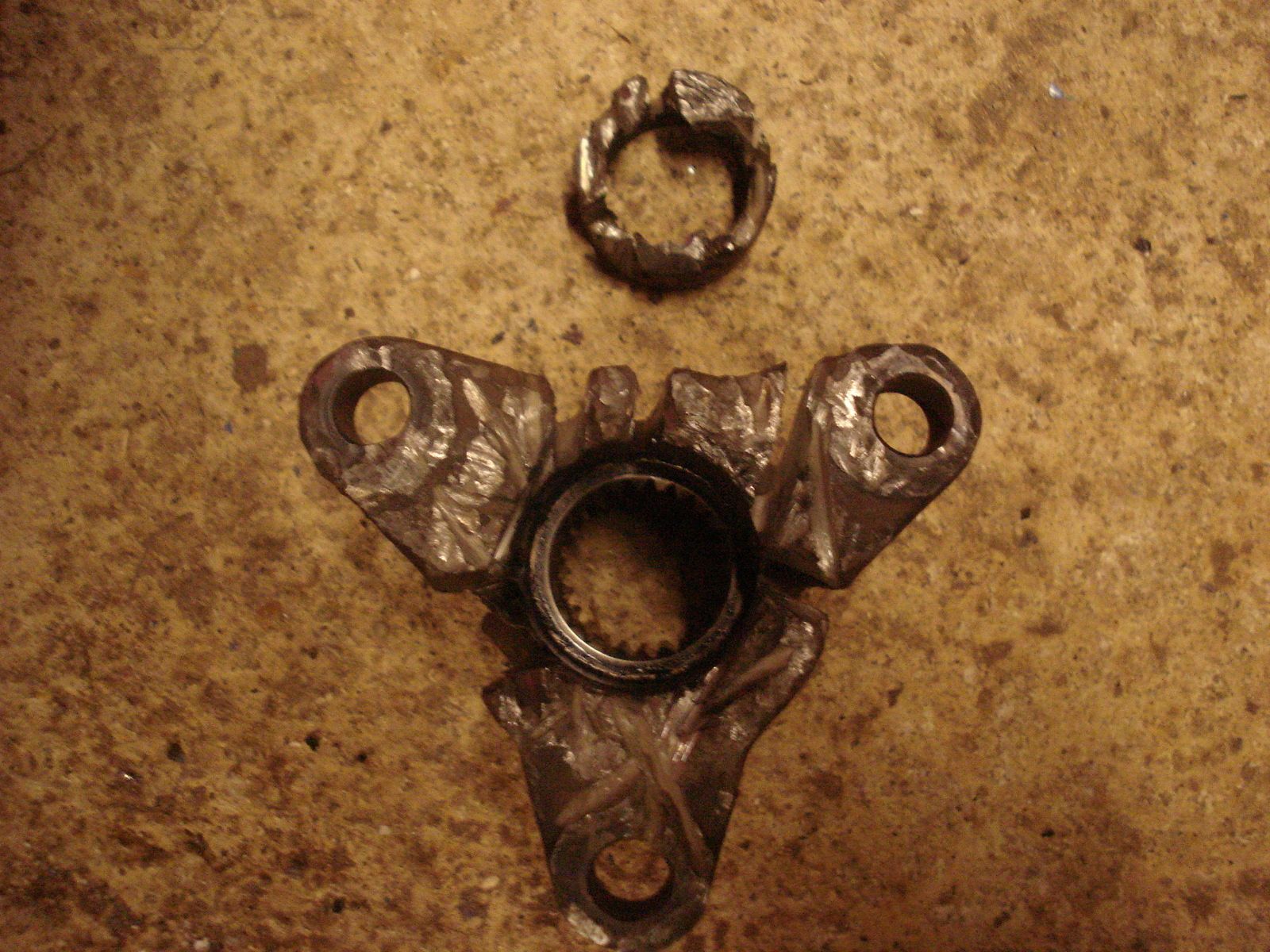

View attachment 53959

It was an absolute pig to get off...3 grinder blades and lots of hammering!!

Click to expand...

you didnt have a slide hammer then

plastic soul said:

Thats the one! Does it matter that is doesn't have the mud shield ring there?

Click to expand...

use shield from the old flange if you havent one they are best with them

we tried it..it was seriously seized....then tried heat....no joy...then tried...gentle taps...then jacked up on spigot....more heat...spigot came out with collar!
it was a nightmare!
Anyway all out now and ready for new flange..
James I don't suppose you know what size the nut is? if i can get flange alone it will save me a few quid.
thanks

plastic soul said:

View attachment 53959

It was an absolute pig to get off...3 grinder blades and lots of hammering!!

Click to expand...

Last one I did was a #### anorl.

jamesmartin said:

you didnt have a slide hammer then

Click to expand...

I bust my slide hammer when I tried on mine, Striped all the threads. Was only a cheapy one mind.
You must have a decent one?

aaronmorris said:

Last one I did was a #### anorl.



I bust my slide hammer when I tried on mine, Striped all the threads. Was only a cheapy one mind.
You must have a decent one?

Click to expand...

not too decent but has a thread on bar the same as landy wheel nuts i weld an 8mm bolt to nut then screw nut to bar

jamesmartin said:

not too decent but has a thread on bar the same as landy wheel nuts i weld an 8mm bolt to nut then screw nut to bar

Click to expand...

Ah The threaded bit on mine isn't that big, Was the cheapest I could find and it got me out of the **** at the time. Will have to buy a better one next time.

Right, got the part James mentioned, apparently I need a spacer to go in the diff? Is this correct?

jamesmartin said:

do you mean like frc3002
https://www.google.co.uk/url?sa=t&r...o41gvVivMiSSwKlLA&sig2=OaTR_F-ZGhuaKOtTiglBqA

Click to expand...

I got the part but apparently I need a spacer to go in the diff? Is this right?
