D90 guy needs help

I live in the Kuwait. I own a 1987 land rover d90. After 25 years in the middle east the middle east my dash is trashed. It's really hard to get spare parts out here. so I would like to put at SIIa style dash instead.

What I need help with is, I'm looking for blue prints, diagram or dimension of a SIIa dash. I have look everywhere, have lots of good photos, even one in a d90. But I need to give some guidness to metal fab guy other then photos.

If anyone can help that would be great. The D90 guys suggested to talk to your group.

Thanks for helping a little brother out

Chris

This is what im looking for, I need the dimensions of the dash itself. So i can get it Fabricated

Thanks

Chris

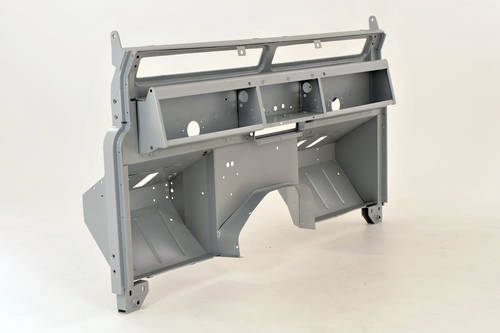

Thats a bulkhead.

Its fairly complex part, im not sure there will be specific measurments for each individual panel, nock and granny.

firefighterD90 said:

This is what im looking for, I need the dimensions of the dash itself. So i can get it Fabricated

Thanks

Chris

Click to expand...

These guys might help you: Ashtree Landrover International | About Us

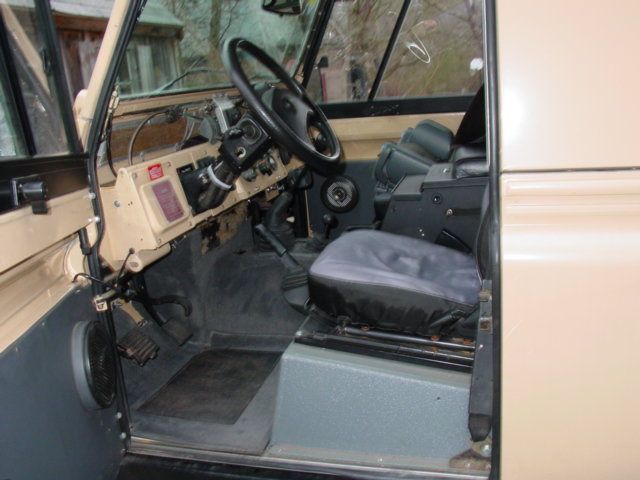

Here is a D90 with a SIIa style dash
