Freelander 1 Colour of steering wheel wires

tulipandthistle · Dec 2, 2016

I can't find it in RAVE, what are the colours of the wires from the steering wheel control?

Nodge68 · Dec 2, 2016

Here's the wiring in the wheel

tulipandthistle · Dec 3, 2016

Cheers Nodge68,

That is very helpful as I see the black/red and black/white one that I can see in my connector at the stereo.

I will measure if they give the right signal.

Kayos · Dec 4, 2016

Most steering wheel controls are variable resistance, different buttons give a different reading from the signal wire to ground

tulipandthistle · Dec 4, 2016

Kayos said:
Most steering wheel controls are variable resistance, different buttons give a different reading from the signal wire to ground

Cool, I tried measuring the resistance but didn't get anything. Back to square one. Need to check at connector at the steering wheel now.

I have everything working except the steering wheel control.

Kayos · Dec 4, 2016

I have an adapter from a BMW 330d connecting my stereo, I modified it to remove the Iso blocks so it takes up less room. The BMW steering wheel control interface didn't work but as I never use the wheel controls I haven't bought the correct one

Nodge68 · Dec 4, 2016

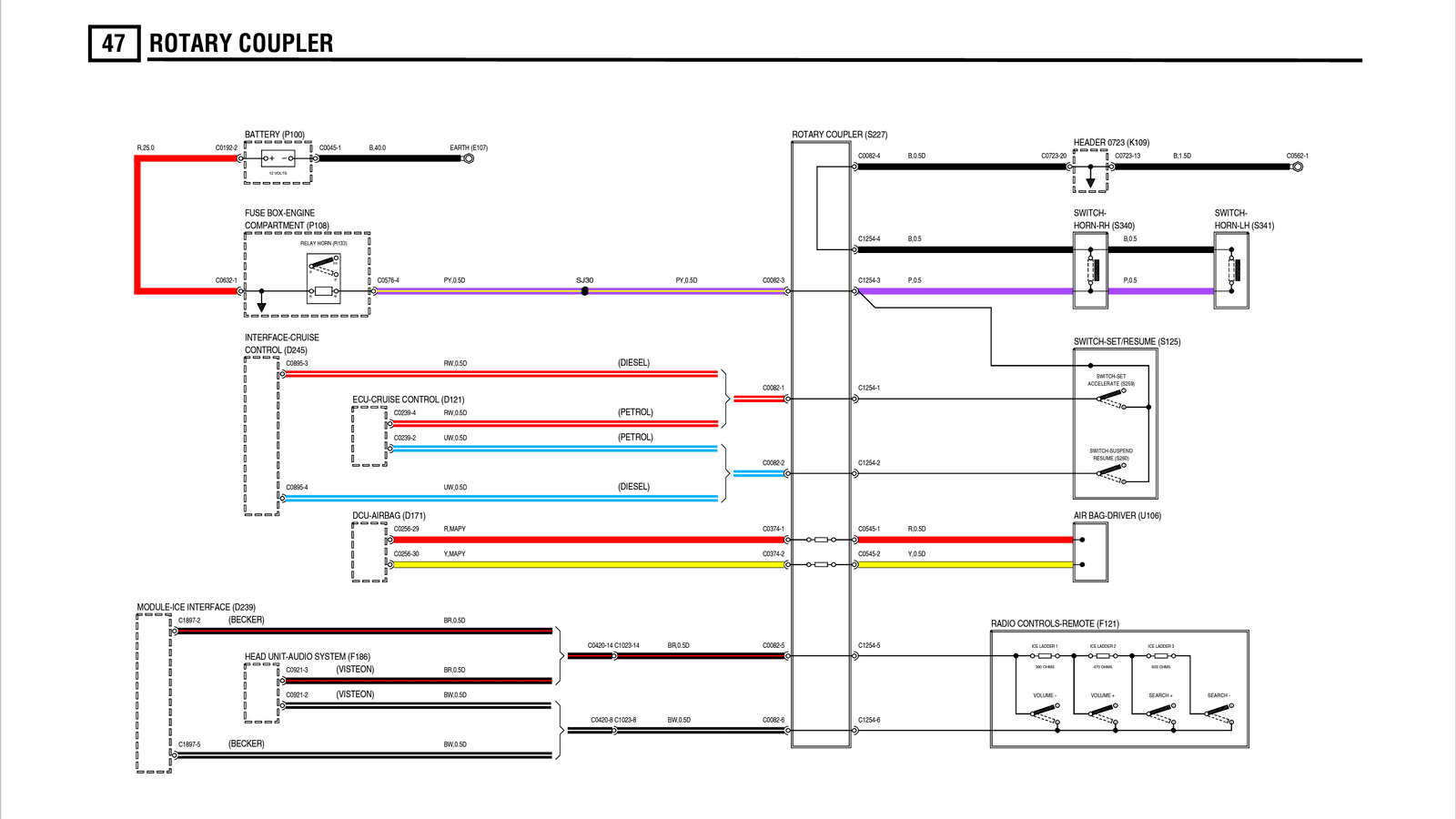

Here's the wiring diagram with resistance values for the wheel controls.

tulipandthistle · Dec 4, 2016

Nodge68 said:
Here's the wiring diagram with resistance values for the wheel controls.
View attachment 112026

Big help cheers!!!
