Cigar Lighters ??? 2004 L322 V8 Petrol BMW

Andrew RR · Oct 19, 2021

Ok ,thought i would swap out the 3 cigar lighters for USB chargers .
All going well until i found out that they are not powered.
I have checked the fuse in the boot and it is ok
Flumuxed carpet fitter
Any sugestions thankyou

backinblack · Oct 19, 2021

do you mean they are ignition fed?

brianp38dse · Oct 19, 2021

Normally they are only powered when the ignition is on

DanClarke · Oct 19, 2021

Schoolboy error.
Why have your battery flattened when you are not in the car and driving it?

backinblack · Oct 19, 2021

brianp38dse said:
Normally they are only powered when the ignition is on

Mine came perm live. You swap the relay in the rear fuse box for a link. Just trying to find the thread from when I did it.

backinblack · Oct 19, 2021

Can't find the thread but pretty sure it's this link makes the front live

Andrew RR · Oct 19, 2021

Hi all. i meant to say that there is no power to the cigar lighters when ignition on or off.
I did try and find something on here about the relays so thankyou for the pic of them . might just order a new one to see if it works .
Looks like its a problem encountered before .

backinblack · Oct 20, 2021

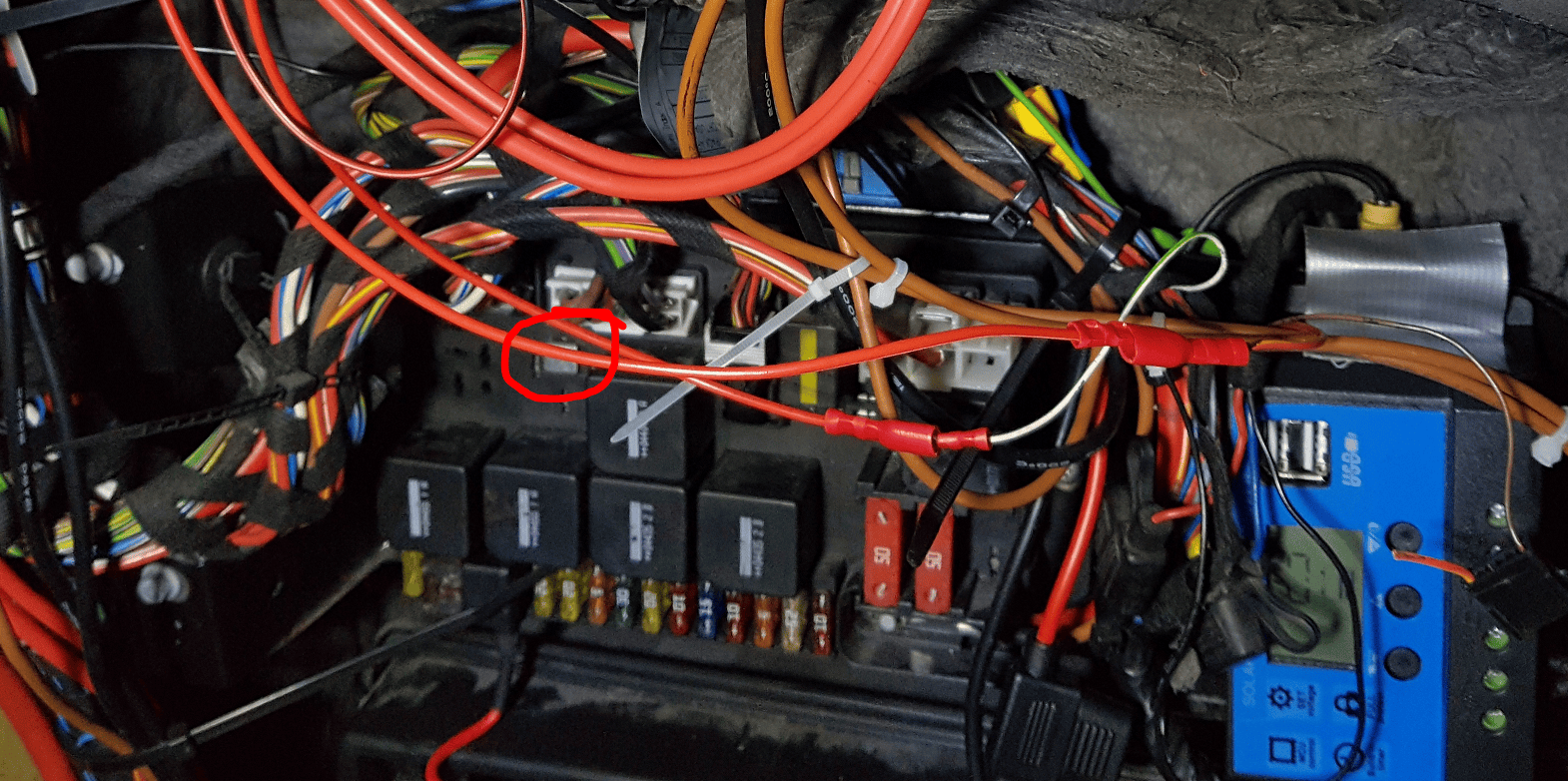

@Andrew RR do you have anything in the relay socket I circled?

badfluffy · Oct 20, 2021

i couldn't find anything in rear fuse box that wasn't permanently live on my one?

backinblack · Oct 20, 2021

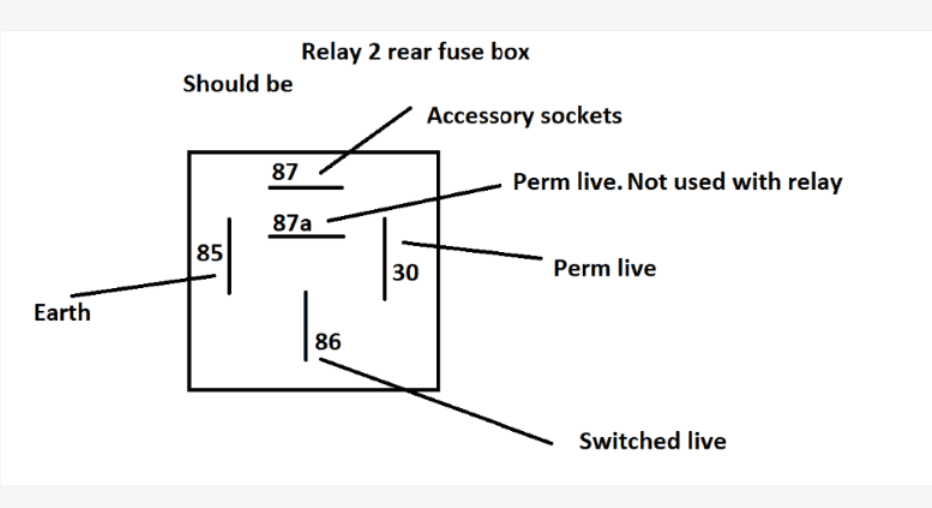

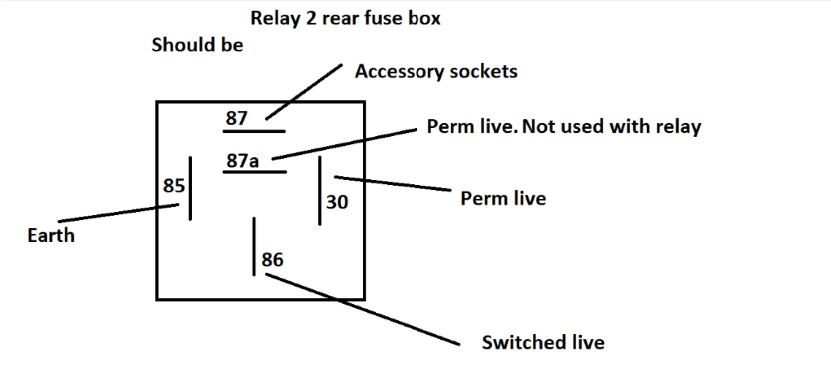

To make it switched live you just replace that link with a relay. Couldn't find the relay pinouts on any diagrams but this is from my metering out.

backinblack · Oct 20, 2021

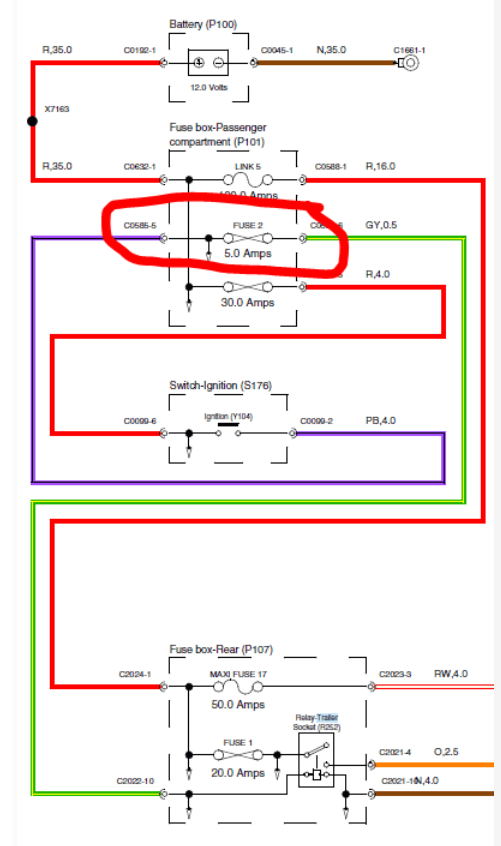

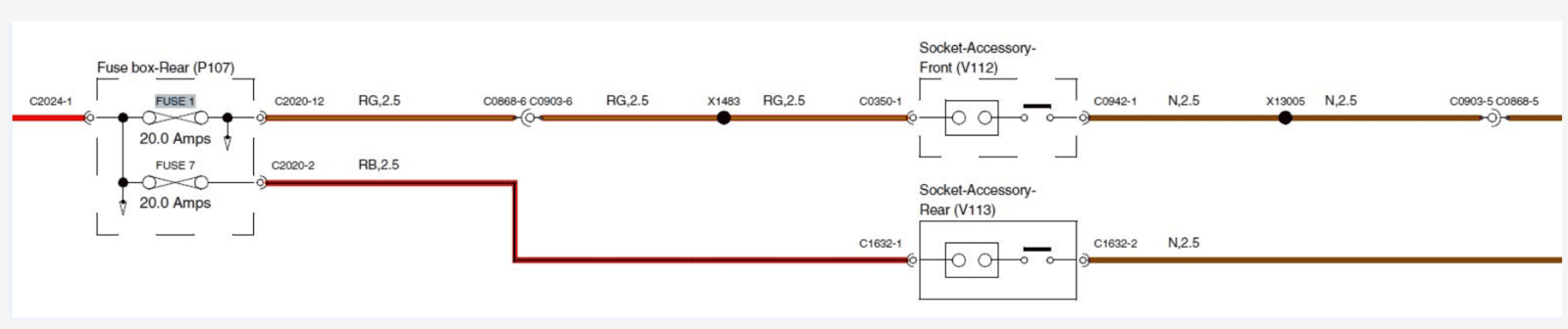

Just to add fuse locations,

Andrew RR · Oct 20, 2021

Andrew RR · Oct 20, 2021

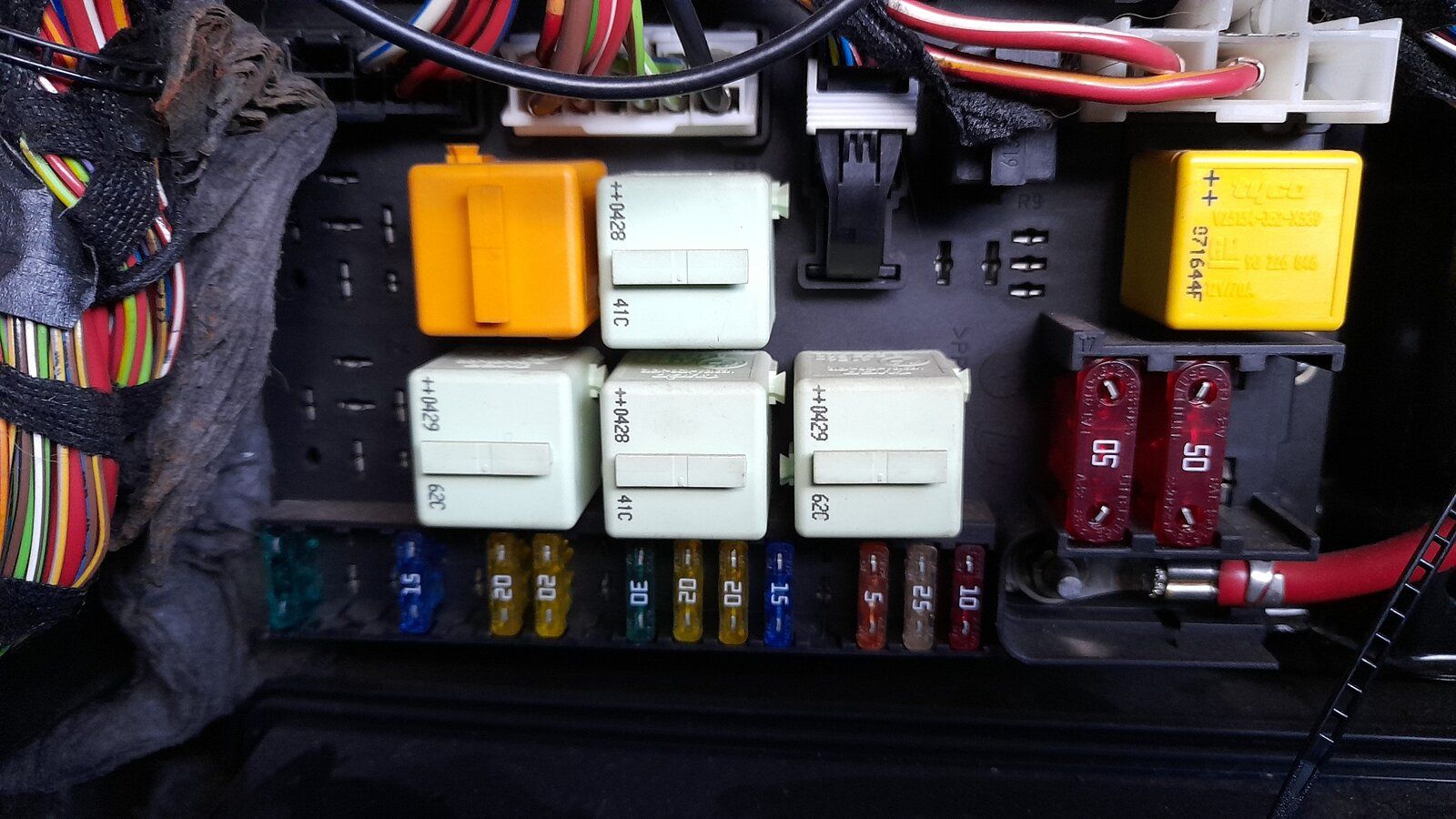

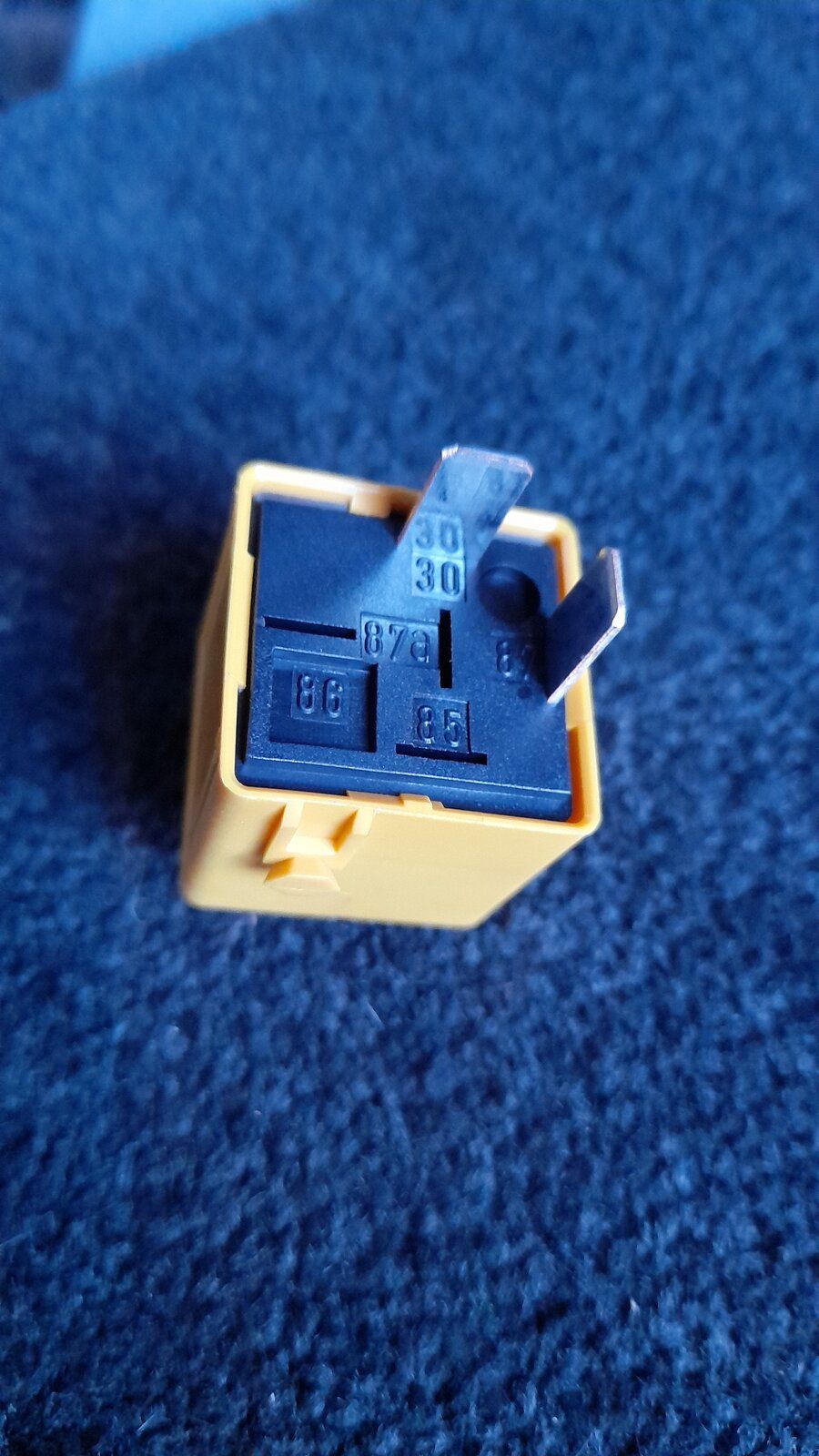

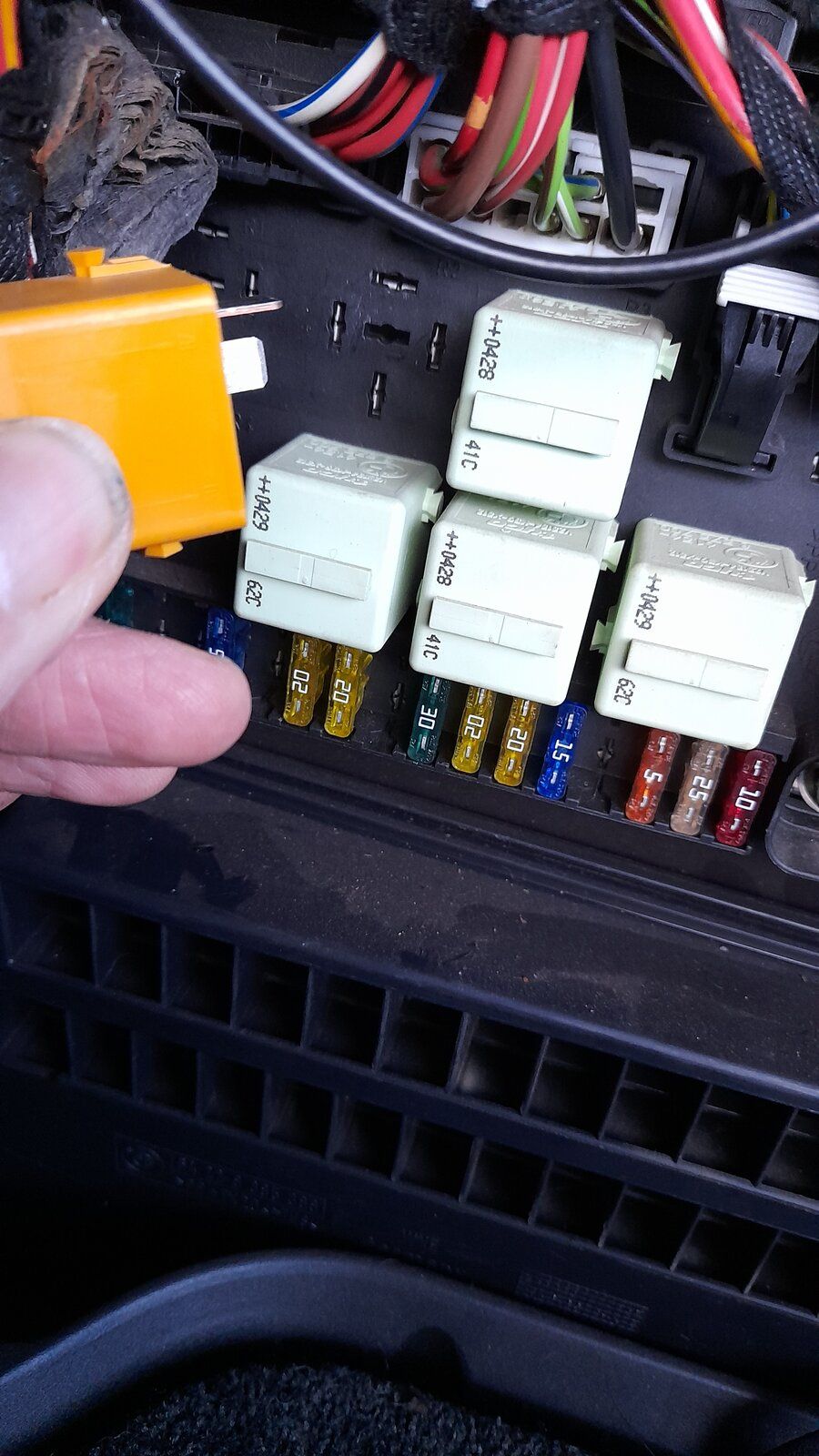

Think ive found the culprit.... if i rotate this relay 90 degrees clockwise the cigar lighters become perm live, Thankyou for the pictures it realy helped sort this one out .

backinblack · Oct 20, 2021

That's just a link in a relay box. Have you checked fuses 1 & 7 rear and fuse 2 passenger box

Andrew RR · Oct 20, 2021

backinblack said:
That's just a link in a relay box. Have you checked fuses 1 & 7 rear and fuse 2 passenger box

Yes ... All in and not blown . tested lighter and it heated up red hot.

backinblack · Oct 20, 2021

looks like it was in the wrong position before so connected sockets to earth.
Glad your sorted.

Andrew RR · Oct 20, 2021

Thank you again for the pics

backinblack · Oct 20, 2021

No problem
Thanks for letting us know the fix

badfluffy · Oct 20, 2021

now i shall have to check my one

backinblack · Oct 20, 2021

Fuse 5 is spare but from memory that's ignition fed
