Hi all,
decided to install a FBH into my 2009 Freelander to make the winter months a little easier on her.

I scored myself a Webasto thermo top V to install and I’m just getting all the parts ready.

I’ll need to have a 12v trigger to the blower motor relay once the coolant reaches a set temp.

Does anyone have a schematic of the blower relay so I know which pin to send the 12v to?

Thanks!

There isn't a relay or resistor, the heater booster fan is controlled by a power control module, under the command of the HVAC ECM.

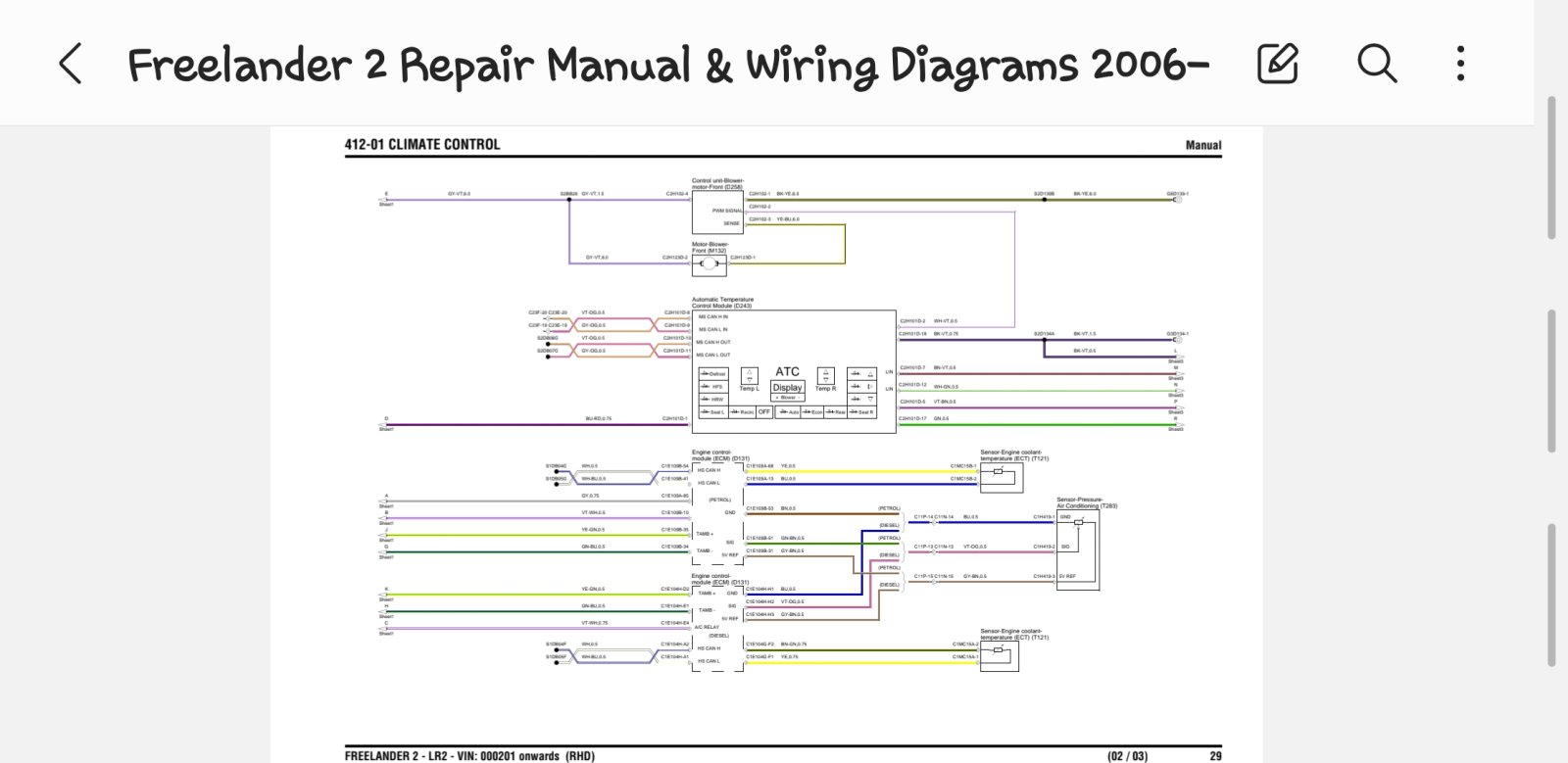

Screenshot_20231216-135828_Samsung Notes.jpg
