ABS ECU earth point.

Barry6690 · Mar 11, 2014

I have had my very intermittent 3 amigos tested, apparently there may be an earth fault, could anyone point out whereabouts on the vehicle the earth point for the ABS ECU is so i can check it.

JRNORWAY · Mar 11, 2014

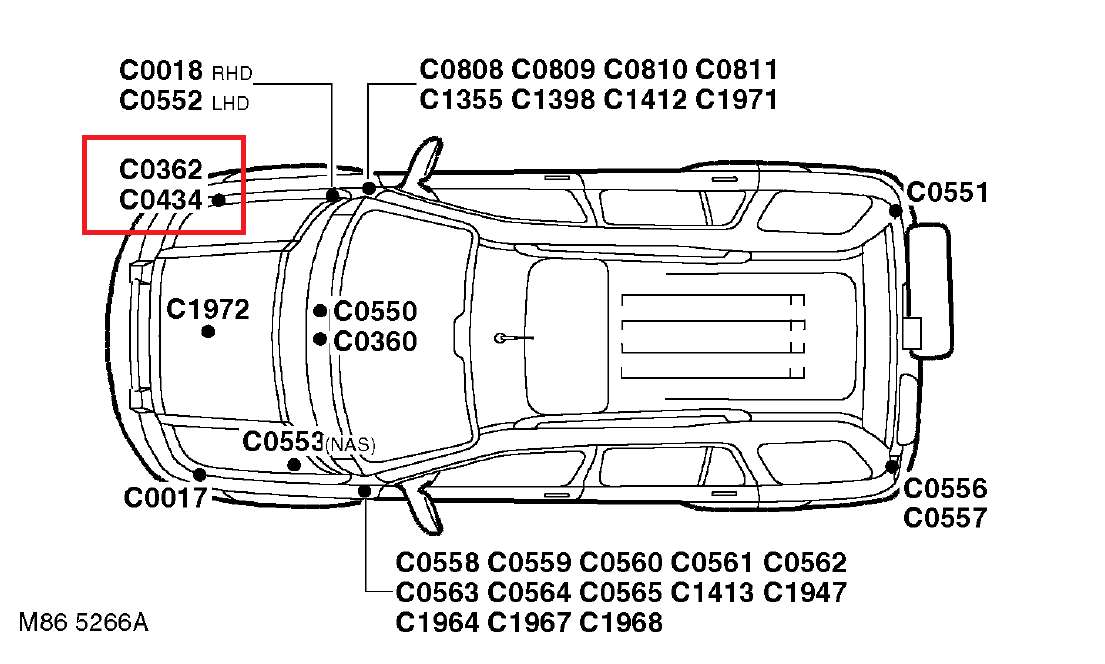

Would have been easier if you posted what model you had. You have the TD4 right? Its just besides the ABS pump. There are two earth wires connected to point 362 and 343.

Barry6690 · Mar 11, 2014

Thank you, I apologise for missing out the Model.

Barry6690 · Mar 11, 2014

Found and checked, appears ok.
