Sent from my GT-N7000 using Tapatalk 2
Guess no one has any ideas :-(
Sent from my GT-N7000 using Tapatalk 2
So here it starts, a year ago (1)I had the 3 amigos flashing and car went into limp mode so switched of locked unlocked and started, all fine. Done that a few times in two years so no real concerns.
Last week whilst driving lost throttle peddle and 3 amigos up carried out stop start and ok .done again but wouldn't clear so (2)sprayed abc switch with wd40 (because of years worth of rain in two days) cleared for a but them yesterday happened again oh and also 1 2 and third gear was staying D on the display.. After a can of wd40 and a lot of swearing and messing around with the xyz switch (3)I took the ecu off and sprayed the plugs with contact cleaner even the plugs were spotless and fault cleared?????is it ecu or xyz switch/loom
RAVE said:Diagnostics
While the ignition is on, the EAT ECU diagnoses the system for faults. The extent of the diagnostic capability at any
particular time depends on the prevailing operating conditions, e.g. it is not possible to check torque converter lock-up
while the vehicle is stationary, or to check for a short circuit to earth if the circuit concerned is already at a low
potential.

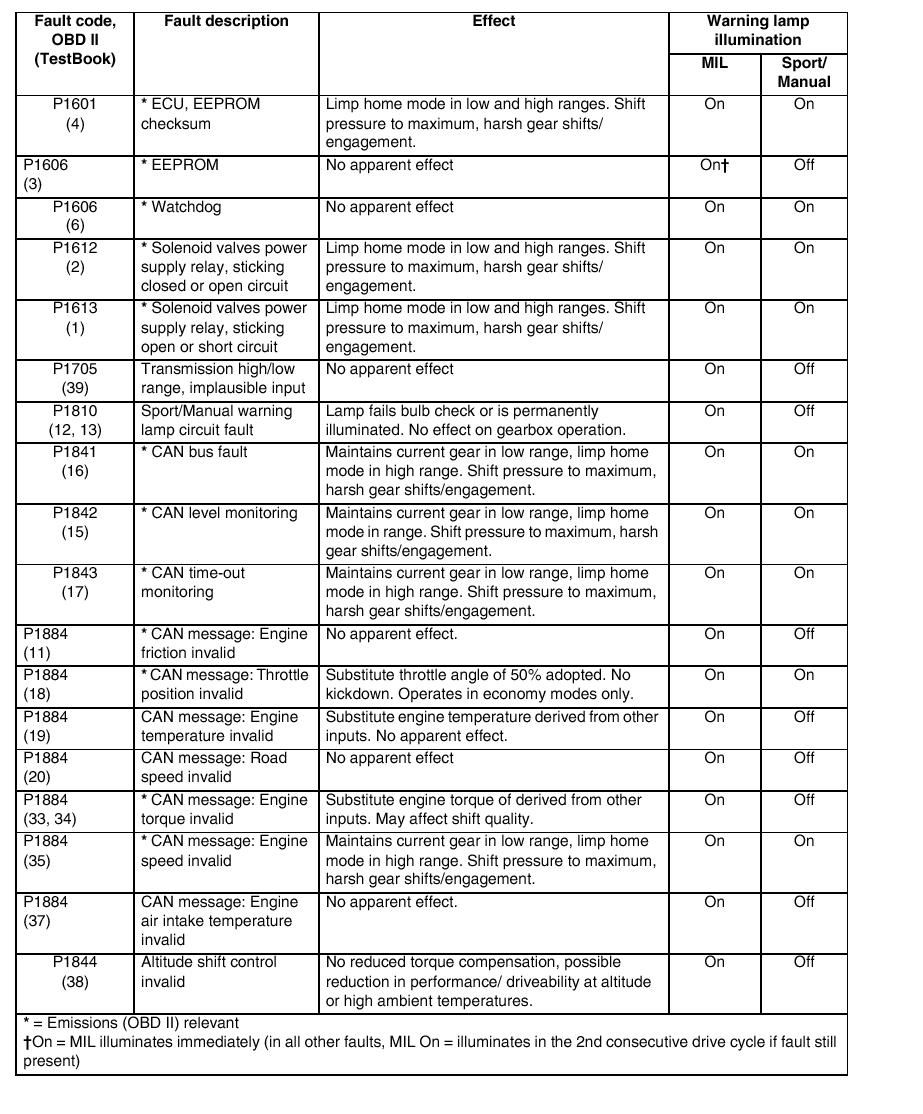

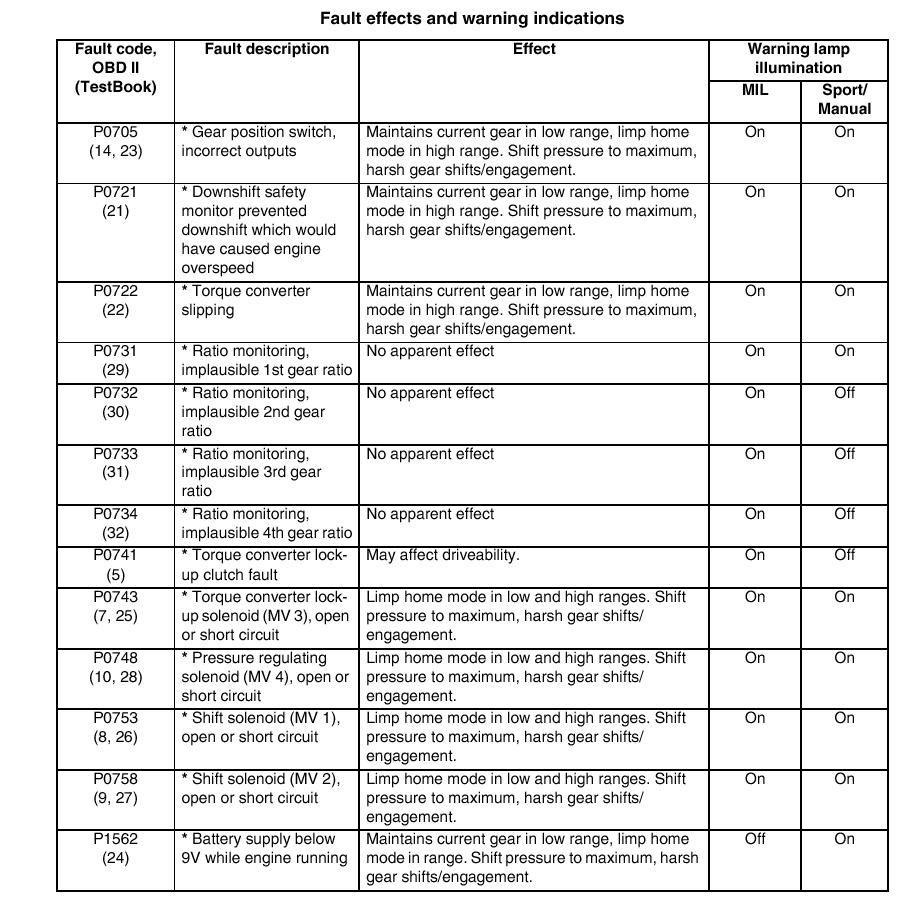

If a fault is detected, the EAT ECU immediately stores a fault code and the values of three operating parameters
associated with the fault. Depending on the fault, there are four possible effects:
l The fault has little effect on gearbox operation or vehicle emissions. The driver will probably not notice any
change and the warning lamps remain extinguished.
l The fault has little effect on gearbox operation but may effect vehicle emissions. On NAS vehicles, if the fault is
detected on a second consecutive drive cycle, the MIL illuminates.
l All gears are available but kickdown does not function. The sport and manual warning lamps flash. The MIL
remains extinguished.
l Limp home mode is selected and vehicle performance is greatly reduced. The sport and manual warning lamps
flash. In all markets, if the fault is detected on a second consecutive drive cycle, the MIL illuminates.After the detection of a fault, the effects remain active for the remainder of the drive cycle. In subsequent drive cycles,
as soon as the EAT ECU diagnoses the fault is no longer present, it resumes normal control of the gearbox. The
conditions required to diagnose that the fault is no longer present depend on the fault. Some faults require the engine
to be started, others require only that the ignition is switched on.
After a fault has not recurred for forty warm-up cycles, the fault is deleted from the EAT ECU memory. Only five
different faults can be stored in the memory at any one time. If a further fault occurs, the fault with the lowest priority
will be replaced by the new fault.
Mechanical limp home
In the mechanical limp home mode, gear engagement is controlled by the manual valve. The gearbox is fixed in 4th
gear if the fault occurs while the vehicle is moving, or 3rd gear if the fault occurs while the vehicle is stationary. 3rd
gear is also engaged if a vehicle is brought to a stop and the selector lever is moved out of, and back into, D. Neutral
and reverse gear are also available.
