D

defender-bob

New Member

• Dec 17, 2010

• #1

hi lads dose anybody no witch wires go were on the back of the ignition there are for or five starting to put the dash back on my defender i'm building cheers



D

defender-bob

New Member

• Dec 17, 2010

• #2

sorry its a td5 01



wickford90

Well-Known Member

• Dec 17, 2010

• #3

defender-bob said:

sorry its a td5 01

Click to expand...

Ive got a LR td5 manual it probably got wiring diagrams in. let me know what colours and from where and i'll have a look.



mystery

Well-Known Member

• Dec 18, 2010

• #4

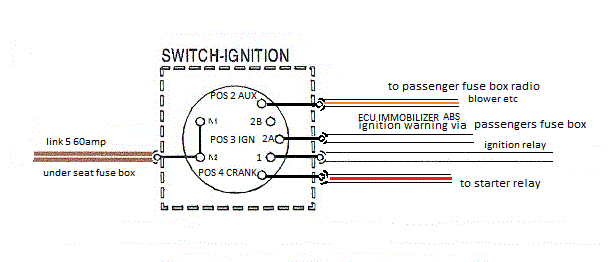

hope this applies to your model



Attachments

•
  def td5 ign.gif

  14.7 KB · Views: 143
