B

brettguise

New Member

• Aug 27, 2013

• #1

300 tdi boot floor needs patching, going to try keep the floor for a while as most of it seems solid it seems to be under the back seats by the arches Id say the water must flick up under there when driving or a leaky sunroof or something.

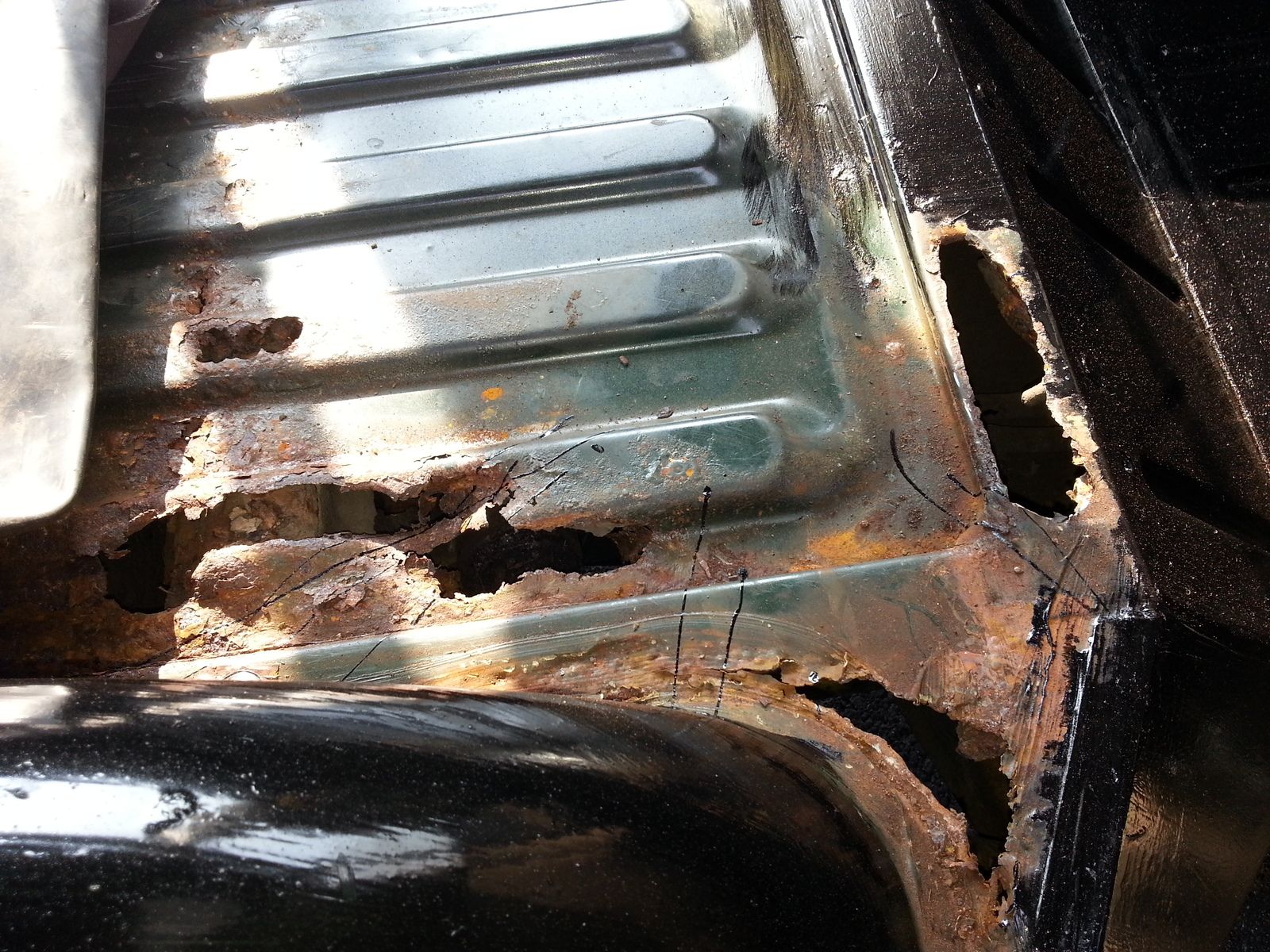

See attached pic of the damage area the same on both sides. Do I need to remove the fuel tank or watch out for anything as I have a tow bar and really don't want the hassle.



jamesmartin

Well-Known Member

• Aug 27, 2013

• #2

diesel is a lot safer than petrol ,i leave tank in but just take care you dont damage it



mrnice

Loading.....

• Aug 27, 2013

• #3

I just finished patching the boot yesterday and some patches were quite close to the tank at times, I was advised to move any pipes/wiring/anything that sets on fire etc and sandwich a fire blanket in between (the type you have in your kitchen in case you have a pan fire) and I must say it worked a treat.

Much better advice than what I got off the first person who I asked who just simply told me I was a pussy!



B

brettguise

New Member

• Aug 27, 2013

• #4

I was thinking that If I could put something underneath. I don't have a fire blanket but I have some MDF board I could maybe slide underneath and be careful I don't set that on fire but at least it protects the tank. So should it be ok if im careful?



mrnice

Loading.....

• Aug 27, 2013

• #5

You can pick them up pretty cheap these days:

SEALED HOME SAFETY FIRE BLANKET PROTECTION 1M X 1M NEW | eBay

Been trying to upload a pic of my boot on my phone but cant get it to work!

Ive basically just done a similiar area to in your pic but also directly over the tank right near the rear door (you could see the plastic tank CMs away from where I needed to weld!)

The good thing about the blanket is you can bend it and squeeze it into almost any cavity and this seems to help a lot.

I also had a petrol tank, towbar and LPG system to worry about as well.



Last edited: Aug 27, 2013

T

Thor1950

Well-Known Member

• Aug 27, 2013

• #6

brettguise said:

300 tdi boot floor needs patching, going to try keep the floor for a while as most of it seems solid it seems to be under the back seats by the arches Id say the water must flick up under there when driving or a leaky sunroof or something.

See attached pic of the damage area the same on both sides. Do I need to remove the fuel tank or watch out for anything as I have a tow bar and really don't want the hassle.

View attachment 49530

Click to expand...

Make sure you have a full tank if you do. Vapors burn not the liquid



J

jasper08

Member

• Aug 27, 2013

• #7

Looking at that picture i'd cut the whole centre section out and replace it just done mine and the side panels and im a complete novice at welding but it was so much easier than I thought and looks a lot better.will upload some pics when I figure out how to upload them (been trying)
