J

johnler

New Member

• Mar 2, 2010

• #1

hi can I ask if some one can point me in the right direction to find the ECU on a 56 plate freelander, many thanks



mystery

Well-Known Member

• Mar 2, 2010

• #2

on the o2my it's behind central console
co59 connector electrical library Rave cd 1 down load from http://www.landroveroneten.com/index.php/land-rover-manuals/



Last edited: Mar 2, 2010

chromiumuk

Well-Known Member

• Mar 2, 2010

• #3

johnler said:

hi can I ask if some one can point me in the right direction to find the ECU on a 56 plate freelander, many thanks

Click to expand...

Might be better to say what engine you've got in the unlikely but possible event it's different for petrols/diesels etc.



mystery

Well-Known Member

• Mar 2, 2010

• #4

when you say ECU do you mean glow plug ECU, immobilization ECU, ABS ECU or are you refering to the Engine Management Control EDC on diesel engines ECM on Petrol engines



mystery

Well-Known Member

• Mar 2, 2010

• #5

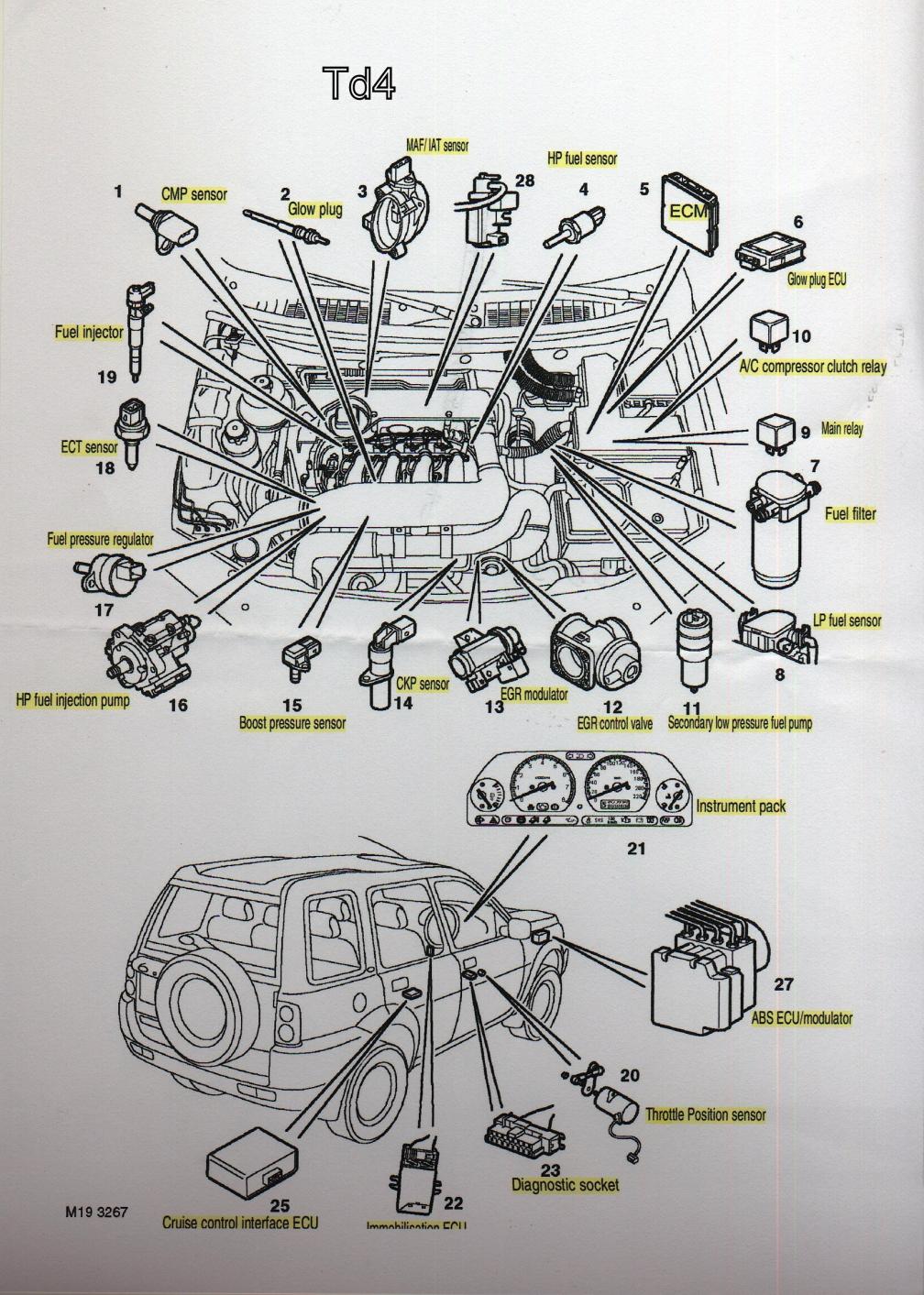

Td4 locations



Attachments

•

  244.2 KB · Views: 6,875

J

johnler

New Member

• Mar 2, 2010

• #6

thanks guys, its a td4 and the main engine management ( edc)
