holidaychicken
Well-Known Member
Stand by for an update, if you are interested that is.
tomcat59alan
Well-Known Member
Nothing to do with me by the way, is that a4.4 v8?
brianp38dse
Well-Known Member
Looks like you are going to get all intimate and mucky
biketeacherdave
Well-Known Member
Weve just rebuilt a 4.4 will soon post up the marathon rebuild.
holidaychicken
Well-Known Member
Hurry up and post it and yes this is a 4.4.
Did you do anything with the cylinders or was the bottom end ok?
Did you do anything with the cylinders or was the bottom end ok?
tomcat59alan
Well-Known Member
holidaychicken
Well-Known Member
Blimey you was a bit slow off the mark there mate
tomcat59alan
Well-Known Member
Loosing my touch Andy.Blimey you was a bit slow off the mark there mate
biketeacherdave
Well-Known Member

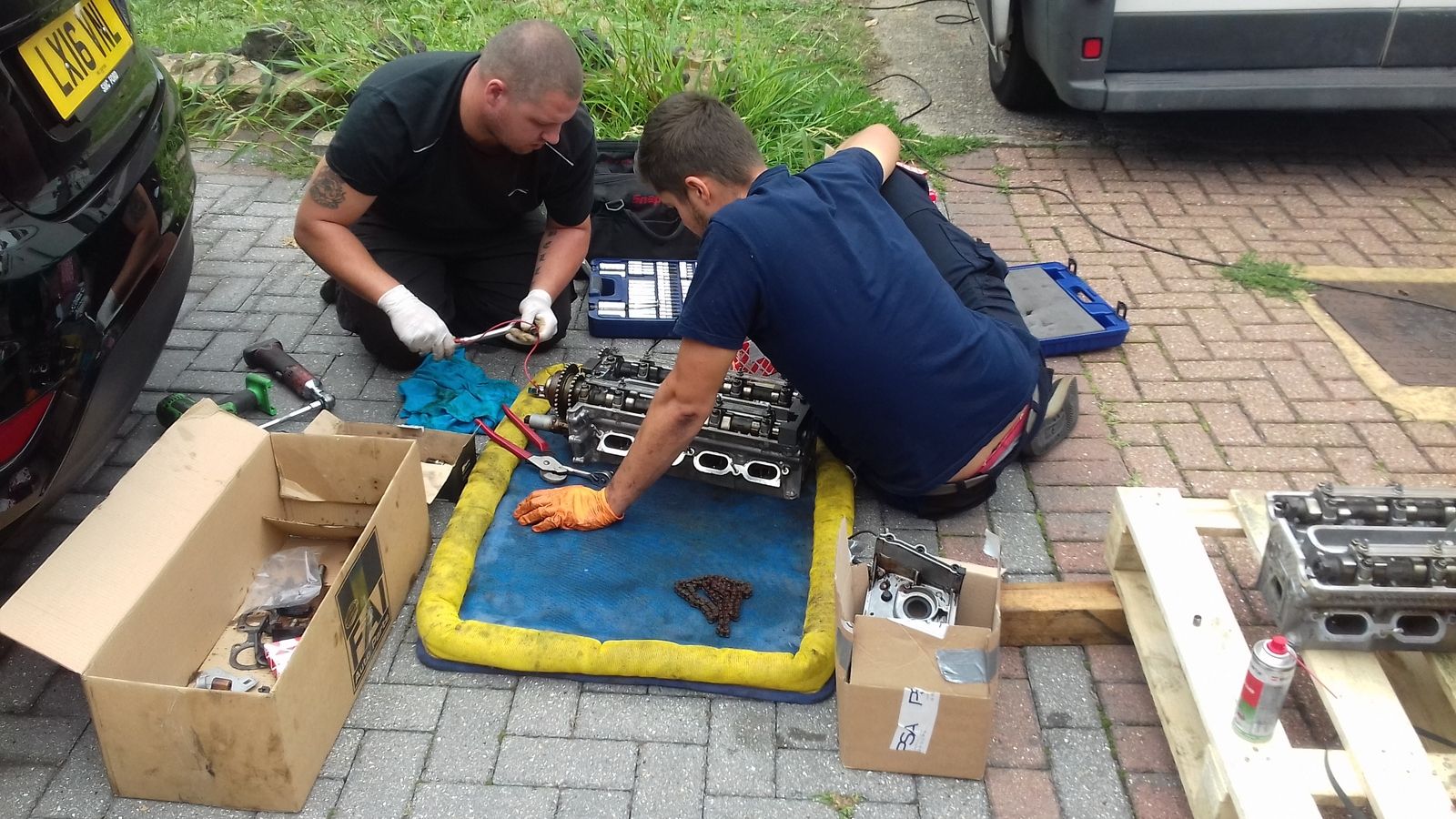

The bottom end was a total loss with bad scoring in one of the cylinders. So sent the heads away for a skim and rebuild got a bottom end in pulled the sump cleaned the oil pump and rebuilt it. My mate John must take all the credit for the work and saint for a lone of the very expensive locking tool.
tomcat59alan
Well-Known Member
biketeacherdave
Well-Known Member
No not that john but a very talented mobile mechanic. Considering this has all been done on my other mates driveway who bought the dead 4.4 rangie in the 1st place.
holidaychicken
Well-Known Member
I know at least three of the cylinders are compromised but I am interested in the options of liners to try and overcome the problem of these engines being scrapped with any cylinder wall damage.
i am currently investigating Alusil liners rather than the iron / steel options they seem to have their problems, in particular the need for different pistons and rings to stock that run in the Alusil.
if i can overcome the cylinder issues then there is a chance of some form of blower (Not like Alan)
i am currently investigating Alusil liners rather than the iron / steel options they seem to have their problems, in particular the need for different pistons and rings to stock that run in the Alusil.
if i can overcome the cylinder issues then there is a chance of some form of blower (Not like Alan)
Henry_b
Think outside, no box required.
holidaychicken
Well-Known Member
I would like to do that but i don't know if it available for reconditioned engines.
https://www.wardsauto.com/news-anal...as-about-treating-cylinder-bores-strong-ideas
Hartech do some great work on Porsche engines where they fit Nikasil coated aluminum liners.
https://www.wardsauto.com/news-anal...as-about-treating-cylinder-bores-strong-ideas
Hartech do some great work on Porsche engines where they fit Nikasil coated aluminum liners.
holidaychicken
Well-Known Member
Educated - on paper maybe .. and even then there isn't a great deal of paper.
There are not many options to repairing one or all of the cylinders that i can see so far Ant, but i do like a challenge.
There are iron liner kits available for the engine from the likes of Vac and also i have been given a link to a site that offers a liner and piston kit that looks interesting. Your image is probably the Vac liners as they offer the truncated type for where the liners are next to each other.
http://www.maxsilpistons.com/engine_rebuild_kits.html
i have also found a source of Alusil liners for repairing a singular cylinder or multiples but from what i can tell not a complete block where iron liners are recommended.
So far i have found as many references to iron not working due to thermal expansion of dissimilar metals to iron liners not being recommended due to the stock pistons and rings not being suitable to run in iron or steel.
i have also looked into cylinder recoating briefly.
Also some of the kits are great if you want o build a 600 BHP engine to run twice around a drifting circuit and then rebuild.
To say this is a head feck is an understatement but the engine complete with heads and all vanos units cost me £123 delivered, it is not a massive investment in the whole scheme of things if it all goes tits up and at least this way i still get to drive mine while i am in the process of messing this one up
There are not many options to repairing one or all of the cylinders that i can see so far Ant, but i do like a challenge.
There are iron liner kits available for the engine from the likes of Vac and also i have been given a link to a site that offers a liner and piston kit that looks interesting. Your image is probably the Vac liners as they offer the truncated type for where the liners are next to each other.
http://www.maxsilpistons.com/engine_rebuild_kits.html
i have also found a source of Alusil liners for repairing a singular cylinder or multiples but from what i can tell not a complete block where iron liners are recommended.
So far i have found as many references to iron not working due to thermal expansion of dissimilar metals to iron liners not being recommended due to the stock pistons and rings not being suitable to run in iron or steel.
i have also looked into cylinder recoating briefly.
Also some of the kits are great if you want o build a 600 BHP engine to run twice around a drifting circuit and then rebuild.
To say this is a head feck is an understatement but the engine complete with heads and all vanos units cost me £123 delivered, it is not a massive investment in the whole scheme of things if it all goes tits up and at least this way i still get to drive mine while i am in the process of messing this one up
Last edited:
Henry_b
Think outside, no box required.
Andy you are an educated man, I trust you have seen how close the bores are on the M62, and also have knowledge of the Nikasil issues with the early M60's?
Looks like a recipe for disaster to me!!
I'm surprised there isn't a cracking problem!!
holidaychicken
Well-Known Member
There may well be yet, I can’t rule out the use of any drugs
