Hi all
Series 3 88” 1982 diesel.
As part of the restoration I removed the levers and linkages from the transfer box / 4wd. So the yellow and red topped selectors are in component pieces.
While I can find the exploded diagram of the area I really need some photos or diagrams of it all built so I can see how it all goes together. Does anyone have the gearbox cover / flooring out and could take a few close up photos of how the levers and linkages all go together please? Alternative helpful items welcomed.
Many thanks,
Simon

I had the transfer box on one of mine out this weekend.

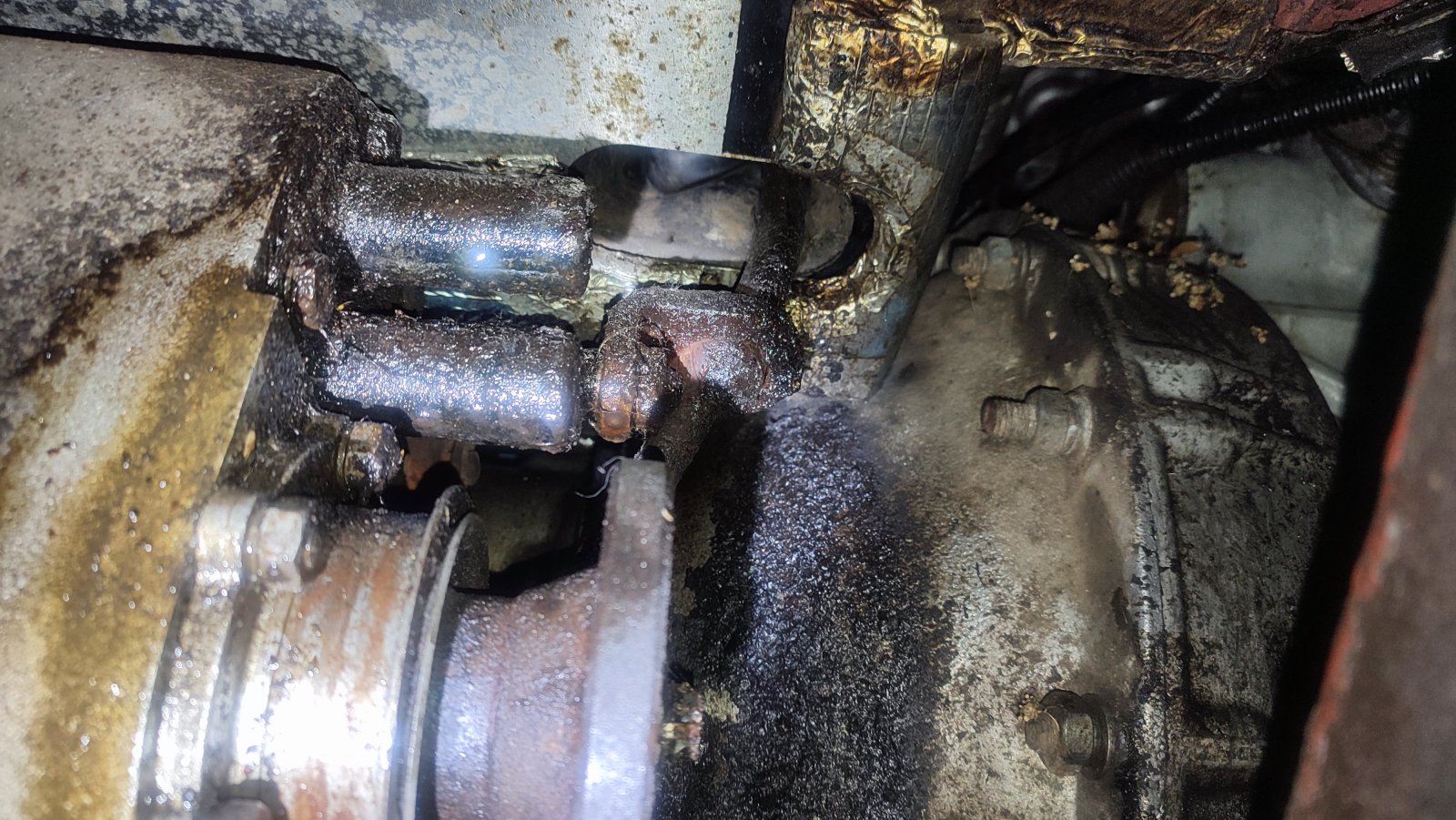

The high low lever pivot bolts to the bellhousing.

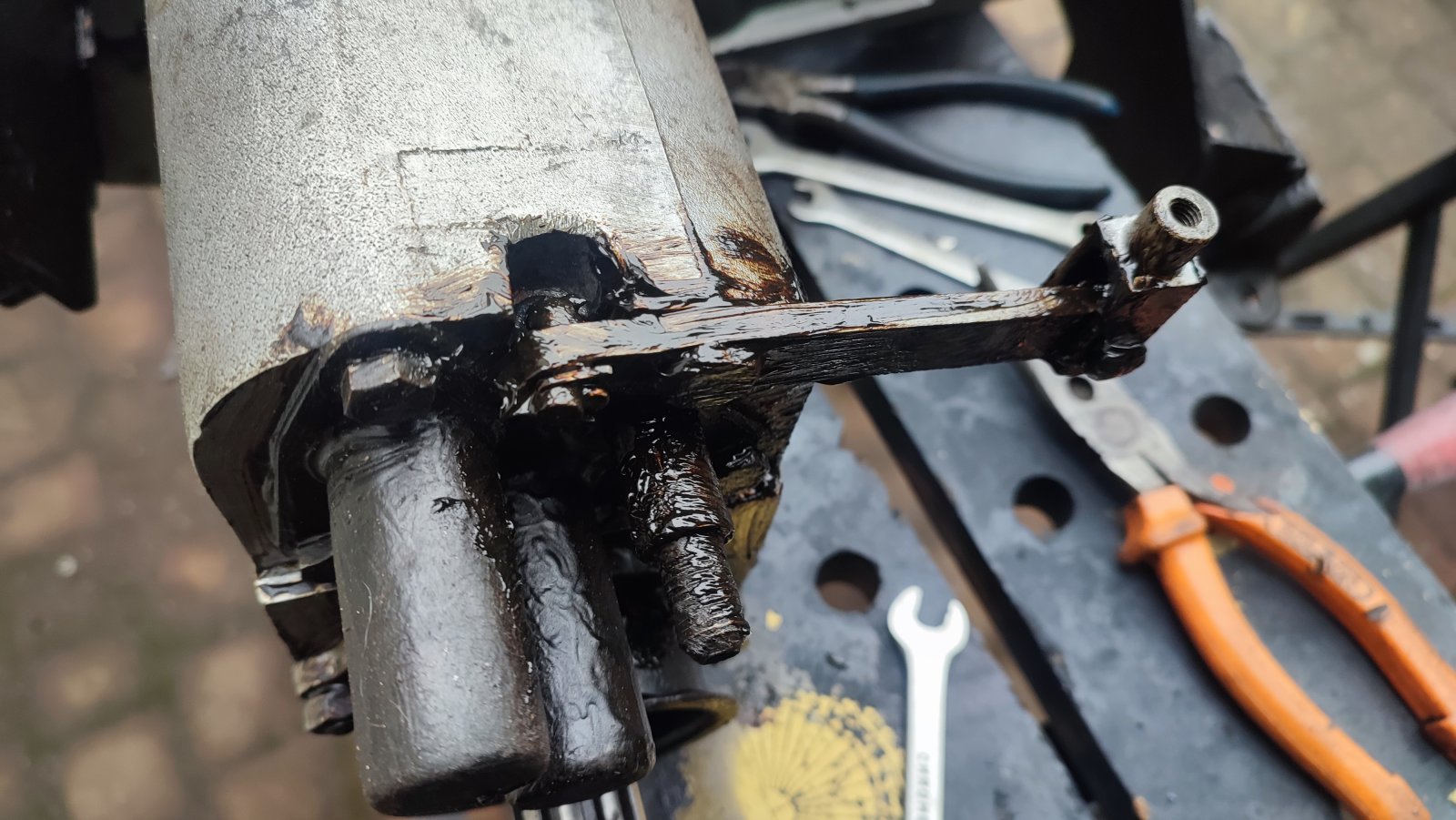

The round hook sits on top of the ball, and bolts to the lever.

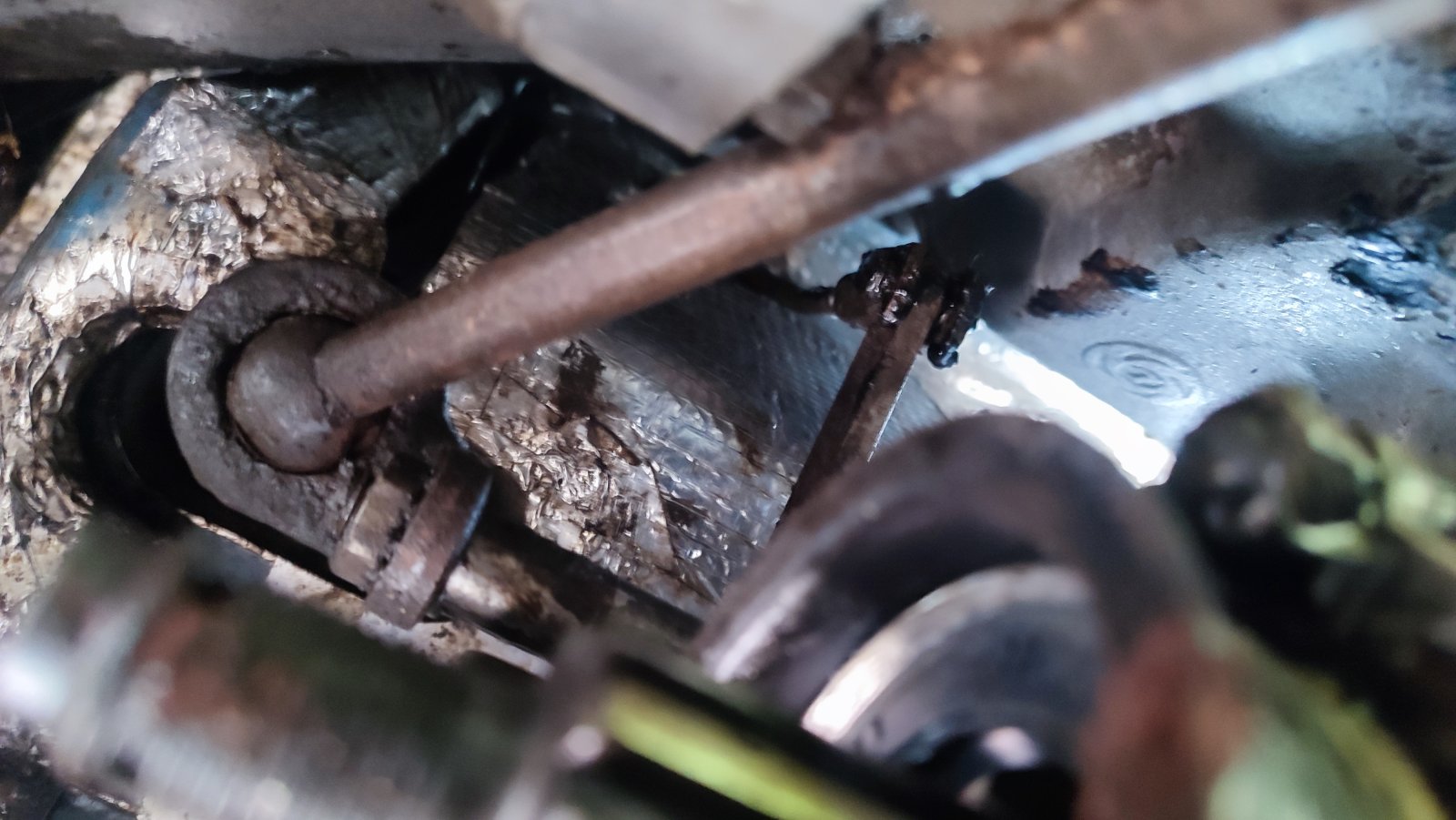

The 4x4 dog clutch release has a pivot on the front output casing.

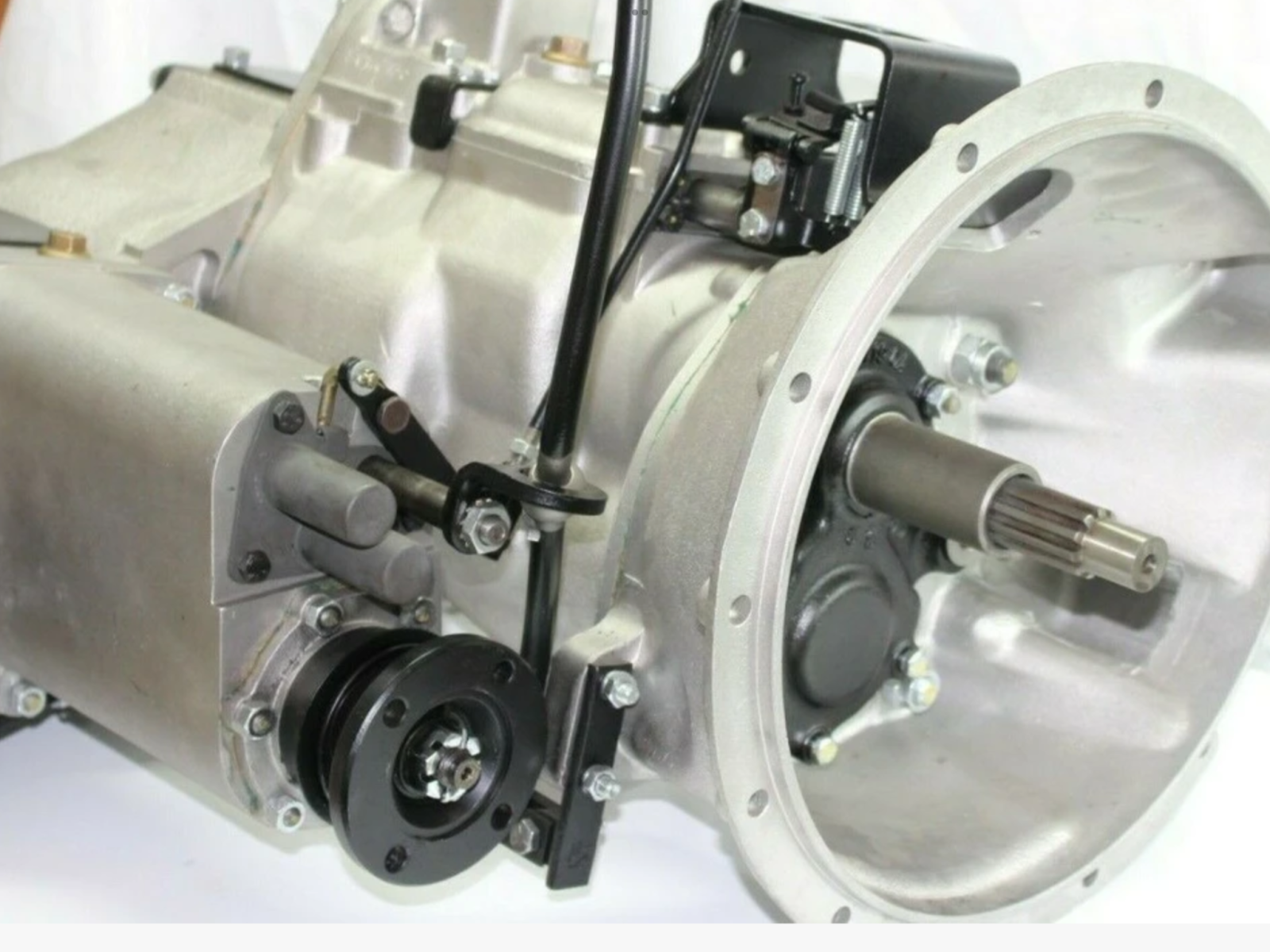

Courtesy of Blackburn

Thank you so much @steve2286w and @Wildefalcon i really appreciate the photos and info. Hopefully that will get me back on track
