Bagshot

Well-Known Member

• Sep 24, 2017

• #1

After my home made chain tensioner locking pin gave way, ( lesson to self, buy right tool next time..) My chain tensioner plunger fired off loose in the chain cover. I know I have to take the whole thing off now, but anyone have an idea of what bits I'm looking for now. Can't find a diagram anywhere and don't want to leave bits floating around in the depths..



Saint.V8

Dyed-in-the-wool 100% RR Junkie

Full Member

• Sep 24, 2017

• #2

Can we assume diesel? As the petrol doesnt have one!!

Model, year and engine is always a help!



Bagshot

Well-Known Member

• Sep 24, 2017

• #3

Saint.V8 said:

Can we assume diesel? As the petrol doesnt have one!!

Model, year and engine is always a help!

Click to expand...

My apologies big mistake on my part not saying..
Yes its 1997, BMW diesel manual..



Saint.V8

Dyed-in-the-wool 100% RR Junkie

Full Member

• Sep 24, 2017

• #4

Bagshot said:

My apologies big mistake on my part not saying..
Yes its 1997, BMW diesel manual..

Click to expand...

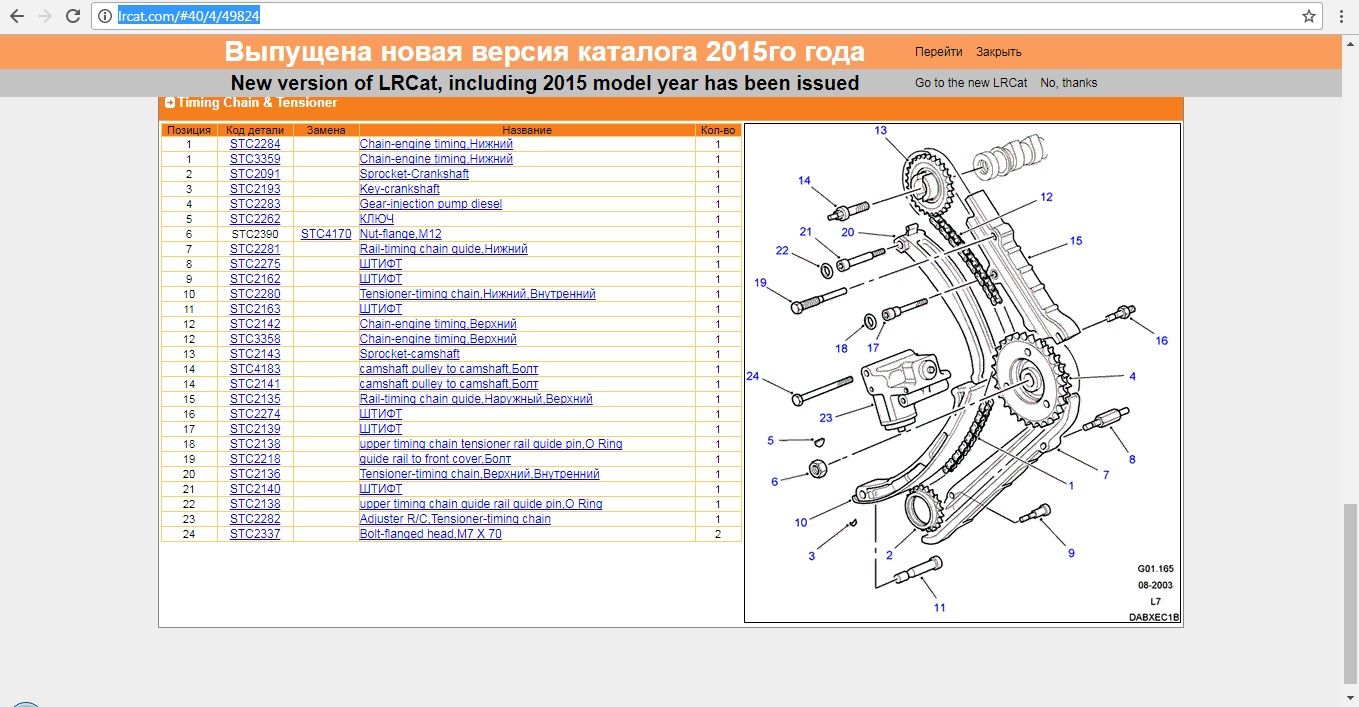

Does this help to clarify the components in the tensioner and chain assembly?



wammers

No longer with us, RIP

Donater

• Sep 24, 2017

• #5

I take it it is top tensioner that has slipped. Both top and bottom tensioners have a plunger and a spring in them. The diameter of the holding pin is critical.



Bagshot

Well-Known Member

• Sep 25, 2017

• #6

wammers said:

I take it it is top tensioner that has slipped. Both top and bottom tensioners have a plunger and a spring in them. The diameter of the holding pin is critical.

Click to expand...

Yes it was the top plunger that went, I have the 'piston' and can see the spring hanging, but wondered if there was anything else involved. The front cover is coming off anyway now and I will change the chains as well if I am that far in to it..
Lesson to anyone reading this if I can help someone out..BUY THE RIGHT TOOLS.. Save yourself the heartache here. B######s
