raywin
Well-Known Member
Mine let go last year, it sounds terrible as the outer rim of the pulley is no longer attached to the inner hub, the belt will be jumping about, I don't know if the outer pull can break free but it would be wise to use it as little as possible.
Have you worked out how you will get the centre bolt out? It's pretty dammed tight.
Have you worked out how you will get the centre bolt out? It's pretty dammed tight.
Landmark2
Well-Known Member
raywin
Well-Known Member
My impact gun did the trick but it's a powerful brute, had to take the radiator off the defender, put a bit of loctite on the threads and tightened it back up with the gun.
sierrafery
Well-Known Member
It can be bodged with glue https://www.aulro.com/afvb/discovery-2-a/260599-harmonic-balancer-temporary-repair.html to keep you on road untill the new one comes
Rushjob
Active Member
My kind of repair!
Thanks for that one.
Bobdog
Well-Known Member

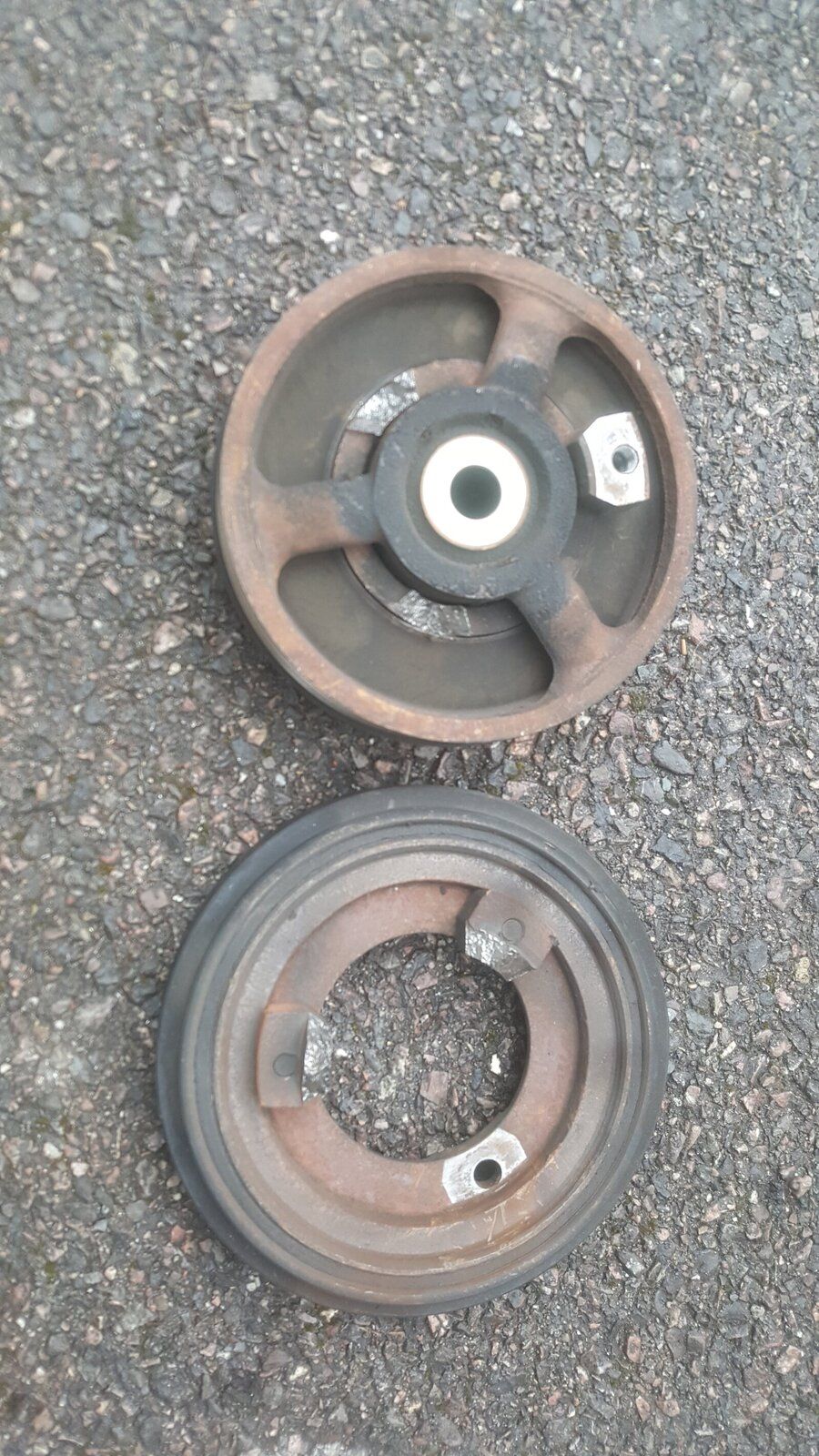

Just hope the glue holds... that harmonic balancer is a hefty weight, subjected to inertia forces when the engine starts and spins at the speed of the crankshaft. Mine was knocking a bit and here's what I found when I took it off-
Only held on by one bolt as two of the lugs had snapped. I would imagine that if the the last one had gone, that weight would have bounced around the engine bay, most likely making a fine mess of whatever it hit....
Rushjob
Active Member
Eeek! Looking at that, think we'll forget glue, welding may be a better short term answer I think!
Bobdog
Well-Known Member
Probably better. Tip- to undo the bolt, rest your breaker bar on the chassis (right hand side as you look from the front) and flick the engine on then off quickly. Just make sure you turn it off... quickly...
Doing it back up, use a cranked viscous fan spanner on one of the 3 pulley bolts, braced against the socket. Your scaffold bar will give you enough torque to tighten it enough. If you don't do it up tight enough, you will know because the bolt will come loose, undo itself, jam the fan and the steering will go heavy as the power steering pump stops due to the slipping belt. Guess how I know that....
