Hi, I’m a newcomer. 2005 LR3 HSE
I am chasing a fault on my Front Right control valve block. I am convinced it is a electrical wire issue somewhere but could use some experts input.

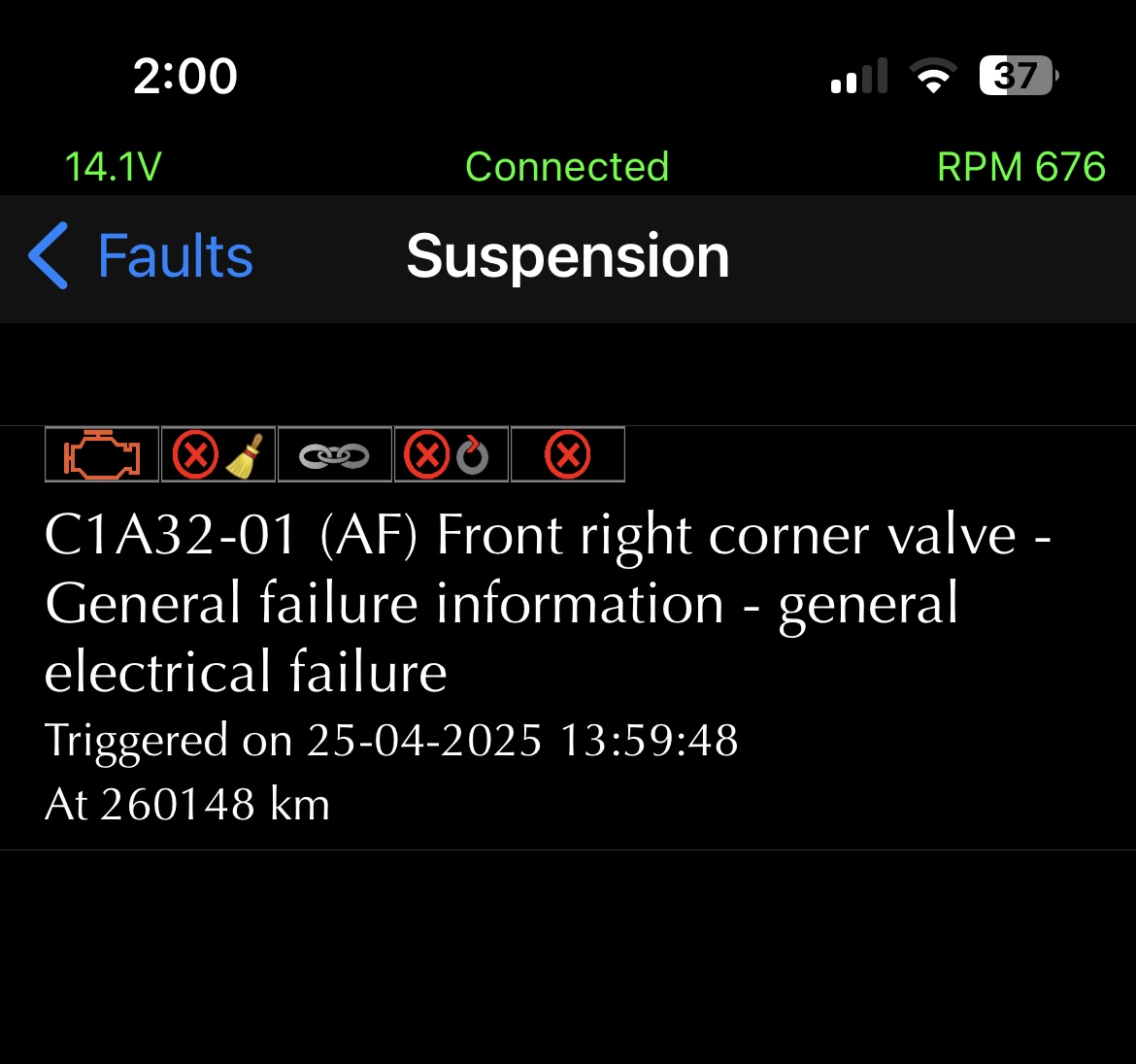

Fault C1A32-01
I have tested ohms from the connection in left side front wheel arch to the valve block and they seem fine. Connection C2527:C2528.
The fault happens when I try to raise or lower the suspension.
I have a GAP IID so I can use it to raise/lower and tried the following.
If I raise/lower the FL it responds and I can hear and feel a click in the valve block, presumably the solenoid.
If I raise/lower the FR no response, cannot hear or feel a solenoid engage.
If I raise/lower the front together it works, I presume it is balancing both sides.
Can anyone assist in pointing me in some direction please, I would greatly appreciate it
