andyfreelandy

Well-Known Member

• Today at 15:24

• #1

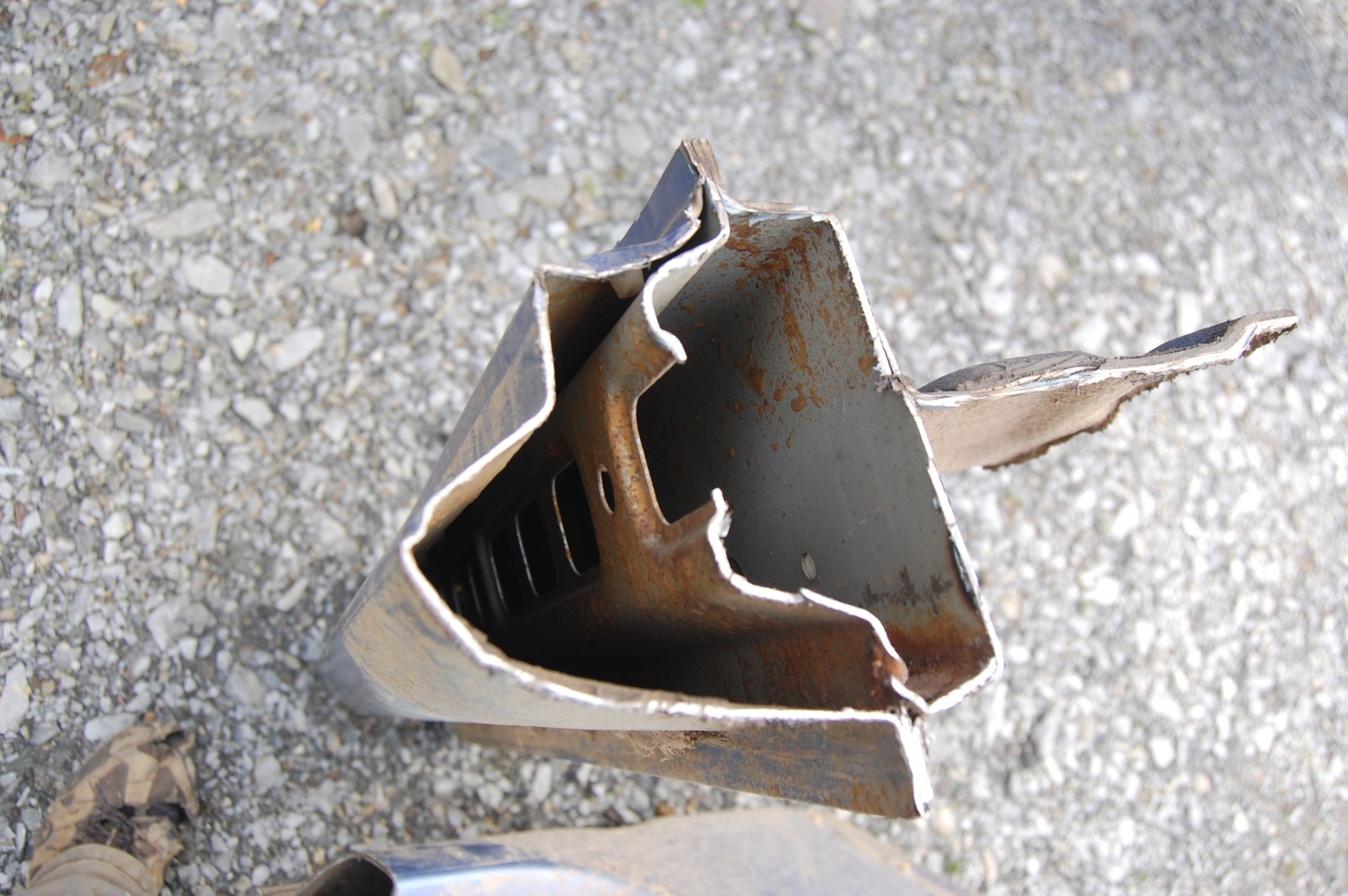

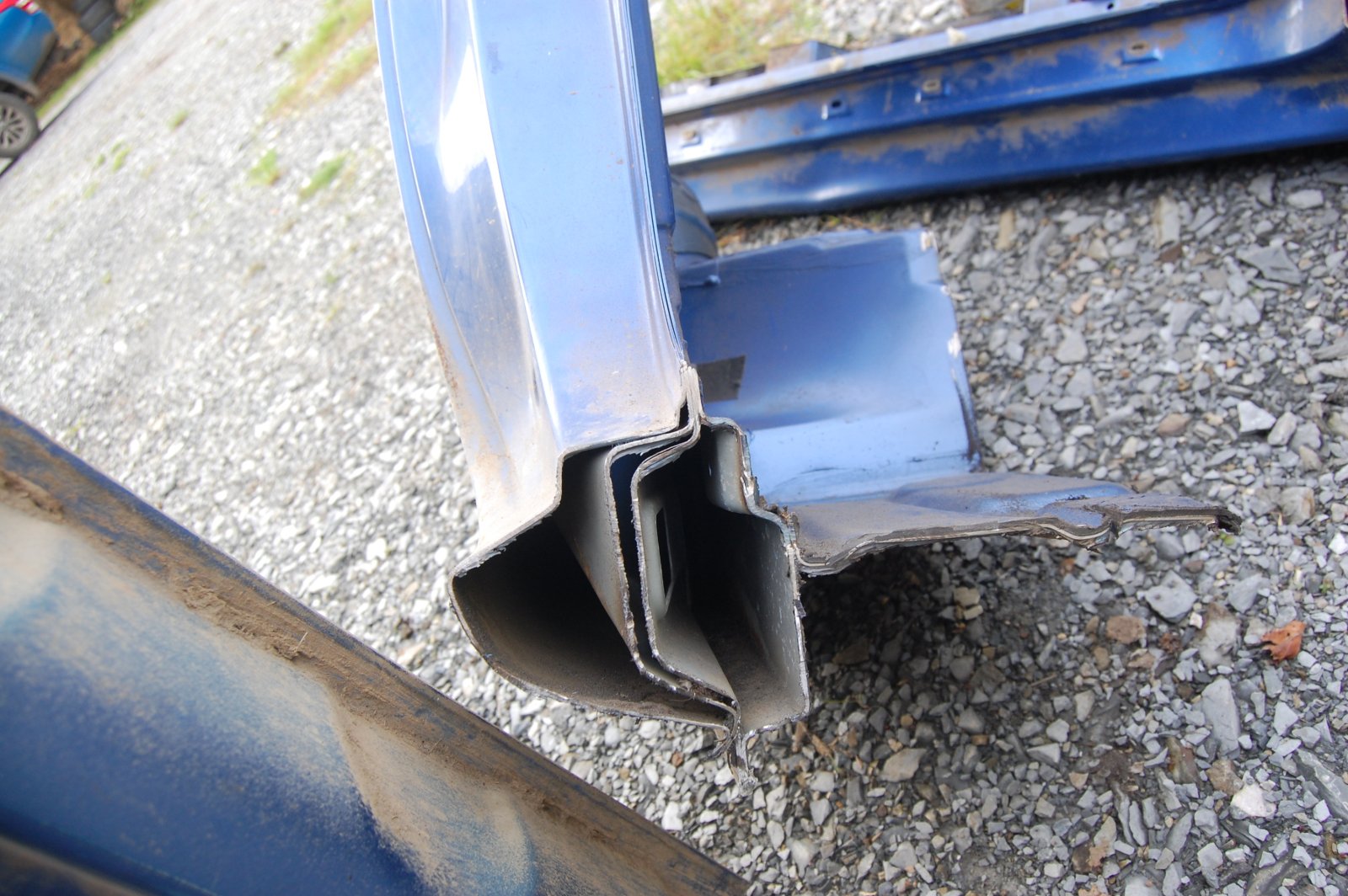

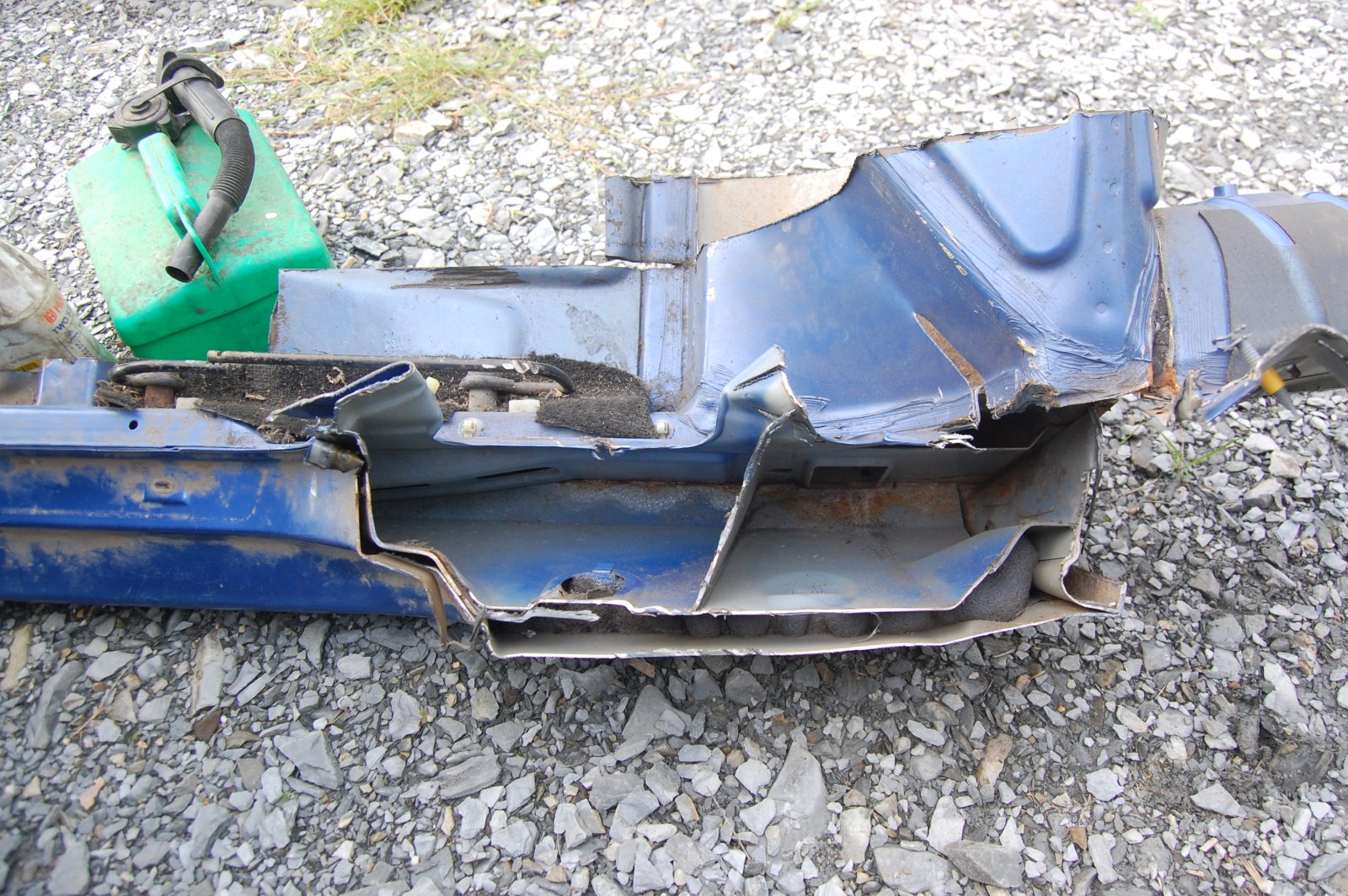

Found these. I took a 3 Door FL1 sill which I made some cross section photos from.

Maybe useful for rust proofing and wax injection.
Note that the grommet in the rear wheel arch covers the back end, the plastic door trim screw mounts get you into the outer sill and the cable loom mount holes get you into the inner sill.

@kernowsvenski please note and work out where to squirt wax for best effect !!

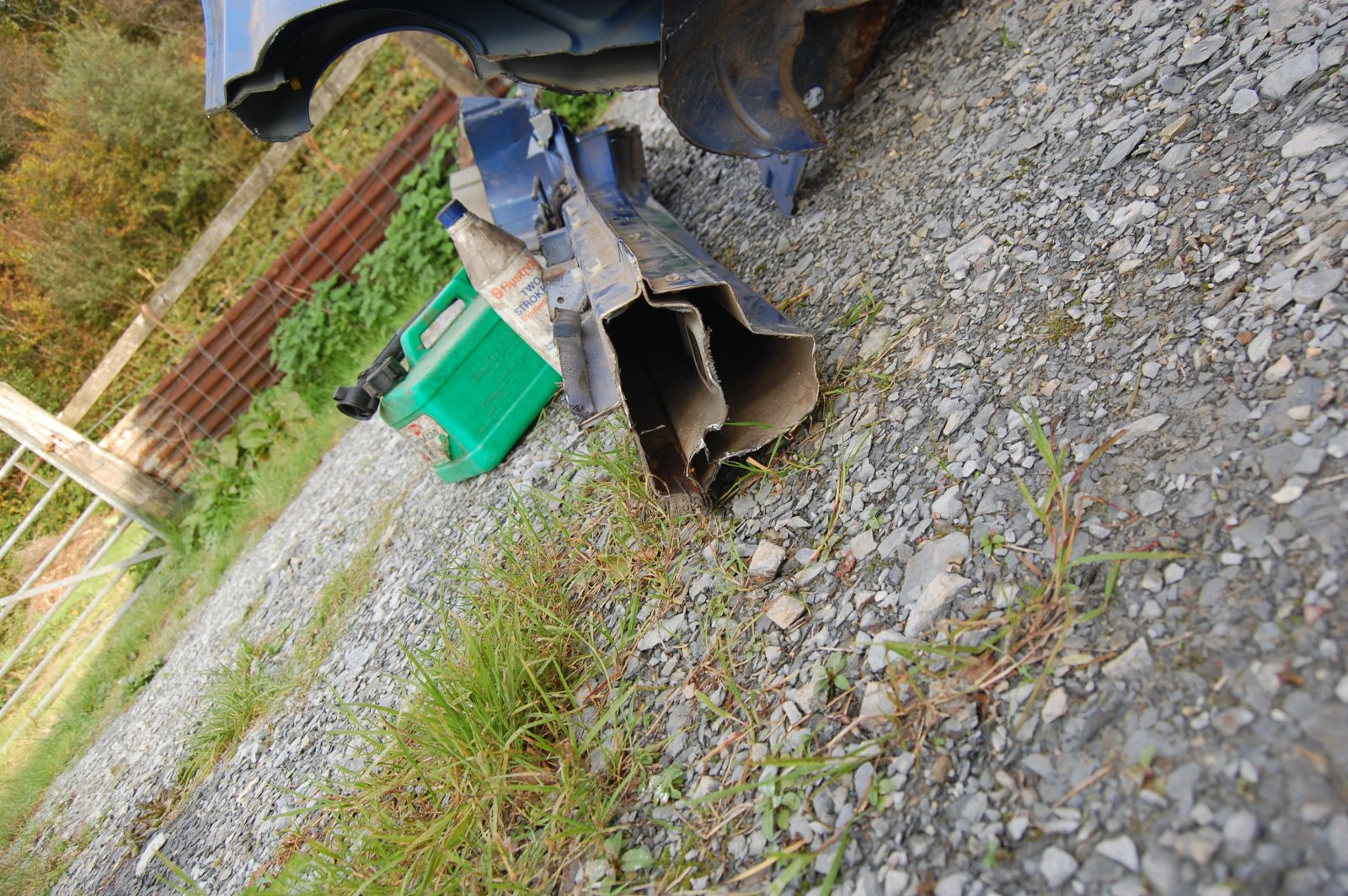

The fuel can is for the rather large disc cutter that made these photos possible !!



kernowsvenski

Well-Known Member

• Today at 18:06

• #2

Noted! Great pics. I'm just wondering if it's worth Lanogaurding the externals and getting something a bit thicker to inject into the sills?



andyfreelandy

Well-Known Member

• Today at 18:10

• #3

Maybe a Dinitrol product??



kernowsvenski

Well-Known Member

• Today at 18:21

• #4

andyfreelandy said:

Maybe a Dinitrol product??

Click to expand...

I'll scour the Tratter threads. Surely if anyone can recommend some wonder product for injecting into box sections for preventing corrosion it'll be them!



andyfreelandy

Well-Known Member

• Today at 19:21

• #5

Most need an air compressor and application gun. Don't have such things sadly. Unless we could borrow ??

Cavity wax seems the thing, but high pressure needed for the distances.
