J

johnnysensi

Active Member

• Nov 23, 2015

• #1

Previous owner fitted l322 upgrade rear lights and now I have no rear fog lights. ..has anyone got a colour coded wiring diagram or know where the loom is ..found one loom with no connector is this it??



J

johnnysensi

Active Member

• Nov 23, 2015

• #2

Man the photo didn't upload



Saint.V8

Dyed-in-the-wool 100% RR Junkie

Full Member

• Nov 23, 2015

• #3

Do you not have RAVE as it will all be in there (for the stock vehicle that is) God will only know what bodges were done by the PO, so wiring could be anyones guess.



J

johnnysensi

Active Member

• Nov 24, 2015

• #4

My rave hasn't got electric diagrams or schematic



MrGorsky

Well-Known Member

Full Member

• Nov 24, 2015

• #5

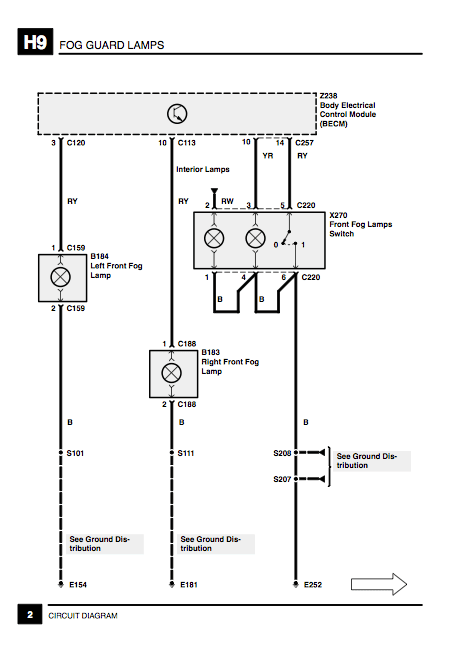

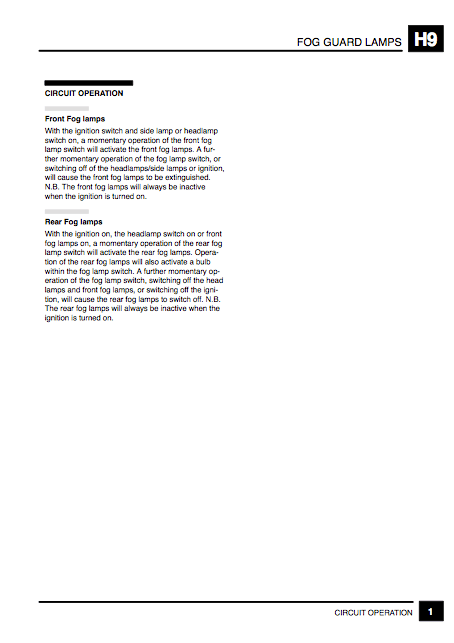

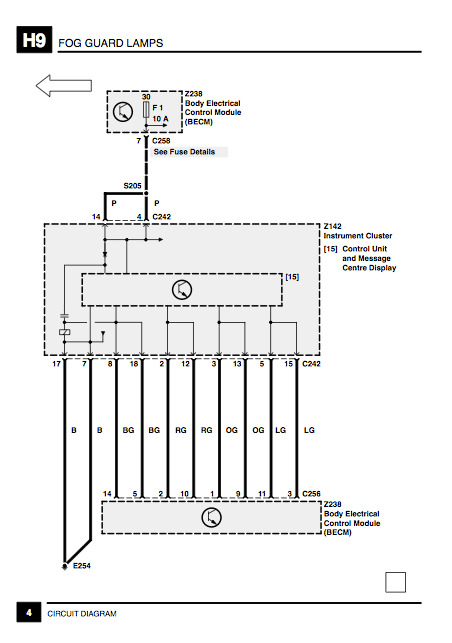

They should be in there somewhere... Anyhoo, here are the pages.

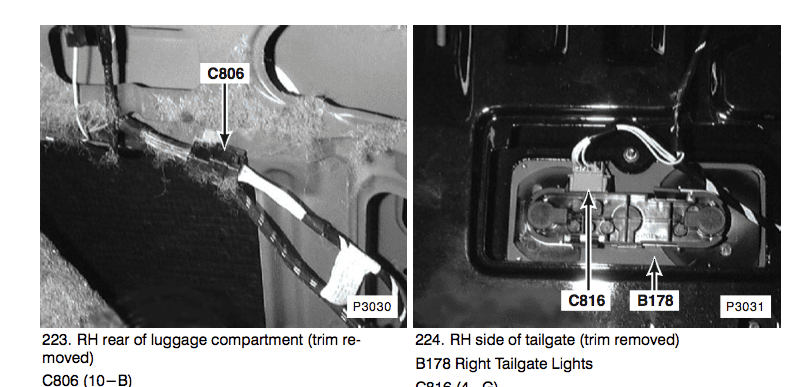

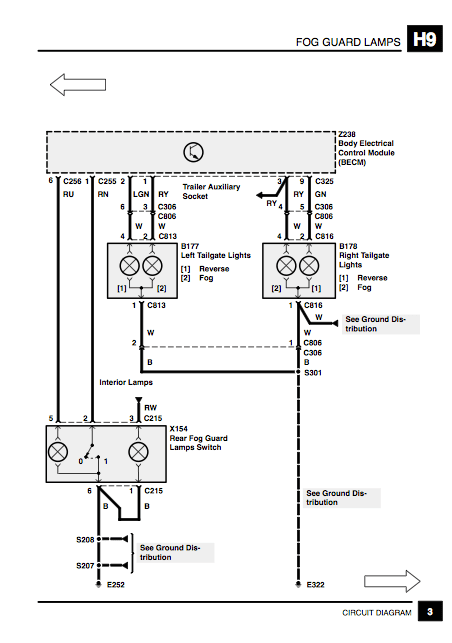

Wires from the BECM are (Left Fog Lamp) Red with Yellow trace, and (Right Fog Lamp) Green with Brown trace. These change to White and White at conector C806.



Last edited: Nov 24, 2015

wammers

No longer with us, RIP

Donater

• Nov 24, 2015

• #6

johnnysensi said:

My rave hasn't got electric diagrams or schematic

Click to expand...

All copies of RAVE should have "Electrical trouble shooting" section. That's where the circuit diagrams are.



J

johnnysensi

Active Member

• Nov 24, 2015

• #7

Not on my rave ...it missing files ie diagrams
..only need to find the live fog wire colour and I'm finished. ..I got red/white ..red/blue ...and comman earth but can't find the fog wire to lamp ..



J

johnnysensi

Active Member

• Nov 24, 2015

• #8

MrGorsky said:

They should be in there somewhere... Anyhoo, here are the pages.

View attachment 93254 View attachment 93255 View attachment 93256 View attachment 93257

Wires from the BECM are (Left Fog Lamp) Red with Yellow trace, and (Right Fog Lamp) Green with Brown trace. These change to White and White at conector C806.

View attachment 93258

Click to expand...

Thank you do much



wammers

No longer with us, RIP

Donater

• Nov 25, 2015

• #9

johnnysensi said:

Not on my rave ...it missing files ie diagrams
..only need to find the live fog wire colour and I'm finished. ..I got red/white ..red/blue ...and comman earth but can't find the fog wire to lamp ..

Click to expand...

Download a proper RAVE then.
http://www.landroverresource.com/ or http://www.cannell.co.uk/Manuals_Original.htm



J

johnnysensi

Active Member

• Nov 25, 2015

• #10

My God. ..my fog lights failed..the fog lights illuminated and fog lights button was on as well...but dash says Lh fog bulb gone ...and he failed it ...if he weren't old ,I'd have offered him a fist in the throat and gone and jumped on his toyota



domino

Well-Known Member

• Nov 25, 2015

• #11

Seems like a good guy..and he rightly failed it.



wammers

No longer with us, RIP

Donater

• Nov 25, 2015

• #12

johnnysensi said:

My God. ..my fog lights failed..the fog lights illuminated and fog lights button was on as well...but dash says Lh fog bulb gone ...and he failed it ...if he weren't old ,I'd have offered him a fist in the throat and gone and jumped on his toyota

Click to expand...

Bit of bad luck you are having. Get it sorted.



J

johnnysensi

Active Member

• Nov 26, 2015

• #13

domino said:

Seems like a good guy..and he rightly failed it.

Click to expand...

Failed a working fog light ..this is no Lh fog light as it has a l322 conversion with fog light attached to bumper ..switch illuminated. .to say fogs ..fog light is on ..
