micknkatenki

Active Member

• Dec 20, 2018

• #1

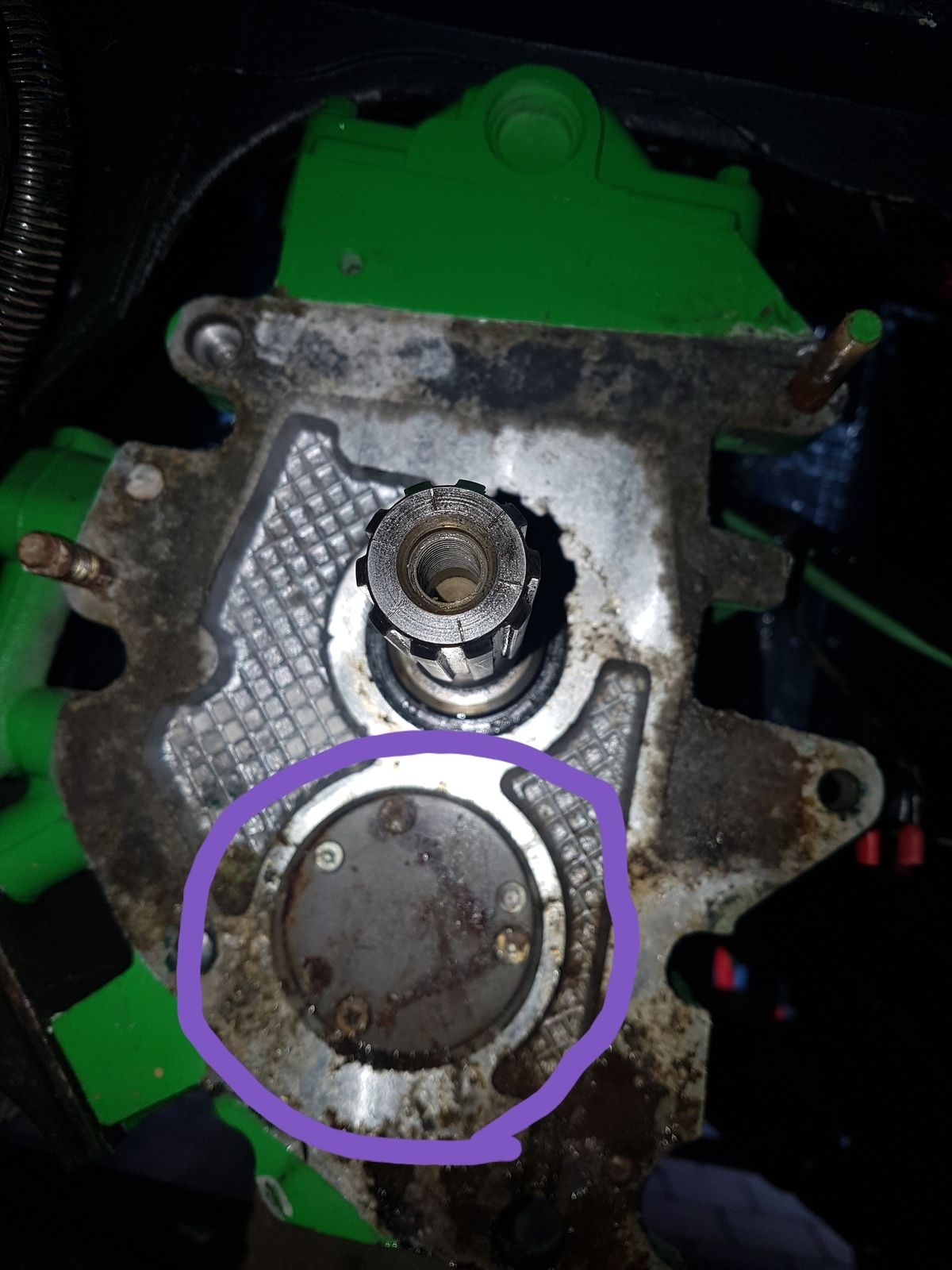

Could anyone tell me if there is a seal or O ring behind the round plate under the output shaft ??
Thanks.



raywin

Well-Known Member

• Dec 20, 2018

• #2

Not had mine apart (yet) but I think this may help you
http://www.vizator.ru/gearbox-clutch-transfer-gearbox/r380-gearbox-overhaul-english-manual

Have a look in here there is some very helpfull stuff on here which can be found with a search

https://www.landyzone.co.uk/land-rover/lt230-rebuild.247618/



Last edited: Dec 20, 2018

tottot

Well-Known Member

• Dec 20, 2018

• #3

Has to be one somewhere or the oil would leak out,looks like an O ring in the round plate.



raywin

Well-Known Member

• Dec 20, 2018

• #4

tottot said:

Has to be one somewhere or the oil would leak out,looks like an O ring in the round plate.

Click to expand...

Im prety sure it's the oil pump, but I haven't had mine apart so may be best to get input from someone who knows it well.



Flossie

Well-Known Member

• Dec 20, 2018

• #5

A man who prolly knows it well is @jamesmartin



jamesmartin

Well-Known Member

• Dec 20, 2018

• #6

there is a oring sealing the oil pump in but they generally only leak if theres another issue like a worn rear bearing or excessive end float on lay shaft



micknkatenki

Active Member

• Dec 20, 2018

• #7

jamesmartin said:

there is a oring sealing the oil pump in but they generally only leak if theres another issue like a worn rear bearing or excessive end float on lay shaft

Click to expand...

Can't feel any play at all, it just looks iffy with the crap around it, can't really tell where the leak was coming from and don't want to do the job twice.



jamesmartin

Well-Known Member

• Dec 20, 2018

• #8

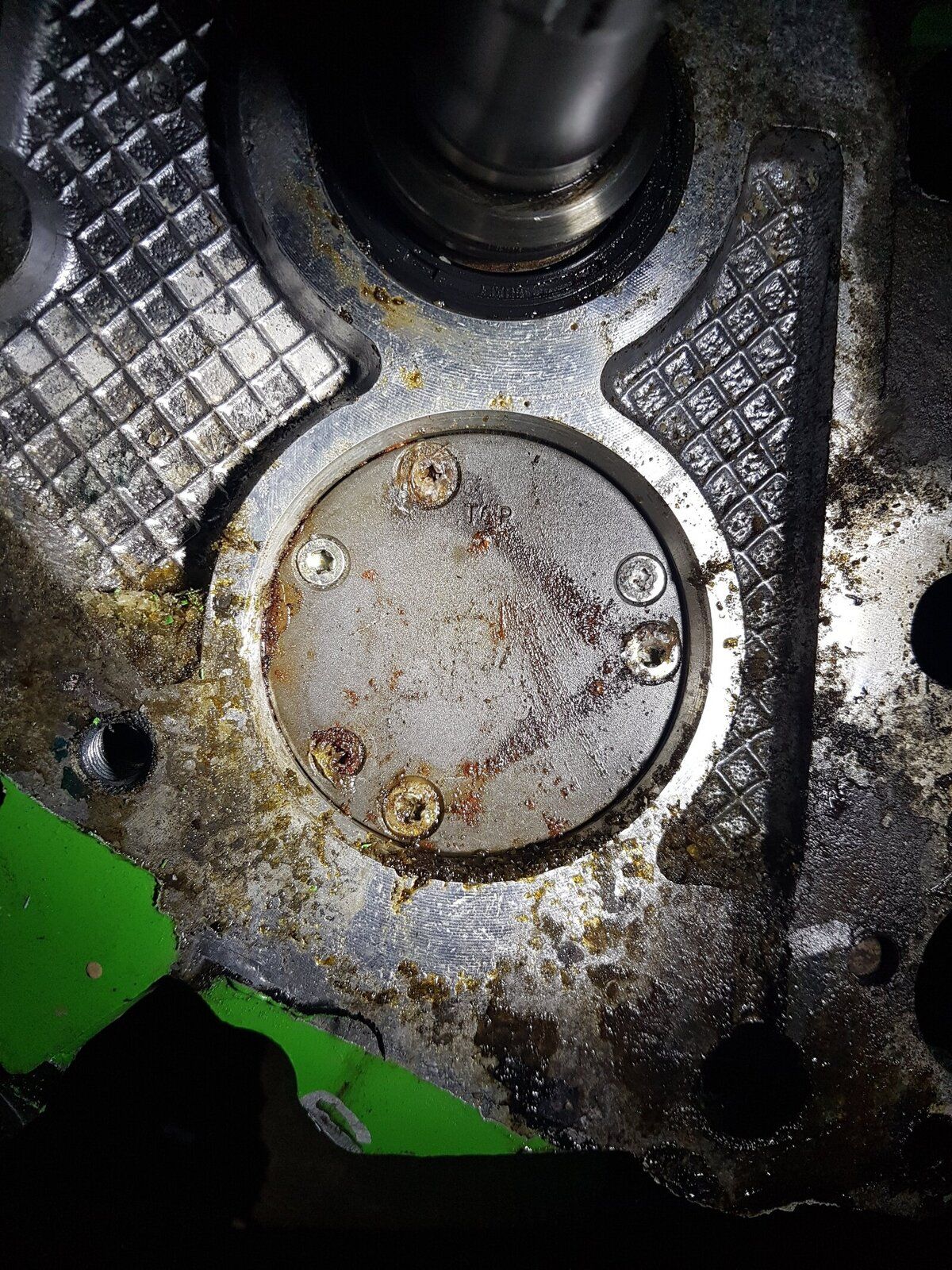

you wont be able to feel any in layshaft only the main,seems wet above indicating rear seal might be leaking, if you want to remove pump just unscrew the 3 larger headed screws



micknkatenki

Active Member

• Dec 20, 2018

• #9

jamesmartin said:

you wont be able to feel any in layshaft only the main,seems wet above indicating rear seal might be leaking, if you want to remove pump just unscrew the 3 larger headed
screws

Click to expand...

When I took the transfer box off the input seal had fell out which was odd, so couldn't pin point where original leak was from, is the oil pump easy to get out ??
From searching some mention it pushes out from the inside !!! Thanks.



jamesmartin

Well-Known Member

• Dec 20, 2018

• #10

micknkatenki said:

When I took the transfer box off the input seal had fell out which was odd, so couldn't pin point where original leak was from, is the oil pump easy to get out ??
From searching some mention it pushes out from the inside !!! Thanks.

Click to expand...

it can be fairly stuck , once the screws are removed use 2 suitable sized pin punches to place in 2 holes and use a screw driver or lever between them to twist it out



micknkatenki

Active Member

• Dec 20, 2018

• #11

jamesmartin said:

it can be fairly stuck , once the screws are removed use 2 suitable sized pin punches to place in 2 holes and use a screw driver or lever between them to twist it out

Click to expand...

Perfect thanks, off to Rimmers tomorrow for more parts...... thanks James.
